8i7x

Crystal structure of human ClpP in complex with ZG36

Method: X-RAY DIFFRACTION D_max: 111.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i7x
沉积日期 deposition_date	2023-02-02
结构标题 title	Crystal structure of human ClpP in complex with ZG36
关键词 keywords	mitochondrial protease, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

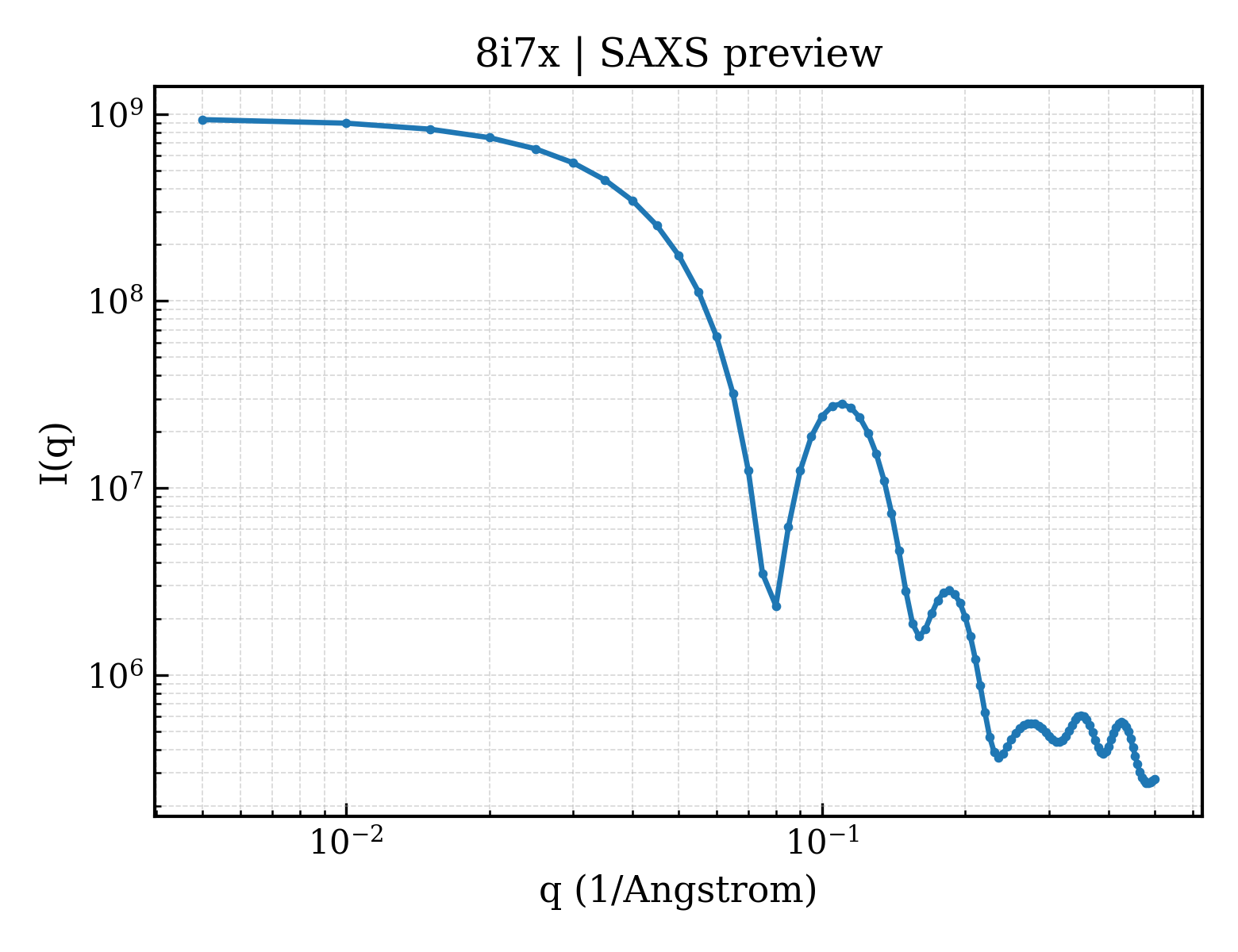

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.08 Å
回转半径 Rg (电子) rg_electron	41.15 Å
零角强度 I(0) i0	947041000.00
分子量 molecular_weight	260160.0 kDa
排除体积 excluded_volume	328570 Å³
包络体积 envelope_volume	453700 Å³
水化壳体积 shell_volume	88573 Å³
包络直径 envelope_diameter	117.2 Å
壳层 Rg shell_rg	50.92 Å
包络 Rg envelope_rg	38.36 Å
形状 Rg shape_rg	41.17 Å
总 Rg total_rg	41.59 Å
总原子数 total_atoms	18135
残基数 n_residues	2270
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

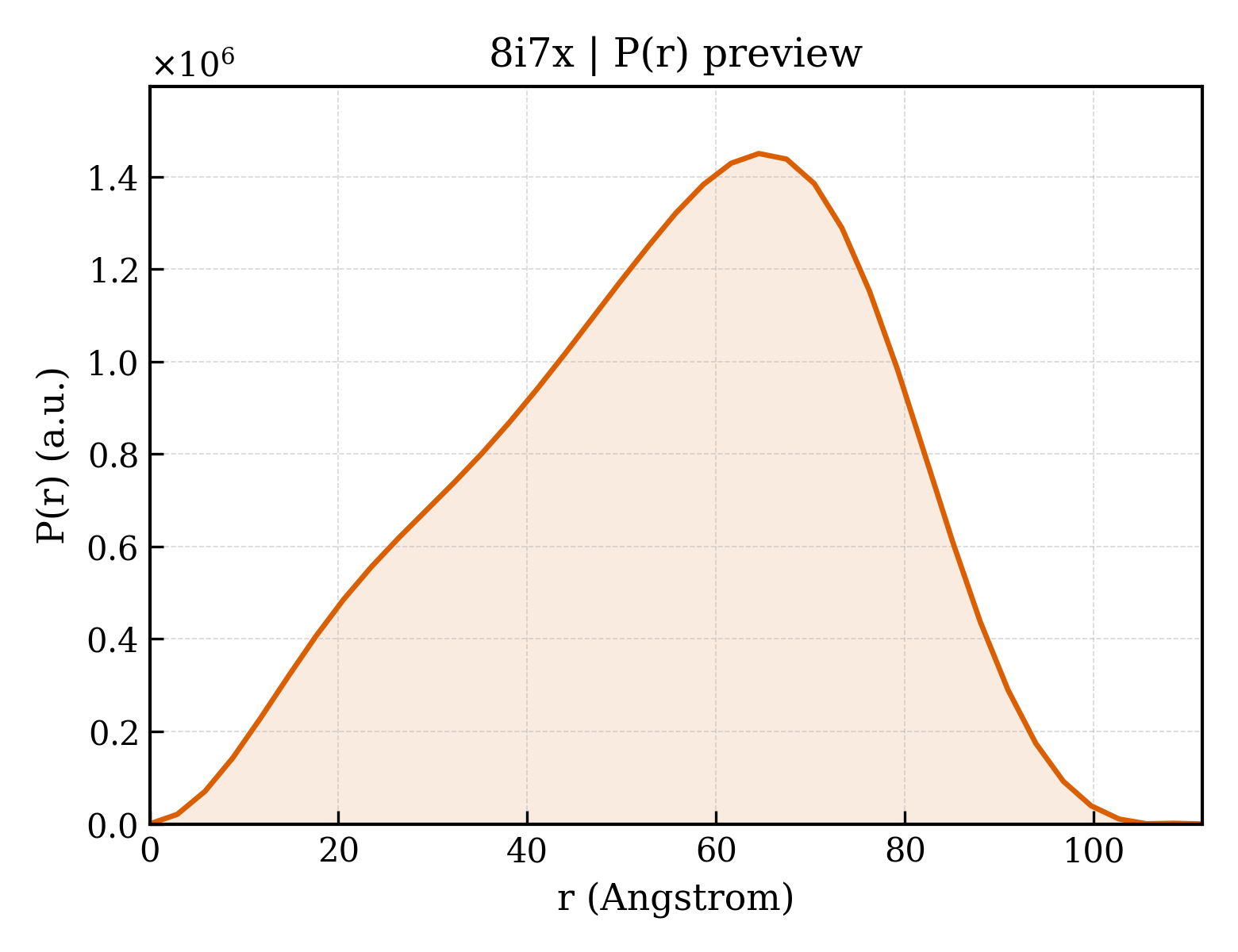

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.5 Å
Rg (实空间) rg_real	41.66 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	9.4700e+08
I(0) 误差 (实空间) i0_real_error	1.2590e+07
Rg (倒空间) rg_reciprocal	42.08 Å
I(0) (倒空间) i0_reciprocal	947500000.0000
解质量估计 total_estimate	0.8538
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	64.5 Å
偏度 Skewness skewness	-0.289
峰度 Kurtosis kurtosis	-0.622
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	178200000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.398

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ATP-dependent Clp protease proteolytic subunit, mitochondrial
分子量 formula_weight	24189.9 kDa
EC 编号 ec_number	3.4.21.92
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
原子数 atom_count	18730

PLIPIVVEQTGRGERAYDIYSRLLRERIVCVMGPIDDSVASLVIAQLLFLQSESNKKPIHMYINSPGGVVTAGLAIYDTMQYILNPICTWCVGQAASMGSLLLAAGTPGMRHSLPNSRIMIHQPSGGARGQATDIAIQAEEIMKLKKQLYNIYAKHTKQSLQVIESAMERDRYMSPMEAQEFGILDKVLVHPPQDGEDEPTLVQKEPVEAAPAAEPVPAST

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(6S,9aS)-N-[(4-bromophenyl)methyl]-6-[(2S)-butan-2-yl]-8-[(4-methoxynaphthalen-1-yl)methyl]-4,7-bis(oxidanylidene)-3,6,9,9a-tetrahydro-2H-pyrazino[1,2-a]pyrimidine-1-carboxamide ;
分子量 formula_weight	607.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	595

▼

6. 折叠分类 (SCOP + CATH) 14 domains

CATH v4.4 (14 domains)

结构域编号 domain_id	8i7xA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xM01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	8i7xN01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	113.240 Å
晶胞边长 b length_b	96.080 Å
晶胞边长 c length_c	127.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	92.72 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	28

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.990 Å
最低分辨率 resolution_low	30.850 Å
R 因子 r_factor	0.2325
R_work r_work	0.2310
R_free r_free	0.2597
