8igu

Hexameric Ring Complex of Engineered V1-ATPase: A3(De)3_empty

Method: X-RAY DIFFRACTION D_max: 140.3 Å Quality: GOOD

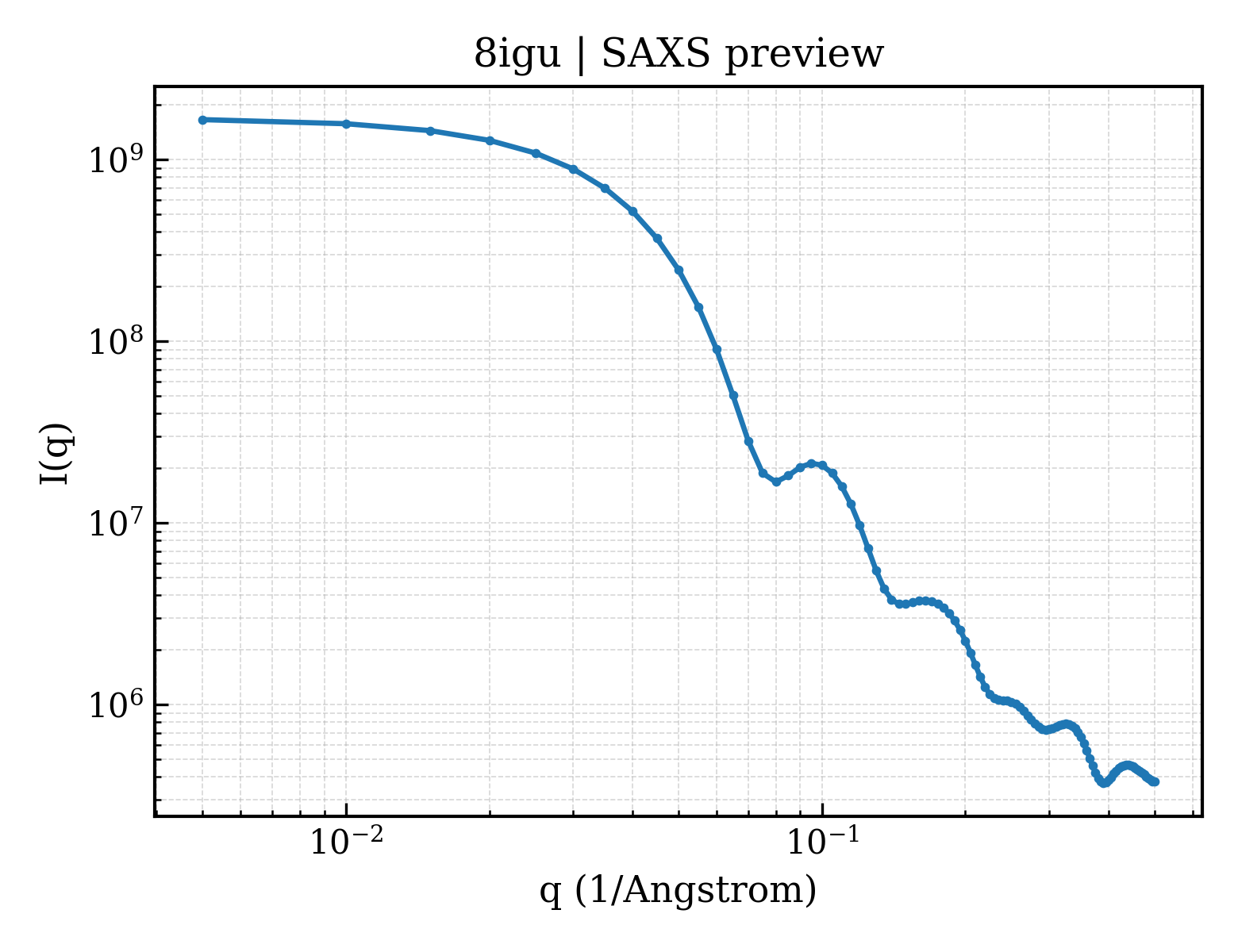

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8igu
沉积日期 deposition_date	2023-02-21
结构标题 title	Hexameric Ring Complex of Engineered V1-ATPase: A3(De)3_empty
关键词 keywords	Computational Design, Rotary Molecular Motor, Complex, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.77 Å
回转半径 Rg (电子) rg_electron	44.94 Å
零角强度 I(0) i0	1687850000.00
分子量 molecular_weight	341990.0 kDa
排除体积 excluded_volume	428270 Å³
包络体积 envelope_volume	588510 Å³
水化壳体积 shell_volume	102390 Å³
包络直径 envelope_diameter	139.6 Å
壳层 Rg shell_rg	55.14 Å
包络 Rg envelope_rg	43.91 Å
形状 Rg shape_rg	44.94 Å
总 Rg total_rg	45.32 Å
总原子数 total_atoms	24028
残基数 n_residues	3082
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.3 Å
Rg (实空间) rg_real	45.40 Å
Rg 误差 (实空间) rg_real_error	0.77 Å
I(0) (实空间) i0_real	1.6880e+09
I(0) 误差 (实空间) i0_real_error	3.0310e+07
Rg (倒空间) rg_reciprocal	45.77 Å
I(0) (倒空间) i0_reciprocal	1689000000.0000
解质量估计 total_estimate	0.8225
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	61.9 Å
偏度 Skewness skewness	0.021
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	294900000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	V-type sodium ATPase catalytic subunit A
分子量 formula_weight	66059.5 kDa
EC 编号 ec_number	7.2.2.1
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	24292

SSGMQIGKIIKVSGPLVMAENMSEASIQDMCLVGDLGVIGEIIEMRQDVASIQVYEETSGIGPGEPVRSTGEALSVELGPGIISQMFDGIQRPLDTFMEVTQSNFLGRGVQLPALDHEKQWWFEATIEEGTEVSAGDIIGYVDETKIIQHKIMVPNGIKGTVQKIESGSFTIDDPICVIETEQGLKELTMMQKWPVRRGRPIKQKLNPDVPMITGQRVIDTFFPVTKGGAAAVPGPFGAGKTVVQHQIAKWSDVDLVVYVGCGERGNEMTDVVNEFPELIDPNTGESLMERTVLIANTSNMPVAAREASIYTGITIAEYFRDMGYDVAIMADSTSRWAEALREMSGRLEEMPGDEGYPAYLGSRLAEYYERSGRVIALGSDQREGSITAISAVSPSGGDISEPVTQNTLRVVKVFWGLDSSLAQKRHFPSINWIQSYSLYSTEVGRYMDQILQQDWSDMVTEGMRILQEEEQLNEIVRLVGIDSLSDNDRLTLEVAKSIREDYLQQNAFDDVDTFTSREKQFNMLKVILTFGKEARKALSLGAYFNEIMEGTVAVRERISRSKYIPEEELAKISSINEEIKETIQLIVSEGGMTDD

来源 Source

来源生物 organism	Enterococcus hirae ATCC 9790
NCBI 分类编号 ncbi_taxonomy_id	768486
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	V-type sodium ATPase subunit B
分子量 formula_weight	51017.2 kDa
突变 mutation	S151G, G152P, S153P, L155A, P156G, G157K, K158S, E159A, T248E, Q339S
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MIKEYRTIKEVVGPLMAVEKVSGVKYEELIEVRMQNGEIRRGQVLEVQEDKAMVQIFEGTSGINLKNSSVRFLGHPLQLGVSEDMIGRVFDGLGRPKDNGPEILPEKYLDINGEVINPIARDYPDEFIQTGISAIDHLNTLVRGQKLPVFGPPGAGKSALAAQIARQATVLDSSDDFAVVFAAIGITFEEAEFFMEDFRQTGAIDRSVMFMNLANDPAIERIATPRMALTAAEYLAYEKGMHVLVIMEDMTNYAEALREISAARREVPGRRGYPGYLYTNLATLFERAGRIRGLKGSVTQIPILTMPEDDKTHPIPDLTGYITEGQIILTRELYKSGISPPIDVLPSLSRLKDKGTGAGKTREDHAATMNQLFAAYAQGKQAKELAVVLGESALSDIDKIYAKFAERFENEYVNQGFYTNRTITETLDLGWELLAMLPRTELKRIKDDLLDKYLPEGK

来源 Source

来源生物 organism	Enterococcus hirae ATCC 9790
NCBI 分类编号 ncbi_taxonomy_id	768486
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	253

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	122.449 Å
晶胞边长 b length_b	122.653 Å
晶胞边长 c length_c	128.704 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.74 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	2.770 Å
最低分辨率 resolution_low	44.640 Å
R 因子 r_factor	0.2187
R_work r_work	0.2165
R_free r_free	0.2624
