SAXSdb — 8jq1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulinoma-associated protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 257–320	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition：2.0 % [U-13C; U-15N] ribonuclease, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8JQ1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LV2 Solution NMR structure of C2H2-type Zinc-fingers 4 and 5 from human Insulinoma-associated protein 1 (fragment 424-497), Northeast Structural Genomics Consortium Target HR7614B Deposited 2012-06-27	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 424–497（74 aa） Fragment：C2H2-type zinc fingers 4 and 5	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Pressure ambient NMR sample composition 0.69 mM [U-100% 13C; U-100% 15N] HR7614B.021, 100 mM NaCl, 5 mM DTT, 0.02 % NaN3, 10 mM Tris-HCl pH 7.5, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.25 mM [U-5% 13C; U-100% 15N] HR7614B.023, 100 mM NaCl, 5 mM DTT, 0.02 % NaN3, 10 mM Tris-HCl pH 7.5, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.25 mM [U-5% 13C; U-100% 15N] HR7614B.023, 100 mM NaCl, 5 mM DTT, 0.02 % NaN3, 10 mM Tris-HCl pH 7.5, 100% D2O \| 100% D2O	Resolution not provided
3ZMS LSD1-CoREST in complex with INSM1 peptide Deposited 2013-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–510（509 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.96 Å R-free 0.227
8JPY Solution NMR Structure of Zinc-fingers 1 and 2 (fragment 257-320) from human Insulinoma-associated protein 1(INSM1) Deposited 2023-06-13	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 257–320（64 aa）	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 0.69 mM [U-100% 13C; U-100% 15N] ZF3 protein, 0.69 mM [U-100% 13C; U-100% 15N] ZF3 protein, 0.69 mM [U-100% 13C; U-100% 15N] ZF3 protein, 0.69 mM [U-100% 13C; U-100% 15N] ZF3 protein, 0.69 mM [U-100% 13C; U-100% 15N] ZF3 protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INSM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–64； UniProt 257–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jq1
Deposition date deposition_date	2023-06-13
最后修订 last_revision	2024-06-19
Structure title title	Solution NMR Structure of zinc fingers 1-2 (fragment 257-320) from human insulinoma-associated protein 1(INSM1)
Keywords keywords	Zinc fingers, Long flexible linker, C3H/C2H2-type Zinc-fingers, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.94 Å
Radius of gyration Rg (electron density) rg_electron	21.38 Å
Forward intensity I(0) i0	372028000.00
Molecular weight molecular_weight	148190.0 kDa
Excluded volume excluded_volume	181020 Å³
Envelope volume envelope_volume	103600 Å³
Hydration-shell volume shell_volume	32241 Å³
Envelope diameter envelope_diameter	90.3 Å
Shell Rg shell_rg	33.81 Å
Envelope Rg envelope_rg	26.92 Å
Shape Rg shape_rg	21.44 Å
Total Rg total_rg	21.89 Å
Total atoms total_atoms	20200
Residues n_residues	1280
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.2 Å
Rg (real space) rg_real	22.10 Å
Rg uncertainty (real space) rg_real_error	0.92 Å
I(0) (real space) i0_real	3.7200e+08
I(0) uncertainty (real space) i0_real_error	5.8280e+06
Rg (reciprocal space) rg_reciprocal	22.07 Å
I(0) (reciprocal space) i0_reciprocal	372000000.0000
Solution quality estimate total_estimate	0.8057
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.9 Å
Skewness Skewness skewness	0.343
Kurtosis Kurtosis kurtosis	-0.335
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	187200.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.663; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.497; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	Insulinoma-associated protein 1
Molecular weight formula_weight	7287.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	20200

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

fit	/app/data/saxs_computation/jq/8jq1/8jq1.fit
pddf	/app/data/pr_computation/jq/8jq1/8jq1.pr.out
profile	/app/data/saxs_computation/jq/8jq1/8jq1.dat

Solution NMR Structure of zinc fingers 1-2 (fragment 257-320) from human insulinoma-associated protein 1(INSM1)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulinoma-associated protein 1

State in the Current Structure

Other States of the Same Protein in the Database

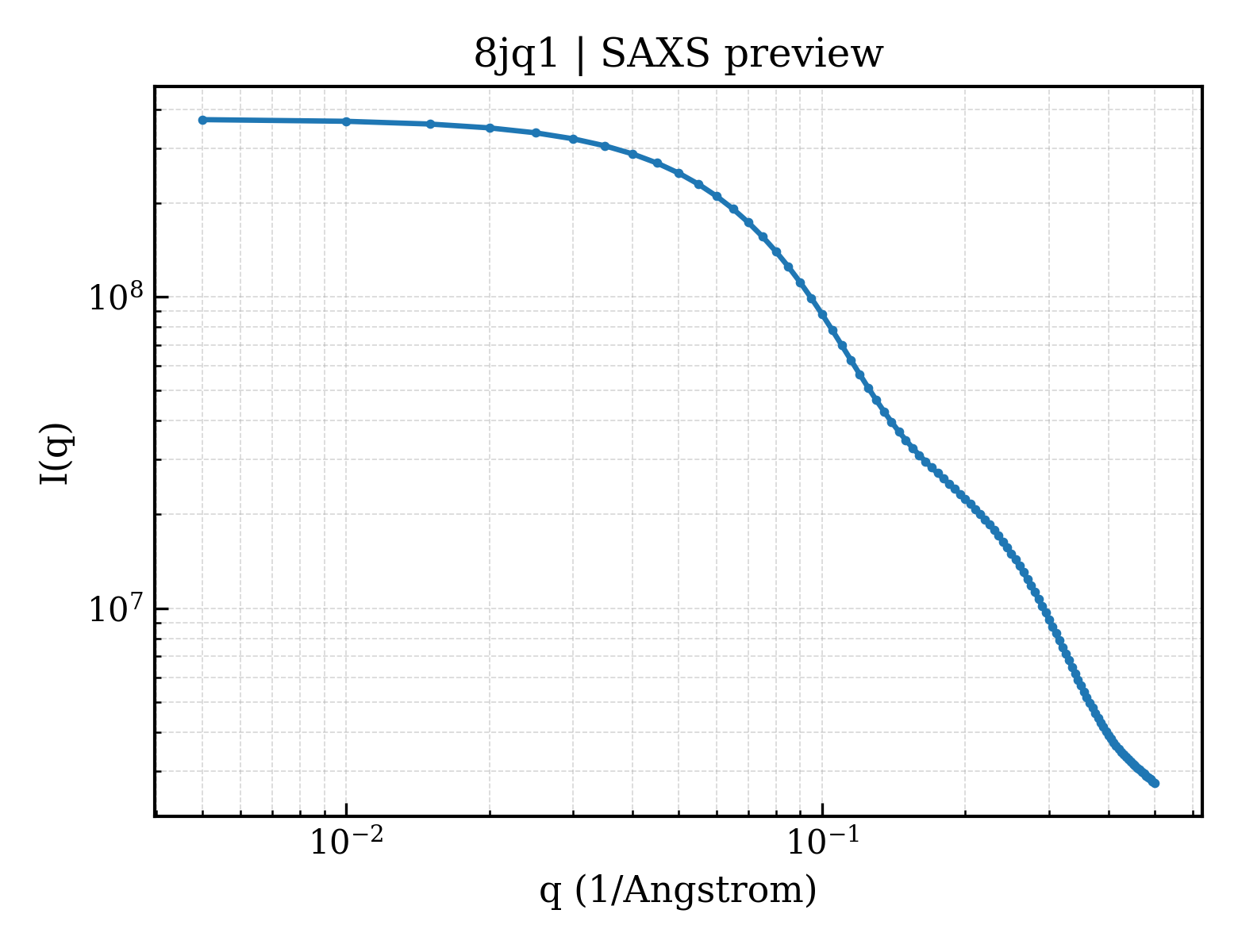

SAXS scattering curve SAXS Profile

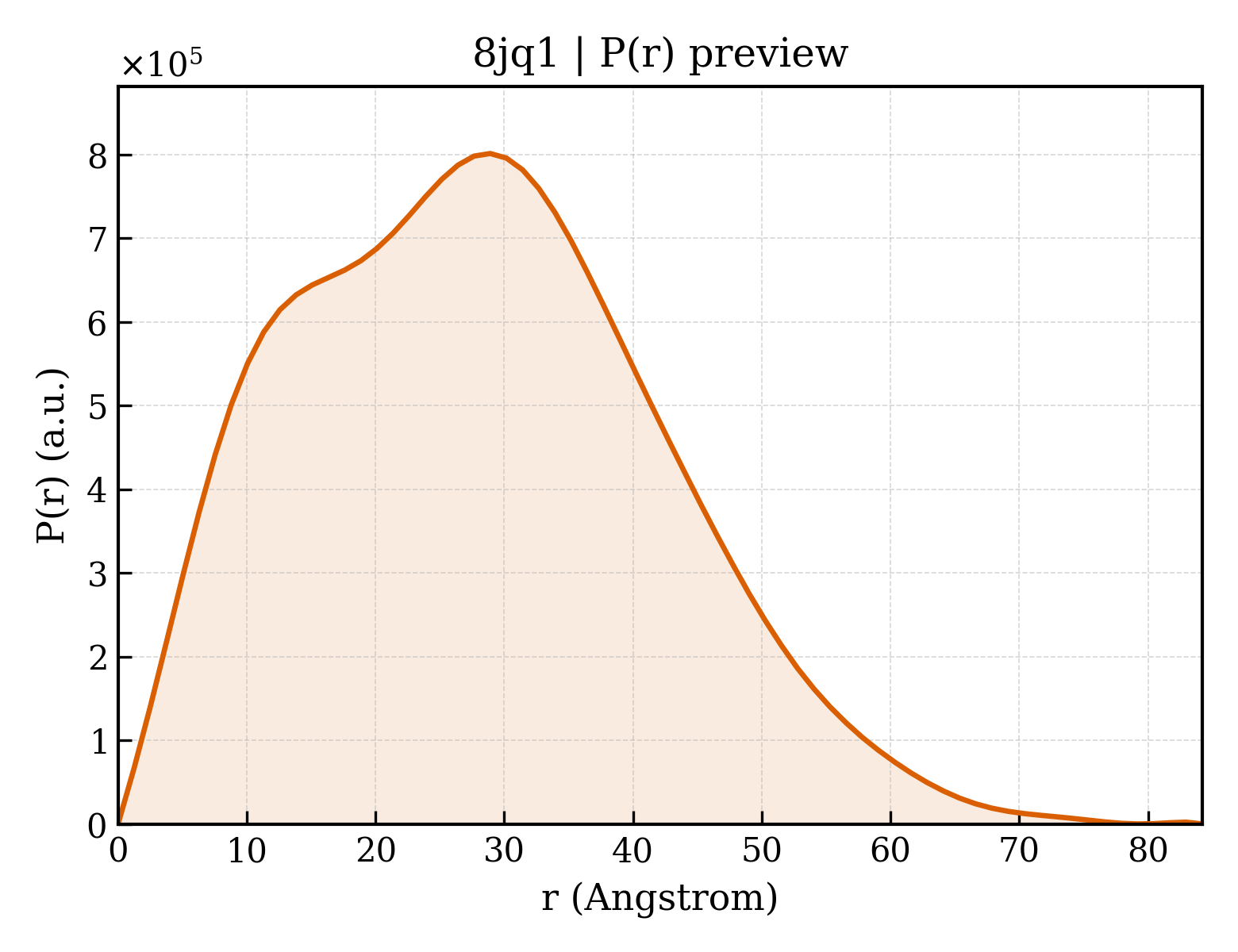

P(r) Distance Distribution P(r) Distribution
