Serial femtosecond crystallography structure of photo dissociated CO from ba3- type cytochrome c oxidase determined by extrapolation method

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome c oxidase subunit 1

Thermus thermophilus HB8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 2 × 1 （Q5SJ80） Cytochrome c oxidase polypeptide 2A × 1 （P82543） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 15 CARBON MONOXIDE × 1 DINUCLEAR COPPER ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX1_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–569； UniProt 2–562

Cytochrome c oxidase subunit 2

Thermus thermophilus HB8

UniProt Q5SJ80

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 1 × 1 （Q5SJ79） Cytochrome c oxidase polypeptide 2A × 1 （P82543） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 15 CARBON MONOXIDE × 1 DINUCLEAR COPPER ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX2_THET8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–168； UniProt 1–168

Cytochrome c oxidase polypeptide 2A

Thermus thermophilus HB8

UniProt P82543

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Cytochrome c oxidase subunit 1 × 1 （Q5SJ79） Cytochrome c oxidase subunit 2 × 1 （Q5SJ80） COPPER (II) ION × 1 PROTOPORPHYRIN IX CONTAINING FE × 1 HEME-AS × 1 (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 15 CARBON MONOXIDE × 1 DINUCLEAR COPPER ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COXA_THET8
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–34； UniProt 1–34

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8k6y
Deposition date deposition_date	2023-07-25
Structure title title	Serial femtosecond crystallography structure of photo dissociated CO from ba3- type cytochrome c oxidase determined by extrapolation method
Keywords keywords	;membrane protein, bioenergetics of cells, structural dynamics, serial femtosecond crystallography, time-resolved studies, ELECTRON TRANSPORT ;; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8k6y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

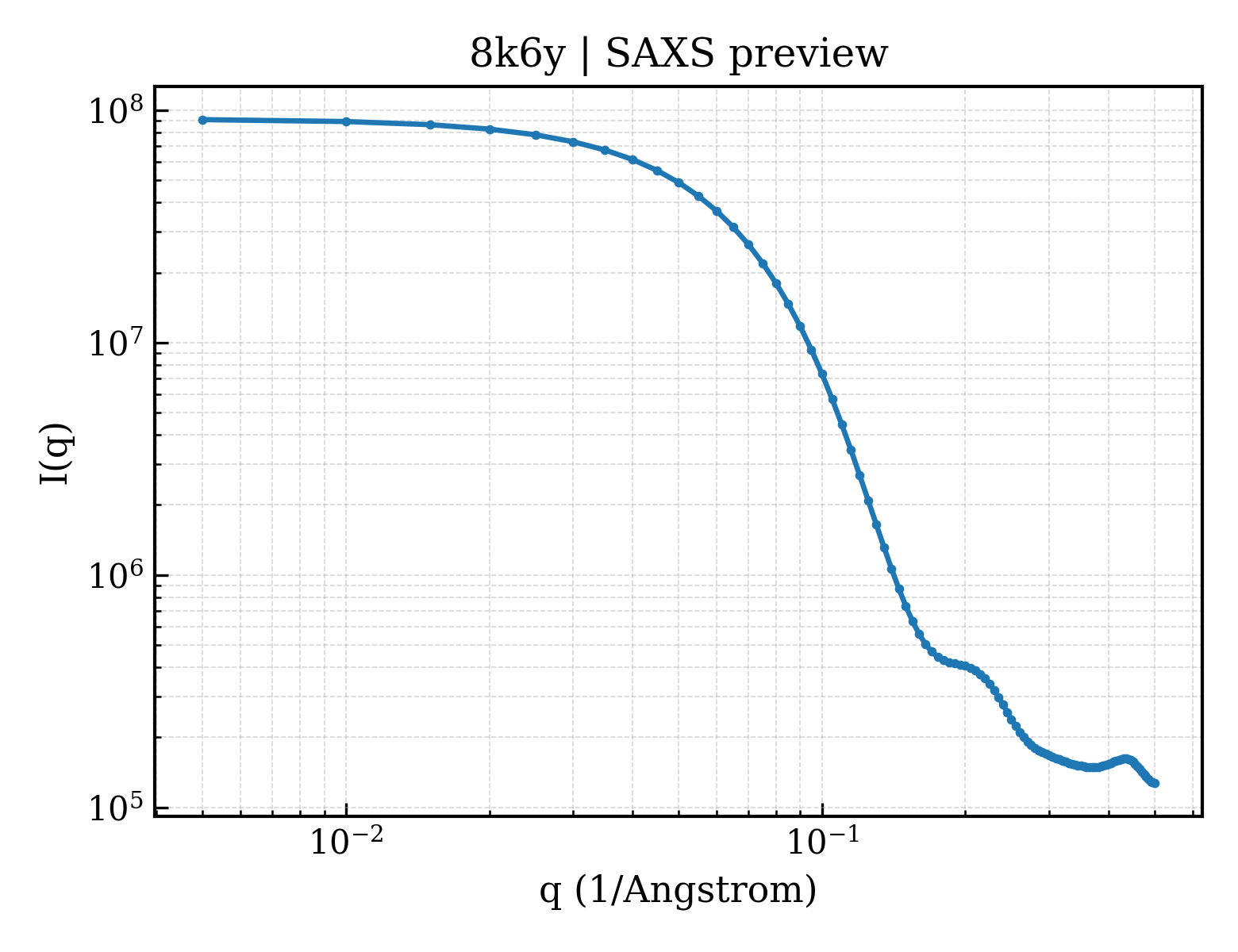

8k6y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8k6y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.41 Å
Rg (electron density)	26.12 Å
Total Rg	27.20 Å
Atom count	6296
Residues	752
Excluded volume	116620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8k6y__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Cytochrome c oxidase subunit 1
Molecular weight formula_weight	63540.1 kDa
EC 编号 ec_number	7.1.1.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6474

MHHHHHHHAVRASEISRVYEAYPEKKATLYFLVLGFLALIVGSLFGPFQALNYGNVDAYPLLKRLLPFVQSYYQGLTLHGVLNAIVFTQLFAQAIMVYLPARELNMRPNMGLMWLSWWMAFIGLVVAALPLLANEATVLYTFYPPLKGHWAFYLGASVFVLSTWVSIYIVLDLWRRWKAANPGKVTPLVTYMAVVFWLMWFLASLGLVLEAVLFLLPWSFGLVEGVDPLVARTLFWWTGHPIVYFWLLPAYAIIYTILPKQAGGKLVSDPMARLAFLLFLLLSTPVGFHHQFADPGIDPTWKMIHSVLTLFVAVPSLMTAFTVAASLEFAGRLRGGRGLFGWIRALPWDNPAFVAPVLGLLGFIPGGAGGIVNASFTLDYVVHNTAWVPGHFHLQVASLVTLTAMGSLYWLLPNLTGKPISDAQRRLGLAVVWLWFLGMMIMAVGLHWAGLLNVPRRAYIAQVPDAYPHAAVPMVFNVLAGIVLLVALLLFIYGLFSVLLSRERKPELAEAPLPFAEVISGPEDRRLVLAMDRIGFWFAVAAILVVLAYGPTLVQLFGHLNPVPGWRLW

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus HB8

Entity 2 Entity 2 polymer

Description description	Cytochrome c oxidase subunit 2
Molecular weight formula_weight	18581.3 kDa
EC 编号 ec_number	7.1.1.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVDEHKAHKAILAYEKGWLAFSLAMLFVFIALIAYTLATHTAGVIPAGKLERVDPTTVRQEGPWADPAQAVVQTGPNQYTVYVLAFAFGYQPNPIEVPQGAEIVFKITSPDVIHGFHVEGTNINVEVLPGEVSTVRYTFKRPGEYRIICNQYCGLGHQNMFGTIVVKE

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus HB8

Entity 3 Entity 3 polymer

Description description	Cytochrome c oxidase polypeptide 2A
Molecular weight formula_weight	3769.6 kDa
EC 编号 ec_number	7.1.1.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MEEKPKGALAVILVLTLTILVFWLGVYAVFFARG

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Thermus thermophilus HB8

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	HEME-AS
Molecular weight formula_weight	921.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	356.5 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 8 Entity 8 non-polymer

Description description	CARBON MONOXIDE
Molecular weight formula_weight	28.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	DINUCLEAR COPPER ION
Molecular weight formula_weight	127.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

▶

Unit-cell length a length_a	145.850 Å
Unit-cell length b length_b	100.320 Å
Unit-cell length c length_c	96.620 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	126.76 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	37.151 Å
R factor r_factor	—
R_work r_work	0.3961
R_free r_free	0.4354
