Alcaligenes faecalis
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | COPPER (II) ION × 1 SULFATE ION × 1 water × 1 | Consistent with protein count |
| UniProt name | AZUP_ALCFA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 4–126； UniProt 24–146 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 8k9p |
| Deposition date deposition_date | 2023-08-01 |
| Structure title title | Neutron X-ray joint structure of pseudoazurin from Alcaligenes faecalis |
| Keywords keywords | blue copper, electron transfer, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

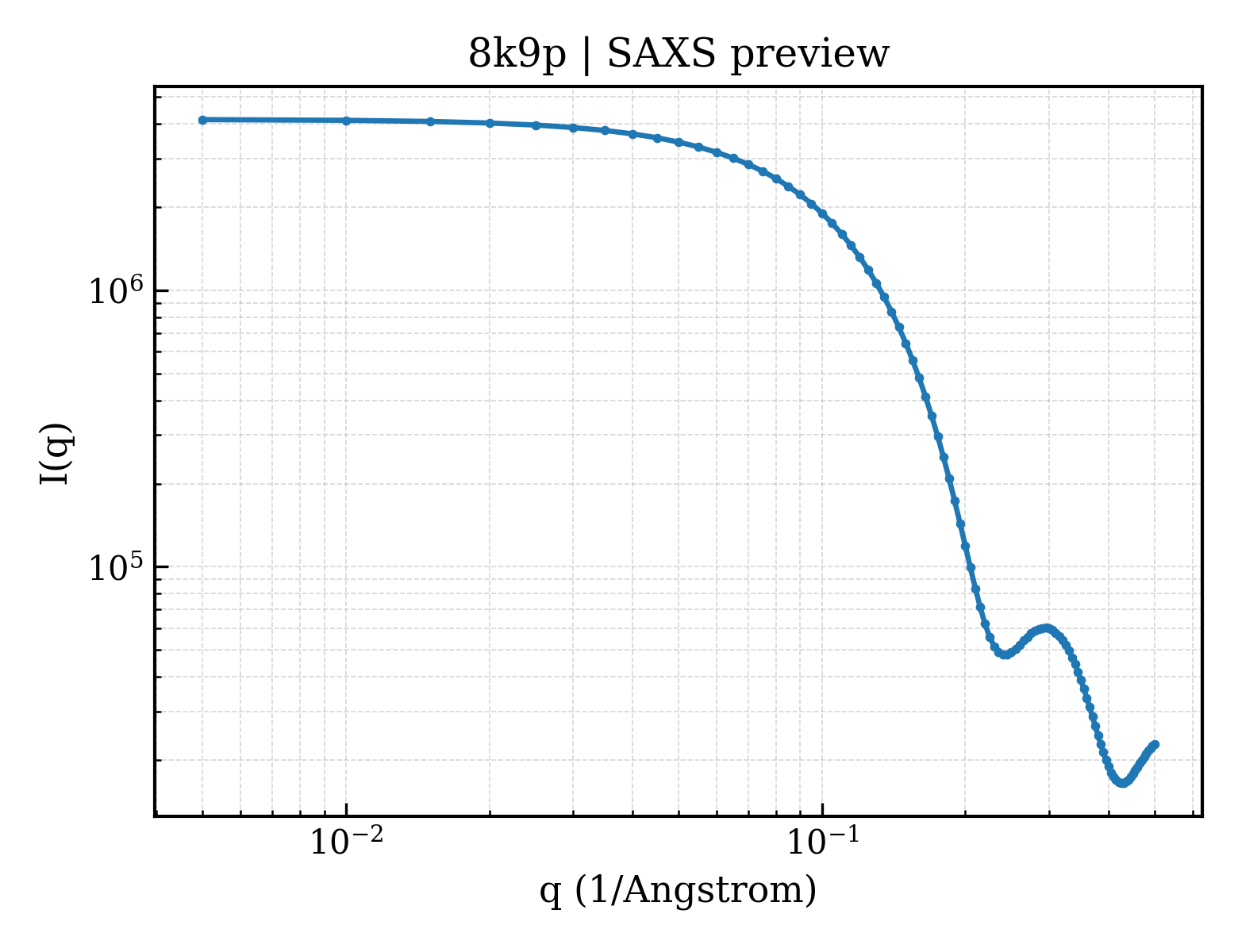

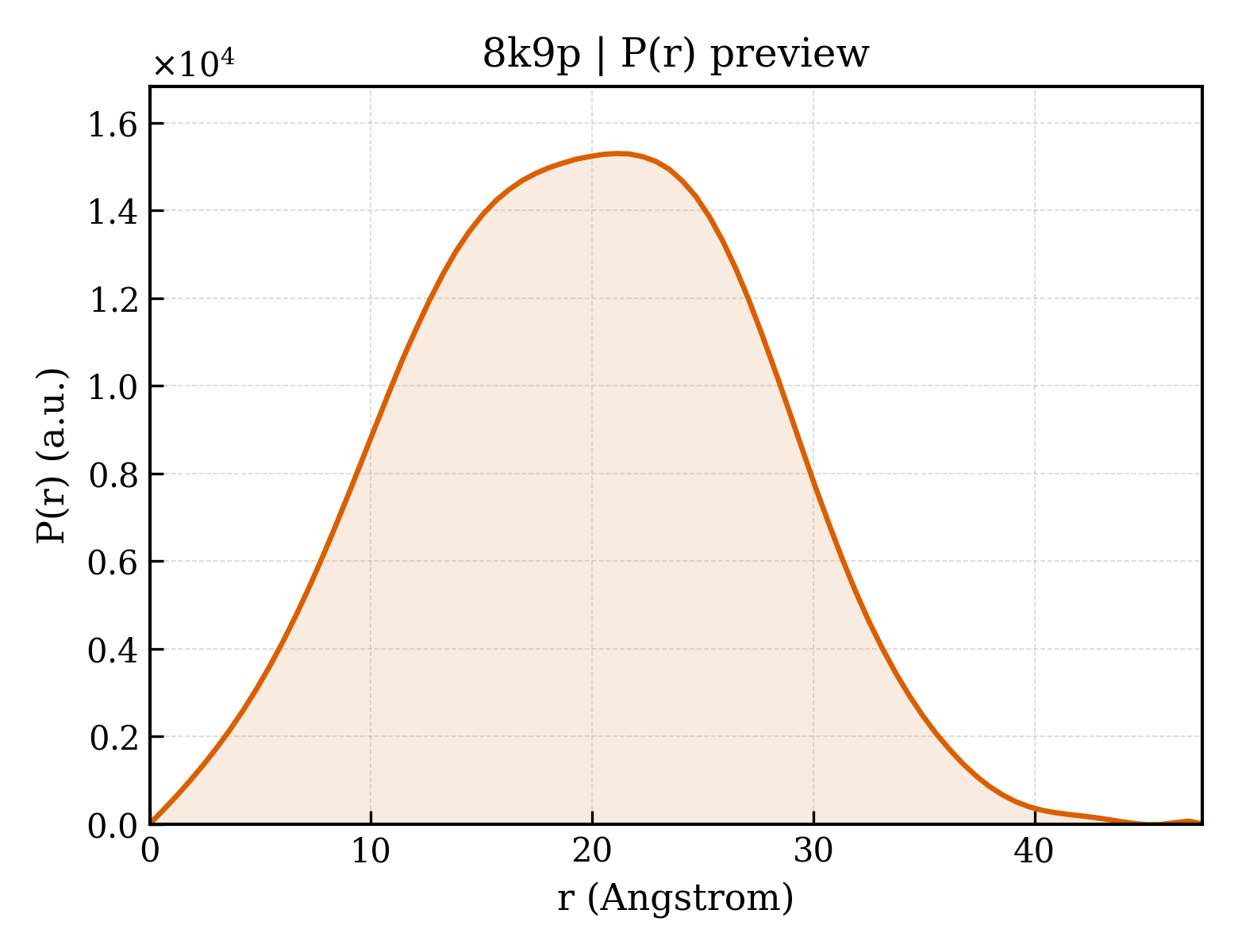

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.11 Å |
| Rg (electron density) | 13.50 Å |
| Total Rg | 14.22 Å |
| Atom count | 2005 |
| Residues | 124 |
| Excluded volume | 18900 ų |
| Maximum q | 0.500 Å⁻¹ |
