SAXSdb — 8prw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8prw
沉积日期 deposition_date	2023-07-12
最后修订 last_revision	2023-11-22
结构标题 title	Cryo-EM structure of the yeast fatty acid synthase at 1.9 angstrom resolution
关键词 keywords	Fatty acid synthase, acyl carrier protein, FAS, ACP, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	103.80 Å
零角强度 I(0) i0	78274900000.00
分子量 molecular_weight	2432900.0 kDa
排除体积 excluded_volume	3058900 Å³
包络体积 envelope_volume	6043800 Å³
水化壳体积 shell_volume	470290 Å³
包络直径 envelope_diameter	294.9 Å
壳层 Rg shell_rg	114.60 Å
包络 Rg envelope_rg	94.52 Å
形状 Rg shape_rg	103.80 Å
总 Rg total_rg	103.80 Å
总原子数 total_atoms	171384
残基数 n_residues	21702
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	246.5 Å
Rg (实空间) rg_real	102.40 Å
Rg 误差 (实空间) rg_real_error	0.19 Å
I(0) (实空间) i0_real	7.5410e+10
I(0) 误差 (实空间) i0_real_error	1.1390e+09
Rg (倒空间) rg_reciprocal	110.50 Å
I(0) (倒空间) i0_reciprocal	79890000000.0000
解质量估计 total_estimate	0.9145
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	147.9 Å
偏度 Skewness skewness	-0.188
峰度 Kurtosis kurtosis	-0.571
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.7783
最高正则化参数 α highest_alpha	7370000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.994; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Fatty acid synthase subunit alpha
分子量 formula_weight	207184.4 kDa
EC 编号 ec_number	2.3.1.86,1.1.1.100,2.3.1.41
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	179064

MKPEVEQELAHILLTELLAYQFASPVRWIETQDVFLKDFNTERVVEIGPSPTLAGMAQRTLKNKYESYDAALSLHREILCYSKDAKEIYYTPDPSELAAKEEPAKEEAPAPTPAASAPAPAAAAPAPVAAAAPAAAAAEIADEPVKASLLLHVLVAHKLKKSLDSIPMSKTIKDLVGGKSTVQNEILGDLGKEFGTTPEKPEETPLEELAETFQDTFSGALGKQSSSLLSRLISSKMPGGFTITVARKYLQTRWGLPSGRQDGVLLVALSNEPAARLGSEADAKAFLDSMAQKYASIVGVDLSSAASASGAAGAGAAAGAAMIDAGALEEITKDHKVLARQQLQVLARYLKMDLDNGERKFLKEKDTVAELQAQLDYLNAELGEFFVNGVATSFSRKKARTFDSSWNWAKQSLLSLYFEIIHGVLKNVDREVVSEAINIMNRSNDALIKFMEYHISNTDETKGENYQLVKTLGEQLIENCKQVLDVDPVYKDVAKPTGPKTAIDKNGNITYSEEPREKVRKLSQYVQEMALGGPITKESQPTIEEDLTRVYKAISAQADKQDISSSTRVEFEKLYSDLMKFLESSKEIDPSQTTQLAGMDVEDALDKDSTKEVASLPNKSTISKTVSSTIPRETIPFLHLRKKTPAGDWKYDRQLSSLFLDGLEKAAFNGVTFKDKYVLITGAGKGSIGAEVLQGLLQGGAKVVVTTSRFSKQVTDYYQSIYAKYGAKGSTLIVVPFNQGSKQDVEALIEFIYDTEKNGGLGWDLDAIIPFAAIPEQGIELEHIDSKSEFAHRIMLTNILRMMGCVKKQKSARGIETRPAQVILPMSPNHGTFGGDGMYSESKLSLETLFNRWHSESWANQLTVCGAIIGWTRGTGLMSANNIIAEGIEKMGVRTFSQKEMAFNLLGLLTPEVVELCQKSPVMADLNGGLQFVPELKEFTAKLRKELVETSEVRKAVSIETALEHKVVNGNSADAAYAQVEIQPRANIQLDFPELKPYKQVKQIAPAELEGLLDLERVIVVTGFAEVGPWGSARTRWEMEAFGEFSLEGCVEMAWIMGFISYHNGNLKGRPYTGWVDSKTKEPVDDKDVKAKYETSILEHSGIRLIEPELFNGYNPEKKEMIQEVIVEEDLEPFEASKETAEQFKHQHGDKVDIFEIPETGEYSVKLLKGATLYIPKALRFDRLVAGQIPTGWNAKTYGISDDIISQVDPITLFVLVSVVEAFIASGITDPYEMYKYVHVSEVGNCSGSGMGGVSALRGMFKDRFKDEPVQNDILQESFINTMSAWVNMLLISSSGPIKTPVGACATSVESVDIGVETILSGKARICIVGGYDDFQEEGSFEFGNMKATSNTLEEFEHGRTPAEMSRPATTTRNGFMEAQGAGIQIIMQADLALKMGVPIYGIVAMAATATDKIGRSVPAPGKGILTTAREHHSSVKYASPNLNMKYRKRQLVTREAQIKDWVENELEALKLEAEEIPSEDQNEFLLERTREIHNEAESQLRAAQQQWGNDFYKRDPRIAPLRGALATYGLTIDDLGVASFHGTSTKANDKNESATINEMMKHLGRSEGNPVIGVFQKFLTGHPKGAAGAWMMNGALQILNSGIIPGNRNADNVDKILEQFEYVLYPSKTLKTDGVRAVSITSFGFGQKGGQAIVVHPDYLYGAITEDRYNEYVAKVSAREKSAYKFFHNGMIYNKLFVSKEHAPYTDELEEDVYLDPLARVSKDKKSGSLTFNSKNIQSKDSYINANTIETAKMIENMTKEKVSNGGVGVDVELITSINVENDTFIERNFTPQEIEYCSAQPSVQSSFAGTWSAKEAVFKSLGVKSLGGGAALKDIEIVRVNKNAPAVELHGNAKKAAEEAGVTDVKVSISHDDLQAVAVAVSTKK

Entity 2 polymer

描述 description	Fatty acid synthase subunit beta
分子量 formula_weight	229026.4 kDa
EC 编号 ec_number	2.3.1.86,4.2.1.59,1.3.1.9,2.3.1.38,2.3.1.39,3.1.2.14
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,J,I,H,K,L

MDAYSTRPLTLSHGSLEHVLLVPTASFFIASQLQEQFNKILPEPTEGFAADDEPTTPAELVGKFLGYVSSLVEPSKVGQFDQVLNLCLTEFENCYLEGNDIHALAAKLLQENDTTLVKTKELIKNYITARIMAKRPFDKKSNSALFRAVGEGNAQLVAIFGGQGNTDDYFEELRDLYQTYHVLVGDLIKFSAETLSELIRTTLDAEKVFTQGLNILEWLENPSNTPDKDYLLSIPISCPLIGVIQLAHYVVTAKLLGFTPGELRSYLKGATGHSQGLVTAVAIAETDSWESFFVSVRKAITVLFFIGVRCYEAYPNTSLPPSILEDSLENNEGVPSPMLSISNLTQEQVQDYVNKTNSHLPAGKQVEISLVNGAKNLVVSGPPQSLYGLNLTLRKAKAPSGLDQSRIPFSERKLKFSNRFLPVASPFHSHLLVPASDLINKDLVKNNVSFNAKDIQIPVYDTFDGSDLRVLSGSISERIVDCIIRLPVKWETTTQFKATHILDFGPGGASGLGVLTHRNKDGTGVRVIVAGTLDINPDDDYGFKQEIFDVTSNGLKKNPNWLEEYHPKLIKNKSGKIFVETKFSKLIGRPPLLVPGMTPCTVSPDFVAATTNAGYTIELAGGGYFSAAGMTAAIDSVVSQIEKGSTFGINLIYVNPFMLQWGIPLIKELRSKGYPIQFLTIGAGVPSLEVASEYIETLGLKYLGLKPGSIDAISQVINIAKAHPNFPIALQWTGGRGGGHHSFEDAHTPMLQMYSKIRRHPNIMLIFGSGFGSADDTYPYLTGEWSTKFDYPPMPFDGFLFGSRVMIAKEVKTSPDAKKCIAACTGVPDDKWEQTYKKPTGGIVTVRSEMGEPIHKIATRGVMLWKEFDETIFNLPKNKLVPTLEAKRDYIISRLNADFQKPWFATVNGQARDLATMTYEEVAKRLVELMFIRSTNSWFDVTWRTFTGDFLRRVEERFTKSKTLSLIQSYSLLDKPDEAIEKVFNAYPAAREQFLNAQDIDHFLSMCQNPMQKPVPFVPVLDRRFEIFFKKDSLWQSEHLEAVVDQDVQRTCILHGPVAAQFTKVIDEPIKSIMDGIHDGHIKKLLHQYYGDDESKIPAVEYFGGESPVDVQSQVDSSSVSEDSAVFKATSSTDEESWFKALAGSEINWRHASFLCSFITQDKMFVSNPIRKVFKPSQGMVVEISNGNTSSKTVVTLSEPVQGELKPTVILKLLKENIIQMEMIENRTMDGKPVSLPLLYNFNPDNGFAPISEVMEDRNQRIKEMYWKLWIDEPFNLDFDPRDVIKGKDFEITAKEVYDFTHAVGNNCEDFVSRPDRTMLAPMDFAIVVGWRAIIKAIFPNTVDGDLLKLVHLSNGYKMIPGAKPLQVGDVVSTTAVIESVVNQPTGKIVDVVGTLSRNGKPVMEVTSSFFYRGNYTDFENTFQKTVEPVYQMHIKTSKDIAVLRSKEWFQLDDEDFDLLNKTLTFETETEVTFKNANIFSSVKCFGPIKVELPTKETVEIGIVDYEAGASHGNPVVDFLKRNGSTLEQKVNLENPIPIAVLDSYTPSTNEPYARVSGDLNPIHVSRHFASYANLPGTITHGMFSSASVRALIENWAADSVSSRVRGYTCQFVDMVLPNTALKTSIQHVGMINGRKLIKFETRNEDDVVVLTGEAEIEQPVTTFVFTGQGSQEQGMGMDLYKTSKAAQDVWNRADNHFKDTYGFSILDIVINNPVNLTIHFGGEKGKRIRENYSAMIFETIVDGKLKTEKIFKEINEHSTSYTFRSEKGLLSATQFTQPALTLMEKAAFEDLKSKGLIPADATFAGHSLGEYAALASLADVMSIESLVEVVFYRGMTMQVAVPRDELGRSNYGMIAINPGRVAASFSQEALQYVVERVGKRTGWLVEIVNYNVENQQYVAAGDLRALDTVTNVLNFIKLQKIDIIELQKSLSLEEVEGHLFEIIDEASKKSAVKPRPLKLERGFACIPLVGISVPFHSTYLMNGVKPFKSFLKKNIIKENVKVARLAGKYIPNLTAKPFQVTKEYFQDVYDLTGSEPIKEIIDNWEKYEQS

Entity 3 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 4 non-polymer

描述 description	COENZYME A
分子量 formula_weight	767.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 non-polymer

描述 description	1-DEOXY-1-(7,8-DIMETHYL-2,4-DIOXO-3,4-DIHYDRO-2H-BENZO[G]PTERIDIN-1-ID-10(5H)-YL)-5-O-PHOSPHONATO-D-RIBITOL
分子量 formula_weight	458.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	7680

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	255481

fit	/app/data/saxs_computation/pr/8prw/8prw.fit
pddf	/app/data/pr_computation/pr/8prw/8prw.pr.out
profile	/app/data/saxs_computation/pr/8prw/8prw.dat

Cryo-EM structure of the yeast fatty acid synthase at 1.9 angstrom resolution

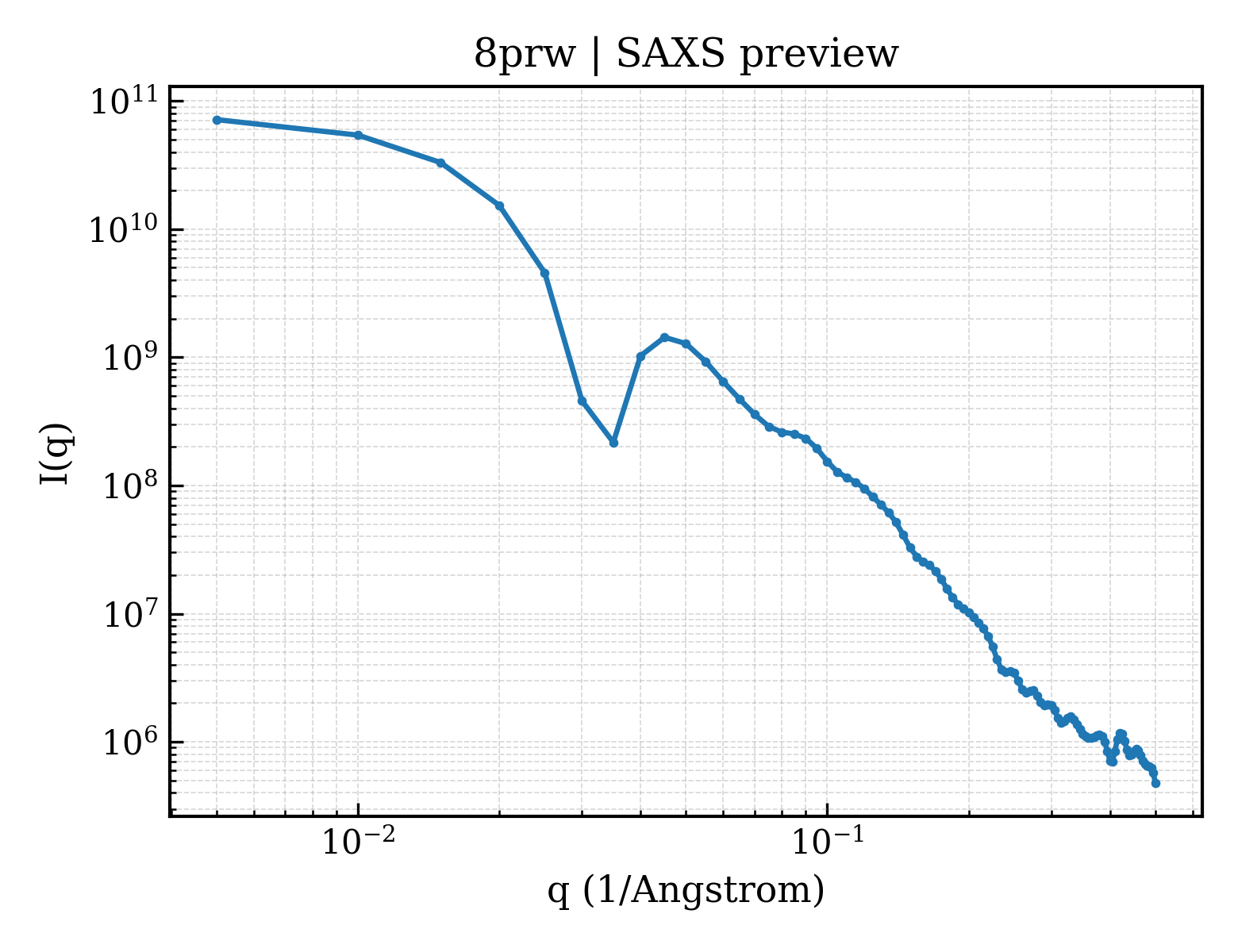

SAXS 散射曲线 SAXS Profile

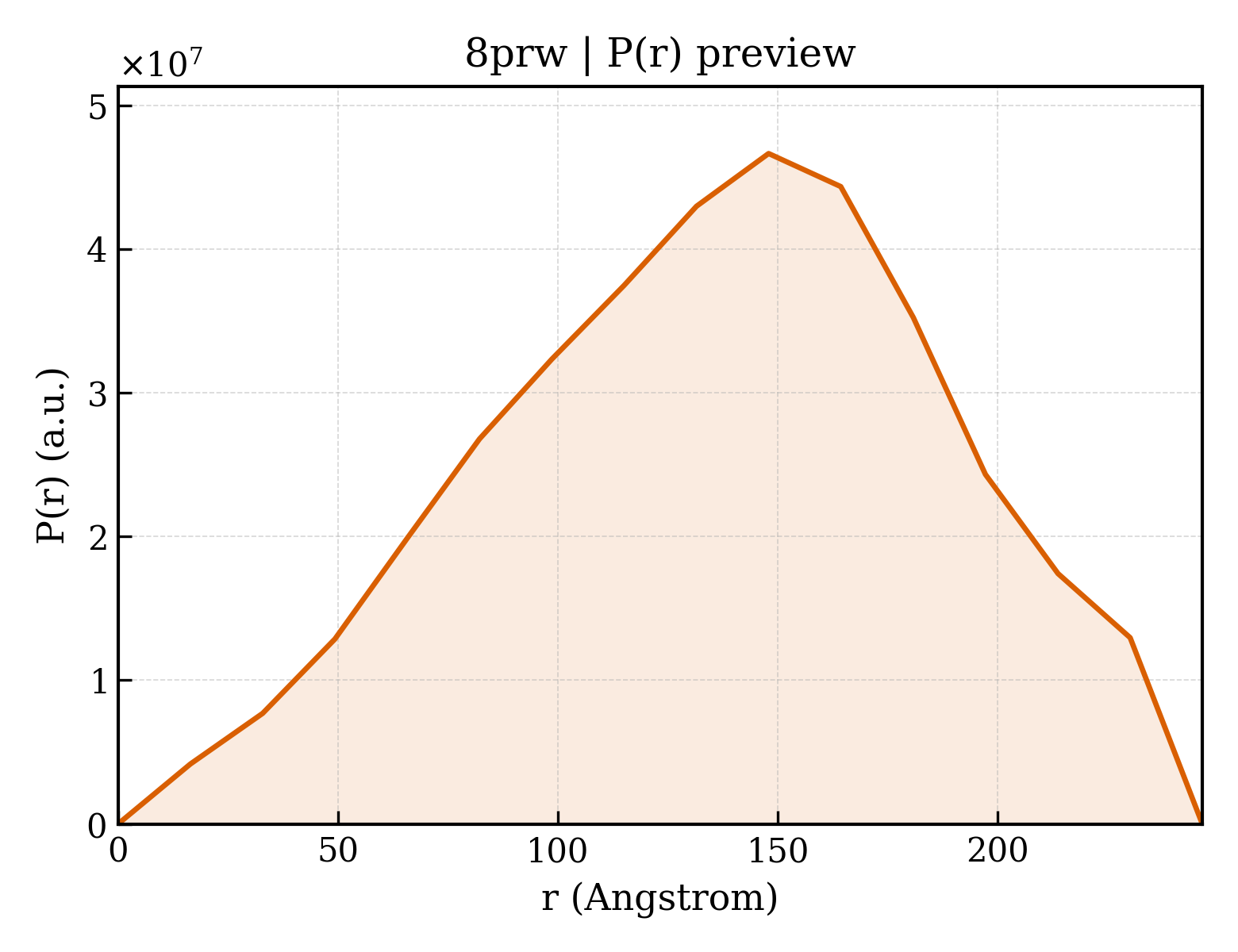

P(r) 距离分布 P(r) Distribution
