SAXSdb — 8psm

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8psm
沉积日期 deposition_date	2023-07-13
最后修订 last_revision	2023-11-22
结构标题 title	;Asymmetric unit of the yeast fatty acid synthase in the non-rotated state with ACP at the malonyl/palmitoyl transferase domain (FASx sample) ;
关键词 keywords	Fatty acid synthase, acyl carrier protein, FAS, ACP, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	64.85 Å
回转半径 Rg (电子) rg_electron	64.52 Å
零角强度 I(0) i0	2388010000.00
分子量 molecular_weight	420380.0 kDa
排除体积 excluded_volume	529440 Å³
包络体积 envelope_volume	882070 Å³
水化壳体积 shell_volume	114700 Å³
包络直径 envelope_diameter	207.2 Å
壳层 Rg shell_rg	67.55 Å
包络 Rg envelope_rg	60.72 Å
形状 Rg shape_rg	64.51 Å
总 Rg total_rg	64.61 Å
总原子数 total_atoms	29625
残基数 n_residues	3776
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	212.3 Å
Rg (实空间) rg_real	64.54 Å
Rg 误差 (实空间) rg_real_error	1.97 Å
I(0) (实空间) i0_real	2.3880e+09
I(0) 误差 (实空间) i0_real_error	5.2090e+07
Rg (倒空间) rg_reciprocal	65.06 Å
I(0) (倒空间) i0_reciprocal	2390000000.0000
解质量估计 total_estimate	0.8781
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	97.3 Å
偏度 Skewness skewness	0.019
峰度 Kurtosis kurtosis	-0.702
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	109800000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.758

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Fatty acid synthase subunit alpha
分子量 formula_weight	207184.4 kDa
EC 编号 ec_number	2.3.1.86,1.1.1.100,2.3.1.41
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	29625

MKPEVEQELAHILLTELLAYQFASPVRWIETQDVFLKDFNTERVVEIGPSPTLAGMAQRTLKNKYESYDAALSLHREILCYSKDAKEIYYTPDPSELAAKEEPAKEEAPAPTPAASAPAPAAAAPAPVAAAAPAAAAAEIADEPVKASLLLHVLVAHKLKKSLDSIPMSKTIKDLVGGKSTVQNEILGDLGKEFGTTPEKPEETPLEELAETFQDTFSGALGKQSSSLLSRLISSKMPGGFTITVARKYLQTRWGLPSGRQDGVLLVALSNEPAARLGSEADAKAFLDSMAQKYASIVGVDLSSAASASGAAGAGAAAGAAMIDAGALEEITKDHKVLARQQLQVLARYLKMDLDNGERKFLKEKDTVAELQAQLDYLNAELGEFFVNGVATSFSRKKARTFDSSWNWAKQSLLSLYFEIIHGVLKNVDREVVSEAINIMNRSNDALIKFMEYHISNTDETKGENYQLVKTLGEQLIENCKQVLDVDPVYKDVAKPTGPKTAIDKNGNITYSEEPREKVRKLSQYVQEMALGGPITKESQPTIEEDLTRVYKAISAQADKQDISSSTRVEFEKLYSDLMKFLESSKEIDPSQTTQLAGMDVEDALDKDSTKEVASLPNKSTISKTVSSTIPRETIPFLHLRKKTPAGDWKYDRQLSSLFLDGLEKAAFNGVTFKDKYVLITGAGKGSIGAEVLQGLLQGGAKVVVTTSRFSKQVTDYYQSIYAKYGAKGSTLIVVPFNQGSKQDVEALIEFIYDTEKNGGLGWDLDAIIPFAAIPEQGIELEHIDSKSEFAHRIMLTNILRMMGCVKKQKSARGIETRPAQVILPMSPNHGTFGGDGMYSESKLSLETLFNRWHSESWANQLTVCGAIIGWTRGTGLMSANNIIAEGIEKMGVRTFSQKEMAFNLLGLLTPEVVELCQKSPVMADLNGGLQFVPELKEFTAKLRKELVETSEVRKAVSIETALEHKVVNGNSADAAYAQVEIQPRANIQLDFPELKPYKQVKQIAPAELEGLLDLERVIVVTGFAEVGPWGSARTRWEMEAFGEFSLEGCVEMAWIMGFISYHNGNLKGRPYTGWVDSKTKEPVDDKDVKAKYETSILEHSGIRLIEPELFNGYNPEKKEMIQEVIVEEDLEPFEASKETAEQFKHQHGDKVDIFEIPETGEYSVKLLKGATLYIPKALRFDRLVAGQIPTGWNAKTYGISDDIISQVDPITLFVLVSVVEAFIASGITDPYEMYKYVHVSEVGNCSGSGMGGVSALRGMFKDRFKDEPVQNDILQESFINTMSAWVNMLLISSSGPIKTPVGACATSVESVDIGVETILSGKARICIVGGYDDFQEEGSFEFGNMKATSNTLEEFEHGRTPAEMSRPATTTRNGFMEAQGAGIQIIMQADLALKMGVPIYGIVAMAATATDKIGRSVPAPGKGILTTAREHHSSVKYASPNLNMKYRKRQLVTREAQIKDWVENELEALKLEAEEIPSEDQNEFLLERTREIHNEAESQLRAAQQQWGNDFYKRDPRIAPLRGALATYGLTIDDLGVASFHGTSTKANDKNESATINEMMKHLGRSEGNPVIGVFQKFLTGHPKGAAGAWMMNGALQILNSGIIPGNRNADNVDKILEQFEYVLYPSKTLKTDGVRAVSITSFGFGQKGGQAIVVHPDYLYGAITEDRYNEYVAKVSAREKSAYKFFHNGMIYNKLFVSKEHAPYTDELEEDVYLDPLARVSKDKKSGSLTFNSKNIQSKDSYINANTIETAKMIENMTKEKVSNGGVGVDVELITSINVENDTFIERNFTPQEIEYCSAQPSVQSSFAGTWSAKEAVFKSLGVKSLGGGAALKDIEIVRVNKNAPAVELHGNAKKAAEEAGVTDVKVSISHDDLQAVAVAVSTKK

Entity 2 polymer

描述 description	Fatty acid synthase subunit beta
分子量 formula_weight	228940.4 kDa
EC 编号 ec_number	2.3.1.86,4.2.1.59,1.3.1.9,2.3.1.38,2.3.1.39,3.1.2.14
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MDAYSTRPLTLSHGSLEHVLLVPTASFFIASQLQEQFNKILPEPTEGFAADDEPTTPAELVGKFLGYVSSLVEPSKVGQFDQVLNLCLTEFENCYLEGNDIHALAAKLLQENDTTLVKTKELIKNYITARIMAKRPFDKKSNSALFRAVGEGNAQLVAIFGGQGNTDDYFEELRDLYQTYHVLVGDLIKFSAETLSELIRTTLDAEKVFTQGLNILEWLENPSNTPDKDYLLSIPISCPLIGVIQLAHYVVTAKLLGFTPGELRSYLKGATGHSQGLVTAVAIAETDSWESFFVSVRKAITVLFFIGVRCYEAYPNTSLPPSILEDSLENNEGVPSPMLSISNLTQEQVQDYVNKTNSHLPAGKQVEISLVNGAKNLVVSGPPQSLYGLNLTLRKAKAPSGLDQSRIPFSERKLKFSNRFLPVASPFHSHLLVPASDLINKDLVKNNVSFNAKDIQIPVYDTFDGSDLRVLSGSISERIVDCIIRLPVKWETTTQFKATHILDFGPGGASGLGVLTHRNKDGTGVRVIVAGTLDINPDDDYGFKQEIFDVTSNGLKKNPNWLEEYHPKLIKNKSGKIFVETKFSKLIGRPPLLVPGMTPCTVSPDFVAATTNAGYTIELAGGGYFSAAGMTAAIDSVVSQIEKGSTFGINLIYVNPFMLQWGIPLIKELRSKGYPIQFLTIGAGVPSLEVASEYIETLGLKYLGLKPGSIDAISQVINIAKAHPNFPIALQWTGGRGGGHHSFEDAHTPMLQMYSKIRRHPNIMLIFGSGFGSADDTYPYLTGEWSTKFDYPPMPFDGFLFGSRVMIAKEVKTSPDAKKCIAACTGVPDDKWEQTYKKPTGGIVTVRSEMGEPIHKIATRGVMLWKEFDETIFNLPKNKLVPTLEAKRDYIISRLNADFQKPWFATVNGQARDLATMTYEEVAKRLVELMFIRSTNSWFDVTWRTFTGDFLRRVEERFTKSKTLSLIQSYSLLDKPDEAIEKVFNAYPAAREQFLNAQDIDHFLSMCQNPMQKPVPFVPVLDRRFEIFFKKDSLWQSEHLEAVVDQDVQRTCILHGPVAAQFTKVIDEPIKSIMDGIHDGHIKKLLHQYYGDDESKIPAVEYFGGESPVDVQSQVDSSSVSEDSAVFKATSSTDEESWFKALAGSEINWRHASFLCSFITQDKMFVSNPIRKVFKPSQGMVVEISNGNTSSKTVVTLSEPVQGELKPTVILKLLKENIIQMEMIENRTMDGKPVSLPLLYNFNPDNGFAPISEVMEDRNQRIKEMYWKLWIDEPFNLDFDPRDVIKGKDFEITAKEVYDFTHAVGNNCEDFVSRPDRTMLAPMDFAIVVGWRAIIKAIFPNTVDGDLLKLVHLSNGYKMIPGAKPLQVGDVVSTTAVIESVVNQPTGKIVDVVGTLSRNGKPVMEVTSSFFYRGNYTDFENTFQKTVEPVYQMHIKTSKDIAVLRSKEWFQLDDEDFDLLNKTLTFETETEVTFKNANIFSSVKCFGPIKVELPTKETVEIGIVDYEAGASHGNPVVDFLKRNGSTLEQKVNLENPIPIAVLDSYTPSTNEPYARVSGDLNPIHVSRHFASYANLPGTITHGMFSSASVRALIENWAADSVSSRVRGYTCQFVDMVLPNTALKTSIQHVGMINGRKLIKFETRNEDDVVVLTGEAEIEQPVTTFVFTGQGSQEQGMGMDLYKTSKAAQDVWNRADNHFKDTYGFSILDIVINNPVNLTIHFGGEKGKRIRENYSAMIFETIVDGKLKTEKIFKEINEHSTSYTFRSEKGLLSATQFTQPALTLMEKAAFEDLKSKGLIPADATFAGHSLGEYAALASLADVMSIESLVEVVFYRGMTMQVAVPRDELGRSNYGMIAINPGRVAASFSQEALQYVVERVGKRTGWLVEIVNYNVENQQYVAAGDLRALDTVTNVLNFIKLQKIDIIELQKSLSLEEVEGHLFEIIDEASKKSAVKPRPLKLERGFACIPLVGISVPFHSTYLMNGVKPFKSFLKKNIIKENVKVARLAGKYIPNLTAKPFQVTKEYFQDVYDLTGSEPIKEIIDNWEKYEQS

Entity 3 non-polymer

描述 description	4'-PHOSPHOPANTETHEINE
分子量 formula_weight	358.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	182.510 Å
R 因子 r_factor	0.2700
R_work r_work	0.2700
R_free r_free	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	58437

fit	/app/data/saxs_computation/ps/8psm/8psm.fit
pddf	/app/data/pr_computation/ps/8psm/8psm.pr.out
profile	/app/data/saxs_computation/ps/8psm/8psm.dat

;Asymmetric unit of the yeast fatty acid synthase in the non-rotated state with ACP at the malonyl/palmitoyl transferase domain (FASx sample) ;

SAXS 散射曲线 SAXS Profile

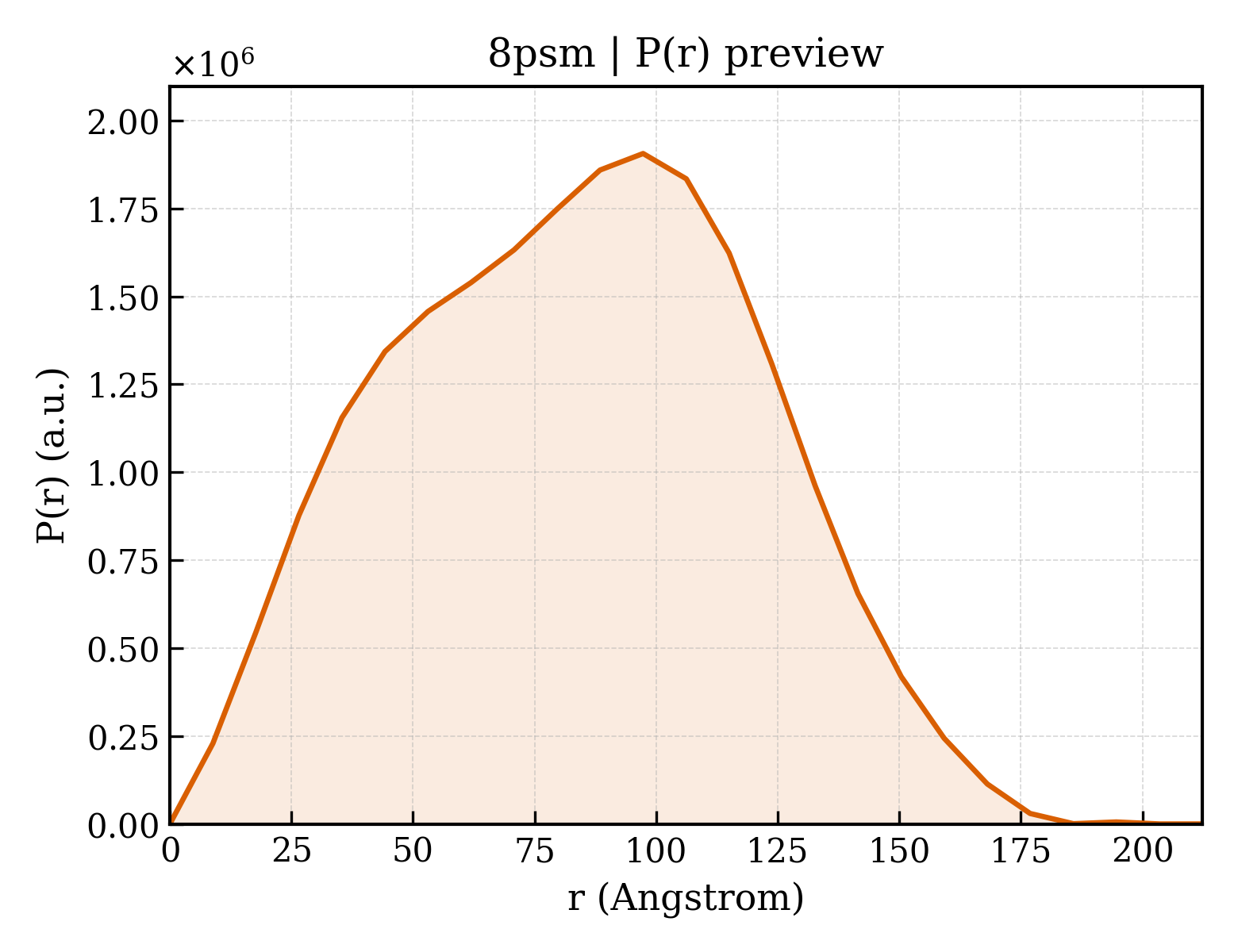

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

冷冻电镜 EM 3D

5. 实体与聚合体信息 (4)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 non-polymer

Entity 4 non-polymer

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
