SAXSdb — 8pwm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vitamin D3 receptor A

Danio rerio

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Nuclear receptor coactivator 2 × 2 （Q15596） ACETATE ION × 2 ;(1R,3S,5Z)-4-methylidene-5-[(E)-3-[3-[7,7,7-tris(fluoranyl)-6-oxidanyl-6-(trifluoromethyl)hept-3-ynyl]phenyl]but-2-enylidene]cyclohexane-1,3-diol ; × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VDRA_DANRE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–302； UniProt 156–453

Nuclear receptor coactivator 2

OrganismNot specified

UniProt Q15596

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vitamin D3 receptor A × 2 （Q9PTN2） ACETATE ION × 2 ;(1R,3S,5Z)-4-methylidene-5-[(E)-3-[3-[7,7,7-tris(fluoranyl)-6-oxidanyl-6-(trifluoromethyl)hept-3-ynyl]phenyl]but-2-enylidene]cyclohexane-1,3-diol ; × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCOA2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–13； UniProt 686–698

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pwm
Deposition date deposition_date	2023-07-20
Structure title title	Crystal structure of VDR in complex with Des-C-Ring and Aromatic-D-Ring analog 3b
Keywords keywords	nuclear receptor, VDR, agonist, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pwm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pwm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

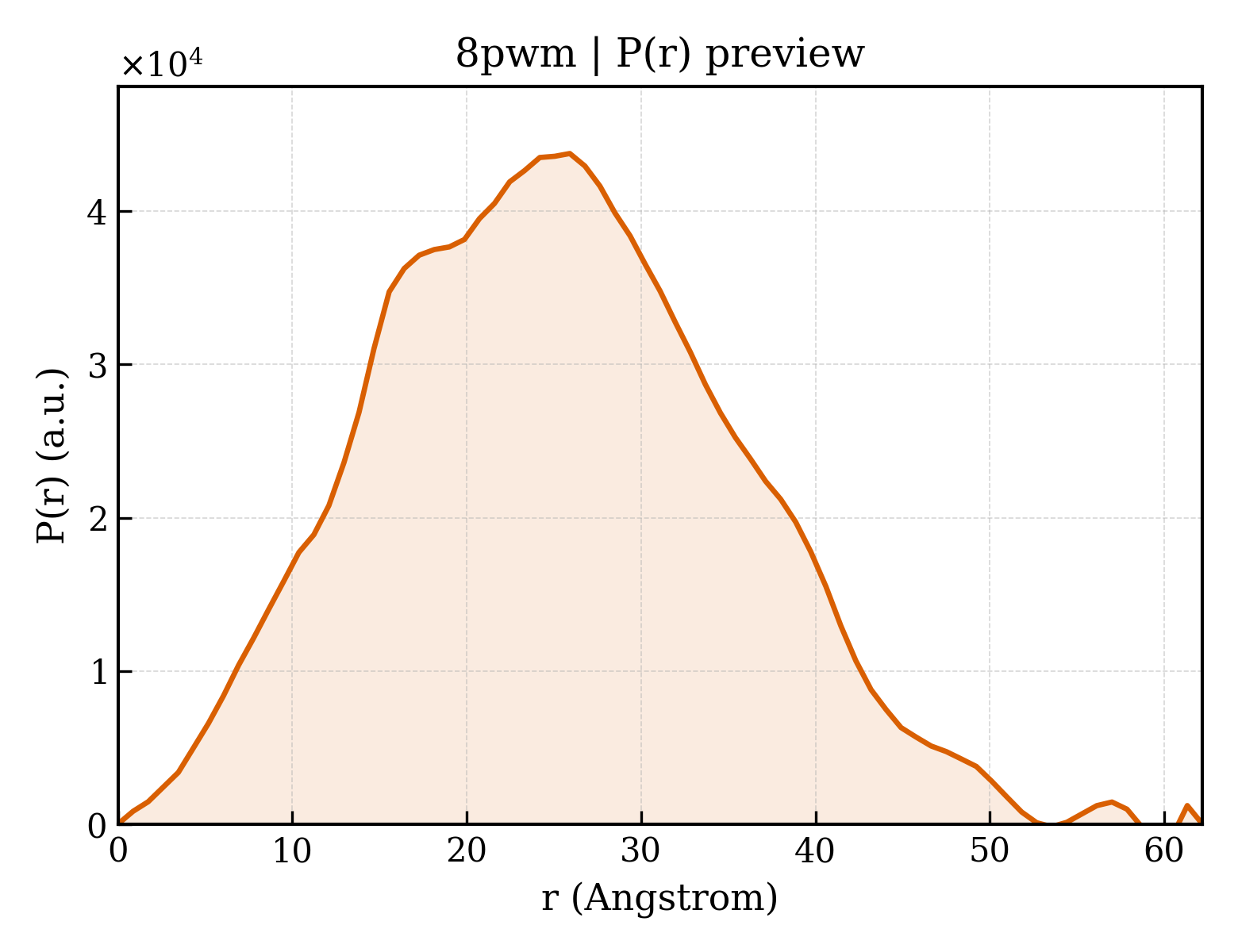

8pwm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.69 Å
Rg (electron density)	27.27 Å
Total Rg	28.03 Å
Atom count	4076
Residues	496
Excluded volume	73343 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pwm__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Vitamin D3 receptor A
Molecular weight formula_weight	34060.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2106

GSHMLSDEQMQIINSLVEAHHKTYDDSYSDFVRFRPPVREGPVTRSASRAASLHSLSDASSDSFNHSPESVDTKLNFSNLLMMYQDSGSPDSSEEDQQSRLSMLPHLADLVSYSIQKVIGFAKMIPGFRDLTAEDQIALLKSSAIEIIMLRSNQSFSLEDMSWSCGGPDFKYCINDVTKAGHTLELLEPLVKFQVGLKKLKLHEEEHVLLMAICLLSPDRPGVQDHVRIEALQDRLCDVLQAYIRIQHPGGRLLYAKMIQKLADLRSLNEEHSKQYRSLSFQPEHSMQLTPLVLEVFGSEVS

Source Source

Source organism organism	Danio rerio
Common name common_name	zebrafish
NCBI taxonomy ID ncbi_taxonomy_id	7955
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Nuclear receptor coactivator 2
Molecular weight formula_weight	1579.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KHKILHRLLQDSS

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	;(1R,3S,5Z)-4-methylidene-5-[(E)-3-[3-[7,7,7-tris(fluoranyl)-6-oxidanyl-6-(trifluoromethyl)hept-3-ynyl]phenyl]but-2-enylidene]cyclohexane-1,3-diol ;
Molecular weight formula_weight	488.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	47

▶

Unit-cell length a length_a	65.849 Å
Unit-cell length b length_b	65.849 Å
Unit-cell length c length_c	264.213 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	24.810 Å
R factor r_factor	0.2013
R_work r_work	0.1955
R_free r_free	0.2517

Crystal structure of VDR in complex with Des-C-Ring and Aromatic-D-Ring analog 3b
