SAXSdb — 8q2f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional cytochrome P450/NADPH--P450 reductase

Priestia megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 GLYCEROL × 6 ACETATE ION × 6 SULFATE ION × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 GLYCEROL × 1 ACETATE ION × 3 SULFATE ION × 7	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 GLYCEROL × 6 ACETATE ION × 5 SULFATE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPXB_PRIM2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–464； UniProt 1–464 Author chain B； PDBConstruct 1–464； UniProt 1–464 Author chain C； PDBConstruct 1–464； UniProt 1–464 Author chain D； PDBConstruct 1–464； UniProt 1–464 Author chain E； PDBConstruct 1–464； UniProt 1–464 Author chain F； PDBConstruct 1–464； UniProt 1–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8q2f
Deposition date deposition_date	2023-08-02
Last revision last_revision	2025-01-15
Structure title title	Cytochrome P450 BM3 aMOx-A heme domain
Keywords keywords	Cytochrome P450 monooxygenase, Anti-Markovnikov oxygenase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8q2f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8q2f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

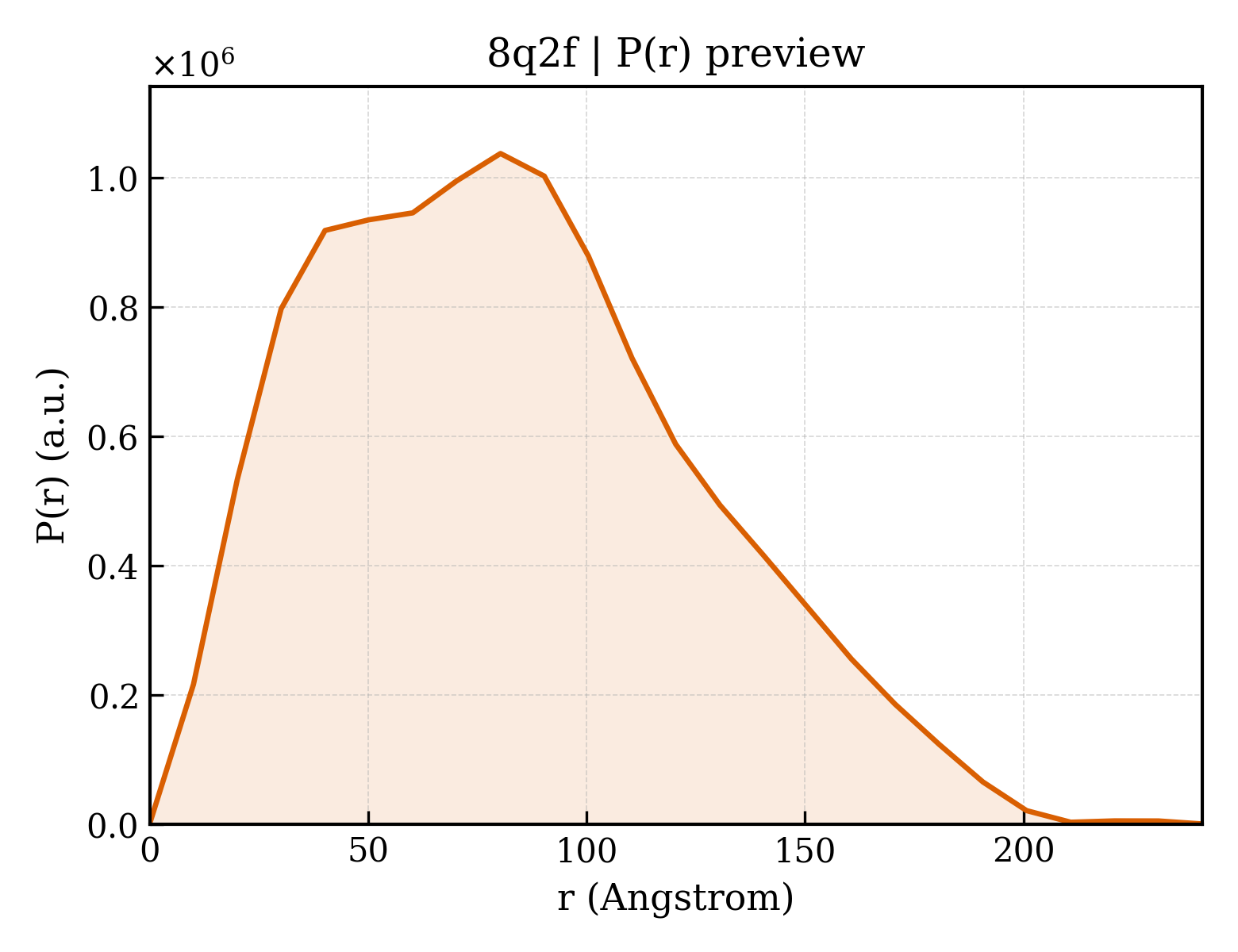

8q2f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.82 Å
Rg (electron density)	34.32 Å
Total Rg	34.78 Å
Atom count	7576
Residues	919
Excluded volume	135340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8q2f__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8q2f__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8q2f__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Bifunctional cytochrome P450/NADPH--P450 reductase
Molecular weight formula_weight	54253.0 kDa
EC 编号 ec_number	1.14.14.1,1.6.2.4
Mutation mutation	;A44M, S72H, M77E, A78I, A82C, A87A, T88L, S89V, P142A, I174V, T175I, A184V, M212F, S226R, D232C, H236Q, E252G, Y256D, T269L, A290V, G315D, A328S, L353V, I366V, T372M, T436H ;
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	22710

MTIKEMPQPKTFGELKNLPLLNTDKPVQALMKIADELGEIFKFEMPGRVTRYLSSQRLIKEACDESRFDKNLHQALKEIRDFCGDGLALVWTHEKNWKKAHNILLPSFSQQAMKGYHAMMVDIAVQLVQKWERLNADEHIEVAEDMTRLTLDTIGLCGFNYRFNSFYRDQPHPFVISMVRALDEVMNKLQRANPDDPAYDENKRQFQEDIKVFNDLVDKIIADRKARGEQSDCLLTQMLNGKDPETGEPLDDGNIRDQIITFLIAGHETLSGLLSFALYFLVKNPHVLQKVAEEAARVLVDPVPSYKQVKQLKYVDMVLNEALRLWPMSPAFSLYAKEDTVLGGEYPLEKGDEVMVLIPQLHRDKTVWGDDVEEFRPERFENPSAIPQHAFKPFGNGQRACIGQQFALHEATLVLGMMLKHFDFEDHTNYELDIKEHLTLKPEGFVVKAKSKKIPLGGIPSPSTLEHHHHHH

Source Source

Source organism organism	Priestia megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1404
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	13

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	14

▶

Unit-cell length a length_a	167.440 Å
Unit-cell length b length_b	167.440 Å
Unit-cell length c length_c	364.743 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	3.430 Å
Low-resolution limit resolution_low	123.340 Å
R factor r_factor	0.1774
R_work r_work	0.1749
R_free r_free	0.2257
