8q5h

Human KMN network (outer kinetochore)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore protein Spc24

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc25 × 1 （Q9HBM1） Protein MIS12 homolog × 1 （Q9H081） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore scaffold 1 × 1 （Q8NG31） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC24_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 4； PDBConstruct 2–89； UniProt 110–197

Kinetochore protein Spc25

Homo sapiens

UniProt Q9HBM1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Protein MIS12 homolog × 1 （Q9H081） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore scaffold 1 × 1 （Q8NG31） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC25_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 5； PDBConstruct 2–133； UniProt 93–224

Protein MIS12 homolog

Homo sapiens

UniProt Q9H081

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Kinetochore protein Spc25 × 1 （Q9HBM1） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore scaffold 1 × 1 （Q8NG31） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MIS12_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–205； UniProt 1–205

Polyamine-modulated factor 1

Homo sapiens

UniProt Q6P1K2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Kinetochore protein Spc25 × 1 （Q9HBM1） Protein MIS12 homolog × 1 （Q9H081） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore scaffold 1 × 1 （Q8NG31） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PMF1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–205； UniProt 1–205

Kinetochore-associated protein DSN1 homolog

Homo sapiens

UniProt Q9H410

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Kinetochore protein Spc25 × 1 （Q9HBM1） Protein MIS12 homolog × 1 （Q9H081） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore scaffold 1 × 1 （Q8NG31） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DSN1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–356； UniProt 1–356

Kinetochore scaffold 1

Homo sapiens

UniProt Q8NG31

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Kinetochore protein Spc25 × 1 （Q9HBM1） Protein MIS12 homolog × 1 （Q9H081） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore-associated protein NSL1 homolog × 1 （Q96IY1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KNL1_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 8–329； UniProt 2021–2342

Kinetochore-associated protein NSL1 homolog

Homo sapiens

UniProt Q96IY1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Kinetochore protein Spc24 × 1 （Q8NBT2） Kinetochore protein Spc25 × 1 （Q9HBM1） Protein MIS12 homolog × 1 （Q9H081） Polyamine-modulated factor 1 × 1 （Q6P1K2） Kinetochore-associated protein DSN1 homolog × 1 （Q9H410） Kinetochore scaffold 1 × 1 （Q8NG31）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSL1_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain N； PDBConstruct 1–281； UniProt 1–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8q5h
Deposition date deposition_date	2023-08-09
Structure title title	Human KMN network (outer kinetochore)
Keywords keywords	OUTER KINETOCHORE, KMN, COMPLEX, CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8q5h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

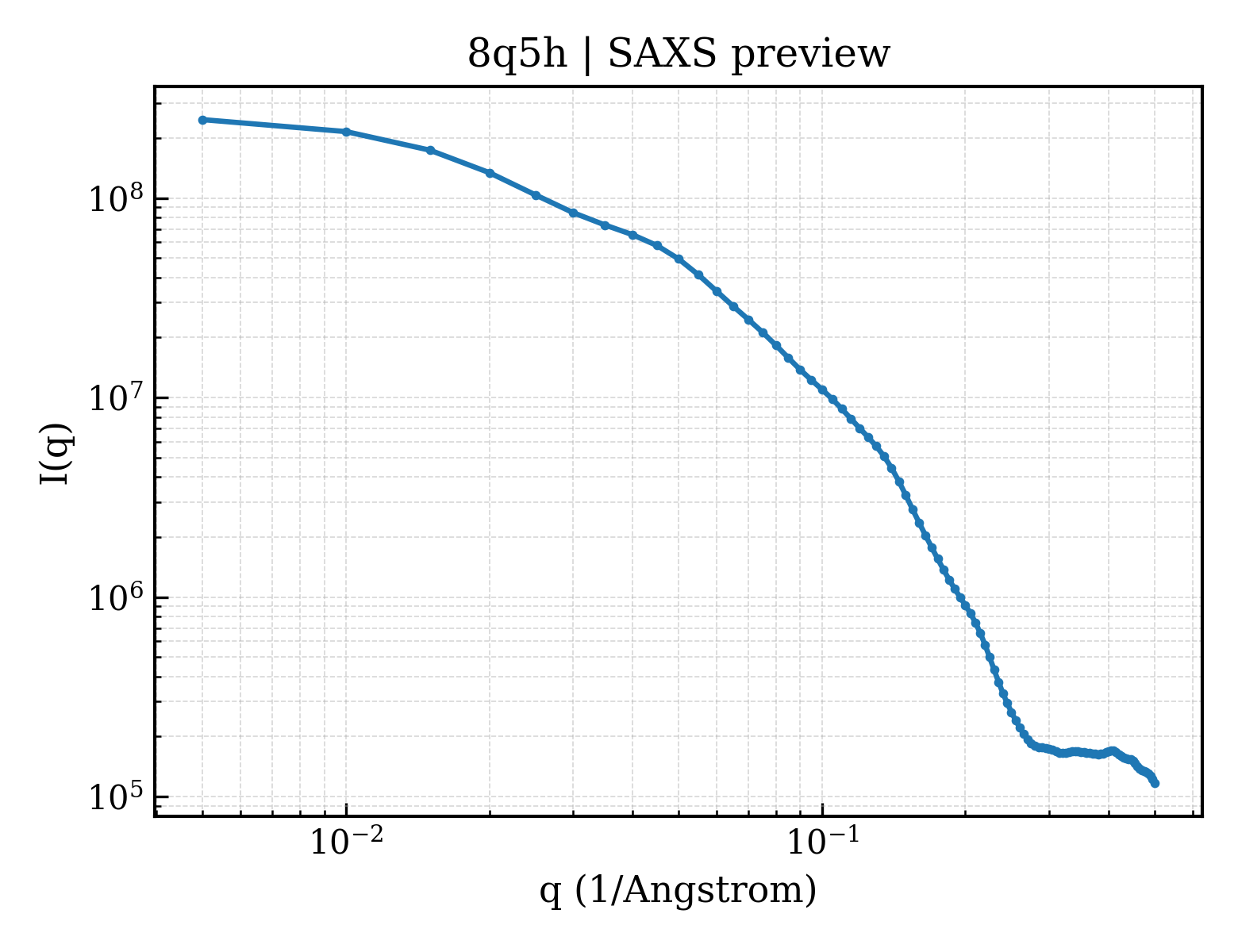

8q5h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

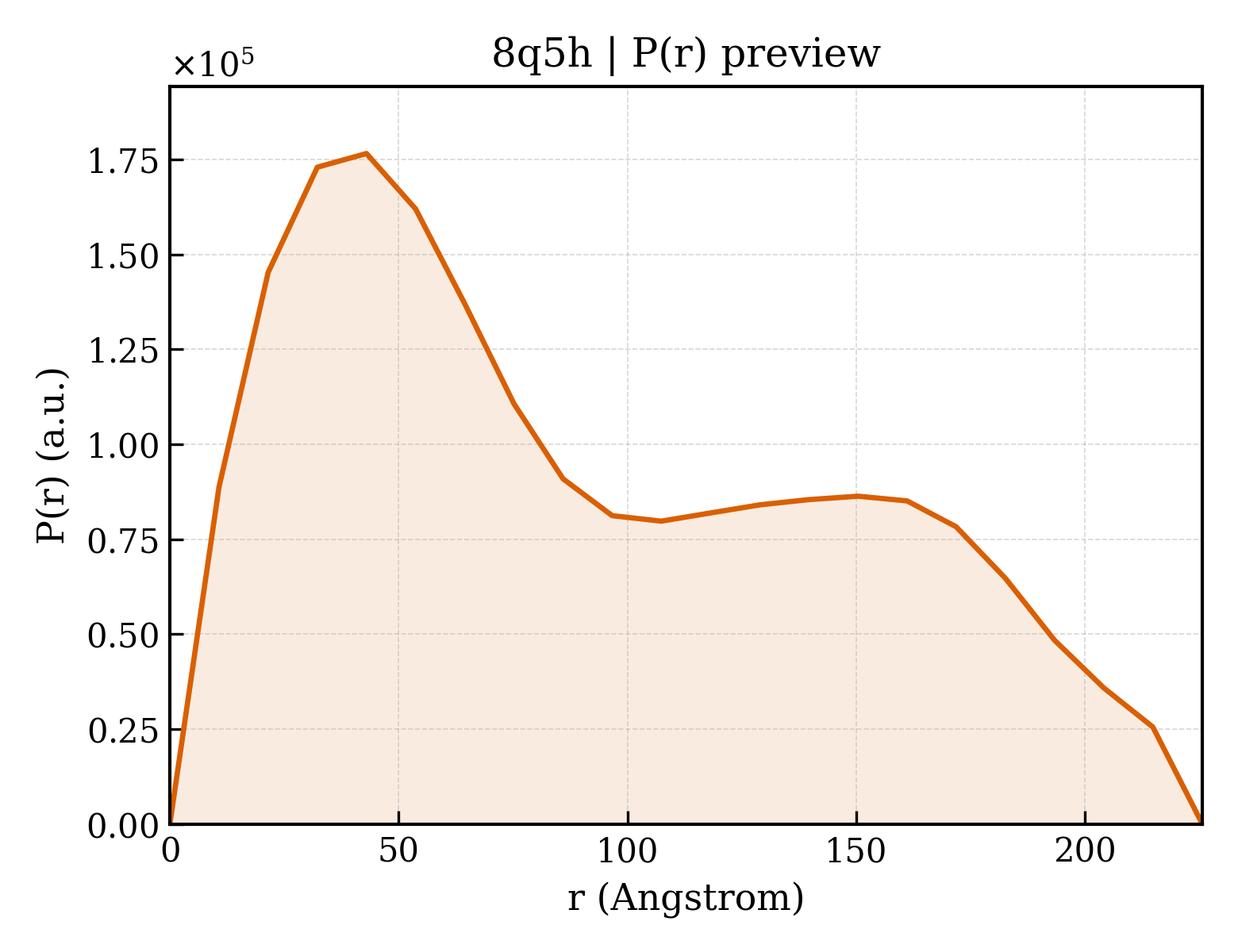

8q5h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	74.59 Å
Rg (electron density)	76.36 Å
Total Rg	75.84 Å
Atom count	9574
Residues	1173
Excluded volume	170760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8q5h__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Kinetochore protein Spc24
Molecular weight formula_weight	10344.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	4
Atom count atom_count	9574

MELKEIEADLERQEKEVDEDTTVTIPSAVYVAQLYHQVSKIEWDYECEPGMVKGIHHGPSVAQPIHLDSTQLSRKFISDYLWSLVDTEW

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Kinetochore protein Spc25
Molecular weight formula_weight	16285.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	5

MKQELEVLTANIQDLKEEYSRKKETISTANKANAERLKRLQKSADLYKDRLGLEIRKIYGEKLQFIFTNIDPKNPESPFMFSLHLNEARDYEVSDSAPHLEGLAEFQENVRKTNNFSAFLANVRKAFTATVYNHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Protein MIS12 homolog
Molecular weight formula_weight	24170.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSVDPMTYEAQFFGFTPQTCMLRIYIAFQDYLFEVMQAVEQVILKKLDGIPDCDISPVQIRKCTEKFLCFMKGHFDNLFSKMEQLFLQLILRIPSNILLPEDKCKETPYSEEDFQHLQKEIEQLQEKYKTELCTKQALLAELEEQKIVQAKLKQTLTFFDELHNVGRDHGTSDFRESLVSLVQNSRKLQNIRDNVEKESKRLKIS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Polyamine-modulated factor 1
Molecular weight formula_weight	23368.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAEASSANLGSGCEEKRHEGSSSESVPPGTTISRVKLLDTMVDTFLQKLVAAGSYQRFTDCYKCFYQLQPAMTQQIYDKFIAQLQTSIREEISDIKEEGNLEAVLNALDKIVEEGKVRKEPAWRPSGIPEKDLHSVMAPYFLQQRDTLRRHVQKQEAENQQLADAVLAGRRQVEELQLQVQAQQQAWQALHREQRELVAVLREPE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Kinetochore-associated protein DSN1 homolog
Molecular weight formula_weight	40951.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MTSVTRSEIIDEKGPVMSKTHDHQLESSLSPVEVFAKTSASLEMNQGVSEERIHLGSSPKKGGNCDLSHQERLQSKSLHLSPQEQSASYQDRRQSWRRASMKETNRRKSLHPIHQGITELSRSISVDLAESKRLGCLLLSSFQFSIQKLEPFLRDTKGFSLESFRAKASSLSEELKHFADGLETDGTLQKCFEDSNGKASDFSLEASVAEMKEYITKFSLERQTWDQLLLHYQQEAKEILSRGSTEAKITEVKVEPMTYLGSSQNEVLNTKPDYQKILQNQSKVFDCMELVMDELQGSVKQLQAFMDESTQCFQKVSVQLGKRSMQQLDPSPARKLLKLQLQNPPAIHGSGSGSCQHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Kinetochore scaffold 1
Molecular weight formula_weight	38644.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

GAMGGSMGKLVQSAQNEREKLQIKIDEMDKILKKIDNCLTEMETETKNLEDEEKNNPVEEWDSEMRAAEKELEQLKTEEEELQRNLLELEVQKEQTLAQIDFMQKQRNRTEELLDQLSLSEWDVVEWSDDQAVFTFVYDTIQLTITFEESVVGFPFLDKRYRKIVDVNFQSLLDEDQAPPSSLLVHKLIFQYVEEKESWKKTCTTQHQLPKMLEEFSLVVHHCRLLGEEIEYLKRWGPNYNLMNIDINNNELRLLFSSSAAFAKFEITLFLSAYYPSVPLPSTIQNHVGNTSQDDIATILSKVPLENNYLKNVVKQIYQDLFQDCHFYH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Kinetochore-associated protein NSL1 homolog
Molecular weight formula_weight	32209.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MAGSPELVVLDPPWDKELAAGTESQALVSATPREDFRVRCTSKRAVTEMLQLCGRFVQKLGDALPEEIREPALRDAQWTFESAVQENISINGQAWQEASDNCFMDSDIKVLEDQFDEIIVDIATKRKQYPRKILECVIKTIKAKQEILKQYHPVVHPLDLKYDPDPAPHMENLKCRGETVAKEISEAMKSLPALIEQGEGFSQVLRMQPVIHLQRIHQEVFSSCHRKPDAKPENFITQIETTPTETASRKTSDMVLKRKQTKDCPQRKWYPLRPKKINLDT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	230597
