SAXSdb — 8spw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase subunit alpha

Bacillus sp. PS3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	ATP synthase subunit beta × 3 （A0A0M4U1P9） ADENOSINE-5'-TRIPHOSPHATE × 4 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 1 PHOSPHATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0M3VGF9_BACP3
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–476； UniProt 26–501 Author chain B； PDBConstruct 1–476； UniProt 26–501 Author chain C； PDBConstruct 1–476； UniProt 26–501

ATP synthase subunit beta

Bacillus sp. PS3

UniProt A0A0M4U1P9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	ATP synthase subunit alpha × 3 （A0A0M3VGF9） ADENOSINE-5'-TRIPHOSPHATE × 4 MAGNESIUM ION × 5 ADENOSINE-5'-DIPHOSPHATE × 1 PHOSPHATE ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0M4U1P9_BACP3
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–471； UniProt 1–471 Author chain E； PDBConstruct 1–471； UniProt 1–471 Author chain F； PDBConstruct 1–471； UniProt 1–471

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8spw
Deposition date deposition_date	2023-05-03
Structure title title	PS3 F1 Rotorless, low ATP
Keywords keywords	ATPase, Membrane protein, electron transport, TRANSLOCASE; TRANSLOCASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8spw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8spw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

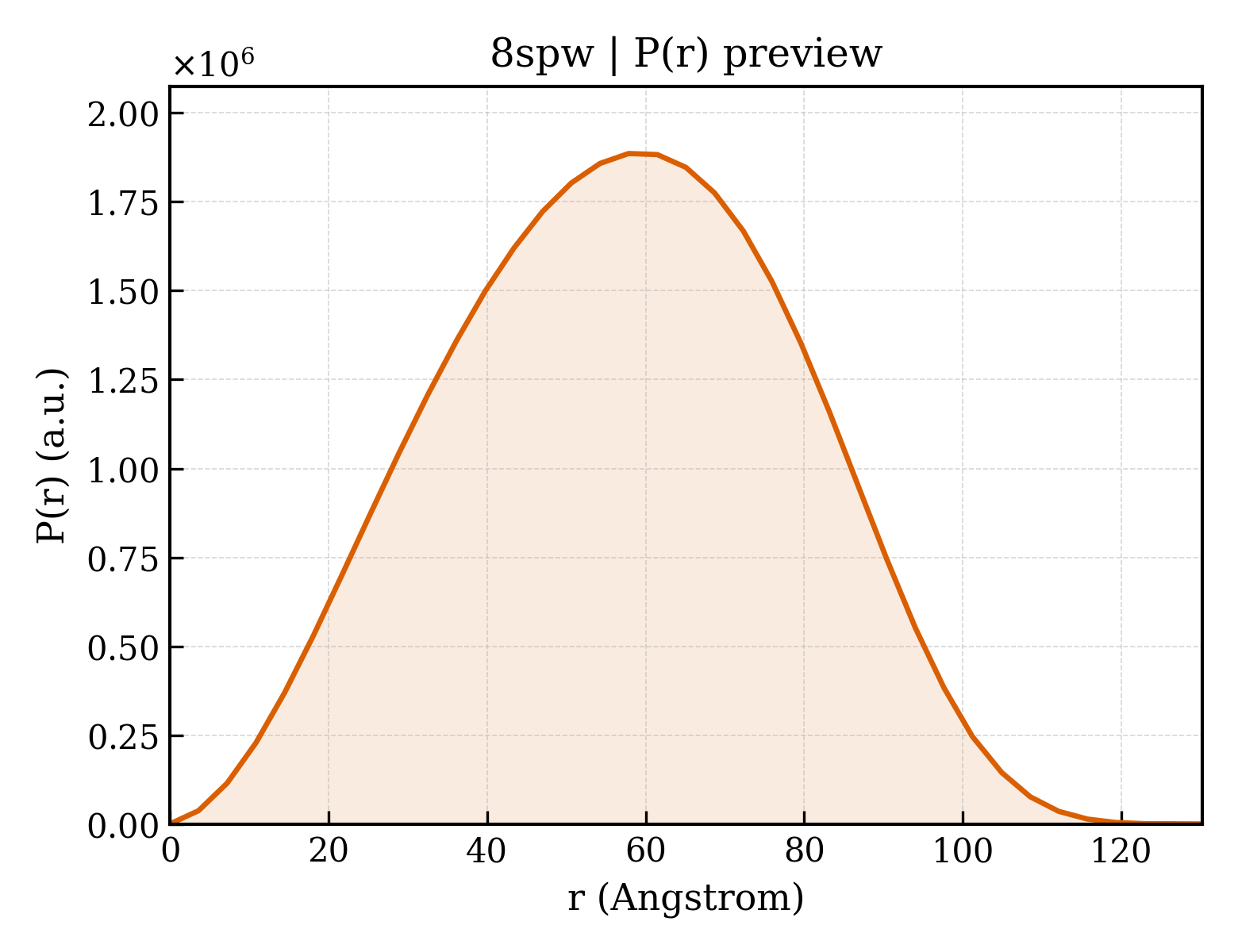

8spw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.39 Å
Rg (electron density)	42.44 Å
Total Rg	42.84 Å
Atom count	21960
Residues	2835
Excluded volume	391350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8spw__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	ATP synthase subunit alpha
Molecular weight formula_weight	51875.3 kDa
EC 编号 ec_number	7.1.2.2
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	21960

SDVGTVIQVGDGIARAHGLDNVMSGELVEFANGVMGMALNLEENNVGIVILGPYTGIKEGDEVRRTGRIMEVPVGEALIGRVVNPLGQPVDGLGPVETTETRPIESRAPGVMDRRSVHEPLQTGIKAIDALVPIGRGQRELIIGDRQTGKTSVAIDTIINQKDQNMISIYVAIGQKESTVRTVVETLRKHGALDYTIVVTASASQPAPLLFLAPYAGVAMGEYFMYKGKHVLVVYDDLSKQAAAYRELSLLLRRPPGREAYPGDIFYLHSRLLERAAKLSDAKGGGSLTALPFVETQAGDISAYIPTNVISITDGQIFLQSDLFFSGVRPAINAGLSVSRVGGAAQIKAMKKVAGTLRLDLAAYRELEAFAQFGSDLDKATQAKLARGARTVEVLKQDLHQPIPVEKQVLIIYALTRGFLDDIPVEDVRRFEKEFYLFLDQNGQHLLEHIRTTKDLPNEDDLNKAIEAFKKTFVVS

Source Source

Source organism organism	Bacillus sp. PS3
NCBI taxonomy ID ncbi_taxonomy_id	2334
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ATP synthase subunit beta
Molecular weight formula_weight	51683.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MTRGRVIQVMGPVVDVKFENGHLPAIYNALKIQHKARNENEVDIDLTLEVALHLGDDTVRTIAMASTDGLIRGMEVIDTGAPISVPVGEVTLGRVFNVLGEPIDLEGDIPADARRDPIHRPAPKFEELATEVEILETGIKVVDLLAPYIKGGKIGLFGGAGVGKTVLIQELIHNIAQEHGGISVFAGVGERTREGNDLYHEMKDSGVISKTAMVFGQMNEPPGARMRVALTGLTMAEYFRDEQGQDVLLFIDNIFRFTQAGSEVSALLGRMPSAVGYQPTLATEMGQLQERITSTAKGSITSIQAIYVPADDYTDPAPATTFSHLDATTNLERKLAEMGIYPAVDPLASTSRALAPEIVGEEHYQVARKVQQTLQRYKELQDIIAILGMDELSDEDKLVVHRARRIQFFLSQNFHVAEQFTGQPGSYVPVKETVRGFKEILEGKYDHLPEDAFRLVGRIEEVVEKAKAMGV

Source Source

Source organism organism	Bacillus sp. PS3
NCBI taxonomy ID ncbi_taxonomy_id	2334
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	119736
