8tiq

;Isoreticular, interpenetrating co-crystal of Replication Initiator Protein REPE54 and symmetrical expanded duplex (31mer) containing the cognate REPE54 sequence and an additional G-C rich sequence with blunt ends and 3' terminal phosphates. ;

Method: X-RAY DIFFRACTION D_max: 101.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

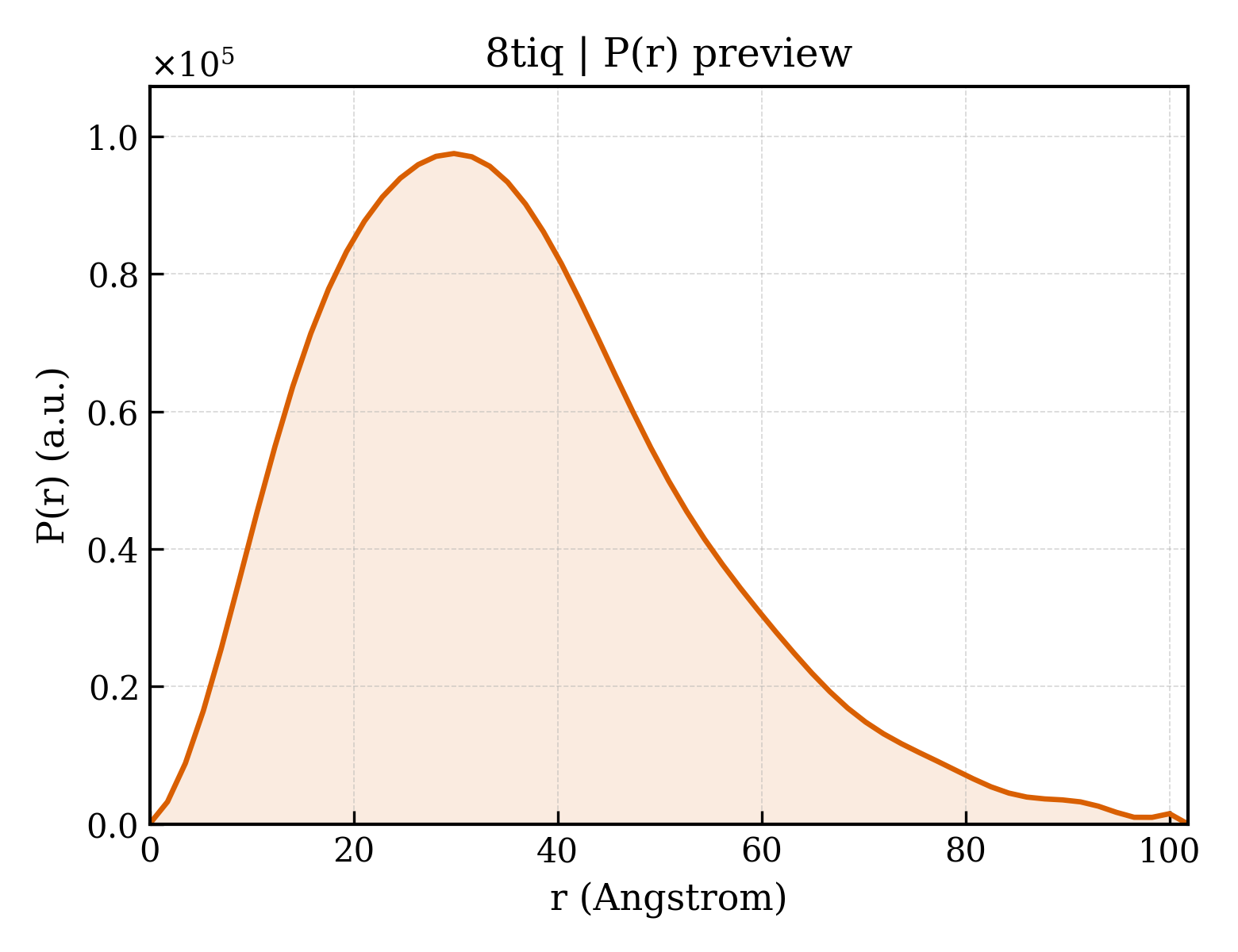

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tiq
沉积日期 deposition_date	2023-07-20
结构标题 title	;Isoreticular, interpenetrating co-crystal of Replication Initiator Protein REPE54 and symmetrical expanded duplex (31mer) containing the cognate REPE54 sequence and an additional G-C rich sequence with blunt ends and 3' terminal phosphates. ;
关键词 keywords	Replication Initiator RepE Complex Co-Crystal, DNA BINDING PROTEIN-DNA complex, DNA BINDING PROTEIN; DNA BINDING PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.54 Å
回转半径 Rg (电子) rg_electron	25.89 Å
零角强度 I(0) i0	52405800.00
分子量 molecular_weight	44150.0 kDa
排除体积 excluded_volume	49872 Å³
包络体积 envelope_volume	68387 Å³
水化壳体积 shell_volume	23961 Å³
包络直径 envelope_diameter	104.8 Å
壳层 Rg shell_rg	30.20 Å
包络 Rg envelope_rg	26.51 Å
形状 Rg shape_rg	25.72 Å
总 Rg total_rg	26.63 Å
总原子数 total_atoms	3028
残基数 n_residues	276
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.8 Å
Rg (实空间) rg_real	27.90 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	5.2410e+07
I(0) 误差 (实空间) i0_real_error	8.0650e+05
Rg (倒空间) rg_reciprocal	27.78 Å
I(0) (倒空间) i0_reciprocal	52400000.0000
解质量估计 total_estimate	0.8048
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.8 Å
偏度 Skewness skewness	0.668
峰度 Kurtosis kurtosis	0.256
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3757000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.663; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.711; Smooth: 0.759

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	;DNA (5'-D(CPCPCPGPGPAPCPCPTPGPTPGPAPCPAPAPAPTPTPGPCPCPCPTPCPAPGPAPCPGPGPA)-3' ;
分子量 formula_weight	9796.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	A
原子数 atom_count	3095

CCCGGACCTGTGACAAATTGCCCTCAGACGGA

Entity 2 polymer

描述 description	;DNA (5'-D(CPCPGPTPCPTPGPAPGPGPGPCPAPAPTPTPTPGPTPCPAPCPAPGPGPTPCPCPGPGPGPA)-3') ;
分子量 formula_weight	9898.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B

CCGTCTGAGGGCAATTTGTCACAGGTCCGGGA

Entity 3 polymer

描述 description	Replication initiation protein
分子量 formula_weight	30749.1 kDa
突变 mutation	R118P
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	16

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	74.828 Å
晶胞边长 b length_b	130.670 Å
晶胞边长 c length_c	137.896 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	orthorhombic

分辨率 resolution	2.450 Å
最低分辨率 resolution_low	39.170 Å
R 因子 r_factor	0.2242
R_work r_work	0.2194
R_free r_free	0.2667

fit	/app/data/saxs_computation/ti/8tiq/8tiq.fit
pddf	/app/data/pr_computation/ti/8tiq/8tiq.pr.out
profile	/app/data/saxs_computation/ti/8tiq/8tiq.dat
