8tiv

;Isoreticular, interpenetrating co-crystal of Replication Initiator Protein REPE54 and symmetrical expanded duplex (31mer) containing the cognate REPE54 sequence and an additional G-C rich sequence with blunt ends and 5' terminal phosphates and crosslinked with EDC. ;

Method: X-RAY DIFFRACTION D_max: 101.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

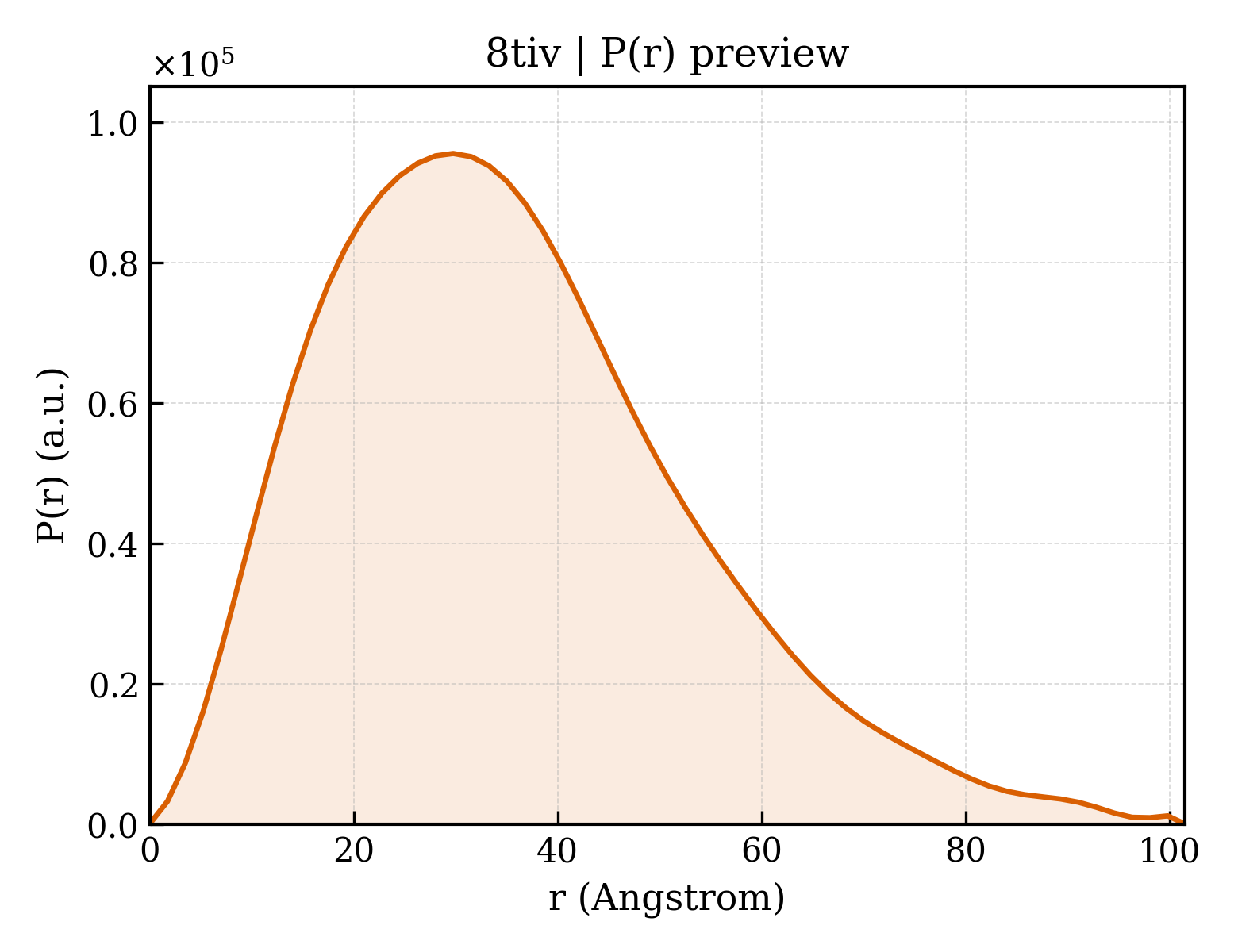

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tiv
沉积日期 deposition_date	2023-07-20
结构标题 title	;Isoreticular, interpenetrating co-crystal of Replication Initiator Protein REPE54 and symmetrical expanded duplex (31mer) containing the cognate REPE54 sequence and an additional G-C rich sequence with blunt ends and 5' terminal phosphates and crosslinked with EDC. ;
关键词 keywords	Replication Initiator RepE Complex Co-Crystal, DNA BINDING PROTEIN-DNA complex, DNA BINDING PROTEIN; DNA BINDING PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.47 Å
回转半径 Rg (电子) rg_electron	25.84 Å
零角强度 I(0) i0	51350200.00
分子量 molecular_weight	43582.0 kDa
排除体积 excluded_volume	49206 Å³
包络体积 envelope_volume	68902 Å³
水化壳体积 shell_volume	24034 Å³
包络直径 envelope_diameter	106.2 Å
壳层 Rg shell_rg	30.34 Å
包络 Rg envelope_rg	26.50 Å
形状 Rg shape_rg	25.69 Å
总 Rg total_rg	26.59 Å
总原子数 total_atoms	2991
残基数 n_residues	272
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.5 Å
Rg (实空间) rg_real	27.83 Å
Rg 误差 (实空间) rg_real_error	1.19 Å
I(0) (实空间) i0_real	5.1350e+07
I(0) 误差 (实空间) i0_real_error	8.4120e+05
Rg (倒空间) rg_reciprocal	27.72 Å
I(0) (倒空间) i0_reciprocal	51350000.0000
解质量估计 total_estimate	0.6467
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.8 Å
偏度 Skewness skewness	0.666
峰度 Kurtosis kurtosis	0.244
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3930000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.663; Stabil: 1.000; Sysdev: 0.267; Positv: 1.000; Valcen: 0.706; Smooth: 0.906

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	;DNA (5'-D(ACPCPCPGPGPAPCPCPTPGPTPGPAPCPAPAPAPTPTPGPCPCPCPTPCPAPGPAPCPGP*G)-3')\| ;
分子量 formula_weight	9796.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	A
原子数 atom_count	3042

ACCCGGACCTGTGACAAATTGCCCTCAGACGG

Entity 2 polymer

描述 description	;DNA (5'-D(ACPCPGPTPCPTPGPAPGPGPGPCPAPAPTPTPTPGPTPCPAPCPAPGPGPTPCPCPGPGP*G)-3') ;
分子量 formula_weight	9898.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B

ACCGTCTGAGGGCAATTTGTCACAGGTCCGGG

Entity 3 polymer

描述 description	Replication initiation protein
分子量 formula_weight	30749.1 kDa
突变 mutation	R118P
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	72.463 Å
晶胞边长 b length_b	133.183 Å
晶胞边长 c length_c	133.626 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	orthorhombic

分辨率 resolution	3.350 Å
最低分辨率 resolution_low	37.850 Å
R 因子 r_factor	0.2388
R_work r_work	0.2362
R_free r_free	0.2601

fit	/app/data/saxs_computation/ti/8tiv/8tiv.fit
pddf	/app/data/pr_computation/ti/8tiv/8tiv.pr.out
profile	/app/data/saxs_computation/ti/8tiv/8tiv.dat
