SAXSdb — 8vqq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA1 chain

Influenza A virus (A/Puerto Rico/8/1934(H1N1))

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 6 其他Polymer 3	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;[2-chloranyl-4-[[[(3~{S})-3-(dimethylamino)pyrrolidin-1-yl]-fluoranyl-oxidanylidene-$l^{5}-sulfanyl]amino]phenyl]-[(2~{S})-2-phenylmorpholin-4-yl]methanone ; × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HEMA_I34A1
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–321； UniProt 18–338 Author chain B； PDBConstruct 1–222； UniProt 344–565

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vqq
Deposition date deposition_date	2024-01-19
Structure title title	Crystal structure of the A/Puerto Rico/8/1934 (H1N1) influenza virus hemagglutinin in complex with small molecule 6S
Keywords keywords	H1N1, Hemagglutinin, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8vqq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

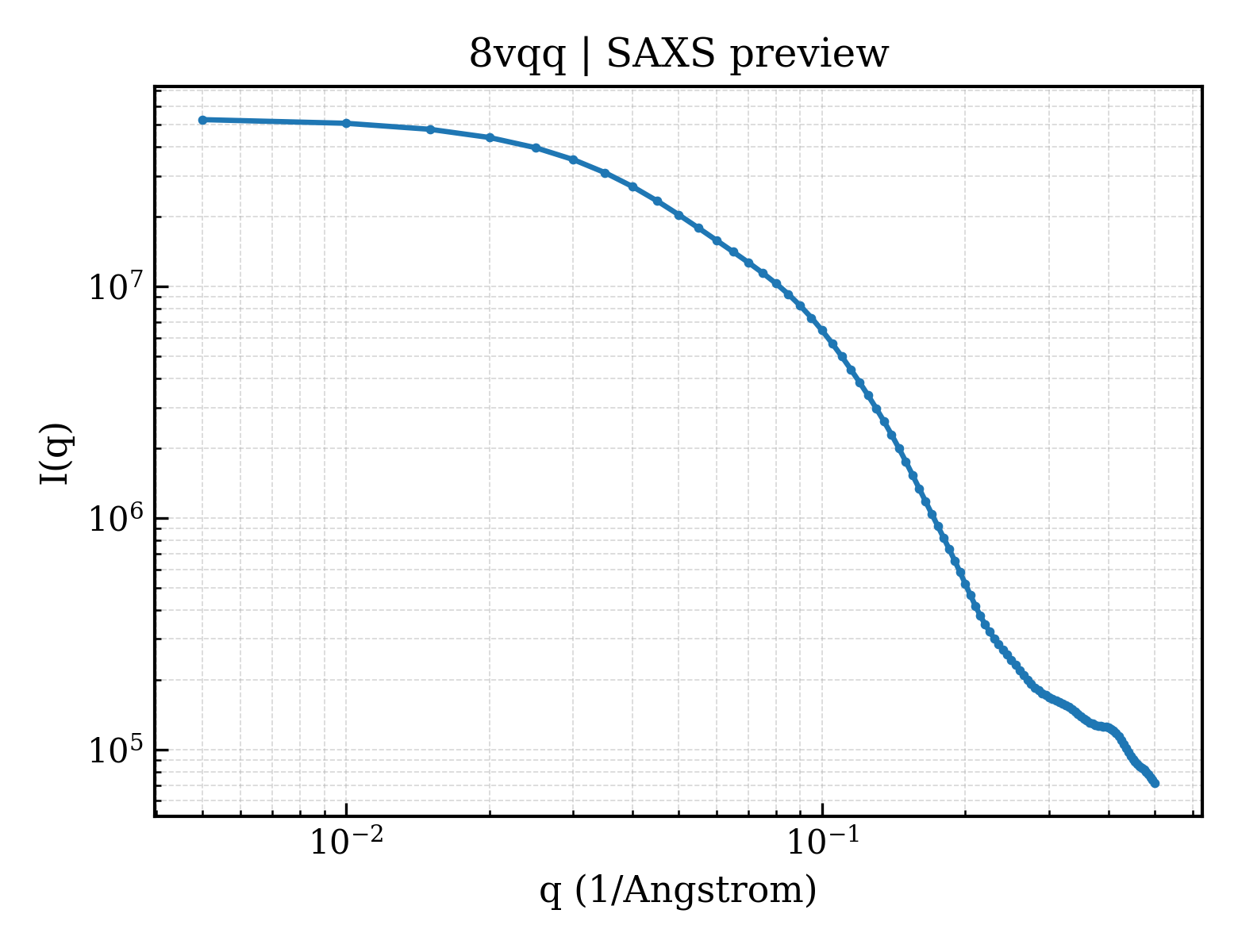

8vqq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8vqq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.42 Å
Rg (electron density)	41.89 Å
Total Rg	41.98 Å
Atom count	12006
Residues	1476
Excluded volume	211930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8vqq__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin HA1 chain
Molecular weight formula_weight	36077.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4157

DTICIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDSHNGKLCRLKGIAPLQLGKCNIAGWLLGNPECDPLLPVRSWSYIVETPNSENGICYPGDFIDYEELREQLSSVSSFERFEIFPKESSWPNHNTNGVTAACSHEGKSSFYRNLLWLTEKEGSYPKLKNSYVNKKGKEVLVLWGIHHPPNSKEQQNLYQNENAYVSVVTSNYNRRFTPEIAERPKVRDQAGRMNYYWTLLKPGDTIIFEANGNLIAPMYAFALSRGFGSGIITSNASMHECNTKCQTPLGAINSSLPYQNIHPVTIGECPKYVRSAKLRMVTGLRNIP

Source Source

Source organism organism	Influenza A virus (A/Puerto Rico/8/1934(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	211044
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 2 Entity 2 polymer

Description description	Hemagglutinin HA2 chain
Molecular weight formula_weight	25106.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GLFGAIAGFIEGGWTGMIDGWYGYHHQNEQGSGYAADQKSTQNAINGITNKVNTVIEKMNIQFTAVGKEFNKLEKRMENLNKKVDDGFLDIWTYNAELLVLLENERTLDFHDSNVKNLYEKVKSQLKNNAKEIGNGCFEFYHKCDNECMESVRNGTYDYPKYSEESKLNREKVDGVKLESMGIYQILAIYSTVASSLVLLVSLGAISFWMCSNGSLQCRICI

Source Source

Source organism organism	Influenza A virus (A/Puerto Rico/8/1934(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	211044
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	;[2-chloranyl-4-[[[(3~{S})-3-(dimethylamino)pyrrolidin-1-yl]-fluoranyl-oxidanylidene-$l^{5}-sulfanyl]amino]phenyl]-[(2~{S})-2-phenylmorpholin-4-yl]methanone ;
Molecular weight formula_weight	495.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	155

▶

Unit-cell length a length_a	159.758 Å
Unit-cell length b length_b	159.758 Å
Unit-cell length c length_c	159.758 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 3
Space-group number int_tables_number	199
Crystal system crystal_system	—

Resolution resolution	2.050 Å
Low-resolution limit resolution_low	42.700 Å
R factor r_factor	0.2027
R_work r_work	0.2010
R_free r_free	0.2333
