8y6b

Structure of human LGI1-ADAM22 complex in space group P212121

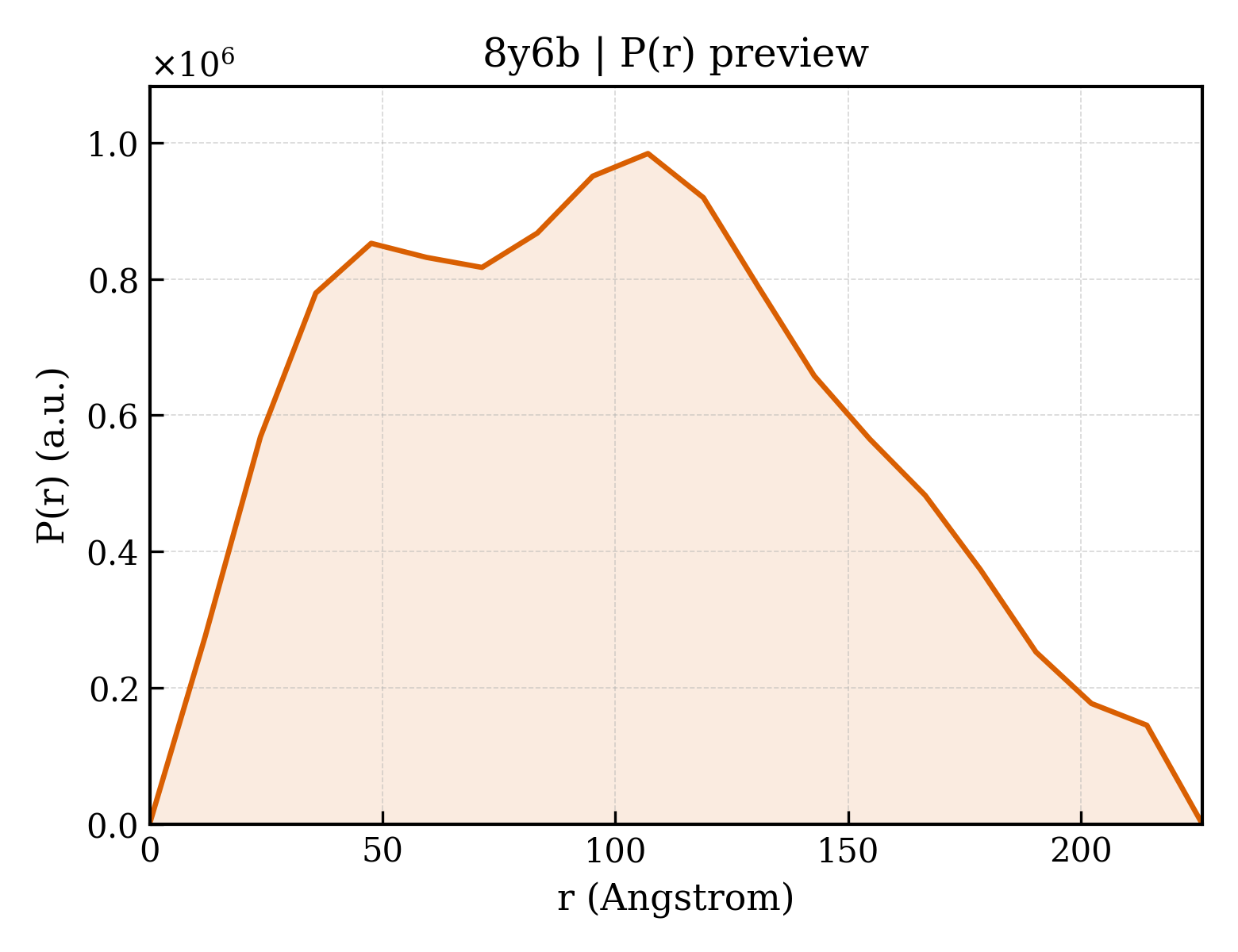

Method: X-RAY DIFFRACTION Dmax: 226.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Disintegrin and metalloproteinase domain-containing protein 22

Homo sapiens

UniProt Q9P0K1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 233–718 Not recorded Leucine-rich glioma-inactivated protein 1 × 1 （O95970） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 233–718 Not recorded Leucine-rich glioma-inactivated protein 1 × 1 （O95970） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277
3 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain C； UniProt 233–718 Not recorded Leucine-rich glioma-inactivated protein 1 × 1 （O95970） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8Y6B Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3G5C Structural and biochemical studies on the ectodomain of human ADAM22 Deposited 2009-02-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 233–736（504 aa） Fragment：M, D, C and E domains
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K
Resolution 2.36 Å R-free 0.273
3G5C Structural and biochemical studies on the ectodomain of human ADAM22 Deposited 2009-02-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 233–736（504 aa） Fragment：M, D, C and E domains
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K
Resolution 2.36 Å R-free 0.273
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y31 Crystal structure of human LGI1-ADAM22 complex Deposited 2017-07-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 7.12 Å R-free 0.316
5Y31 Crystal structure of human LGI1-ADAM22 complex Deposited 2017-07-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 7.12 Å R-free 0.316
7CQF Crystal structure of PSD-95 PDZ3 fused with ADAM22 C-terminal peptide Deposited 2020-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 892–906（15 aa）
Not recorded CL CHLORIDE ION × 1 CHT CHOLINE ION × 1 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.2 M choline chloride, 0.1 M Tris-HCl (pH 7.5), 14 % (w/v) PEG 2000 MME
Resolution 1.80 Å R-free 0.205
8HPY Crystal structure of human LGI1-ADAM22 complex Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 233–718（486 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2.5M sodium chloride, 0.1M HEPES pH=7.5, 2% (w/v) Benzamidine
Resolution 5.87 Å R-free 0.343
8HPY Crystal structure of human LGI1-ADAM22 complex Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 233–718（486 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2.5M sodium chloride, 0.1M HEPES pH=7.5, 2% (w/v) Benzamidine
Resolution 5.87 Å R-free 0.343
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 233–718（486 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 233–718（486 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 233–718（486 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ2 Crystal structure of human ADAM22 in complex with human LGI1 mutant Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 233–718（486 aa）
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；7.5% PEG 4000, 0.2M MAGNESIUM CHLORIDE, 0.1M HEPES PH=7.5
Resolution 2.93 Å R-free 0.291
8HQ2 Crystal structure of human ADAM22 in complex with human LGI1 mutant Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 233–718（486 aa）
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；7.5% PEG 4000, 0.2M MAGNESIUM CHLORIDE, 0.1M HEPES PH=7.5
Resolution 2.93 Å R-free 0.291
9KZC Cryo-EM structure of the LGI1 LRR-LGI1 EPTP-ADAM22 ECD complex Deposited 2024-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 233–718（486 aa） Fragment：UNP RESIDUES 233-729
Not recorded CA CALCIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
9KZT Cryo-EM structure of the 3:3 LGI1-ADAM22 complex Deposited 2024-12-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Chain C 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Chain E 233–729（497 aa） Fragment：UNP RESIDUES 233-729
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.79 Å

9 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ADA22_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–486； UniProt 233–718 Author chain B； PDBConstruct 1–486； UniProt 233–718 Author chain C； PDBConstruct 1–486； UniProt 233–718

Leucine-rich glioma-inactivated protein 1

Homo sapiens

UniProt O95970

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain D； UniProt 39–557 Not recorded Disintegrin and metalloproteinase domain-containing protein 22 × 1 （Q9P0K1） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain F； UniProt 39–557 Not recorded Disintegrin and metalloproteinase domain-containing protein 22 × 1 （Q9P0K1） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277
3 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain E； UniProt 39–557 Not recorded Disintegrin and metalloproteinase domain-containing protein 22 × 1 （Q9P0K1） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.8M sodium/potassium tartrate, 0.1M Tris pH=7.0, 0.2M lithium sulfate. Resolution 3.49 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8Y6B Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y2Z Crystal structure of human LGI1 EPTP-ADAM22 complex Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 224–557（334 aa） Fragment：UNP RESIDUES 224-557
Not recorded CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 2.67 Å R-free 0.279
5Y30 Crystal structure of LGI1 LRR domain Deposited 2017-07-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 37–223（187 aa） Fragment：LGI1 LRR domain (UNP RESIDUES 37-223)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；20% PEG 4000, 0.2 M ammonium acetate, 0.1 M tri-sodium citrate (pH 5.5)
Resolution 1.78 Å R-free 0.191
5Y31 Crystal structure of human LGI1-ADAM22 complex Deposited 2017-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Mutation：R470A CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 7.12 Å R-free 0.316
5Y31 Crystal structure of human LGI1-ADAM22 complex Deposited 2017-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Mutation：R470A CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；10 % PEG 8000, 0.1 M zinc acetate, 0.1 M MES-Na (pH 6.0)
Resolution 7.12 Å R-free 0.316
8HPY Crystal structure of human LGI1-ADAM22 complex Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 39–557（519 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2.5M sodium chloride, 0.1M HEPES pH=7.5, 2% (w/v) Benzamidine
Resolution 5.87 Å R-free 0.343
8HPY Crystal structure of human LGI1-ADAM22 complex Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 39–557（519 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2.5M sodium chloride, 0.1M HEPES pH=7.5, 2% (w/v) Benzamidine
Resolution 5.87 Å R-free 0.343
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 39–557（519 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 39–557（519 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ1 Crystal Structure Of Human Lgi1-Adam22 Complex In Space Group C2 Deposited 2022-12-13 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 39–557（519 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；2M SODIUM CHLORIDE, 0.1M POTASSIUM/SODIUM PHOSPHATE pH=6.2
Resolution 4.17 Å R-free 0.314
8HQ2 Crystal structure of human ADAM22 in complex with human LGI1 mutant Deposited 2022-12-13 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 39–557（519 aa）
Mutation：L88N/F89A/R474Q CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；7.5% PEG 4000, 0.2M MAGNESIUM CHLORIDE, 0.1M HEPES PH=7.5
Resolution 2.93 Å R-free 0.291
8HQ2 Crystal structure of human ADAM22 in complex with human LGI1 mutant Deposited 2022-12-13 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 39–557（519 aa）
Mutation：L88N/F89A/R474Q CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；7.5% PEG 4000, 0.2M MAGNESIUM CHLORIDE, 0.1M HEPES PH=7.5
Resolution 2.93 Å R-free 0.291
9KZC Cryo-EM structure of the LGI1 LRR-LGI1 EPTP-ADAM22 ECD complex Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Chain D 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Mutation：R470A Mutation：R470A CA CALCIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.78 Å
9KZT Cryo-EM structure of the 3:3 LGI1-ADAM22 complex Deposited 2024-12-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Chain D 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Chain F 37–557（521 aa） Fragment：UNP RESIDUES 37-557
Mutation：R470A Mutation：R470A Mutation：R470A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.79 Å

8 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name LGI1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain D； PDBConstruct 8–526； UniProt 39–557 Author chain E； PDBConstruct 8–526； UniProt 39–557 Author chain F； PDBConstruct 8–526； UniProt 39–557

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8y6b

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8y6b
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8y6b
Deposition date deposition_date2024-02-02
Structure title titleStructure of human LGI1-ADAM22 complex in space group P212121
Keywords keywordssynaptic modulator, complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier80.08 Å
Radius of gyration Rg (electron density) rg_electron82.30 Å
Forward intensity I(0) i01707160000.00
Molecular weight molecular_weight343140.0 kDa
Excluded volume excluded_volume427280 ų
Envelope volume envelope_volume793910 ų
Hydration-shell volume shell_volume90634 ų
Envelope diameter envelope_diameter317.7 Å
Shell Rg shell_rg60.74 Å
Envelope Rg envelope_rg82.22 Å
Shape Rg shape_rg82.47 Å
Total Rg total_rg81.30 Å
Total atoms total_atoms24030
Residues n_residues3009
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax226.0 Å
Rg (real space) rg_real78.17 Å
Rg uncertainty (real space) rg_real_error1.52 Å
I(0) (real space) i0_real1.6860e+09
I(0) uncertainty (real space) i0_real_error3.2340e+07
Rg (reciprocal space) rg_reciprocal77.64 Å
I(0) (reciprocal space) i0_reciprocal1696000000.0000
Solution quality estimate total_estimate0.8394
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary107.0 Å
Skewness Skewness skewness0.240
Kurtosis Kurtosis kurtosis-0.738
Angular range angular_range— – 0.0950 Å−1
Current regularization parameter α current_alpha0.0326
Highest regularization parameter α highest_alpha38810000.0000
Real-space data points n_real_points20
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.973; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▶

8. Citations (1)

▶

9. Files and Curves (10)
