SAXSdb — 8ywq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 28–212	Not recorded	Heavy chain of the Fab fragment of anti-IL-6 antibody I9H × 2 Light chain of the Fab fragment of anti-IL-6 antibody I9H × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 10.5；293 K；40% v/v 2-methyl-2,4-pentanediol, 100 mM CAPS (seed stock crystallization conditions: 14-16% PEG 8000, 100 mM magnesium acetate, 100 mM MES pH 6.5)	Resolution 2.51 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8YWQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ALU HUMAN INTERLEUKIN-6 Deposited 1997-06-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–212（185 aa）	Not recorded	SO4 SULFATE ION × 8 TLA L(+)-TARTARIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.3；PROTEIN AT 15 MG/ML WAS CRYSTALLIZED FROM 1.8M AMMONIUM SULFATE, 300 MM SODIUM POTASSIUM TARTRATE, IN 100MM PH 6.3 SODIUM CITRATE BUFFER.	Resolution 1.90 Å R-free 0.277
1ALU HUMAN INTERLEUKIN-6 Deposited 1997-06-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–212（185 aa）	Not recorded	SO4 SULFATE ION × 8 TLA L(+)-TARTARIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.3；PROTEIN AT 15 MG/ML WAS CRYSTALLIZED FROM 1.8M AMMONIUM SULFATE, 300 MM SODIUM POTASSIUM TARTRATE, IN 100MM PH 6.3 SODIUM CITRATE BUFFER.	Resolution 1.90 Å R-free 0.277
1IL6 HUMAN INTERLEUKIN-6, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1997-01-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–212（185 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；298 K	Resolution not provided
1P9M Crystal structure of the hexameric human IL-6/IL-6 alpha receptor/gp130 complex Deposited 2003-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 29–212（184 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；Sodium formate, Sodium acetate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.65 Å R-free 0.334
2IL6 HUMAN INTERLEUKIN-6, NMR, 32 STRUCTURES Deposited 1997-01-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–212（185 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；298 K	Resolution not provided
4CNI Crystal structure of the Fab portion of Olokizumab in complex with IL- 6 Deposited 2014-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 42–212（171 aa） Fragment：RESIDUES 41-212	Not recorded	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.215
4CNI Crystal structure of the Fab portion of Olokizumab in complex with IL- 6 Deposited 2014-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 42–212（171 aa） Fragment：RESIDUES 41-212	Not recorded	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.215
4J4L Modular evolution and design of the protein binding interface Deposited 2013-02-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 47–212（166 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.1M magnesium formate, 15-18% w/v polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, temperature 290K	Resolution 2.30 Å R-free 0.268
4J4L Modular evolution and design of the protein binding interface Deposited 2013-02-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 47–212（166 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；290 K；0.1M magnesium formate, 15-18% w/v polyethylene glycol 3350, pH 8.0, VAPOR DIFFUSION, temperature 290K	Resolution 2.30 Å R-free 0.268
4NI7 Crystal structure of human interleukin 6 in complex with a modified nucleotide aptamer (SOMAMER SL1025) Deposited 2013-11-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 28–212（185 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；31% PEG 3350, 180 mM LiNO3, 100 mM Sodium Acetate (pH 5.5), 2.5% Hexamine Cobalt Chloride, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.40 Å R-free 0.260
4NI9 Crystal structure of human interleukin 6 in complex with a modified nucleotide aptamer (SOMAMER SL1025), FORM 2 Deposited 2013-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 28–212（185 aa） Chain C 28–212（185 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；31% PEG 3350, 90 mM Magnesium Sulfate, 90 mM Sodium Acetate (pH 5.5) 100 mM LiCl, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.55 Å R-free 0.239
4O9H Structure of Interleukin-6 in complex with a Camelid Fab fragment Deposited 2014-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–212（185 aa） Fragment：UNP residues 28-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；277 K；2M Ammonium sulfate, 0.15M Na citrate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.42 Å R-free 0.244
4ZS7 Structural mimicry of receptor interaction by antagonistic IL-6 antibodies Deposited 2015-05-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 42–212（171 aa） Fragment：residues 14-184	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25% PEG 4K, 0.15 M (NH4)2SO4, 0.1 M MES pH 5.5. Took 9 month	Resolution 2.93 Å R-free 0.293
5FUC Biophysical and cellular characterisation of a junctional epitope antibody that locks IL-6 and gp80 together in a stable complex: implications for new therapeutic strategies Deposited 2016-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 49–212（164 aa） Fragment：RESIDUES 49-212	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M MES, PH 6.5, 14% PEG20K	Resolution 2.70 Å R-free 0.287
5FUC Biophysical and cellular characterisation of a junctional epitope antibody that locks IL-6 and gp80 together in a stable complex: implications for new therapeutic strategies Deposited 2016-01-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 49–212（164 aa） Fragment：RESIDUES 49-212	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M MES, PH 6.5, 14% PEG20K	Resolution 2.70 Å R-free 0.287
7NXZ Synthetic glycoform of Human Interleukin 6 Deposited 2021-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 30–212（183 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2-0.25 M sodium malonate, pH 7.0 and 18-22% (w/v) PEG 3350	Resolution 2.00 Å R-free 0.253
8D82 Cryo-EM structure of human IL-6 signaling complex in detergent: model containing full extracellular domains Deposited 2022-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 30–212（183 aa） Chain H 30–212（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
8QY5 Structure of interleukin 6. Deposited 2023-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–212（212 aa） Chain E 1–212（212 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8QY6 Structure of interleukin 6 (gp130 P496L mutant). Deposited 2023-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–212（212 aa） Chain E 1–212（212 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8YWR Crystal structure of the Fab fragment of the anti-IL-6 antibody 68F2 in complex with a domain-swapped IL-6 dimer Deposited 2024-03-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 42–212（171 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25% PEG 4K, 0.15 M (NH4)2SO4, 0.1 M MES	Resolution 2.93 Å R-free 0.256

16 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL6_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–185； UniProt 28–212

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ywq
Deposition date deposition_date	2024-03-31
Structure title title	Crystal structure of the Fab fragment of the anti-IL-6 antibody I9H in complex with a domain-swapped IL-6 dimer
Keywords keywords	interleukin, dimer, swap, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.19 Å
Radius of gyration Rg (electron density) rg_electron	32.11 Å
Forward intensity I(0) i0	60268200.00
Molecular weight molecular_weight	60564.0 kDa
Excluded volume excluded_volume	75440 Å³
Envelope volume envelope_volume	108760 Å³
Hydration-shell volume shell_volume	30223 Å³
Envelope diameter envelope_diameter	120.2 Å
Shell Rg shell_rg	36.36 Å
Envelope Rg envelope_rg	32.80 Å
Shape Rg shape_rg	32.08 Å
Total Rg total_rg	32.59 Å
Total atoms total_atoms	4267
Residues n_residues	579
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	117.2 Å
Rg (real space) rg_real	32.55 Å
Rg uncertainty (real space) rg_real_error	1.18 Å
I(0) (real space) i0_real	6.0270e+07
I(0) uncertainty (real space) i0_real_error	9.8270e+05
Rg (reciprocal space) rg_reciprocal	32.40 Å
I(0) (reciprocal space) i0_reciprocal	60260000.0000
Solution quality estimate total_estimate	0.8190
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	31.1 Å
Skewness Skewness skewness	0.577
Kurtosis Kurtosis kurtosis	-0.151
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8331000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.704; Smooth: 0.910

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Heavy chain of the Fab fragment of anti-IL-6 antibody I9H
Molecular weight formula_weight	24912.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	4270

QITLKESGPALVKPTQTLTLTCTFSGFSLSTSGMGVGWIRQPPGKALEWLAHIWWDDDKYYNPSLKSRLTISKDTSKNQVVLTMTNMDPVDTATYYCARRANYGTSYDYGMDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Light chain of the Fab fragment of anti-IL-6 antibody I9H
Molecular weight formula_weight	23397.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DVVMTQSPSSLSASVGDRVTITCKASQSVSDVLTWYQQKPGKAPKLLIYYASNRYTGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQGYRSPYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Interleukin-6
Molecular weight formula_weight	21006.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

APVPPGEDSKDVAAPHRQPLTSSERIDKQIRYILDGISALRKETCNKSNMCESSKEALAENNLNLPKMAEKDGCFQSGFNEETCLVKIITGLLEFEVYLEYLQNRFESSEEQARAVQMSTKVLIQFLQKKAKNLDAITTPDPTTNASLLTKLQAQNQWLQDMTTHLILRSFKEFLQSSLRALRQM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3

▶

8. Citations (1)

▶

Unit-cell length a length_a	126.621 Å
Unit-cell length b length_b	151.875 Å
Unit-cell length c length_c	76.053 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 2
Space-group number int_tables_number	21
Crystal system crystal_system	orthorhombic

Resolution resolution	2.510 Å
Low-resolution limit resolution_low	40.970 Å
R factor r_factor	0.2432
R_work r_work	0.2394
R_free r_free	0.2774

fit	/app/data/saxs_computation/yw/8ywq/8ywq.fit
pddf	/app/data/pr_computation/yw/8ywq/8ywq.pr.out
profile	/app/data/saxs_computation/yw/8ywq/8ywq.dat

Crystal structure of the Fab fragment of the anti-IL-6 antibody I9H in complex with a domain-swapped IL-6 dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-6

State in the Current Structure

Other States of the Same Protein in the Database

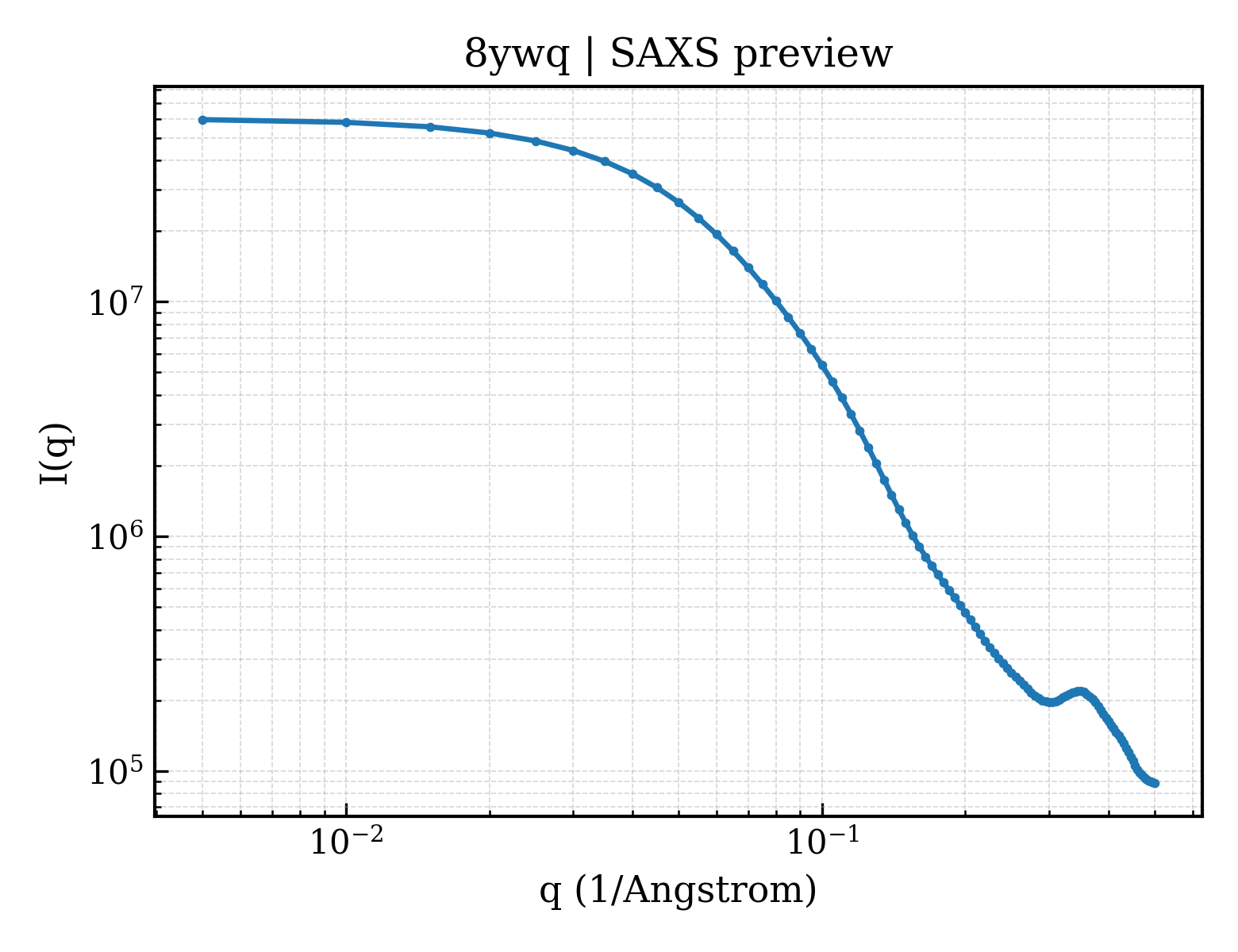

SAXS scattering curve SAXS Profile
