SAXSdb — 8z3o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ovarian cancer G-protein coupled receptor 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain R； UniProt 1–319	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 6 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Z3O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8Z5H Cryo-EM structure of the hGPR68-Gs complex in pH6.0 Deposited 2024-04-18	Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 1–319（319 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8Z68 Cryo-EM structure of the hGPR68-Gs complex in pH6.8 Deposited 2024-04-18	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–319（319 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.64 Å
9BHM Human proton sensing receptor GPR68 in complex with miniGs Deposited 2024-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 1–365（365 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9BI6 Human proton sensing receptor GPR68 in complex with miniGsq Deposited 2024-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–365（365 aa）	Not recorded	Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	OGR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 1–319； UniProt 1–319

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8z3o
Deposition date deposition_date	2024-04-15
Structure title title	Cryo-EM structure of the receptor of hGPR68-Gs complex in pH6.0
Keywords keywords	pH6.0, hGPR68, MEMBRANE PROTE, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.92 Å
Radius of gyration Rg (electron density) rg_electron	20.57 Å
Forward intensity I(0) i0	14701700.00
Molecular weight molecular_weight	30415.0 kDa
Excluded volume excluded_volume	38699 Å³
Envelope volume envelope_volume	47609 Å³
Hydration-shell volume shell_volume	19930 Å³
Envelope diameter envelope_diameter	75.6 Å
Shell Rg shell_rg	26.74 Å
Envelope Rg envelope_rg	20.87 Å
Shape Rg shape_rg	20.59 Å
Total Rg total_rg	21.48 Å
Total atoms total_atoms	2159
Residues n_residues	286
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

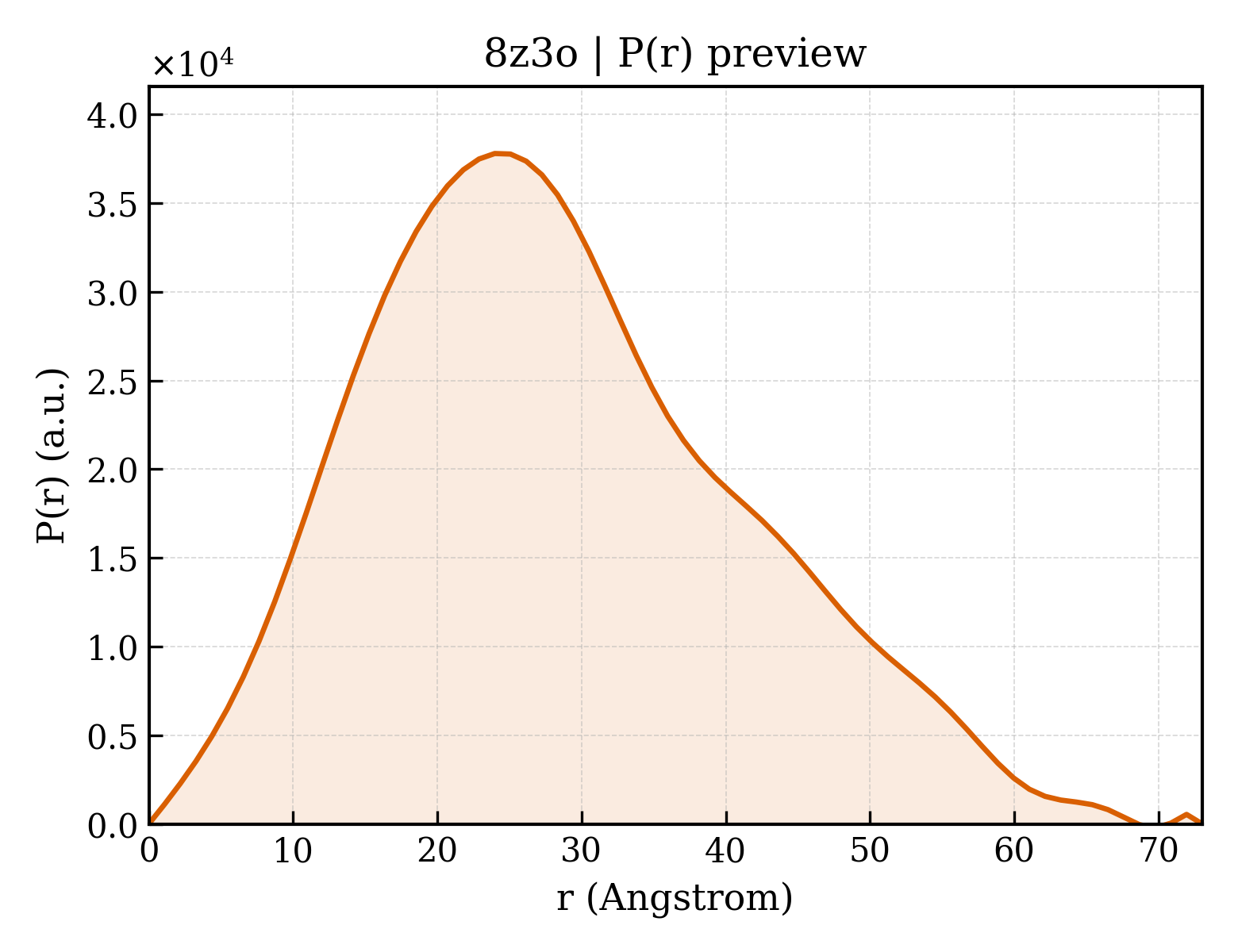

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	73.0 Å
Rg (real space) rg_real	21.99 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	1.4700e+07
I(0) uncertainty (real space) i0_real_error	1.9840e+05
Rg (reciprocal space) rg_reciprocal	21.98 Å
I(0) (reciprocal space) i0_reciprocal	14700000.0000
Solution quality estimate total_estimate	0.6211
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.0 Å
Skewness Skewness skewness	0.441
Kurtosis Kurtosis kurtosis	-0.290
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2731000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.783; Stabil: 0.998; Sysdev: 0.262; Positv: 1.000; Valcen: 0.942; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	134460

Description description	Ovarian cancer G-protein coupled receptor 1
Molecular weight formula_weight	36511.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	R
Atom count atom_count	2159

Cryo-EM structure of the receptor of hGPR68-Gs complex in pH6.0

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ovarian cancer G-protein coupled receptor 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

fit	/app/data/saxs_computation/z3/8z3o/8z3o.fit
pddf	/app/data/pr_computation/z3/8z3o/8z3o.pr.out
profile	/app/data/saxs_computation/z3/8z3o/8z3o.dat
