9bdj

MicroED structure of bovine liver catalase with missing cone eliminated by suspended drop

Method: ELECTRON CRYSTALLOGRAPHY D_max: 114.5 Å Quality: GOOD

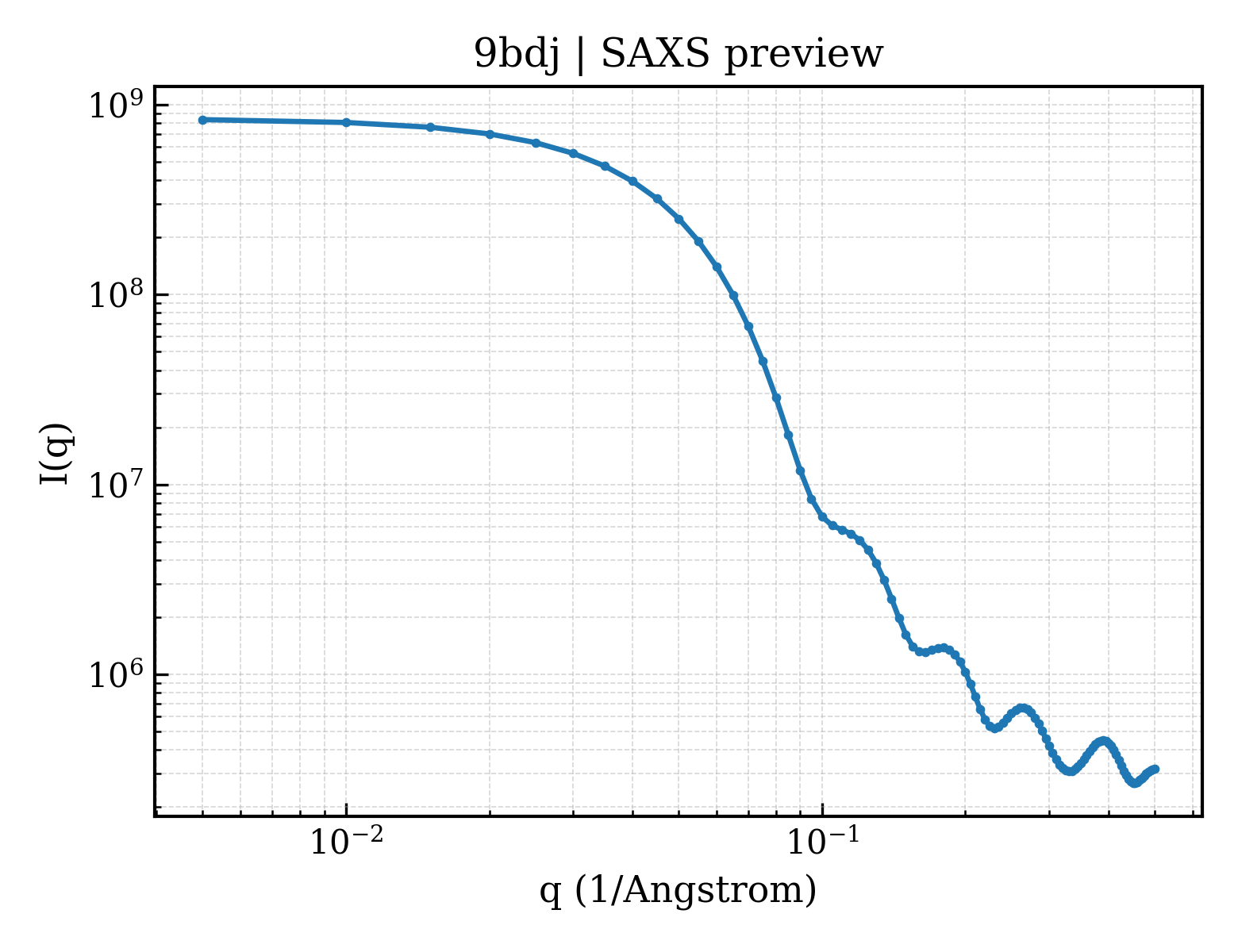

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bdj
沉积日期 deposition_date	2024-04-11
结构标题 title	MicroED structure of bovine liver catalase with missing cone eliminated by suspended drop
关键词 keywords	Heme-containing enzyme, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON CRYSTALLOGRAPHY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.29 Å
回转半径 Rg (电子) rg_electron	36.47 Å
零角强度 I(0) i0	843489000.00
分子量 molecular_weight	232570.0 kDa
排除体积 excluded_volume	288170 Å³
包络体积 envelope_volume	353120 Å³
水化壳体积 shell_volume	74808 Å³
包络直径 envelope_diameter	118.9 Å
壳层 Rg shell_rg	46.70 Å
包络 Rg envelope_rg	36.48 Å
形状 Rg shape_rg	36.46 Å
总 Rg total_rg	37.06 Å
总原子数 total_atoms	16432
残基数 n_residues	1996
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	114.5 Å
Rg (实空间) rg_real	37.03 Å
Rg 误差 (实空间) rg_real_error	0.52 Å
I(0) (实空间) i0_real	8.4350e+08
I(0) 误差 (实空间) i0_real_error	1.0900e+07
Rg (倒空间) rg_reciprocal	37.19 Å
I(0) (倒空间) i0_reciprocal	843600000.0000
解质量估计 total_estimate	0.8951
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	46.4 Å
偏度 Skewness skewness	0.131
峰度 Kurtosis kurtosis	-0.518
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	326700000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.921; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.902

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Catalase
分子量 formula_weight	59999.2 kDa
EC 编号 ec_number	1.11.1.6
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	16432

MADNRDPASDQMKHWKEQRAAQKPDVLTTGGGNPVGDKLNSLTVGPRGPLLVQDVVFTDEMAHFDRERIPERVVHAKGAGAFGYFEVTHDITRYSKAKVFEHIGKRTPIAVRFSTVAGESGSADTVRDPRGFAVKFYTEDGNWDLVGNNTPIFFIRDALLFPSFIHSQKRNPQTHLKDPDMVWDFWSLRPESLHQVSFLFSDRGIPDGHRHMNGYGSHTFKLVNANGEAVYCKFHYKTDQGIKNLSVEDAARLAHEDPDYGLRDLFNAIATGNYPSWTLYIQVMTFSEAEIFPFNPFDLTKVWPHGDYPLIPVGKLVLNRNPVNYFAEVEQLAFDPSNMPPGIEPSPDKMLQGRLFAYPDTHRHRLGPNYLQIPVNCPYRARVANYQRDGPMCMMDNQGGAPNYYPNSFSAPEHQPSALEHRTHFSGDVQRFNSANDDNVTQVRTFYLKVLNEEQRKRLCENIAGHLKDAQLFIQKKAVKNFSDVHPEYGSRIQALLDKYNEEKPKNAVHTYVQHGSHLSAREKANL

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.650 Å
晶胞边长 b length_b	173.300 Å
晶胞边长 c length_c	182.780 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	4.000 Å
最低分辨率 resolution_low	44.109 Å
R 因子 r_factor	—
R_work r_work	0.3166
R_free r_free	0.3580

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	—

fit	/app/data/saxs_computation/bd/9bdj/9bdj.fit
pddf	/app/data/pr_computation/bd/9bdj/9bdj.pr.out
profile	/app/data/saxs_computation/bd/9bdj/9bdj.dat
