1. Protein Identity and Related Structures Protein Identity & Related Structures

Heat-labile enterotoxin B chain

Clostridium perfringens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Claudin-4 × 1 COP-2 Fab Heavy chain × 1 Anti-fab nanobody × 1 COP-2 Fab Light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELTB_CLOPF
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–129； UniProt 192–319

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bei
Deposition date deposition_date	2024-04-15
Structure title title	Cryo-EM structure of synthetic claudin-4 complex with Clostridium perfringens enterotoxin C-terminal domain, sFab COP-2, and Nanobody
Keywords keywords	Claudin, Fab, Toxin, MEMBRANE PROTEIN, MEMBRANE PROTEIN-IMMUNE SYSYTEM complex; MEMBRANE PROTEIN/IMMUNE SYSYTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9bei__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9bei__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

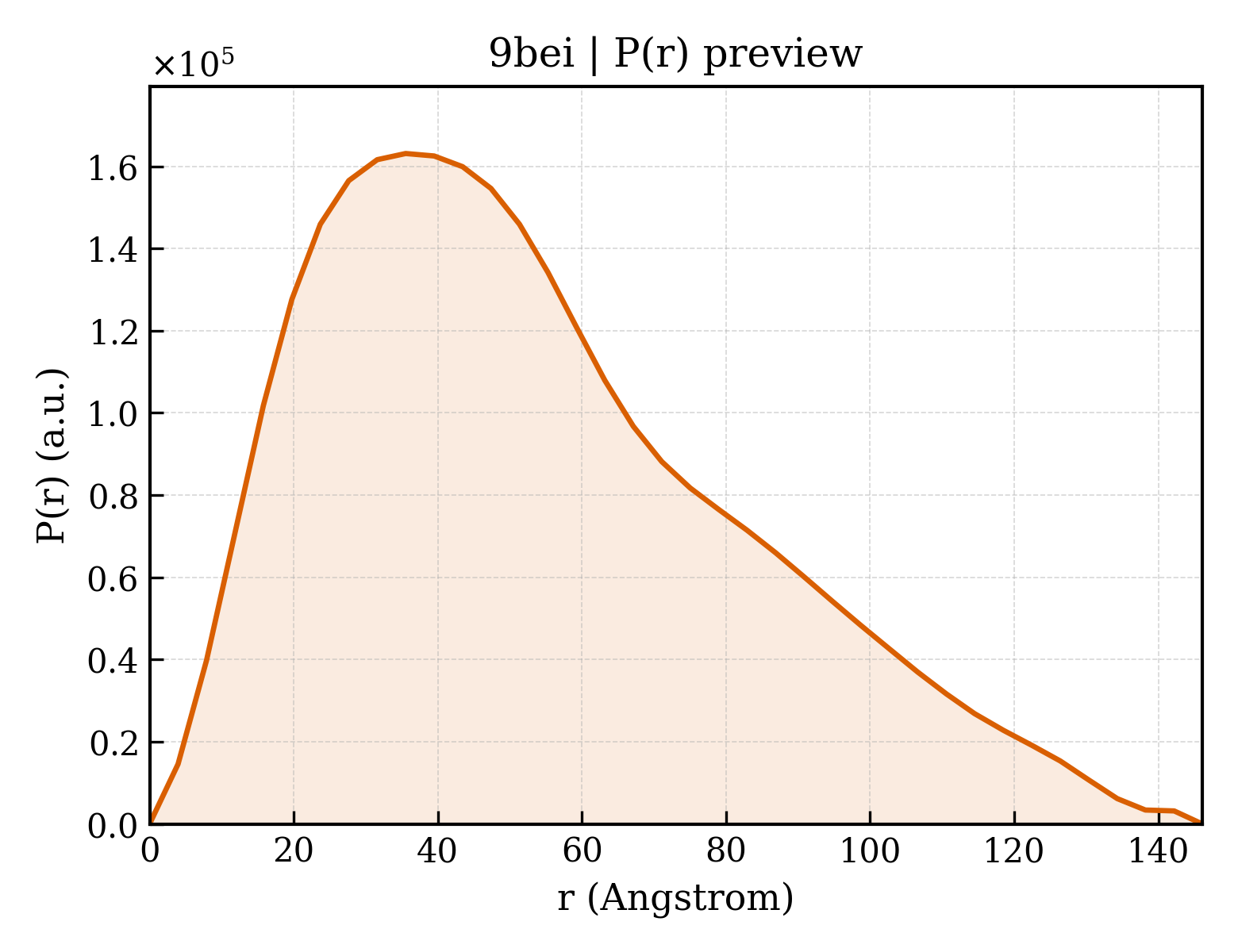

9bei__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.15 Å
Rg (electron density)	42.74 Å
Total Rg	42.89 Å
Atom count	6649
Residues	862
Excluded volume	117410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9bei__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Claudin-4
Molecular weight formula_weight	22079.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6649

MSSLETFREARRLAREGLELVREAARLPMWRVTAFIGSNIVTSQTIWEGLWMNCVVQSTGQMQCKVYDSLLALPEDLRRARESFERAIEVAEKALELLEIGDPDSDAIEDEEERLQTIHEAGELLLKAAELAREPTEAIADRIIQDFYNPLVASGQKREMGASLALARRGAELLEEAGRKLLGLEGGSLEHHHHHH

Entity 2 Entity 2 polymer

Description description	Heat-labile enterotoxin B chain
Molecular weight formula_weight	14591.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSTDIEKEILDLAAATERLNLTDALNSNPAGNLYDWRSSNSYPWTQKLNLHLTITATGQKYRILASKIVDFNIYSNNFNNLVKLEQSLGDGVKDHYVDISLDAGQYVLVMKANSSYSGNYPYSILFQKF

Source Source

Source organism organism	Clostridium perfringens
NCBI taxonomy ID ncbi_taxonomy_id	1502
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	COP-2 Fab Heavy chain
Molecular weight formula_weight	25263.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EISEVQLVESGGGLVQPGGSLRLSCAASGFNFSSSSIHWVRQAPGKGLEWVASISSYSGYTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARYWSWYNSSHYIYSALDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

Entity 4 Entity 4 polymer

Description description	Anti-fab nanobody
Molecular weight formula_weight	13175.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

GSVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVS

Entity 5 Entity 5 polymer

Description description	COP-2 Fab Light chain
Molecular weight formula_weight	23517.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQSYEWAPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.16 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	21296

Cryo-EM structure of synthetic claudin-4 complex with Clostridium perfringens enterotoxin C-terminal domain, sFab COP-2, and Nanobody
