SAXSdb — 9c2y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

JF1cpCasp2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 334–448 Chain A； UniProt 177–333 Chain B； UniProt 334–448 Chain B； UniProt 177–333	Not recorded	MUR-65 × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Tris, pH 8.0, 0.2 M Sodium chloride, 20% w/v PEG 6000	Resolution 1.96 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 334–448 Chain C； UniProt 177–333 Chain D； UniProt 334–448 Chain D； UniProt 177–333	Not recorded	MUR-65 × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Tris, pH 8.0, 0.2 M Sodium chloride, 20% w/v PEG 6000	Resolution 1.96 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9C2Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PYO Crystal Structure of Human Caspase-2 in Complex with Acetyl-Leu-Asp-Glu-Ser-Asp-cho Deposited 2003-07-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 167–333（167 aa） Fragment：subunit p18, sequence database residues 151-316 Chain B 348–452（105 aa） Fragment：subunit p12, sequence database residues 331-435 Chain C 167–333（167 aa） Fragment：subunit p18, sequence database residues 151-316 Chain D 348–452（105 aa） Fragment：subunit p12, sequence database residues 331-435	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG 6000, MOPS, DTT, SUCROSE, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.65 Å R-free 0.213
2P2C Inhibition of caspase-2 by a designed ankyrin repeat protein (DARPin) Deposited 2007-03-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 167–333（167 aa） Fragment：Residues 167-333 Chain B 348–452（105 aa） Fragment：Residues 348-452 Chain C 167–333（167 aa） Fragment：Residues 167-333 Chain D 348–452（105 aa） Fragment：Residues 348-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；17% PEG 5000-MME, 0.1 M Tris-HOAc, 0.1 M KSCN, 30% ethylene glycol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.24 Å R-free 0.305
2P2C Inhibition of caspase-2 by a designed ankyrin repeat protein (DARPin) Deposited 2007-03-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 167–333（167 aa） Fragment：Residues 167-333 Chain F 348–452（105 aa） Fragment：Residues 348-452 Chain G 167–333（167 aa） Fragment：Residues 167-333 Chain H 348–452（105 aa） Fragment：Residues 348-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；17% PEG 5000-MME, 0.1 M Tris-HOAc, 0.1 M KSCN, 30% ethylene glycol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.24 Å R-free 0.305
2P2C Inhibition of caspase-2 by a designed ankyrin repeat protein (DARPin) Deposited 2007-03-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 167–333（167 aa） Fragment：Residues 167-333 Chain J 348–452（105 aa） Fragment：Residues 348-452 Chain K 167–333（167 aa） Fragment：Residues 167-333 Chain L 348–452（105 aa） Fragment：Residues 348-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；17% PEG 5000-MME, 0.1 M Tris-HOAc, 0.1 M KSCN, 30% ethylene glycol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.24 Å R-free 0.305
3R5J Crystal structure of active caspase-2 bound with Ac-ADVAD-CHO Deposited 2011-03-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 175–333（159 aa） Chain B 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.77 Å R-free 0.218
3R5J Crystal structure of active caspase-2 bound with Ac-ADVAD-CHO Deposited 2011-03-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.77 Å R-free 0.218
3R5J Crystal structure of active caspase-2 bound with Ac-ADVAD-CHO Deposited 2011-03-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 175–333（159 aa） Chain B 349–452（104 aa） Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.77 Å R-free 0.218
3R6G Crystal structure of active caspase-2 bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 175–333（159 aa） Chain B 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.07 Å R-free 0.210
3R6G Crystal structure of active caspase-2 bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.07 Å R-free 0.210
3R6G Crystal structure of active caspase-2 bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 175–333（159 aa） Chain B 349–452（104 aa） Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.07 Å R-free 0.210
3R6L Caspase-2 T380A bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 175–333（159 aa） Chain B 349–452（104 aa）	Mutation：T380A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.194
3R6L Caspase-2 T380A bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Mutation：T380A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.194
3R6L Caspase-2 T380A bound with Ac-VDVAD-CHO Deposited 2011-03-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 175–333（159 aa） Chain B 349–452（104 aa） Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Mutation：T380A Mutation：T380A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.194
3R7B Caspase-2 bound to one copy of Ac-DVAD-CHO Deposited 2011-03-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 175–333（159 aa） Chain B 349–452（104 aa） Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES (pH 7.0), 15% PEG 3350, 3mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.217
3R7N Caspase-2 bound with two copies of Ac-DVAD-CHO Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 175–333（159 aa） Chain B 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.33 Å R-free 0.227
3R7N Caspase-2 bound with two copies of Ac-DVAD-CHO Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.33 Å R-free 0.227
3R7N Caspase-2 bound with two copies of Ac-DVAD-CHO Deposited 2011-03-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 175–333（159 aa） Chain B 349–452（104 aa） Chain C 175–333（159 aa） Chain D 349–452（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.33 Å R-free 0.227
3R7S Crystal Structure of Apo Caspase2 Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 175–333（159 aa） Fragment：UNP residues 175-333 Chain B 349–452（104 aa） Fragment：UNP residues 349-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.226
3R7S Crystal Structure of Apo Caspase2 Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 175–333（159 aa） Fragment：UNP residues 175-333 Chain D 349–452（104 aa） Fragment：UNP residues 349-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.226
3R7S Crystal Structure of Apo Caspase2 Deposited 2011-03-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 175–333（159 aa） Fragment：UNP residues 175-333 Chain B 349–452（104 aa） Fragment：UNP residues 349-452 Chain C 175–333（159 aa） Fragment：UNP residues 175-333 Chain D 349–452（104 aa） Fragment：UNP residues 349-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1M HEPES, 15% PEG 3350, 3mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.25 Å R-free 0.226
3RJM CASPASE2 IN COMPLEX WITH CHDI LIGAND 33c Deposited 2011-04-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 167–333（167 aa） Fragment：Residues 167-333 Chain B 348–452（105 aa） Fragment：Residues 348-452 Chain C 167–333（167 aa） Fragment：Residues 167-333 Chain D 348–452（105 aa） Fragment：Residues 348-452	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；290 K；26% PEG 3500, 100MM MES PH 6.5 - PH 7.0, SITTING DROP, VAPOR DIFFUSION, TEMPERATURE 290K, VAPOR DIFFUSION, SITTING DROP	Resolution 2.55 Å R-free 0.249
6S9K Structure of 14-3-3 gamma in complex with caspase-2 peptide containing 14-3-3 binding motif Ser139 and NLS Deposited 2019-07-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 135–168（34 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CFH 1,1,1,3,3,3-hexafluoropropan-2-ol × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293.15 K；PEG 400, calcium chloride, HEPES, 1,1,1,3,3,3-hexafluoropropan-2-ol	Resolution 1.60 Å R-free 0.221
6SAD Structure of 14-3-3 gamma in complex with double phosphorylated caspase-2 peptide on Ser139 and Ser164 Deposited 2019-07-16	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 135–168（34 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；PEG 400, magnesium chloride, HEPES, 1,1,1,3,3,3-hexafluoropropan-2-ol	Resolution 2.75 Å R-free 0.271
8VP4 Crystal Structure of JF1cpCasp2 with Peptide Inhibitor AcVDVAD-CHO Deposited 2024-01-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 334–448（115 aa） Chain A 176–333（158 aa） Chain B 334–448（115 aa） Chain B 176–333（158 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M Sodium chloride, 20% w/v PEG 6000	Resolution 1.51 Å R-free 0.214

12 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CASP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–122； UniProt 334–448 Author chain A； PDBConstruct 126–282； UniProt 177–333 Author chain B； PDBConstruct 8–122； UniProt 334–448 Author chain B； PDBConstruct 126–282； UniProt 177–333 Author chain C； PDBConstruct 8–122； UniProt 334–448 Author chain C； PDBConstruct 126–282； UniProt 177–333 Author chain D； PDBConstruct 8–122； UniProt 334–448 Author chain D； PDBConstruct 126–282； UniProt 177–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c2y
Deposition date deposition_date	2024-05-31
Structure title title	Crystal Structure of JF1cpCasp2 in complex with MUR-65
Keywords keywords	dimer, inhibitor, complex, peptidomimetic, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.66 Å
Radius of gyration Rg (electron density) rg_electron	33.19 Å
Forward intensity I(0) i0	361143000.00
Molecular weight molecular_weight	101140.0 kDa
Excluded volume excluded_volume	97081 Å³
Envelope volume envelope_volume	170460 Å³
Hydration-shell volume shell_volume	42102 Å³
Envelope diameter envelope_diameter	110.5 Å
Shell Rg shell_rg	40.92 Å
Envelope Rg envelope_rg	32.47 Å
Shape Rg shape_rg	33.21 Å
Total Rg total_rg	33.57 Å
Total atoms total_atoms	7615
Residues n_residues	968
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

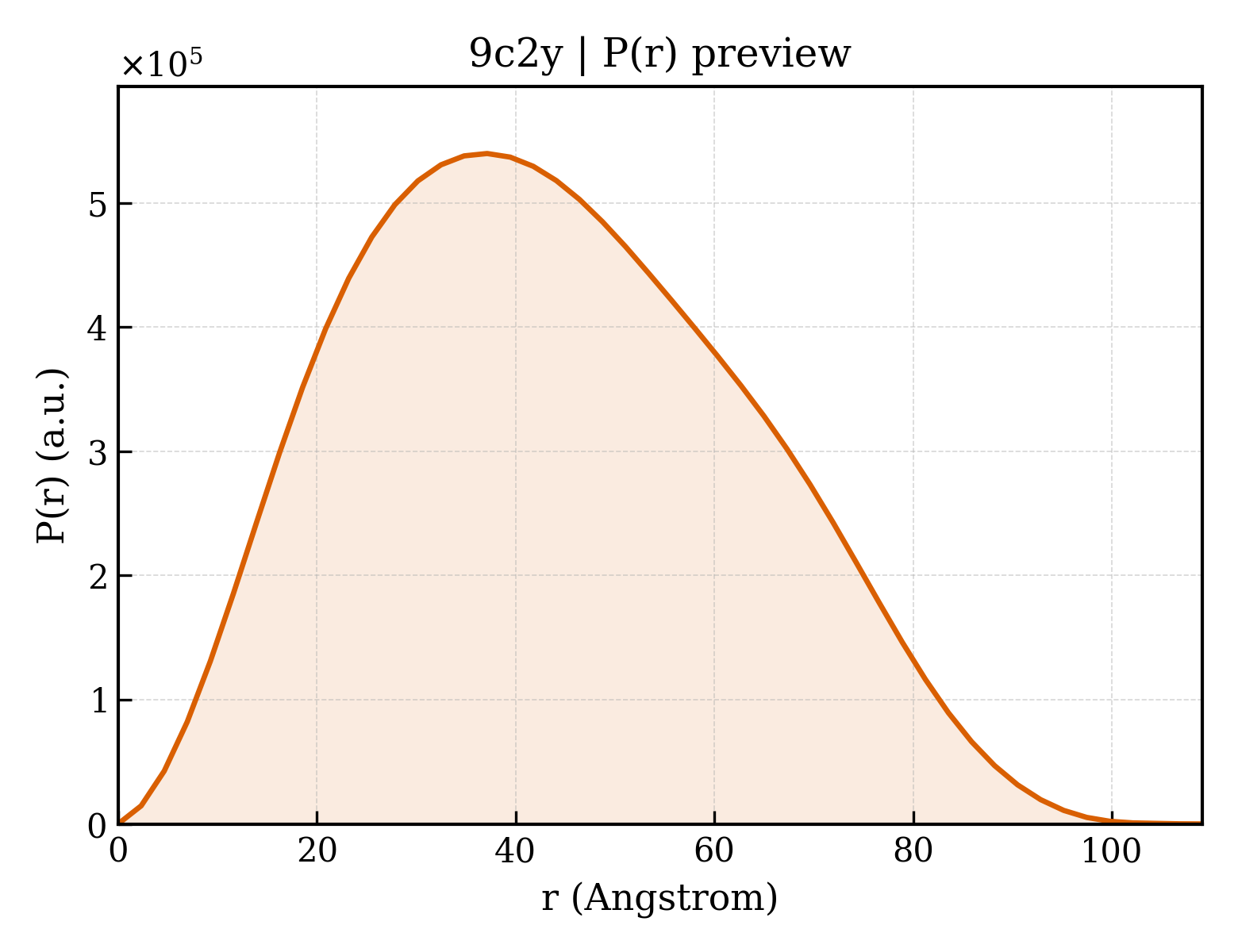

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.1 Å
Rg (real space) rg_real	33.63 Å
Rg uncertainty (real space) rg_real_error	0.80 Å
I(0) (real space) i0_real	3.6110e+08
I(0) uncertainty (real space) i0_real_error	5.7200e+06
Rg (reciprocal space) rg_reciprocal	33.65 Å
I(0) (reciprocal space) i0_reciprocal	361100000.0000
Solution quality estimate total_estimate	0.9025
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	37.1 Å
Skewness Skewness skewness	0.244
Kurtosis Kurtosis kurtosis	-0.636
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30100000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	JF1cpCasp2
Molecular weight formula_weight	31705.2 kDa
EC 编号 ec_number	3.4.22.55
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7701

MHHHHHHGKNHAGSPGCEESAAGKEKLPKMRLPTRSDMICGYACLKGTAAMRNTKRGSWYIEALAQVFSERACDMHVADMLVKVNALIKDREGYAPGTEFHRCKEMSEYCSTLCRHLYLFPGGGVKPCTPEFYQTHFQLAYRLQSRPRGLALVLSNVHFTGEKELEFRSGGDVDHSTLVTLFKLLGYDVHVLCDQTAQEMQEKLQNFAQLPAHRVTDSCIVALLSHGVEGAIYGVDGKLLQLQEVFQLFDNANCPSLQNKPKMFFIQACRGDETDRGVDQQD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	MUR-65
Molecular weight formula_weight	677.7 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H,I

XXVXX

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	31

▶

8. Citations (1)

▶

Unit-cell length a length_a	63.288 Å
Unit-cell length b length_b	130.246 Å
Unit-cell length c length_c	78.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.56 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	34.040 Å
R factor r_factor	0.1982
R_work r_work	0.1958
R_free r_free	0.2478

fit	/app/data/saxs_computation/c2/9c2y/9c2y.fit
pddf	/app/data/pr_computation/c2/9c2y/9c2y.pr.out
profile	/app/data/saxs_computation/c2/9c2y/9c2y.dat
