9cr2

TRiC-ADP-C1

Method: ELECTRON MICROSCOPY D_max: 165.6 Å Quality: GOOD

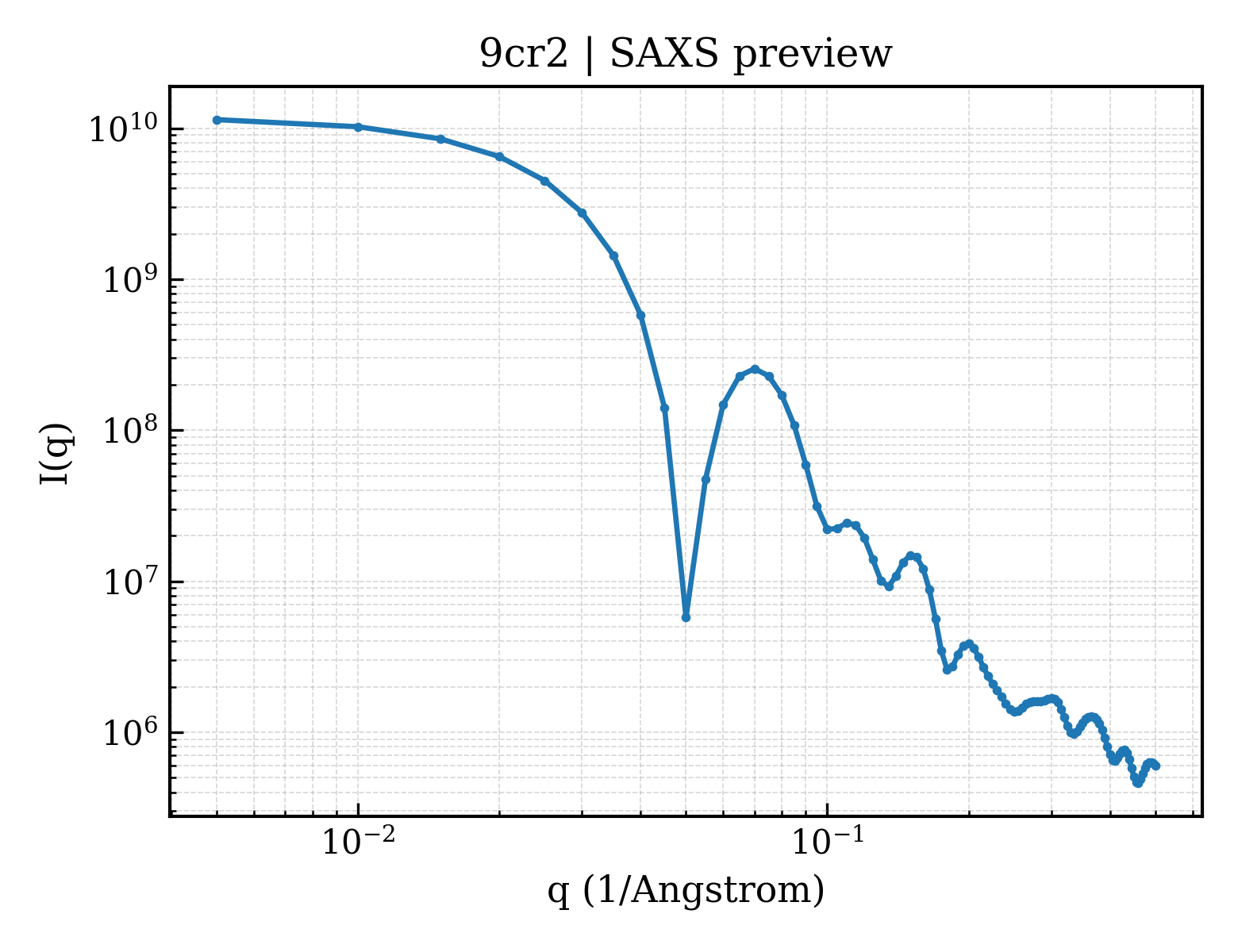

SAXS 散射曲线 SAXS Profile

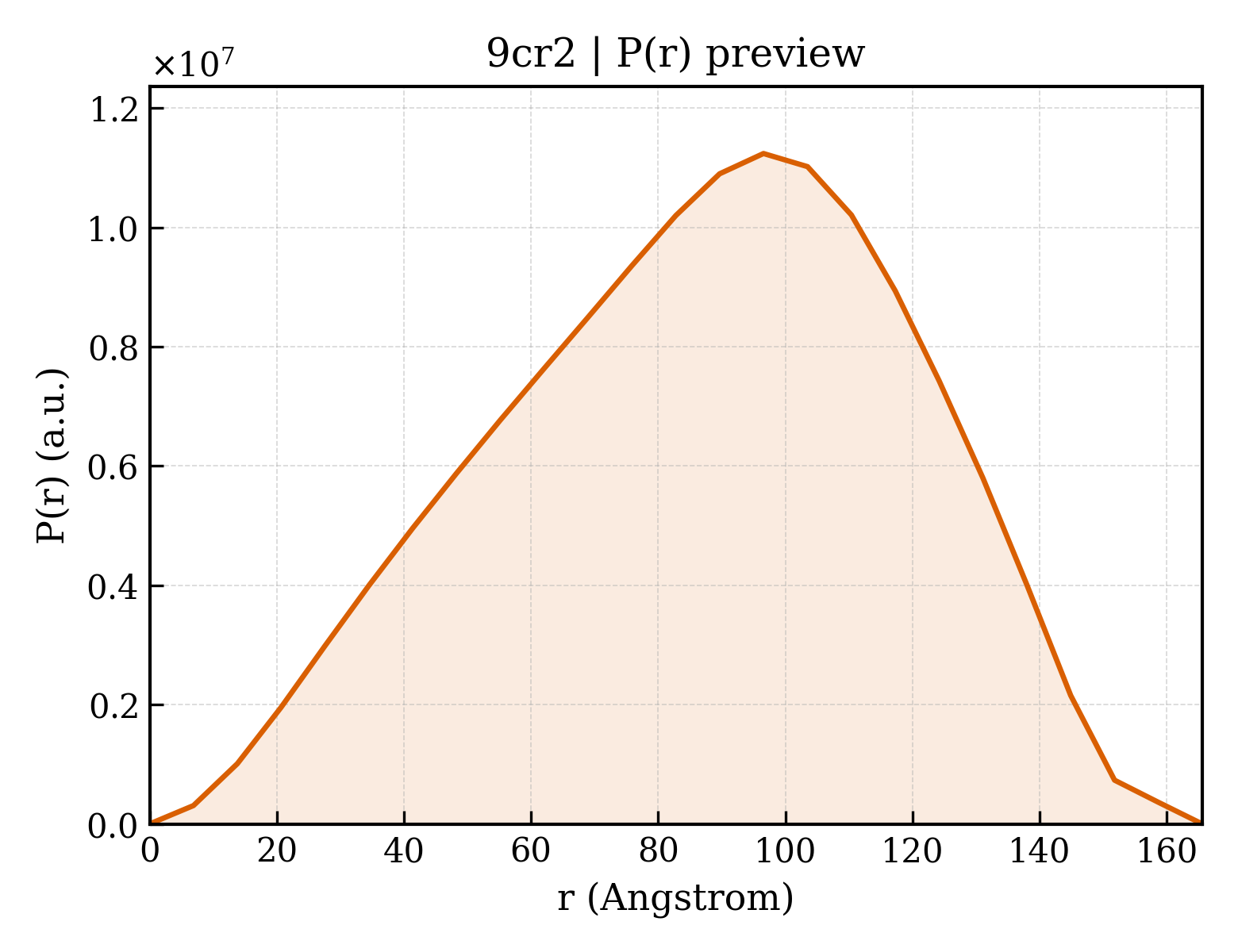

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cr2
沉积日期 deposition_date	2024-07-20
结构标题 title	TRiC-ADP-C1
关键词 keywords	Complex, Chaperonin, ADP, CHAPERONE; CHAPERONE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.22 Å
回转半径 Rg (电子) rg_electron	65.02 Å
零角强度 I(0) i0	11820100000.00
分子量 molecular_weight	927690.0 kDa
排除体积 excluded_volume	1166100 Å³
包络体积 envelope_volume	1932900 Å³
水化壳体积 shell_volume	232410 Å³
包络直径 envelope_diameter	184.2 Å
壳层 Rg shell_rg	79.54 Å
包络 Rg envelope_rg	60.79 Å
形状 Rg shape_rg	65.03 Å
总 Rg total_rg	65.18 Å
总原子数 total_atoms	64996
残基数 n_residues	8502
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	165.6 Å
Rg (实空间) rg_real	65.33 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	1.1820e+10
I(0) 误差 (实空间) i0_real_error	2.0110e+08
Rg (倒空间) rg_reciprocal	66.97 Å
I(0) (倒空间) i0_reciprocal	11850000000.0000
解质量估计 total_estimate	0.8437
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	96.6 Å
偏度 Skewness skewness	-0.214
峰度 Kurtosis kurtosis	-0.631
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11990000000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.989; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	T-complex protein 1 subunit alpha
分子量 formula_weight	60557.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,A
原子数 atom_count	64996

MSQLFNNSRSDTLFLGGEKISGDDIRNQNVLATMAVANVVKSSLGPVGLDKMLVDDIGDFTVTNDGATILSLLDVQHPAGKILVELAQQQDREIGDGTTSVVIIASELLKRANELVKNKIHPTTIITGFRVALREAIRFINEVLSTSVDTLGKETLINIAKTSMSSKIIGADSDFFSNMVVDALLAVKTQNSKGEIKYPVKAVNVLKAHGKSATESLLVPGYALNCTVASQAMPKRIAGGNVKIACLDLNLQKARMAMGVQINIDDPEQLEQIRKREAGIVLERVKKIIDAGAQVVLTTKGIDDLCLKEFVEAKIMGVRRCKKEDLRRIARATGATLVSSMSNLEGEETFESSYLGLCDEVVQAKFSDDECILIKGTSKHSSSSIILRGANDYSLDEMERSLHDSLSVVKRTLESGNVVPGGGCVEAALNIYLDNFATTVGSREQLAIAEFAAALLIIPKTLAVNAAKDSSELVAKLRSYHAASQMAKPEDVKRRSYRNYGLDLIRGKIVDEIHAGVLEPTISKVKSLKSALEACVAILRIDTMITVDPEPPKEDPHDH

Entity 2 polymer

描述 description	T-complex protein 1 subunit beta
分子量 formula_weight	57276.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,B

MSVQIFGDQVTEERAENARLSAFVGAIAVGDLVKSTLGPKGMDKLLQSASSNTCMVTNDGATILKSIPLDNPAAKVLVNISKVQDDEVGDGTTSVTVLSAELLREAEKLIDQSKIHPQTIIEGYRLASAAALDALTKAAVDNSHDKTMFREDLIHIAKTTLSSKILSQDKDHFAELATNAILRLKGSTNLEHIQIIKILGGKLSDSFLDEGFILAKKFGNNQPKRIENAKILIANTTLDTDKVKIFGTKFKVDSTAKLAQLEKAEREKMKNKIAKISKFGINTFINRQLIYDYPEQLFTDLGINSIEHADFEGVERLALVTGGEVVSTFDEPSKCKLGECDVIEEIMLGEQPFLKFSGCKAGEACTIVLRGATDQTLDEAERSLHDALSVLSQTTKETRTVLGGGCAEMVMSKAVDTEAQNIDGKKSLAVEAFARALRQLPTILADNAGFDSSELVSKLRSSIYNGISTSGLDLNNGTIADMRQLGIVESYKLKRAVVSSASEAAEVLLRVDNIIRARPRTANRQHM

Entity 3 polymer

描述 description	T-complex protein 1 subunit delta
分子量 formula_weight	57682.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,D

MSAKVPSNATFKNKEKPQEVRKANIIAARSVADAIRTSLGPKGMDKMIKTSRGEIIISNDGHTILKQMAILHPVARMLVEVSAAQDSEAGDGTTSVVILTGALLGAAERLLNKGIHPTIIADSFQSAAKRSVDILLEMCHKVSLSDREQLVRAASTSLSSKIVSQYSSFLAPLAVDSVLKISDENSKNVDLNDIRLVKKVGGTIDDTEMIDGVVLTQTAIKSAGGPTRKEKAKIGLIQFQISPPKPDTENNIIVNDYRQMDKILKEERAYLLNICKKIKKAKCNVLLIQKSILRDAVNDLALHFLSKLNIMVVKDIEREEIEFLSKGLGCKPIADIELFTEDRLGSADLVEEIDSDGSKIVRVTGIRNNNARPTVSVVIRGANNMIIDETERSLHDALCVIRCLVKERGLIAGGGAPEIEISRRLSKEARSMEGVQAFIWQEFASALEVIPTTLAENAGLNSIKVVTELRSKHENGELNDGISVRRSGTTNTYEEHILQPVLVSTSAITLASECVKSILRIDDIAFSR

Entity 4 polymer

描述 description	T-complex protein 1 subunit epsilon
分子量 formula_weight	61995.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e,E

MAARPQQPPMEMPDLSNAIVAQDEMGRPFIIVKDQGNKKRQHGLEAKKSHILAARSVASIIKTSLGPRGLDKILISPDGEITITNDGATILSQMELDNEIAKLLVQLSKSQDDEIGDGTTGVVVLASALLDQALELIQKGIHPIKIANGFDEAAKLAISKLEETCDDISASNDELFRDFLLRAAKTSLGSKIVSKDHDRFAEMAVEAVINVMDKDRKDVDFDLIKMQGRVGGSISDSKLINGVILDKDFSHPQMPKCVLPKEGSDGVKLAILTCPFEPPKPKTKHKLDISSVEEYQKLQTYEQDKFKEMIDDVKKAGADVVICQWGFDDEANHLLLQNDLPAVRWVGGQELEHIAISTNGRIVPRFQDLSKDKLGTCSRIYEQEFGTTKDRMLIIEQSKETKTVTCFVRGSNKMIVDEAERALHDSLCVVRNLVKDSRVVYGGGAAEVTMSLAVSEEADKQRGIDQYAFRGFAQALDTIPMTLAENSGLDPIGTLSTLKSKQLKEKISNIGVDCLGYGSNDMKELFVVDPFIGKKQQILLATQLCRMILKIDNVIISGKDEY

Entity 5 polymer

描述 description	T-complex protein 1 subunit gamma
分子量 formula_weight	65423.4 kDa
突变 mutation	An internal strep tag and His-tag are between residues 374 and 435
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,G

MQAPVVFMNASQERTTGRQAQISNITAAKAVADVIRTCLGPKAMLKMLLDPMGGLVLTNDGHAILREIDVAHPAAKSMLELSRTQDEEVGDGTTTVIILAGEILAQCAPYLIEKNIHPVIIIQALKKALTDALEVIKQVSKPVDVENDAAMKKLIQASIGTKYVIHWSEKMCELALDAVKTVRKDLGQTVEGEPNFEIDIKRYVRVEKIPGGDVLDSRVLKGVLLNKDVVHPKMSRHIENPRVVLLDCPLEYKKGESQTNIEIEKEEDWNRILQIEEEQVQLMCEQILAVRPTLVITEKGVSDLAQHYLLKGGCSVLRRVKKSDNNRIARVTGATIVNRVEDLKESDVGTNCGLFKVEMIGDEYFSFLDNCKEPLEGSGSGWSHPQFEKGSGKRRWKKNFIAVSAANRFKKISSSGALGSGHHHHHHHHGSGLQKACTIMLRGGSKDILNEIDRNLQDAMAVARNVMLSPSLSPGGGATEMAVSVKLAEKAKQLEGIQQWPYQAVADAMECIPRTLIQNAGGDPIRLLSQLRAKHAQGNFTTGIDGDKGKIVDMVSYGIWEPEVIKQQSVKTAIESACLLLRVDDIVSGVRKQE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	T-complex protein 1 subunit eta
分子量 formula_weight	59802.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h,H

MNFGSQTPTIVVLKEGTDASQGKGQIISNINACVAVQEALKPTLGPLGSDILIVTSNQKTTISNDGATILKLLDVVHPAAKTLVDISRAQDAEVGDGTTSVTILAGELMKEAKPFLEEGISSHLIMKGYRKAVSLAVEKINELAVDITSEKSSGRELLERCARTAMSSKLIHNNADFFVKMCVDAVLSLDRNDLDDKLIGIKKIPGGAMEESLFINGVAFKKTFSYAGFEQQPKKFNNPKILSLNVELELKAEKDNAEVRVEHVEDYQAIVDAEWQLIFEKLRQVEETGANIVLSKLPIGDLATQFFADRNIFCAGRVSADDMNRVIQAVGGSIQSTTSDIKPEHLGTCALFEEMQIGSERYNLFQGCPQAKTCTLLLRGGAEQVIAEVERSLHDAIMIVKRALQNKLIVAGGGATEMEVSKCLRDYSKTIAGKQQMIINAFAKALEVIPRQLCENAGFDAIEILNKLRLAHSKGEKWYGVVFETENIGDNFAKFVWEPALVKINALNSATEATNLILSVDETITNKGSESANAGMMPPQGAGRGRGMPM

Entity 7 polymer

描述 description	T-complex protein 1 subunit theta
分子量 formula_weight	61735.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q,Q

MSLRLPQNPNAGLFKQGYNSYSNADGQIIKSIAAIRELHQMCLTSMGPCGRNKIIVNHLGKIIITNDAATMLRELDIVHPAVKVLVMATEQQKIDMGDGTNLVMILAGELLNVSEKLISMGLSAVEIIQGYNMARKFTLKELDEMVVGEITDKNDKNELLKMIKPVISSKKYGSEDILSELVSEAVSHVLPVAQQAGEIPYFNVDSIRVVKIMGGSLSNSTVIKGMVFNREPEGHVKSLSEDKKHKVAVFTCPLDIANTETKGTVLLHNAQEMLDFSKGEEKQIDAMMKEIADMGVECIVAGAGVGELALHYLNRYGILVLKVPSKFELRRLCRVCGATPLPRLGAPTPEELGLVETVKTMEIGGDRVTVFKQEQGEISRTSTIILRGATQNNLDDIERAIDDGVAAVKGLMKPSGGKLLPGAGATEIELISRITKYGERTPGLLQLAIKQFAVAFEVVPRTLAETAGLDVNEVLPNLYAAHNVTEPGAVKTDHLYKGVDIDGESDEGVKDIREENIYDMLATKKFAINVATEAATTVLSIDQIIMAKKAGGPRAPQGPRPGNWDQED

Entity 8 polymer

描述 description	T-complex protein 1 subunit zeta
分子量 formula_weight	59997.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z,Z

MSLQLLNPKAESLRRDAALKVNVTSAEGLQSVLETNLGPKGTLKMLVDGAGNIKLTKDGKVLLTEMQIQSPTAVLIARAAAAQDEITGDGTTTVVCLVGELLRQAHRFIQEGVHPRIITDGFEIARKESMKFLDEFKISKTNLSNDREFLLQVARSSLLTKVDADLTEVLTPIVTDAVLSVYDAQADNLDLHMVEIMQMQHLSPKDTTFIKGLVLDHGGRHPDMPTRVKNAYVLILNVSLEYEKTEVNSGFFYSSADQRDKLAASERKFVDAKLKKIIDLKNEVCGMDPDKGFVIINQKGIDPMSLDVFAKHNILALRRAKRRNMERLQLVTGGEAQNSVEDLSPQILGFSGLVYQETIGEEKFTYVTENTDPKSCTILIKGSTHYALAQTKDAVRDGLRAVANVLKDKNIIPGAGAFYIALSRYLRSANMNKLGAKGKTKTGIEAFAEALLVIPKTLVKNSGFDPLDVLAMVEDELDDAQDSDETRYVGVDLNIGDSCDPTIEGIWDSYRVLRNAITGATGIASNLLLCDELLRAGRSTLKETPQ

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	12855

fit	/app/data/saxs_computation/cr/9cr2/9cr2.fit
pddf	/app/data/pr_computation/cr/9cr2/9cr2.pr.out
profile	/app/data/saxs_computation/cr/9cr2/9cr2.dat
