SAXSdb — 9d2d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cysteine desulfurase

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–406	Mutation：R359A Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M NaCl, 100 mM MES pH 6.5	Resolution 2.70 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9D2D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C0N CSDB PROTEIN, NIFS HOMOLOGUE Deposited 1999-07-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 ACY ACETIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；sodium acetate, pottasium phosphate, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.80 Å R-free 0.239
1JF9 Crystal Structure of selenocysteine lyase Deposited 2001-06-20	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；4M NACL, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.00 Å R-free 0.207
1KMJ E. coli NifS/CsdB protein at 2.0A with the cysteine persulfide intermediate (residue CSS). Deposited 2001-12-16	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；4M NACL, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.00 Å R-free 0.208
1KMK E. coli NifS/CsdB protein at 2.20A with the cysteine perselenide intermediate (residue CSZ). Deposited 2001-12-16	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SEC SELENOCYSTEINE × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；4M NACL, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.239
5DB5 Crystal structure of PLP-bound E. coli SufS (cysteine persulfide intermediate) in space group P21 Deposited 2015-08-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa） Chain B 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 2 CYS CYSTEINE × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1:1 or 1:2 protein to reservoir solution (4% PEG3350, 200 mM ammonium citrate), crystals grown over 3 days, cryoprotectant: reservoir solution + 10% PEG400	Resolution 2.75 Å R-free 0.217
6MR2 E. coli cysteine desulfurase SufS with a cysteine persulfide intermediate Deposited 2018-10-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.40 Å R-free 0.191
6MR6 E. coli cysteine desulfurase SufS H55A with a cysteine persulfide intermediate Deposited 2018-10-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：H55A Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.02 Å R-free 0.202
6MRE E. coli cysteine desulfurase SufS R92A with a cysteine persulfide intermediate Deposited 2018-10-12	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：R92A Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.50 Å R-free 0.199
6MRH E. coli cysteine desulfurase SufS E96A with a cysteine persulfide intermediate Deposited 2018-10-12	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：E96A Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.02 Å R-free 0.212
6MRI E. coli cysteine desulfurase SufS E250A with a cysteine persulfide intermediate Deposited 2018-10-12	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：E250A Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.62 Å R-free 0.220
6O10 E. coli cysteine desulfurase SufS Deposited 2019-02-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.00 Å R-free 0.204
6O11 E. coli cysteine desulfurase SufS C364A with a Cys-aldimine intermediate Deposited 2019-02-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：C364A	CL CHLORIDE ION × 2 C6P N-({3-HYDROXY-2-METHYL-5-[(PHOSPHONOOXY)METHYL]PYRIDIN-4-YL}METHYL)-L-CYSTEINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；20-30% w/v PEG3350, 0.1 M Tris-HCl, 0.2 M magnesium chloride	Resolution 1.84 Å R-free 0.216
6O12 E. coli cysteine desulfurase SufS H123A Deposited 2019-02-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：H123A	PLP PYRIDOXAL-5'-PHOSPHATE × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.05 Å R-free 0.216
6O13 E. coli cysteine desulfurase SufS H123A with a Cys-ketimine intermediate Deposited 2019-02-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa）	Mutation：H123A	CKT Cys-ketimine × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；4-4.5 M sodium chloride, 100 mM MES	Resolution 2.20 Å R-free 0.199
6UY5 E. coli cysteine desulfurase SufS with a spontaneously rotated beta-hairpin Deposited 2019-11-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–406（406 aa） Chain B 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2 M MgCl2, 0.1M Bis-Tris HCl pH 5.5, 23.3% w/v PEG3350	Resolution 1.50 Å R-free 0.221
8VBS E. coli cysteine desulfurase SufS bound to SufE C51A Deposited 2023-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–406（406 aa） Chain B 1–406（406 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；24.5-31.5% w/v PEG2000 MME, 0.1 M KSCN	Resolution 3.31 Å R-free 0.272

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SUFS_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–406； UniProt 1–406

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9d2d
Deposition date deposition_date	2024-08-08
Structure title title	E. coli cysteine desulfurase SufS R359A
Keywords keywords	iron-sulfur, cysteine, PLP, desulfurase, Fe-S, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.15 Å
Radius of gyration Rg (electron density) rg_electron	22.15 Å
Forward intensity I(0) i0	33527900.00
Molecular weight molecular_weight	44470.0 kDa
Excluded volume excluded_volume	55533 Å³
Envelope volume envelope_volume	64592 Å³
Hydration-shell volume shell_volume	24286 Å³
Envelope diameter envelope_diameter	82.3 Å
Shell Rg shell_rg	29.15 Å
Envelope Rg envelope_rg	22.55 Å
Shape Rg shape_rg	22.16 Å
Total Rg total_rg	22.92 Å
Total atoms total_atoms	3129
Residues n_residues	404
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

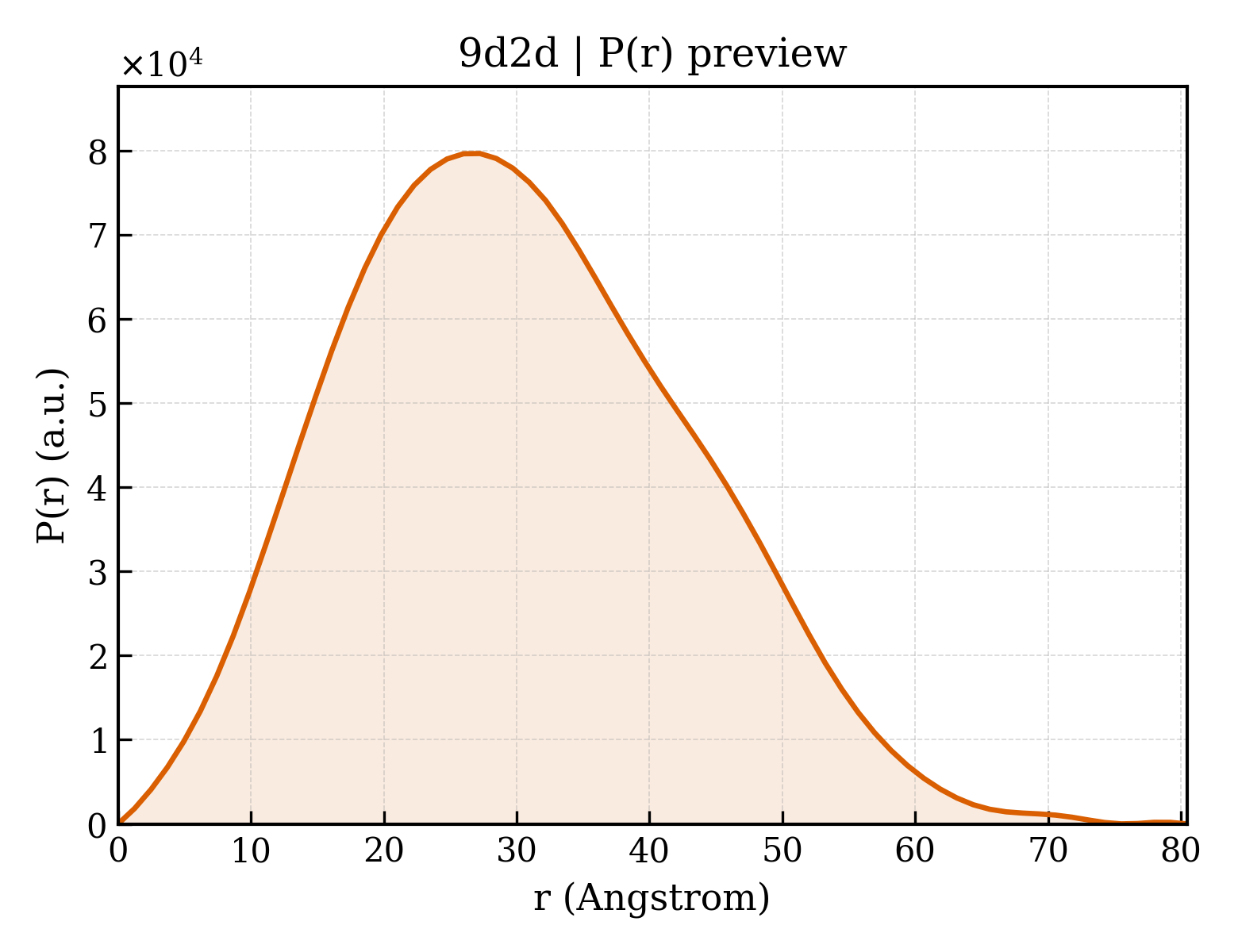

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.5 Å
Rg (real space) rg_real	23.11 Å
Rg uncertainty (real space) rg_real_error	0.66 Å
I(0) (real space) i0_real	3.3530e+07
I(0) uncertainty (real space) i0_real_error	5.0800e+05
Rg (reciprocal space) rg_reciprocal	23.12 Å
I(0) (reciprocal space) i0_reciprocal	33530000.0000
Solution quality estimate total_estimate	0.8678
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.2 Å
Skewness Skewness skewness	0.303
Kurtosis Kurtosis kurtosis	-0.335
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7876000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.768; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Cysteine desulfurase
Molecular weight formula_weight	44622.6 kDa
EC 编号 ec_number	2.8.1.7
Mutation mutation	R359A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3158

MIFSVDKVRADFPVLSREVNGLPLAYLDSAASAQKPSQVIDAEAEFYRHGYAAVHRGIHTLSAQATEKMENVRKRASLFINARSAEELVFVRGTTEGINLVANSWGNSNVRAGDNIIISQMEHHANIVPWQMLCARVGAELRVIPLNPDGTLQLETLPTLFDEKTRLLAITHVSNVLGTENPLAEMITLAHQHGAKVLVDGAQAVMHHPVDVQALDCDFYVFSGHKLYGPTGIGILYVKEALLQEMPPWEGGGSMIATVSLSEGTTWTKAPWRFEAGTPNTGGIIGLGAALEYVSALGLNNIAEYEQNLMHYALSQLESVPDLTLYGPQNRLGVIAFNLGKHHAYDVGSFLDNYGIAVATGHHCAMPLMAYYNVPAMCRASLAMYNTHEEVDRLVTGLQRIHRLLG

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	29

▶

8. Citations (1)

▶

Unit-cell length a length_a	126.140 Å
Unit-cell length b length_b	126.140 Å
Unit-cell length c length_c	133.450 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	tetragonal

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	42.300 Å
R factor r_factor	0.2130
R_work r_work	0.2100
R_free r_free	0.2450

fit	/app/data/saxs_computation/d2/9d2d/9d2d.fit
pddf	/app/data/pr_computation/d2/9d2d/9d2d.pr.out
profile	/app/data/saxs_computation/d2/9d2d/9d2d.dat
