9f7z

Crystal structure of human 4-1BB/TNFRSF9 in complex with the anti-4-1BB DARPin protein

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor receptor superfamily member 9

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 beta-L-fucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 ;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 2	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 ;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 2	Consistent with protein count
4	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 ;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 2	Consistent with protein count
5	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 ;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 2	Consistent with protein count
6	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 2	Consistent with protein count
7	Protein heterocomplex	Heteromer	Protein 2	anti-4-1BB DARPin × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 2	Consistent with protein count
8	Other combination	Heteromer	Protein 2 其他Polymer 1	anti-4-1BB DARPin × 1 ;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNR9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–138； UniProt 25–162 Author chain D； PDBConstruct 1–138； UniProt 25–162 Author chain F； PDBConstruct 1–138； UniProt 25–162 Author chain H； PDBConstruct 1–138； UniProt 25–162 Author chain J； PDBConstruct 1–138； UniProt 25–162 Author chain L； PDBConstruct 1–138； UniProt 25–162 Author chain N； PDBConstruct 1–138； UniProt 25–162 Author chain P； PDBConstruct 1–138； UniProt 25–162

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9f7z
Deposition date deposition_date	2024-05-06
Structure title title	Crystal structure of human 4-1BB/TNFRSF9 in complex with the anti-4-1BB DARPin protein
Keywords keywords	;Tumor necrosis factor receptor superfamily member 9; 4-1BB; TNFRSF9; DARPin; designed ankyrin repeat protein; immune-oncology; Molecular Partners AG; Proteros Biostructures GmbH, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9f7z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9f7z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

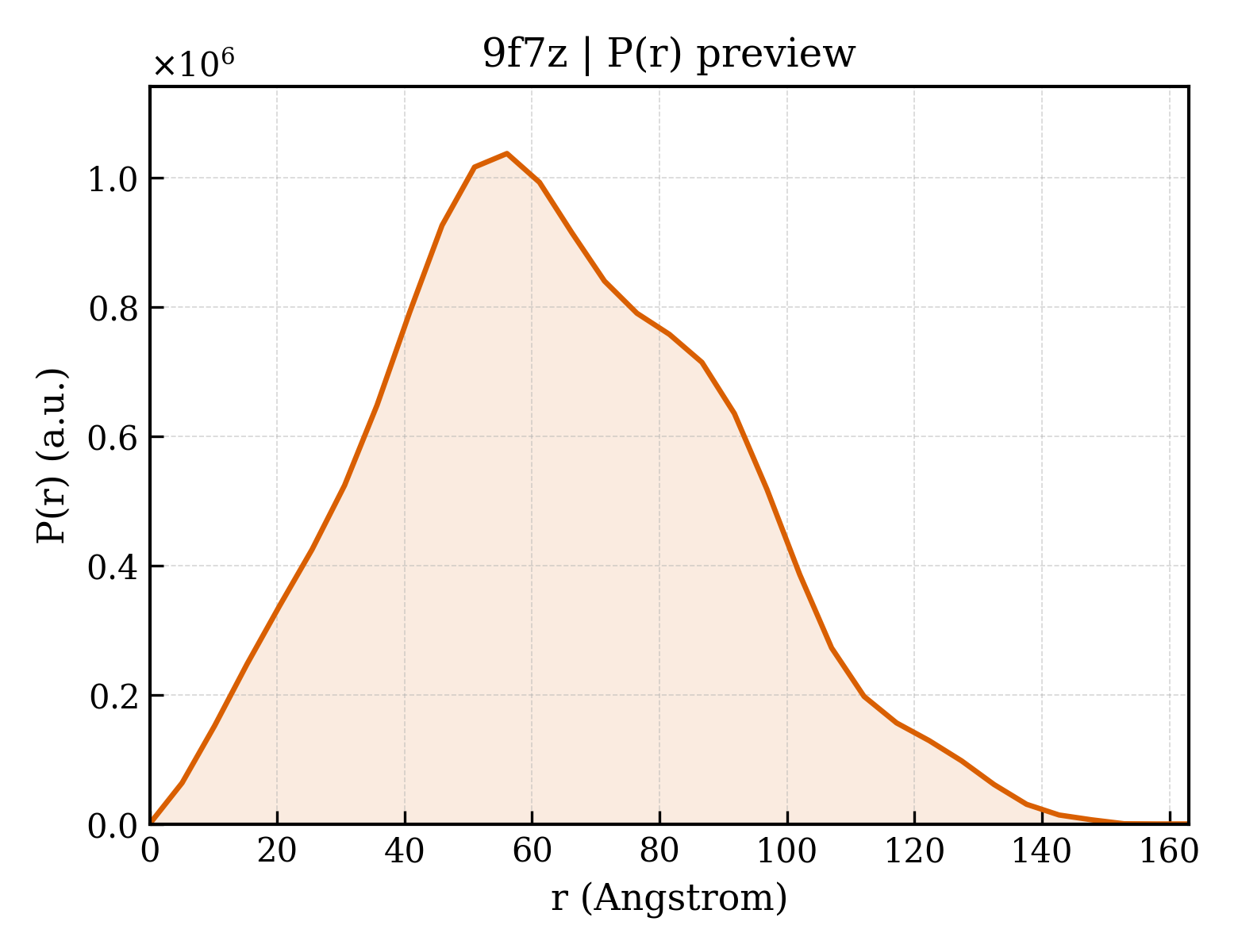

9f7z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.88 Å
Rg (electron density)	26.38 Å
Total Rg	26.80 Å
Atom count	1939
Residues	259
Excluded volume	33999 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9f7z__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9f7z__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`9f7z__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`9f7z__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`9f7z__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`9f7z__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`9f7z__assembly_7__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`9f7z__assembly_8__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	anti-4-1BB DARPin
Molecular weight formula_weight	13198.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O
Atom count atom_count	15717

GSDLGKKLLKAAQEGQDDEVRELLKAGADVNAKDLRGITPLHVAAWQGHLEIVEVLLKAGADVNAKDSKGETPLHLAAFRGHLEIVEVLLKAGADVNAQDQQGETPADLAALAGHVDIAEVLQKAA

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Tumor necrosis factor receptor superfamily member 9
Molecular weight formula_weight	14875.8 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,N,P

QDPCSNCPAGTFCDNNRNQICSPCPPNSFSSAGGQRTCDICRQCKGVFRTRKECSSTSNAECDCTPGFHCLGAGCSMCEQDCKQGQELTKKGCKDCCFGTFNDQKRGICRPWTNCSLDGKSVLVNGTKERDVVCGPSP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 branched

Description description	beta-L-fucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;beta-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	716.7 kDa
Source method src_method	man
Copy count entity_count	5

Entity 5 Entity 5 branched

Description description	beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	52

▶

Unit-cell length a length_a	170.330 Å
Unit-cell length b length_b	102.469 Å
Unit-cell length c length_c	167.366 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.54 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.810 Å
Low-resolution limit resolution_low	167.310 Å
R factor r_factor	0.2436
R_work r_work	0.2412
R_free r_free	0.2912
