9f8o

;Crystal Structure of PhzA/B from Burkholderia cepacia R18194 in complex with [6-Hydroxy-2-(4-hydroxyphenyl)benzo[b]thiophen-3-yl]{2-[(2-morpholinoethyl)amino]phenyl}methanone ;

Method: X-RAY DIFFRACTION D_max: 113.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9f8o
沉积日期 deposition_date	2024-05-06
最后修订 last_revision	2025-04-16
结构标题 title	;Crystal Structure of PhzA/B from Burkholderia cepacia R18194 in complex with [6-Hydroxy-2-(4-hydroxyphenyl)benzo[b]thiophen-3-yl]{2-[(2-morpholinoethyl)amino]phenyl}methanone ;
关键词 keywords	;pyocyanin, phenazine biosynthesis, virulence, inhibitor, ketosteroid-isomerase, cocrystal, PhzA/B, Burkholderia cepacia, BIOSYNTHETIC PROTEIN ;; BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.49 Å
回转半径 Rg (电子) rg_electron	33.42 Å
零角强度 I(0) i0	88748100.00
分子量 molecular_weight	74049.0 kDa
排除体积 excluded_volume	91944 Å³
包络体积 envelope_volume	113040 Å³
水化壳体积 shell_volume	30083 Å³
包络直径 envelope_diameter	114.1 Å
壳层 Rg shell_rg	37.24 Å
包络 Rg envelope_rg	33.47 Å
形状 Rg shape_rg	33.46 Å
总 Rg total_rg	33.60 Å
总原子数 total_atoms	10177
残基数 n_residues	615
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

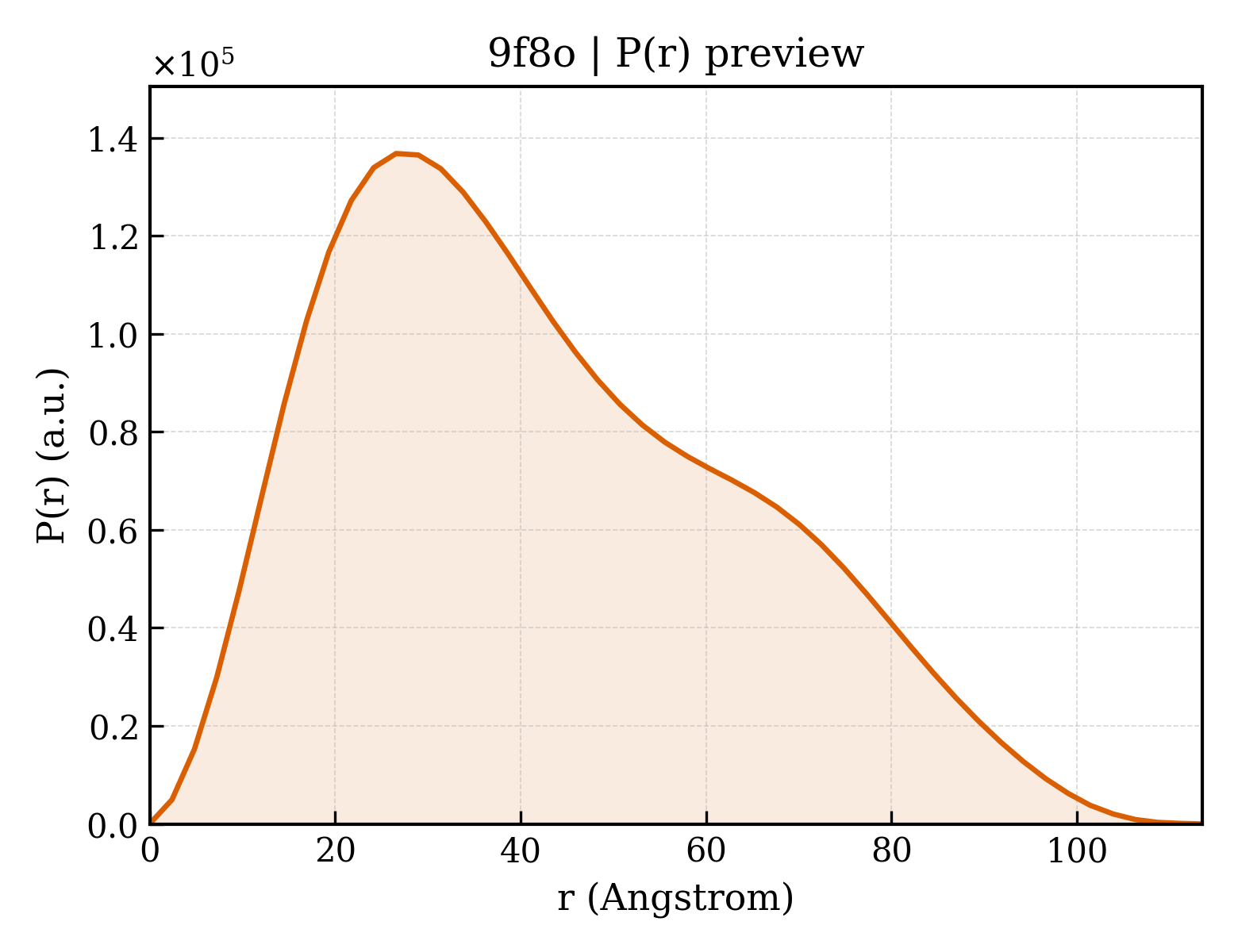

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.5 Å
Rg (实空间) rg_real	33.77 Å
Rg 误差 (实空间) rg_real_error	0.88 Å
I(0) (实空间) i0_real	8.8750e+07
I(0) 误差 (实空间) i0_real_error	1.3340e+06
Rg (倒空间) rg_reciprocal	33.60 Å
I(0) (倒空间) i0_reciprocal	88730000.0000
解质量估计 total_estimate	0.5813
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	26.6 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.572
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	20200000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.678; Stabil: 1.000; Sysdev: 0.078; Positv: 1.000; Valcen: 0.521; Smooth: 0.763

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Phenazine biosynthesis protein A/B
分子量 formula_weight	21531.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	11041

MGSSHHHHHHSSGLVPRGSHMSDVESLENTSENRAQVAARQHNRKIVEQYMHTRGEARLKRHLLFTEDGVGGLWTTDSGQPIAIRGREKLGEHAVWSLQCFPDWVWTDIQIFETQDPNWFWVECRGEGAIVFPGYPRGQYRNHFLHSFRFENGLIKEQREFMNPCEQFRSLGIEVPEVRRDGLPS

来源 Source

来源生物 organism	Burkholderia lata
NCBI 分类编号 ncbi_taxonomy_id	482957
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 non-polymer

描述 description	[2-(4-hydroxyphenyl)-6-oxidanyl-1-benzothiophen-3-yl]-[2-(2-morpholin-4-ylethylamino)phenyl]methanone
分子量 formula_weight	474.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	526

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.830 Å
晶胞边长 b length_b	69.629 Å
晶胞边长 c length_c	83.141 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.12 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.570 Å
最低分辨率 resolution_low	53.070 Å
R 因子 r_factor	0.1647
R_work r_work	0.1637
R_free r_free	0.1827
