SAXSdb — 9fl6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform p26 of Oxidized purine nucleoside triphosphate hydrolase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	5-[(1~{R})-1-(2,3-dimethylphenyl)ethyl]-1~{H}-imidazole × 1 ACETATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	8ODP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 3–158； UniProt 42–197

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fl6
Deposition date deposition_date	2024-06-04
Last revision last_revision	2025-06-18
Structure title title	Human NUDT1 with medetomidine
Keywords keywords	Nudix hydrolase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9fl6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

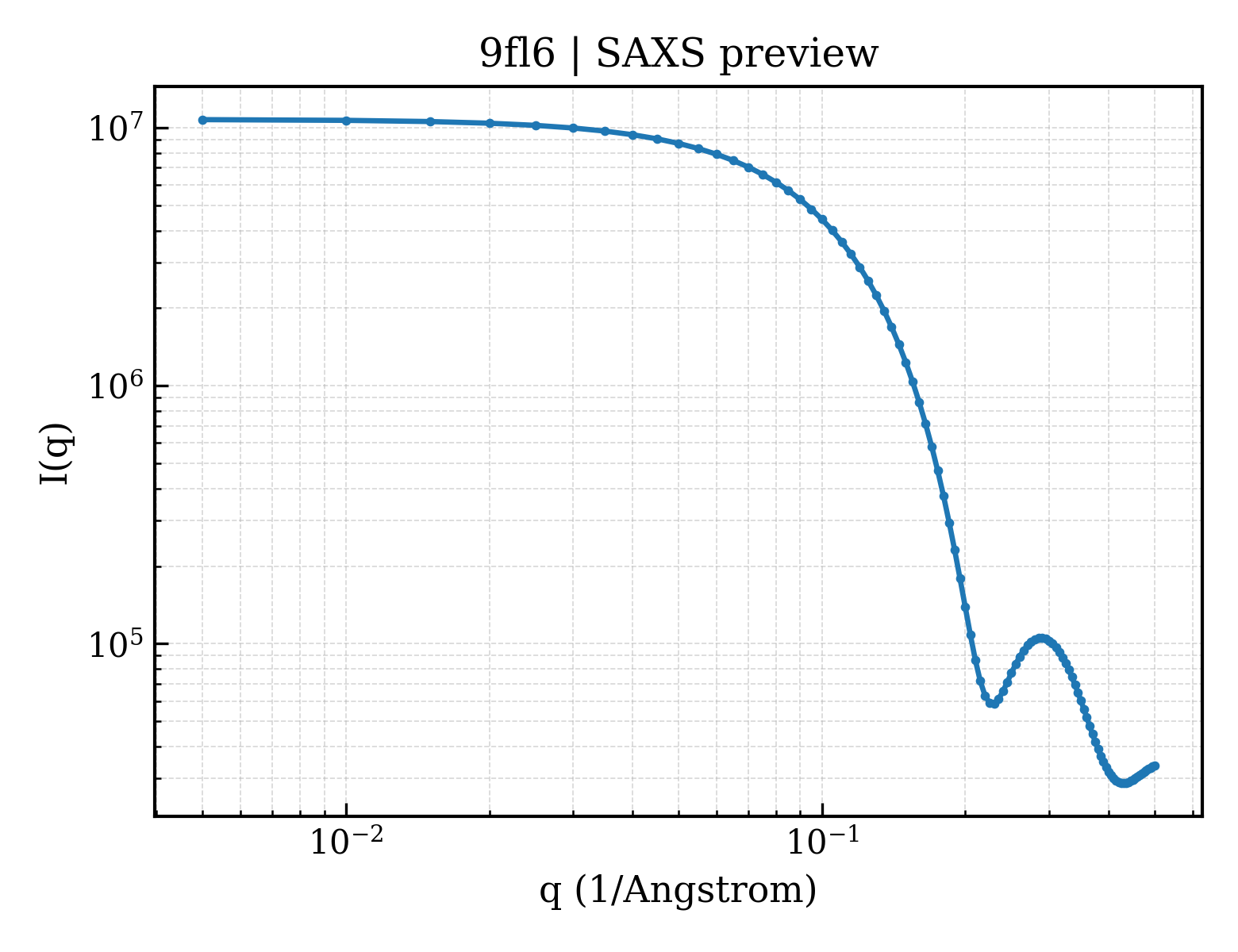

9fl6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9fl6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.35 Å
Rg (electron density)	14.87 Å
Total Rg	16.15 Å
Atom count	1265
Residues	154
Excluded volume	22471 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9fl6__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Isoform p26 of Oxidized purine nucleoside triphosphate hydrolase
Molecular weight formula_weight	18099.6 kDa
EC 编号 ec_number	3.6.1.56,3.6.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA
Atom count atom_count	1467

GAMGASRLYTLVLVLQPQRVLLGMKKRGFGAGRWNGFGGKVQEGETIEDGARRELQEESGLTVDALHKVGQIVFEFVGEPELMDVHVFCTDSIQGTPVESDEMRPCWFQLDQIPFKDMWPDDSYWFPLLLQKKKFHGYFKFQGQDTILDYTLREVDTV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	5-[(1~{R})-1-(2,3-dimethylphenyl)ethyl]-1~{H}-imidazole
Molecular weight formula_weight	200.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	132

▶

Unit-cell length a length_a	36.739 Å
Unit-cell length b length_b	60.850 Å
Unit-cell length c length_c	67.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	45.205 Å
R factor r_factor	—
R_work r_work	0.1592
R_free r_free	0.2065
