OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | L(+)-TARTARIC ACID × 1 water × 1 | Consistent with protein count |
| UniProt name | THM1_THADA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–207； UniProt 23–229 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 9ftu |
| Deposition date deposition_date | 2024-06-25 |
| Last revision last_revision | 2025-01-22 |
| Structure title title | Serial microseconds crystallography at ID29 using ASU extruder: Thaumatin |
| Keywords keywords | Serial Crystallography, serial microsecond crystallography, room temperature, ID29, ESRF-EBS, PLANT PROTEIN; PLANT PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

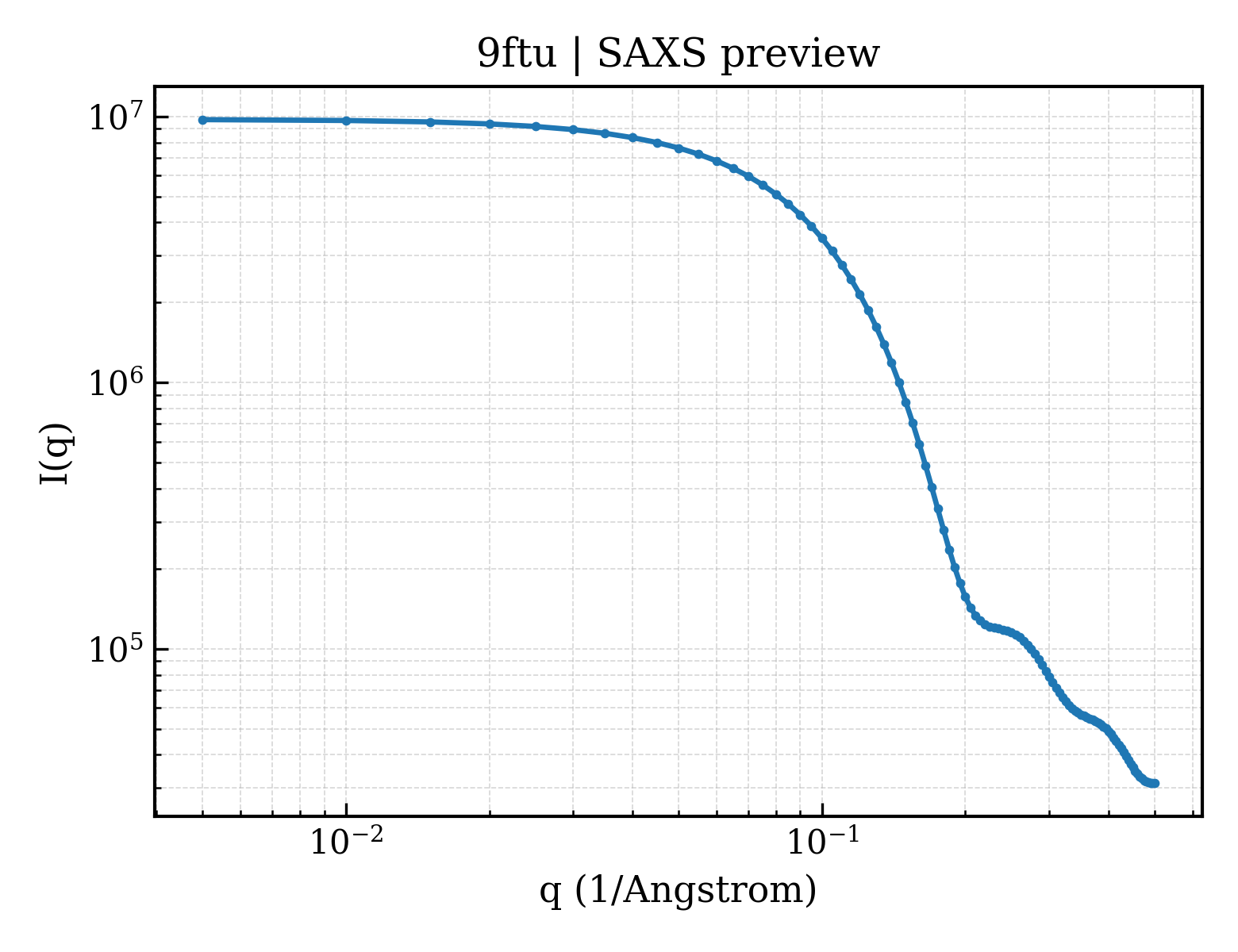

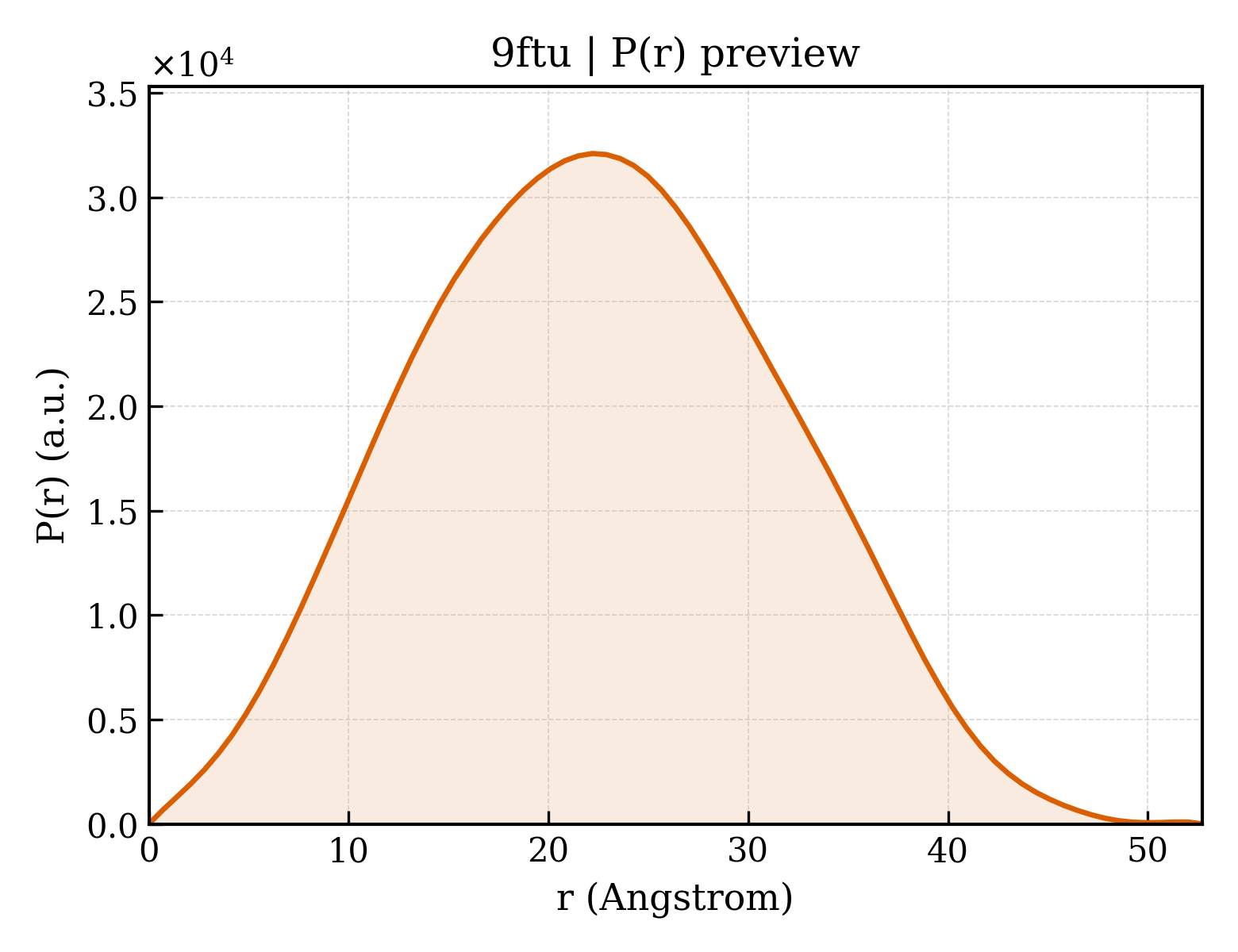

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.27 Å |
| Rg (electron density) | 16.20 Å |
| Total Rg | 17.16 Å |
| Atom count | 1528 |
| Residues | 206 |
| Excluded volume | 26784 ų |
| Maximum q | 0.500 Å⁻¹ |
