SAXSdb — 9g52

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulator, PadR-like family

Lactococcus cremoris subsp. cremoris MG1363

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GOLD ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A2RI36_LACLM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–116； UniProt 1–116 Author chain B； PDBConstruct 1–116； UniProt 1–116

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9g52
Deposition date deposition_date	2024-07-16
Structure title title	Crystal structure of LmrR with V15 replaced by unnatural amino acid 4-mercaptophenylalanine, Au(I) bound
Keywords keywords	Artificial metalloenzyme, unnatural amino acid, 4-mercaptophenylalanine, gold-bound, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9g52__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9g52__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

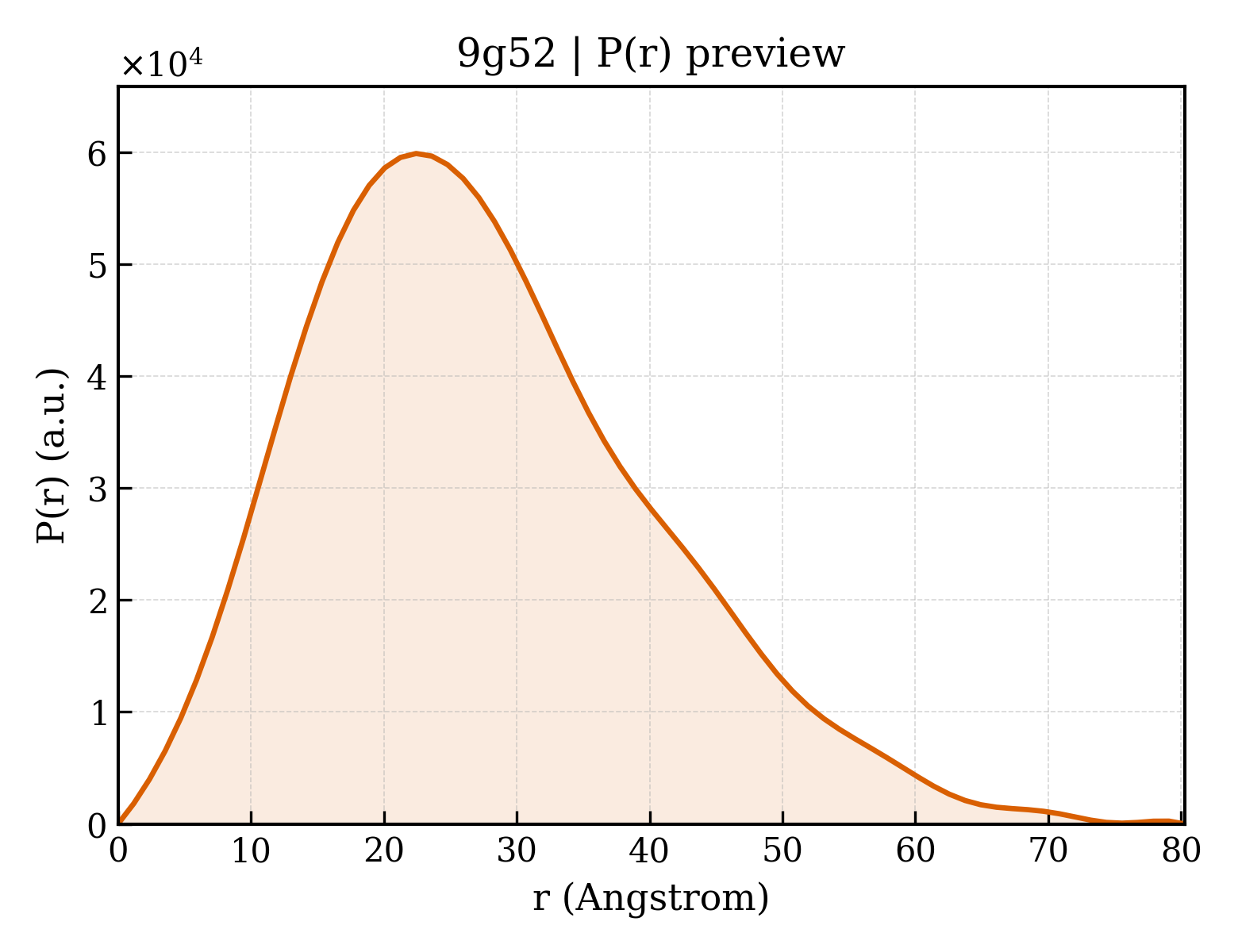

9g52__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.51 Å
Rg (electron density)	20.76 Å
Total Rg	21.25 Å
Atom count	1825
Residues	220
Excluded volume	32496 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9g52__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Transcriptional regulator, PadR-like family
Molecular weight formula_weight	14844.9 kDa
Mutation mutation	V15 replaced with 4-mercaptophenylalanine
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1826

MAEIPKEMLRAQTNAILLNVLKQGDNYVYGIIKQVKEASNGEMELNEATLYTIFKRLEKDGIISSYWGDESQGGRRKYYRLTEIGHENMRLAFESWSRVDKIIENLEANKKSEAIKSRWSHPQFEK

Source Source

Source organism organism	Lactococcus cremoris subsp. cremoris MG1363
NCBI taxonomy ID ncbi_taxonomy_id	416870
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GOLD ION
Molecular weight formula_weight	197.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	35.440 Å
Unit-cell length b length_b	52.715 Å
Unit-cell length c length_c	146.194 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	42.790 Å
R factor r_factor	0.2478
R_work r_work	0.2451
R_free r_free	0.2940
