SAXSdb — 9gbh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chymase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-(3,4-dimethoxyphenyl)-3,5-bis(oxidanylidene)-4-[[3-(trifluoromethyl)phenyl]methyl]-1,2,4-triazine-6-carboxylic acid × 1 ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CMA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 1–226； UniProt 22–247

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gbh
Deposition date deposition_date	2024-07-31
Structure title title	CRYSTAL STRUCTURE OF HUMAN CHYMASE IN COMPLEX WITH COMPOUND1
Keywords keywords	SERINE PROTEASE, GLYCOSYLATED, MAST CELLS, SECRETED, HYDROLASE, HYDROLASE INHIBITOR COMPLEX; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gbh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

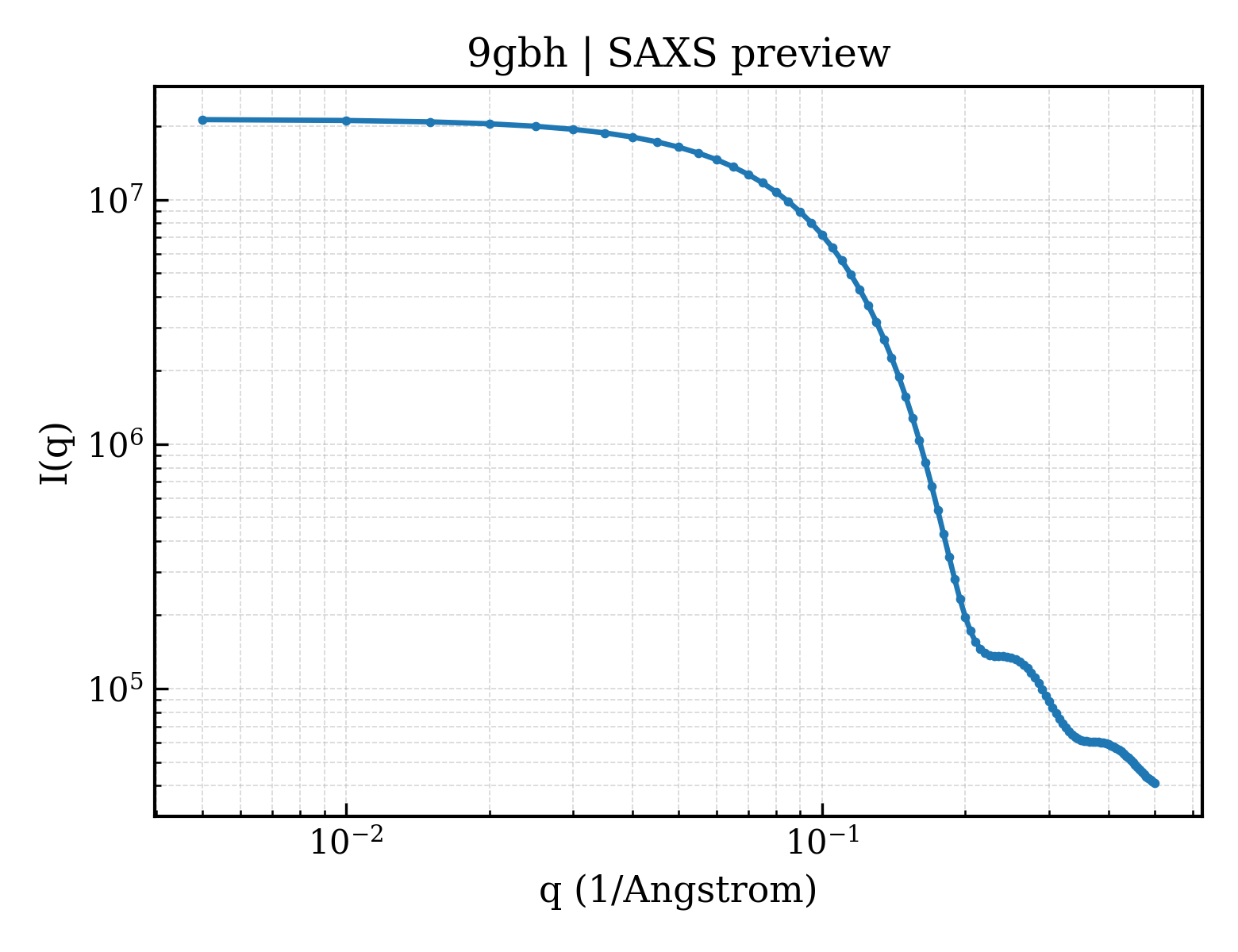

9gbh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9gbh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.94 Å
Rg (electron density)	16.71 Å
Total Rg	17.83 Å
Atom count	1741
Residues	215
Excluded volume	30886 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gbh__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Chymase
Molecular weight formula_weight	25019.9 kDa
EC 编号 ec_number	3.4.21.39
Mutation mutation	F127K, V208A, R235Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA
Atom count atom_count	1878

IIGGTECKPHSRPYMAYLEIVTSNGPSKFCGGFLIRRNFVLTAAHCAGRSITVTLGAHNITEEEDTWQKLEVIKQFRHPKYNTSTLHHDIMLLKLKEKASLTLAVGTLPFPSQRNFVPPGRMCRVAGWGRTGVLKPGSDTLQEVKLRLMDPQACSHFRDFDHNLQLCVGNPRKTKSAFKGDSGGPLLCAGAAQGIVSYGRSDAKPPAVFTRISHYQPWINQILQAN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	2-(3,4-dimethoxyphenyl)-3,5-bis(oxidanylidene)-4-[[3-(trifluoromethyl)phenyl]methyl]-1,2,4-triazine-6-carboxylic acid
Molecular weight formula_weight	451.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	126

▶

Unit-cell length a length_a	74.093 Å
Unit-cell length b length_b	74.093 Å
Unit-cell length c length_c	49.647 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	2.375 Å
Low-resolution limit resolution_low	37.040 Å
R factor r_factor	—
R_work r_work	0.2021
R_free r_free	0.2740
