9h88

Crystal structure of LmrR variant V15aY-RNYW with Val15 replaced by 3-aminotyrosine and evolved as Friedel-Crafts alkylase

Method: X-RAY DIFFRACTION D_max: 81.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

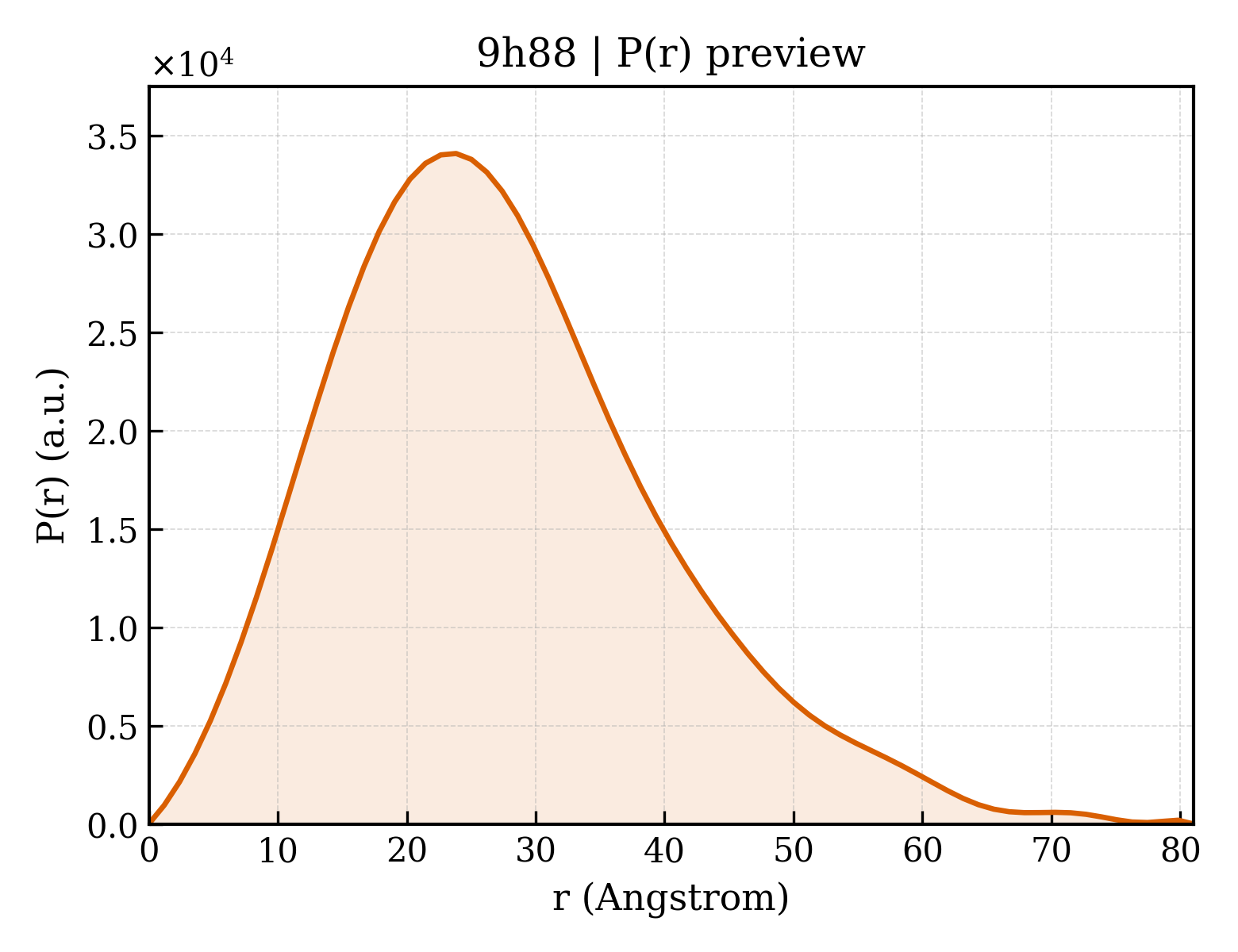

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9h88
沉积日期 deposition_date	2024-10-28
结构标题 title	Crystal structure of LmrR variant V15aY-RNYW with Val15 replaced by 3-aminotyrosine and evolved as Friedel-Crafts alkylase
关键词 keywords	Artificial enzyme, Friedel-Crafts alkylase, unnatural amino acid, 3-aminotyrosine, directed evolution, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	21.08 Å
回转半径 Rg (电子) rg_electron	20.05 Å
零角强度 I(0) i0	12718000.00
分子量 molecular_weight	26109.0 kDa
排除体积 excluded_volume	32542 Å³
包络体积 envelope_volume	40168 Å³
水化壳体积 shell_volume	17684 Å³
包络直径 envelope_diameter	82.6 Å
壳层 Rg shell_rg	25.42 Å
包络 Rg envelope_rg	20.62 Å
形状 Rg shape_rg	20.08 Å
总 Rg total_rg	20.77 Å
总原子数 total_atoms	1843
残基数 n_residues	217
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	81.0 Å
Rg (实空间) rg_real	21.23 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	1.2720e+07
I(0) 误差 (实空间) i0_real_error	2.0260e+05
Rg (倒空间) rg_reciprocal	21.20 Å
I(0) (倒空间) i0_reciprocal	12720000.0000
解质量估计 total_estimate	0.7807
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	23.8 Å
偏度 Skewness skewness	0.651
峰度 Kurtosis kurtosis	0.388
角度范围 angular_range	— – 0.3750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2474000.0000
实空间数据点数 n_real_points	69
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.494; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.700; Smooth: 0.963

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Transcriptional regulator, PadR-like family
分子量 formula_weight	15276.1 kDa
突变 mutation	V15(3-amino-Y),L18R,N19W,M89N,A92N
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	2111

GAEIPKEMLRAQTNYILRWVLKQGDNYVYGIIKQVKEASNGEMELNEATLYTIFKRLEKDGIISSYWGDESQGGRRKYYRLTEIGHENNRLYFESWSRVDKIIENLEANKKSEAIKSRGGSGGWSHPQFEK

来源 Source

来源生物 organism	Lactococcus cremoris subsp. cremoris MG1363
NCBI 分类编号 ncbi_taxonomy_id	416870
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	NITRATE ION
分子量 formula_weight	62.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	208

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	45.700 Å
晶胞边长 b length_b	58.533 Å
晶胞边长 c length_c	74.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.200 Å
最低分辨率 resolution_low	45.950 Å
R 因子 r_factor	0.1762
R_work r_work	0.1742
R_free r_free	0.2127
