1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 4 of E3 ubiquitin-protein ligase NEDD4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 519–893	Not recorded	EDO 1,2-ETHANEDIOL × 4 A1ITH Norclomipramine × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES pH 6.0 8-10% PEG 400 20% glycerol 1-4 mM inhibitor (0.25-1% DMSO)	Resolution 2.12 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9H9O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2KPZ Human NEDD4 3RD WW Domain Complex with The Human T-cell Leukemia virus 1 GAG-Pro poliprotein Derived Peptide SDPQIPPPYVEP Deposited 2009-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 834–878（45 aa） Fragment：3rd WW Domain, UNP residues 834-878	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；288 K；Pressure ambient NMR sample composition 1 mM [U-100% 15N] PROTEIN-1; 3 mM PEPTIDE-2; 20 mM sodium phosphate-3; 0.02 v/v sodium azide-4; 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] PROTEIN-5; 3 mM PEPTIDE-6; 20 mM sodium phosphate-7; 0.02 v/v sodium azide-8; 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2KQ0 Human NEDD4 3rd WW Domain Complex with Ebola Zaire Virus Matrix Protein VP40 Derived Peptide ILPTAPPEYMEA Deposited 2009-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 834–878（45 aa） Fragment：3rd WW Domain, UNP residues 834-878	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；288 K；Pressure ambient NMR sample composition 1mM [U-100% 15N] PROTEIN; 10mM PEPTIDE; 20mM sodium phosphate; 0.02 v/v % sodium azide; 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M3O Structure and dynamics of a human Nedd4 WW domain-ENaC complex Deposited 2013-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain W 838–877（40 aa） Fragment：third WW domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition 1.1 mM [U-99% 13C; U-99% 15N] Nedd4 WW3* domain, 2.2 mM alpha ENaC PY peptide, 20 mM sodium phosphate, 0.1 % sodium azide, 1 mM TSP, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 3.0 mM Nedd4 WW3* domain, 1.5 mM [U-99% 13C; U-99% 15N] alpha ENaC PY peptide, 20 mM sodium phosphate, 0.1 % sodium azide, 1.0 mM TSP, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 1.61 mM [U-99% 15N] Nedd4 WW3* domain, 4.38 mM alpha ENaC PY peptide, 20 mM sodium phosphate, 0.1 % sodium azide, 1 mM TSP, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
2XBB Nedd4 HECT:Ub complex Deposited 2010-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 519–900（382 aa） Fragment：HECT DOMAIN, RESIDUES 519-900	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100 MM NA-HEPES, PH 7.5, 10% PEG 2000 MME, 5 MM TCEP.	Resolution 2.68 Å R-free 0.249
2XBB Nedd4 HECT:Ub complex Deposited 2010-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 519–900（382 aa） Fragment：HECT DOMAIN, RESIDUES 519-900	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；100 MM NA-HEPES, PH 7.5, 10% PEG 2000 MME, 5 MM TCEP.	Resolution 2.68 Å R-free 0.249
2XBF Nedd4 HECT structure Deposited 2010-04-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–900（382 aa） Fragment：HECT DOMAIN, RESIDUES 519-900	Not recorded	EDO 1,2-ETHANEDIOL × 4 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；100 MM NA-MES, PH 6.0, 4% PEG 400, 35 MM CACL2, 5 MM TCEP	Resolution 2.50 Å R-free 0.256
3B7Y Crystal structure of the C2 Domain of the E3 Ubiquitin-Protein Ligase NEDD4 Deposited 2007-10-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 101–252（152 aa） Fragment：C2 Domain: Residues 101-252	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；10% PEG 4000, 0.1 M Succinic acid pH 7.0, 0.01M Spermine tetra-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.209
3B7Y Crystal structure of the C2 Domain of the E3 Ubiquitin-Protein Ligase NEDD4 Deposited 2007-10-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 101–252（152 aa） Fragment：C2 Domain: Residues 101-252	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；10% PEG 4000, 0.1 M Succinic acid pH 7.0, 0.01M Spermine tetra-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.209
4BBN NEDD4 HECT-Ub:Ub complex Deposited 2012-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 892–1318（427 aa） Fragment：HECT DOMAIN, RESIDUES 892-1318	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；2.5 SODIUM MALONATE, PH 6.0	Resolution 2.51 Å R-free 0.224
4BE8 NEDD4 HECT A889F structure Deposited 2013-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–900（382 aa） Fragment：HECT DOMAIN, RESIDUES 519-900	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；1.15 M POTASSIUM SODIUM TARTRATE, 0.1 M TRIS-HCL, PH 9.0	Resolution 3.00 Å R-free 0.295
4N7F Crystal structure of 3rd WW domain of human Nedd4-1 Deposited 2013-10-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 841–874（34 aa） Fragment：WW3 domain (UNP residues 841-874)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；3.0M NaCl, 100mM Tris-HCl 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.10 Å R-free 0.200
4N7F Crystal structure of 3rd WW domain of human Nedd4-1 Deposited 2013-10-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 841–874（34 aa） Fragment：WW3 domain (UNP residues 841-874)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；3.0M NaCl, 100mM Tris-HCl 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.10 Å R-free 0.200
4N7H Crystal Structure of the Complex of 3rd WW domain of Human Nedd4 and 1st PPXY Motif of ARRDC3 Deposited 2013-10-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 840–872（33 aa） Fragment：3rd WW domain (UNP residues 840-872)	Not recorded	GAI GUANIDINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；0.35M (NH4)SO4, 100mM Tris-HCl 8.0, 100mM Guanidine-HCl, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.70 Å R-free 0.233
5AHT Third WW domain from the E3 ubiquitin-protein ligase NEDD4 Deposited 2015-02-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 838–877（40 aa） Fragment：WW3, UNP RESIDUES 838-877	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.05；Pressure 1.0 NMR sample composition 1.5 MM [U-99% 13C NMR sample composition U-99% 15N] NEDD4 WW3* DOMAIN, 20 MM SODIUM PHOSPHATE, 50 MM SODIUM CHLORIDE, 0.5 MM DSS, 90% 2O/10% D2O	Resolution not provided
5C7J CRYSTAL STRUCTURE OF NEDD4 WITH A UB VARIANT Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 520–900（381 aa） Fragment：HECT DOMAIN (UNP RESIDUES 520-900)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；The NEDD4 and Ubiquitin Variant was mixed at molar ratio ~1:2, and then concentrated to 15mg/ml. The protein sample was mixed with Trypsin at a 1:1000 (W/W) Trypsin:protein ratio before setting up crystallization. Crystal was initially obtained from Molecular Dimentions Proplex screen condition E04. Crystal used for structure refinement was grown in 20% PEG8000, 10% Glycerol, 0.1M HEPES pH 7.0 in hanging drop setup, using 1.5uL protein, 1.5uL well solution over 0.5 mL reservoir buffer at 20 C. Crystals grow to mountable size in 4 days. Harvested crystal was flash-frozen in liquid nitrogen. 20% Glycerol was used as the cryo-protectant	Resolution 3.00 Å R-free 0.277
5C7J CRYSTAL STRUCTURE OF NEDD4 WITH A UB VARIANT Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 520–900（381 aa） Fragment：HECT DOMAIN (UNP RESIDUES 520-900)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；The NEDD4 and Ubiquitin Variant was mixed at molar ratio ~1:2, and then concentrated to 15mg/ml. The protein sample was mixed with Trypsin at a 1:1000 (W/W) Trypsin:protein ratio before setting up crystallization. Crystal was initially obtained from Molecular Dimentions Proplex screen condition E04. Crystal used for structure refinement was grown in 20% PEG8000, 10% Glycerol, 0.1M HEPES pH 7.0 in hanging drop setup, using 1.5uL protein, 1.5uL well solution over 0.5 mL reservoir buffer at 20 C. Crystals grow to mountable size in 4 days. Harvested crystal was flash-frozen in liquid nitrogen. 20% Glycerol was used as the cryo-protectant	Resolution 3.00 Å R-free 0.277
5C91 NEDD4 HECT with covalently bound indole-based inhibitor Deposited 2015-06-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 938–1312（375 aa） Fragment：unp residues 938-1312	Not recorded	4YU methyl (2E)-4-{[(5-methoxy-1,2-dimethyl-1H-indol-3-yl)carbonyl]amino}but-2-enoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM MES, 35 mM calcium chloride, 5 mM TCEP, 6% PEG400	Resolution 2.44 Å R-free 0.298
9H9T Crystal structure of NEDD4 HECT domain in complex with covalent inhibitor Deposited 2024-10-31	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–893（375 aa）	Not recorded	A1ITT ethyl 4-[4-(2-chloranyl-5,6-dihydrobenzo[b][1]benzazepin-11-yl)butylamino]butanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES pH 6.0 8-10% PEG 400 20% glycerol 1-4 mM inhibitor (0.25-1% DMSO)	Resolution 2.17 Å R-free 0.252

14 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NEDD4_HUMAN
Isoform	P46934-4
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–375； UniProt 519–893

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9h9o
Deposition date deposition_date	2024-10-31
最后修订 last_revision	2025-06-04
Structure title title	Crystal structure of NEDD4 HECT domain in complex with norclomipramine
Keywords keywords	Ihibitor, Complex, Ubiquitin, Ligase, E3; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.88 Å
Radius of gyration Rg (electron density) rg_electron	24.00 Å
Forward intensity I(0) i0	62420900.00
Molecular weight molecular_weight	41952.0 kDa
Excluded volume excluded_volume	40998 Å³
Envelope volume envelope_volume	69023 Å³
Hydration-shell volume shell_volume	24619 Å³
Envelope diameter envelope_diameter	79.4 Å
Shell Rg shell_rg	30.37 Å
Envelope Rg envelope_rg	24.06 Å
Shape Rg shape_rg	24.00 Å
Total Rg total_rg	24.59 Å
Total atoms total_atoms	3185
Residues n_residues	375
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

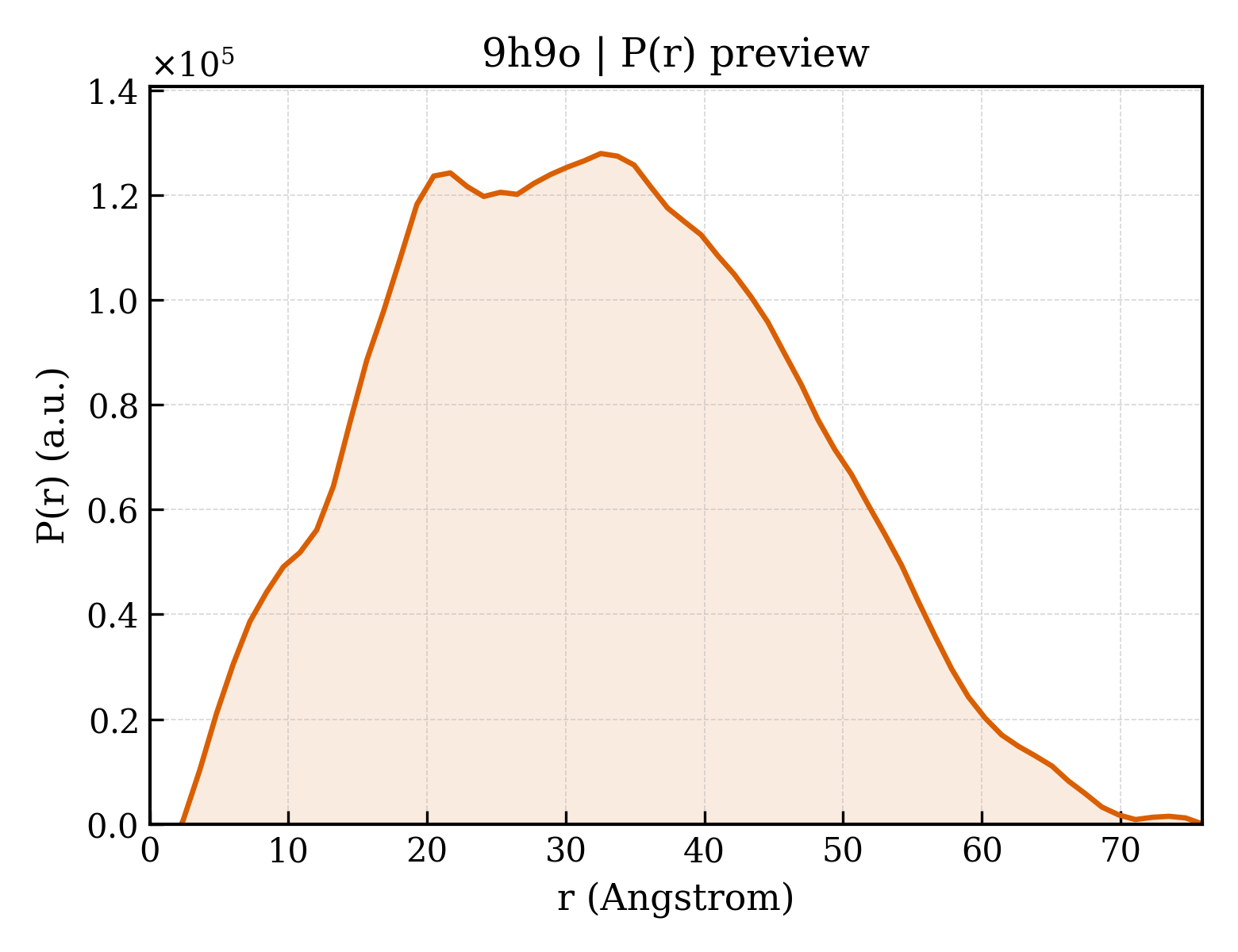

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.9 Å
Rg (real space) rg_real	24.80 Å
Rg uncertainty (real space) rg_real_error	0.60 Å
I(0) (real space) i0_real	6.2420e+07
I(0) uncertainty (real space) i0_real_error	8.5610e+05
Rg (reciprocal space) rg_reciprocal	24.82 Å
I(0) (reciprocal space) i0_reciprocal	62420000.0000
Solution quality estimate total_estimate	0.8596
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	32.5 Å
Skewness Skewness skewness	0.205
Kurtosis Kurtosis kurtosis	-0.593
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10630000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.840; Stabil: 0.905; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.935

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Isoform 4 of E3 ubiquitin-protein ligase NEDD4
Molecular weight formula_weight	44739.0 kDa
EC 编号 ec_number	2.3.2.26
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3290

SRDYKRKYEFFRRKLKKQNDIPNKFEMKLRRATVLEDSYRRIMGVKRADFLKARLWIEFDGEKGLDYGGVAREWFFLISKEMFNPYYGLFEYSATDNYTLQINPNSGLCNEDHLSYFKFIGRVAGMAVYHGKLLDGFFIRPFYKMMLHKPITLHDMESVDSEYYNSLRWILENDPTELDLRFIIDEELFGQTHQHELKNGGSEIVVTNKNKKEYIYLVIQWRFVNRIQKQMAAFKEGFFELIPQDLIKIFDENELELLMCGLGDVDVNDWREHTKYKNGYSANHQVIQWFWKAVLMMDSEKRIRLLQFVTGTSRVPMNGFAELYGSNGPQSFTVEQWGTPEKLPRAHTCFNRLDLPPYESFEELWDKLQMAIENT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	Norclomipramine
Molecular weight formula_weight	300.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	95

▶

8. Citations (1)

▶

Unit-cell length a length_a	175.750 Å
Unit-cell length b length_b	38.890 Å
Unit-cell length c length_c	60.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.120 Å
Low-resolution limit resolution_low	60.000 Å
R factor r_factor	0.1885
R_work r_work	0.1858
R_free r_free	0.2365
