9hd5

;Crystal structure of CD73 (ecto-5'-nucleotidase) in complex with the AOPCP derivative PSB19427 in the closed state ;

Method: X-RAY DIFFRACTION D_max: 132.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9hd5
沉积日期 deposition_date	2024-11-11
最后修订 last_revision	2025-11-19
结构标题 title	;Crystal structure of CD73 (ecto-5'-nucleotidase) in complex with the AOPCP derivative PSB19427 in the closed state ;
关键词 keywords	ecto-5-nucleotidase, AMP hydrolysis, inhibition, PET tracer, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.88 Å
回转半径 Rg (电子) rg_electron	38.50 Å
零角强度 I(0) i0	390992000.00
分子量 molecular_weight	106880.0 kDa
排除体积 excluded_volume	103070 Å³
包络体积 envelope_volume	178050 Å³
水化壳体积 shell_volume	41802 Å³
包络直径 envelope_diameter	139.3 Å
壳层 Rg shell_rg	40.20 Å
包络 Rg envelope_rg	38.53 Å
形状 Rg shape_rg	38.57 Å
总 Rg total_rg	38.46 Å
总原子数 total_atoms	8070
残基数 n_residues	1026
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

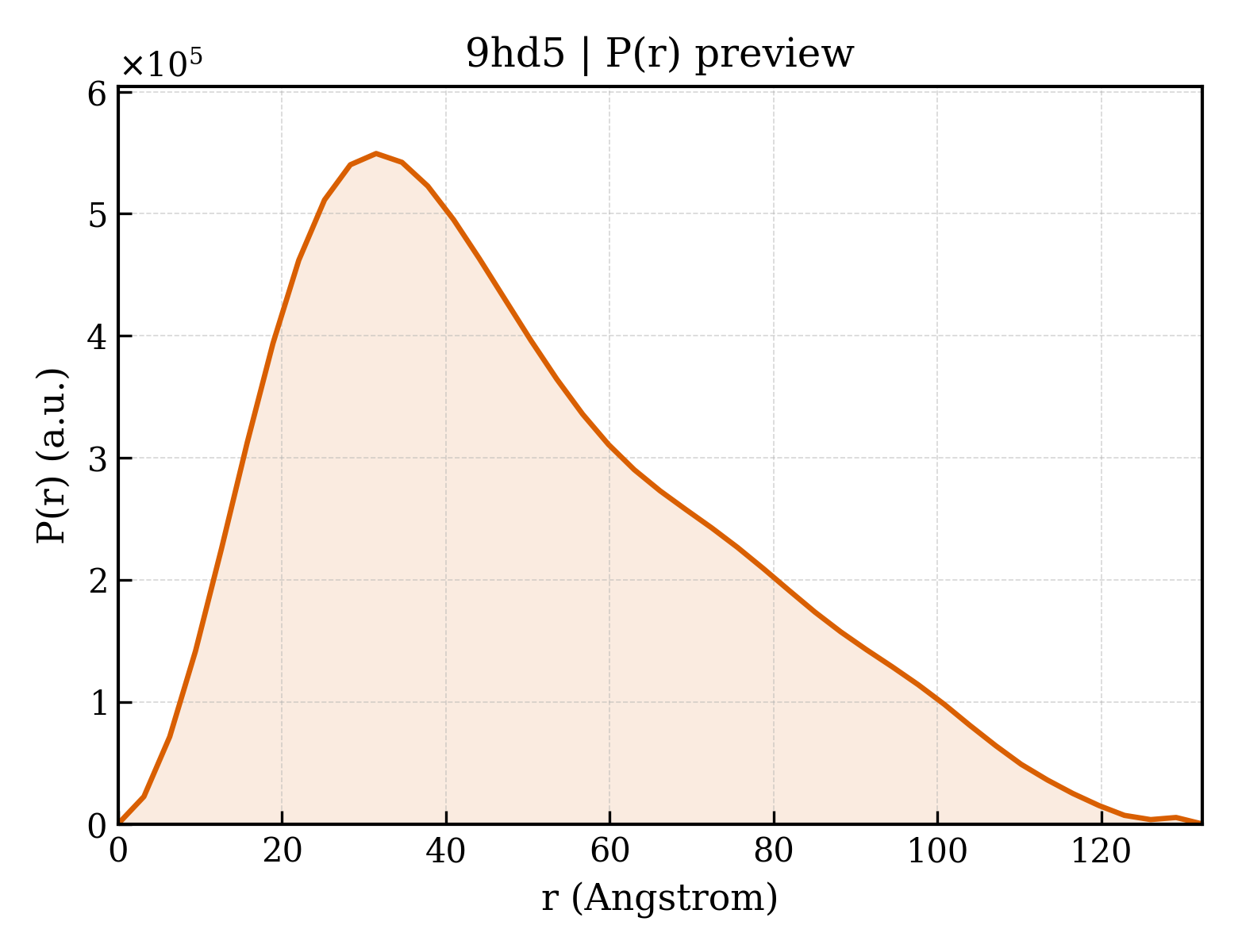

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	132.3 Å
Rg (实空间) rg_real	38.46 Å
Rg 误差 (实空间) rg_real_error	1.25 Å
I(0) (实空间) i0_real	3.9100e+08
I(0) 误差 (实空间) i0_real_error	6.5060e+06
Rg (倒空间) rg_reciprocal	38.10 Å
I(0) (倒空间) i0_reciprocal	390900000.0000
解质量估计 total_estimate	0.7744
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.5 Å
偏度 Skewness skewness	0.620
峰度 Kurtosis kurtosis	-0.318
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	69860000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.577; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.674; Smooth: 0.657

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	5'-nucleotidase
分子量 formula_weight	59863.0 kDa
EC 编号 ec_number	3.1.3.35,3.1.3.5,3.1.3.89,3.1.3.91,3.1.3.99
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8195

MWELTILHTNDVHSRLEQTSEDSSKCVDASRCMGGVARLFTKVQQIRRAEPNVLLLDAGDQYQGTIWFTVYKGAEVAHFMNALRYDAMALGNHEFDNGVEGLIEPLLKEAKFPILSANIKAKGPLASQISGLYLPYKVLPVGDEVVGIVGYTSKETPFLSNPGTNLVFEDEITALQPEVDKLKTLNVNKIIALGHSGFEMDKLIAQKVRGVDVVVGGHSNTFLYTGNPPSKEVPAGKYPFIVTSDDGRKVPVVQAYAFGKYLGYLKIEFDERGNVISSHGNPILLDSSIPEDPSIKADINKWRIKLDDYSTQELGKTIVYLDGSSQSCRFRECNMGNLICDAMINNNLRHTDEMFWNHVSMCILNGGGIRSPIDERNDGTITWENLAAVLPFGGTFDLVQLKGSTLKKAFEHSVHRYGQSTGEFLQVGGIHVVYDLSRKPGDRVVKLDVLCTKCRVPSYDPLKMDEVYKVILPNFLANGGDGFQMIKDELLRHDSGDQDINVVSTYISKMKVIYPAVEGRIKFSGGGGAGGGGGTKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	;[[(2~{R},3~{S},4~{R},5~{R})-5-[2-chloranyl-6-[[4-[1-(2-fluoranylethyl)-1,2,3-triazol-4-yl]phenyl]methyl-propyl-amino]purin-9-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]methylphosphonic acid ;
分子量 formula_weight	705.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	117

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	92.635 Å
晶胞边长 b length_b	233.367 Å
晶胞边长 c length_c	54.058 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.911 Å
最低分辨率 resolution_low	49.370 Å
R 因子 r_factor	0.1942
R_work r_work	0.1896
R_free r_free	0.2725
