9i31

Alpha-Methylacyl-CoA racemase from Mycobacterium tuberculosis in complex with acetyl-CoA

Method: X-RAY DIFFRACTION D_max: 181.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

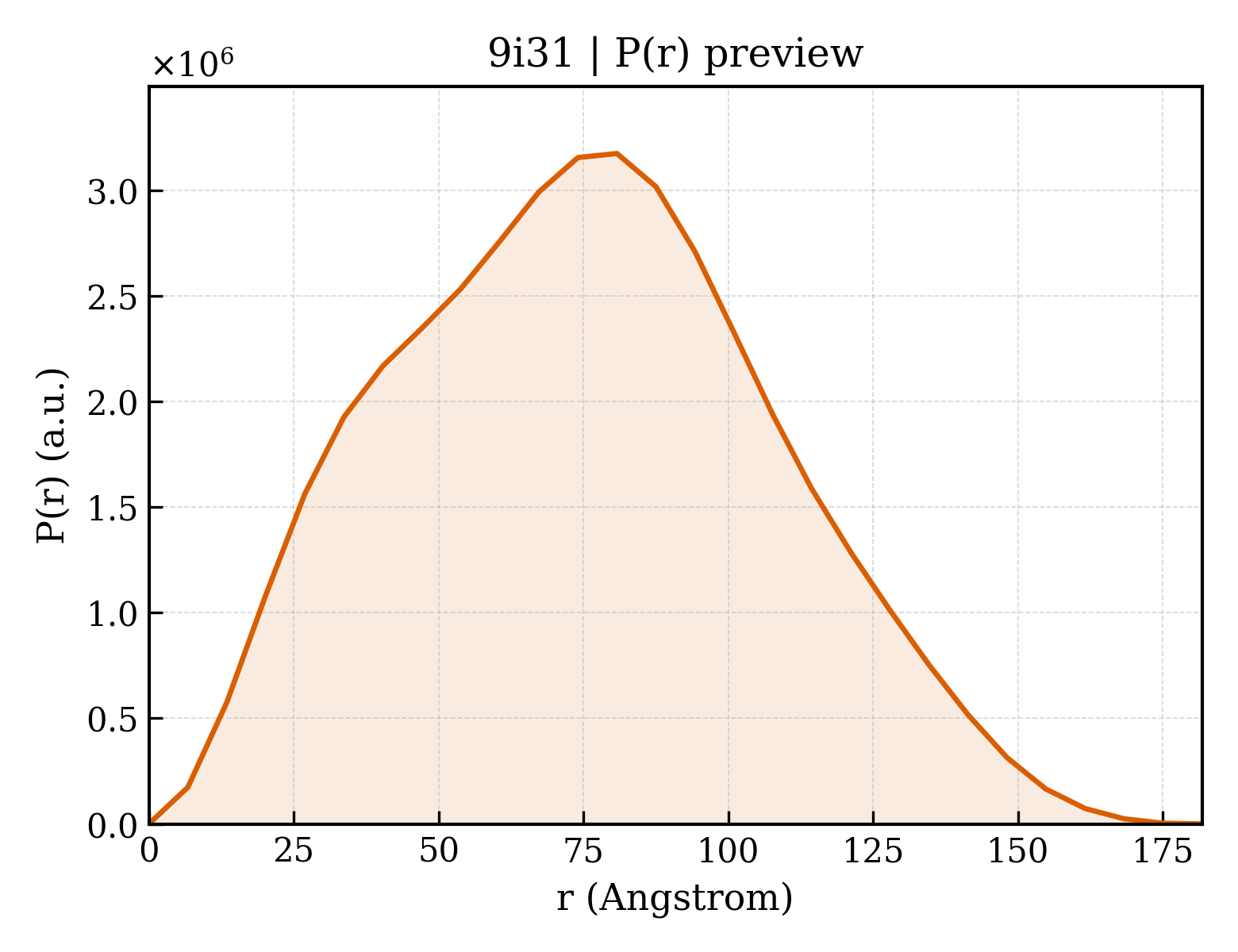

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i31
沉积日期 deposition_date	2025-01-22
结构标题 title	Alpha-Methylacyl-CoA racemase from Mycobacterium tuberculosis in complex with acetyl-CoA
关键词 keywords	CoA-transferase, epimerization, CoA-transferase family III, alpha proton exchange, homo dimer, ISOMERASE, acetyl-CoA, acetate; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.99 Å
回转半径 Rg (电子) rg_electron	57.69 Å
零角强度 I(0) i0	3399650000.00
分子量 molecular_weight	472950.0 kDa
排除体积 excluded_volume	584310 Å³
包络体积 envelope_volume	786360 Å³
水化壳体积 shell_volume	111350 Å³
包络直径 envelope_diameter	185.0 Å
壳层 Rg shell_rg	61.75 Å
包络 Rg envelope_rg	56.46 Å
形状 Rg shape_rg	57.70 Å
总 Rg total_rg	57.77 Å
总原子数 total_atoms	33184
残基数 n_residues	4309
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	181.8 Å
Rg (实空间) rg_real	57.83 Å
Rg 误差 (实空间) rg_real_error	1.39 Å
I(0) (实空间) i0_real	3.4000e+09
I(0) 误差 (实空间) i0_real_error	6.7170e+07
Rg (倒空间) rg_reciprocal	58.10 Å
I(0) (倒空间) i0_reciprocal	3401000000.0000
解质量估计 total_estimate	0.8556
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.8 Å
偏度 Skewness skewness	0.161
峰度 Kurtosis kurtosis	-0.548
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	547500000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.312

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Alpha-methylacyl-CoA racemase
分子量 formula_weight	39027.1 kDa
EC 编号 ec_number	5.1.99.4
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	35726

MAGPLSGLRVVELAGIGPGPHAAMILGDLGADVVRIDRPSSVDGISRDAMLRNRRIVTADLKSDQGLELALKLIAKADVLIEGYRPGVTERLGLGPEECAKVNDRLIYARMTGWGQTGPRSQQAGHDINYISLNGILHAIGRGDERPVPPLNLVGDFGGGSMFLLVGILAALWERQSSGKGQVVDAAMVDGSSVLIQMMWAMRATGMWTDTRGANMLDGGAPYYDTYECADGRYVAVGAIEPQFYAAMLAGLGLDAAELPPQNDRARWPELRALLTEAFASHDRDHWGAVFANSDACVTPVLAFGEVHNEPHIIERNTFYEANGGWQPMPAPRFSRTASSQPRPPAATIDIEAVLTDWDGGSGC

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

描述 description	ACETYL COENZYME *A
分子量 formula_weight	809.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1894

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	276.626 Å
晶胞边长 b length_b	276.626 Å
晶胞边长 c length_c	390.302 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	192

空间群 space_group	I 4 2 2
空间群编号 int_tables_number	97
晶系 crystal_system	—

分辨率 resolution	1.880 Å
最低分辨率 resolution_low	225.689 Å
R 因子 r_factor	—
R_work r_work	0.2035
R_free r_free	0.2342
