1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear factor 1 A-type

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 13–175	Not recorded	;DNA (5'-D(APGPTPTPGPGPCPAPAPGPTPC)-3') ; × 1 ;DNA (5'-D(GPAPCPTPTPGPCPCPAPAPCPT)-3') ; × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Bis-Tris Propane (pH 7.0), and 1.5 M Ammonium Sulfate	Resolution 2.30 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9JH2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9JH4 Crystal Structure of NFIA DNA-binding Domain Deposited 2024-09-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13–175（163 aa）	Not recorded	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M CHES (pH 9.5), and 30% (w/v) PEG 3000	Resolution 3.20 Å R-free 0.297
9JH4 Crystal Structure of NFIA DNA-binding Domain Deposited 2024-09-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 13–175（163 aa）	Not recorded	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M CHES (pH 9.5), and 30% (w/v) PEG 3000	Resolution 3.20 Å R-free 0.297
9JH4 Crystal Structure of NFIA DNA-binding Domain Deposited 2024-09-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 13–175（163 aa）	Not recorded	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M CHES (pH 9.5), and 30% (w/v) PEG 3000	Resolution 3.20 Å R-free 0.297
9LC2 Crystal Structure of NFIA in Complex with DNA Containing the TGGCA(N3)TGCCA Motif Deposited 2025-01-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 13–175（163 aa）	Not recorded	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Tris (pH 7.0), 20% (w/v) PEG 2000	Resolution 2.70 Å R-free 0.259
9LC2 Crystal Structure of NFIA in Complex with DNA Containing the TGGCA(N3)TGCCA Motif Deposited 2025-01-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 13–175（163 aa）	Not recorded	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Tris (pH 7.0), 20% (w/v) PEG 2000	Resolution 2.70 Å R-free 0.259
9XVF Crystal structure of NFIA monomer bound to DNA Deposited 2025-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 10–174（165 aa） Chain B 10–174（165 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；5% (v/v) (+/-)-2-methyl-2,4-pentanediol, 0.1 M HEPES (pH 7.5), and 10% (w/v) PEG 10000	Resolution 2.60 Å R-free 0.248
9XVQ Crystal structure of the NFIA-N0 DNA complex Deposited 2025-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 10–238（229 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M sodium phosphate dibasic dihydrate and 20% (w/v) PEG 3350	Resolution 1.76 Å R-free 0.222

4 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NFIA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–165； UniProt 13–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jh2
Deposition date deposition_date	2024-09-08
Structure title title	Crystal Structure of NFIA in Complex with DNA containing the TGGCA Motif
Keywords keywords	NFIA, Lipid metabolism, Transcription factor, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.05 Å
Radius of gyration Rg (electron density) rg_electron	18.00 Å
Forward intensity I(0) i0	16620000.00
Molecular weight molecular_weight	26236.0 kDa
Excluded volume excluded_volume	30979 Å³
Envelope volume envelope_volume	38833 Å³
Hydration-shell volume shell_volume	18212 Å³
Envelope diameter envelope_diameter	60.5 Å
Shell Rg shell_rg	24.00 Å
Envelope Rg envelope_rg	18.05 Å
Shape Rg shape_rg	17.96 Å
Total Rg total_rg	18.92 Å
Total atoms total_atoms	1812
Residues n_residues	186
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

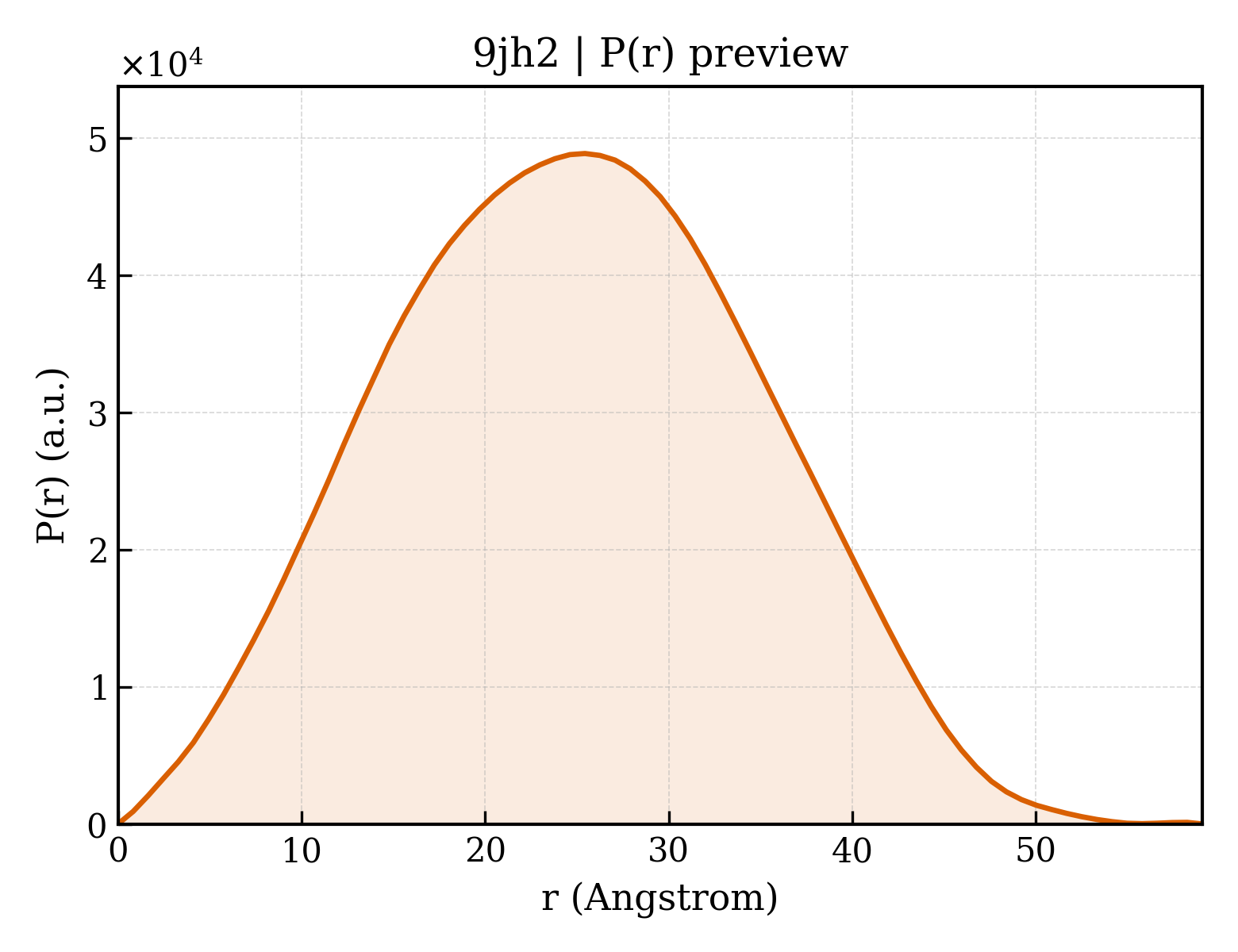

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.1 Å
Rg (real space) rg_real	18.91 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	1.6620e+07
I(0) uncertainty (real space) i0_real_error	2.0890e+05
Rg (reciprocal space) rg_reciprocal	18.93 Å
I(0) (reciprocal space) i0_reciprocal	16620000.0000
Solution quality estimate total_estimate	0.9042
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.4 Å
Skewness Skewness skewness	0.062
Kurtosis Kurtosis kurtosis	-0.533
Angular range angular_range	— – 0.4150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1838000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Nuclear factor 1 A-type
Molecular weight formula_weight	19272.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1863

GSHPFIEALLPHVRAFAYTWFNLQARKRKYFKKHEKRMSKEEERAVKDELLSEKPEVKQKWASRLLAKLRKDIRPEYREDFVLTVTGKKPPCCVLSNPDQKGKMRRIDCLRQADKVWRLDLVMVILFKGIPLESTDGERLVKSPQCSNPGLCVQPHHIGVSVKEL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(APGPTPTPGPGPCPAPAPGPTPC)-3') ;
Molecular weight formula_weight	3702.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

AGTTGGCAAGTC

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(GPAPCPTPTPGPCPCPAPAPCPT)-3') ;
Molecular weight formula_weight	3622.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GACTTGCCAACT

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	45

▶

8. Citations (1)

▶

Unit-cell length a length_a	94.388 Å
Unit-cell length b length_b	41.021 Å
Unit-cell length c length_c	70.901 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	40.930 Å
R factor r_factor	0.2432
R_work r_work	0.2413
R_free r_free	0.2832

fit	/app/data/saxs_computation/jh/9jh2/9jh2.fit
pddf	/app/data/pr_computation/jh/9jh2/9jh2.pr.out
profile	/app/data/saxs_computation/jh/9jh2/9jh2.dat
