9kgp

The structure of natural P450BM3-H derived from Bacillus megaterium for catalyzing the steroid DHEA

Method: X-RAY DIFFRACTION D_max: 101.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

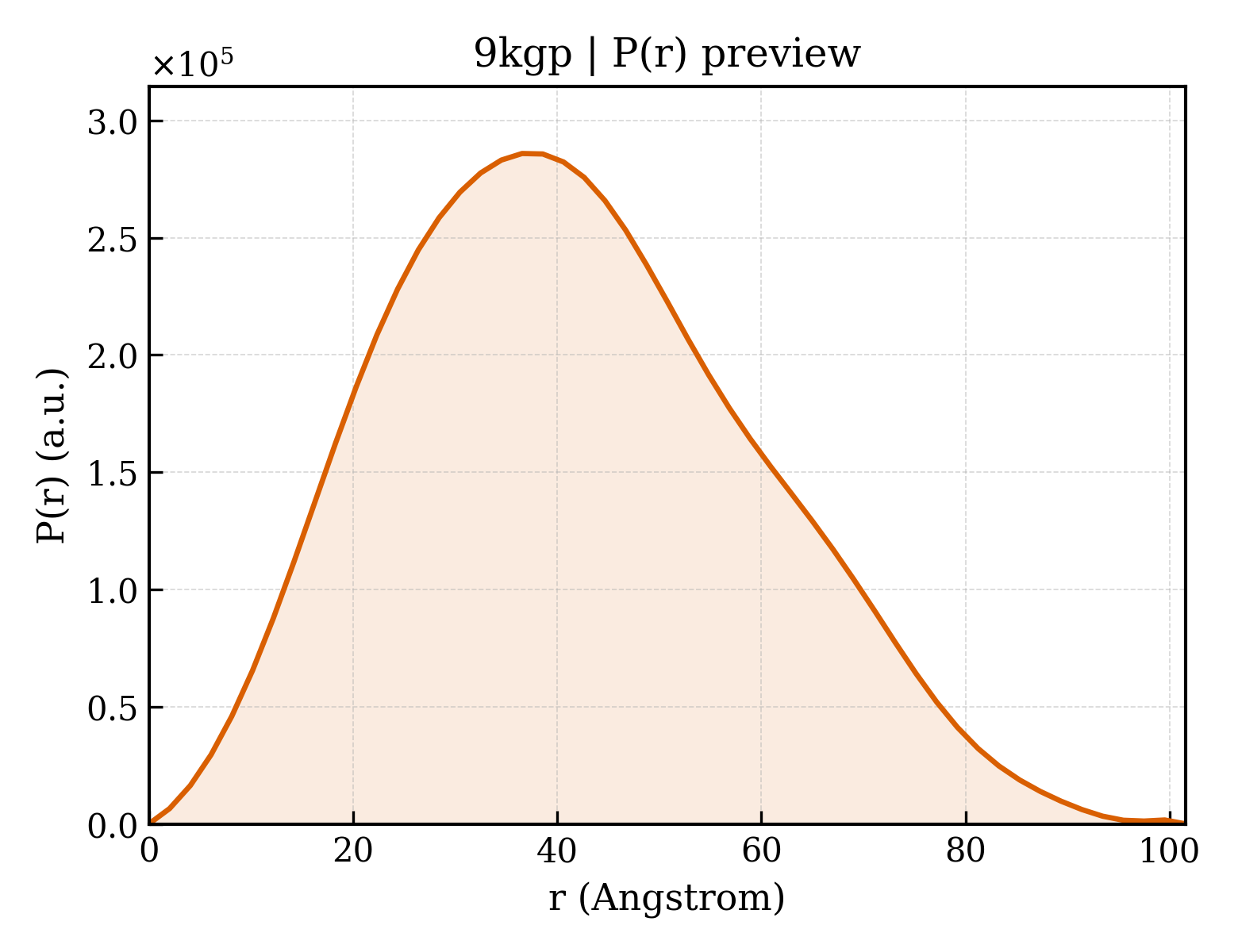

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9kgp
沉积日期 deposition_date	2024-11-08
结构标题 title	The structure of natural P450BM3-H derived from Bacillus megaterium for catalyzing the steroid DHEA
关键词 keywords	Oxidoreductase, cytochrome P450BM3, heme-binding domain, steroid compound, dehydroepiandrosterone DHEA; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.95 Å
回转半径 Rg (电子) rg_electron	30.91 Å
零角强度 I(0) i0	167215000.00
分子量 molecular_weight	104680.0 kDa
排除体积 excluded_volume	131580 Å³
包络体积 envelope_volume	161980 Å³
水化壳体积 shell_volume	42866 Å³
包络直径 envelope_diameter	108.0 Å
壳层 Rg shell_rg	38.72 Å
包络 Rg envelope_rg	30.95 Å
形状 Rg shape_rg	30.92 Å
总 Rg total_rg	31.52 Å
总原子数 total_atoms	7376
残基数 n_residues	906
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.5 Å
Rg (实空间) rg_real	31.90 Å
Rg 误差 (实空间) rg_real_error	0.73 Å
I(0) (实空间) i0_real	1.6720e+08
I(0) 误差 (实空间) i0_real_error	2.6810e+06
Rg (倒空间) rg_reciprocal	31.92 Å
I(0) (倒空间) i0_reciprocal	167200000.0000
解质量估计 total_estimate	0.8958
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.6 Å
偏度 Skewness skewness	0.303
峰度 Kurtosis kurtosis	-0.432
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	41420000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.902

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Bifunctional cytochrome P450/NADPH--P450 reductase
分子量 formula_weight	52078.3 kDa
EC 编号 ec_number	1.14.14.1,1.6.2.4
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7928

TIKEMPQPKTFGELKNLPLLNTDKPVQALMKIADELGEIFKFEAPGRVTRYLSSQRLIKEACDESRFDKNLSQGLKFVRDFAGDGLVTSWTHEKNWKKAHNILLPSFSQQAMKGYHAMMVDIAVQLIQKWERLNADEHIEVPEDMTRLTLDTIGLCGFNYRFNSFYRDQPHPFITSMVRALDEIMNKLQRANPDDPAYDENKRQFQDDIKVMNDLVDKIIADRKASGEQSDDLLTHMLNGKDPETGEPLDDENIRYQIITFLGGGHETTSGLLSFALYFLVKNPHVLQKAAEEAARILVDPVPSYKQVKQLKYVGMVLNEALRLWPTGPAFSLYAKEDTVLGGEYPLEKGDELMVLIPQLHRDKTIWGDDVEEFRPERFENPSAIPQHAFKPFGNGQRACIGQQFALHEATLVLGMMLKHFDFEDHTNYELDIKETLTLKPEGFVVKAKSKQIPL

来源 Source

来源生物 organism	Priestia megaterium NBRC 15308 = ATCC 14581
通用名 common_name	Bacillus megaterium
NCBI 分类编号 ncbi_taxonomy_id	1348623
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	552

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	58.914 Å
晶胞边长 b length_b	145.713 Å
晶胞边长 c length_c	63.233 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.51 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.520 Å
最低分辨率 resolution_low	72.820 Å
R 因子 r_factor	0.2250
R_work r_work	0.2210
R_free r_free	0.2270
