9me6

Antibody fragments from mAb21, mAb475, and mAb824 bound to the adhesin protein FimH

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Type 1 fimbrin D-mannose specific adhesin

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 7 其他Polymer 1	mAb475 Heavy Chain Fragment × 1 mAb475 Light Chain Fragment × 1 mAb824 Heavy Chain Fragment × 1 mAb824 Light Chain Fragment × 1 mAb21 Heavy Chain Fragment × 1 mAb21 Light Chain Fragment × 1 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–300； UniProt 1–300

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9me6
Deposition date deposition_date	2024-12-06
Structure title title	Antibody fragments from mAb21, mAb475, and mAb824 bound to the adhesin protein FimH
Keywords keywords	Fimbrial tip, Lectin domain, Antibody fragments, Antibody-target complex, CELL ADHESION, CELL ADHESION-IMMUNE SYSTEM complex; CELL ADHESION/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9me6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9me6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

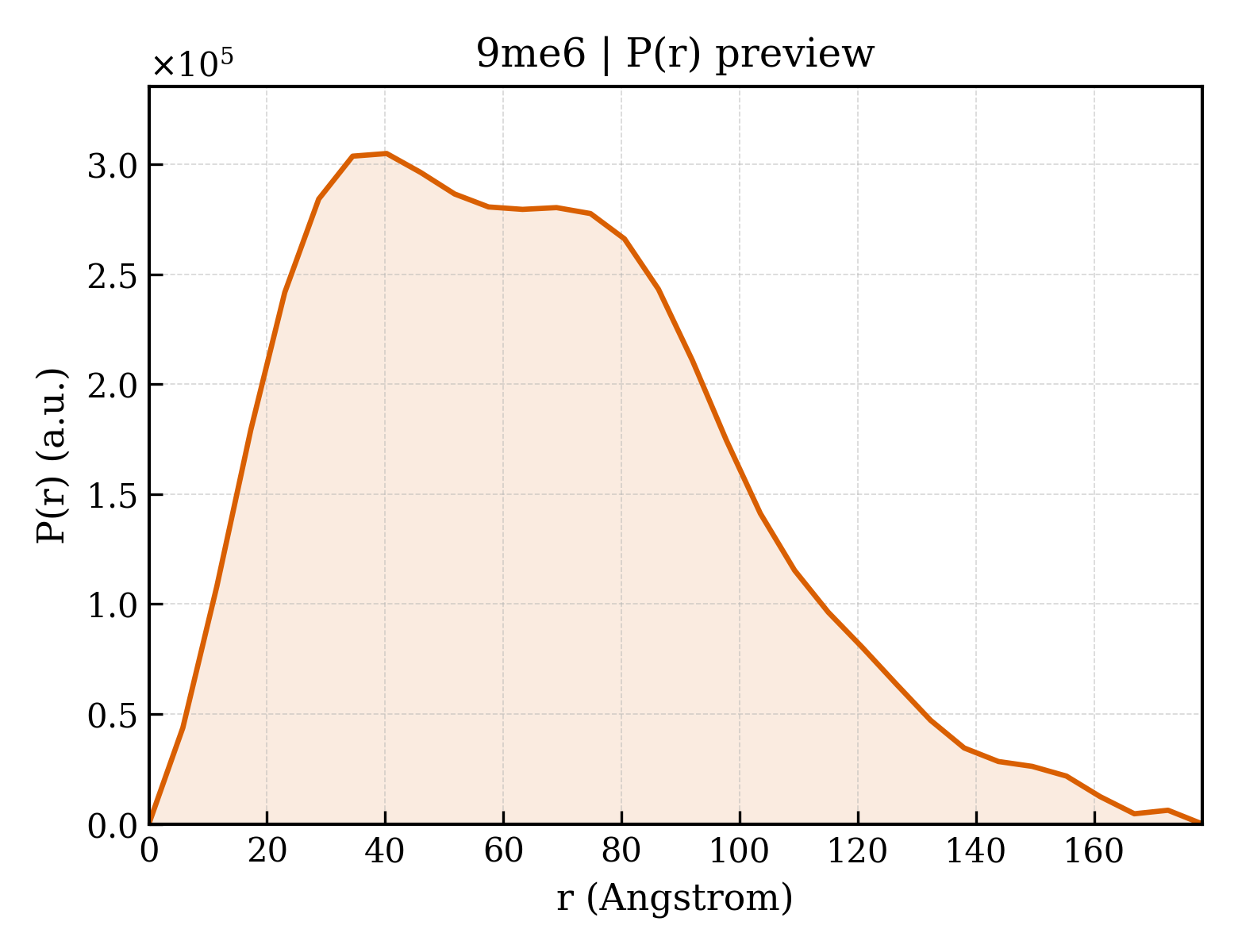

9me6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.72 Å
Rg (electron density)	51.22 Å
Total Rg	51.30 Å
Atom count	10516
Residues	1371
Excluded volume	185540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9me6__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Type 1 fimbrin D-mannose specific adhesin
Molecular weight formula_weight	31488.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10516

MKRVITLFAVLLMGWSVNAWSFACKTANGTAIPIGGGSANVYVNLAPVVNVGQNLVVDLSTQIFCHNDYPETITDYVTLQRGSAYGGVLSNFSGTVKYSGSSYPFPTTSETPRVVYNSRTDKPWPVALYLTPVSSAGGVAIKAGSLIAVLILRQTNNYNSDDFQFVWNIYANNDVVVPTGGCDVSARDVTVTLPDYPGSVPIPLTVYCAKSQNLGYYLSGTTADAGNSIFTNTASFSPAQGVGVQLTRNGTIIPANNTVSLGAVGTSAVSLGLTANYARTGGQVTAGNVQSIIGVTFVYQ

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	mAb475 Heavy Chain Fragment
Molecular weight formula_weight	23105.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGAELVRPGSSVKISCKASGYAFSSYWMNWVKQRPGQGLEWIGQIYPRDGDTNYNGKFMDKVTLTADKSSNTAYMQLSSLTSEDSAVYFCEVGRGFYGMDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKI

Entity 3 Entity 3 polymer

Description description	mAb475 Light Chain Fragment
Molecular weight formula_weight	23496.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

ELQMTQSPKFMSTSVGDRVSVTCKASQNVSNVAWYQQKPGQSPKAMIYSASYRYSGVPGRFTGSGSGTDFTLTINNVQSEDLATYFCQQNSSFPFTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 4 Entity 4 polymer

Description description	mAb824 Heavy Chain Fragment
Molecular weight formula_weight	22527.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

EIQLQQSGPERMKPGASVKISCKASGYSFTTYYIHWVKQSHGRSLEWIGYIDPFNDDTNYNQKFKGKATLTVDKSSSTAYMHLSSLTSEDSAVYYCARSYYGSLDYWGQGTTLTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASST

Entity 5 Entity 5 polymer

Description description	mAb824 Light Chain Fragment
Molecular weight formula_weight	21757.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

DIQMTQTTSSLSASLGDRVTISCRASQGVNNYLNWYQQKPDGSVKLLIYYTSNLHSGAPSRFSGSGSGTDYSLTISNLEQEDIATYFCQQANMVPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEAR

Entity 6 Entity 6 polymer

Description description	mAb21 Heavy Chain Fragment
Molecular weight formula_weight	21143.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

EVLLKQSGPEKVKPGASVKIPCKASGYTFTDYNIDWVKQSHGTSLEWIGHLDPNSGGTVYNQKFRGKATLTVDKSSSTAYLELRSLTSEDTAVYYCARSTMGVYRSDGYYAMDYWGQGTSVTVSSAKTTPPSVYPLAPGCGDTTGSSVTLGCLVKGYFPESVTVTWNSGSLSSSVHTFPALLQSGLYTMSSSVTVPSS

Entity 7 Entity 7 polymer

Description description	mAb21 Light Chain Fragment
Molecular weight formula_weight	19737.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

QIVLTQSPAIMSASLGEEITLTCSASSSISYMHWYQQKSGTSPKILIYSTSNQASGVPSRFSGSGSGTFYSLTISSVEAEDAADYYCHQWSSYPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTK

Entity 8 Entity 8 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	333855
