9nc3

AMC008 v4.2 SOSIP Env trimer in complex with b12 and 3BC315 Fabs

Method: ELECTRON MICROSCOPY D_max: 193.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein gp41

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 18 其他Polymer 25 PDB declaration: octadecameric（18） Consistent with protein copy count	Chain B； UniProt 1–154 Chain D； UniProt 1–154 Chain F； UniProt 1–154	Not recorded	Envelope glycoprotein gp120 × 3 3BC315 Fab heavy chain × 3 3BC315 Fab light chain × 3 b12 Fab heavy chain × 3 b12 Fab light chain × 3 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 12 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 ;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.74 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9NC3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9NBT AMC008 v4.2 SOSIP Env trimer in complex with VRC01 and 35O22 Fabs Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain B 1–154（154 aa） Chain K 1–154（154 aa） Chain R 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 24	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
9NBY AMC008 v4.2 SOSIP Env trimer in complex with PGT121, VRC01 and 3BC315 Fabs Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: eicosameric	Chain B 1–154（154 aa） Chain D 1–154（154 aa） Chain F 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
9NC0 AMC008 v4.2 SOSIP Env trimer in complex with b12 Fab Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 1–154（154 aa） Chain D 1–154（154 aa） Chain F 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
9NC6 AMC008 v4.2 SOSIP Env trimer in complex with two 3BC315 Fabs Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain B 1–154（154 aa） Chain D 1–154（154 aa） Chain F 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9NC8 AMC008 v4.2 SOSIP Env trimer in complex with one 3BC315 Fab Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–154（154 aa） Chain D 1–154（154 aa） Chain F 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 36	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
9OAJ AMC008 v4.2 SOSIP Env trimer in complex with CD4 D1D2 Deposited 2025-04-21	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–154（154 aa） Chain E 1–154（154 aa） Chain H 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
9YQO AMC008 v4.2 SOSIP Env trimer in complex with PGT121 and VRC01 Fabs Deposited 2025-10-15	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain B 1–154（154 aa） Chain H 1–154（154 aa） Chain P 1–154（154 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q1AII4_HV1
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–154； UniProt 1–154 Author chain D； PDBConstruct 1–154； UniProt 1–154 Author chain F； PDBConstruct 1–154； UniProt 1–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

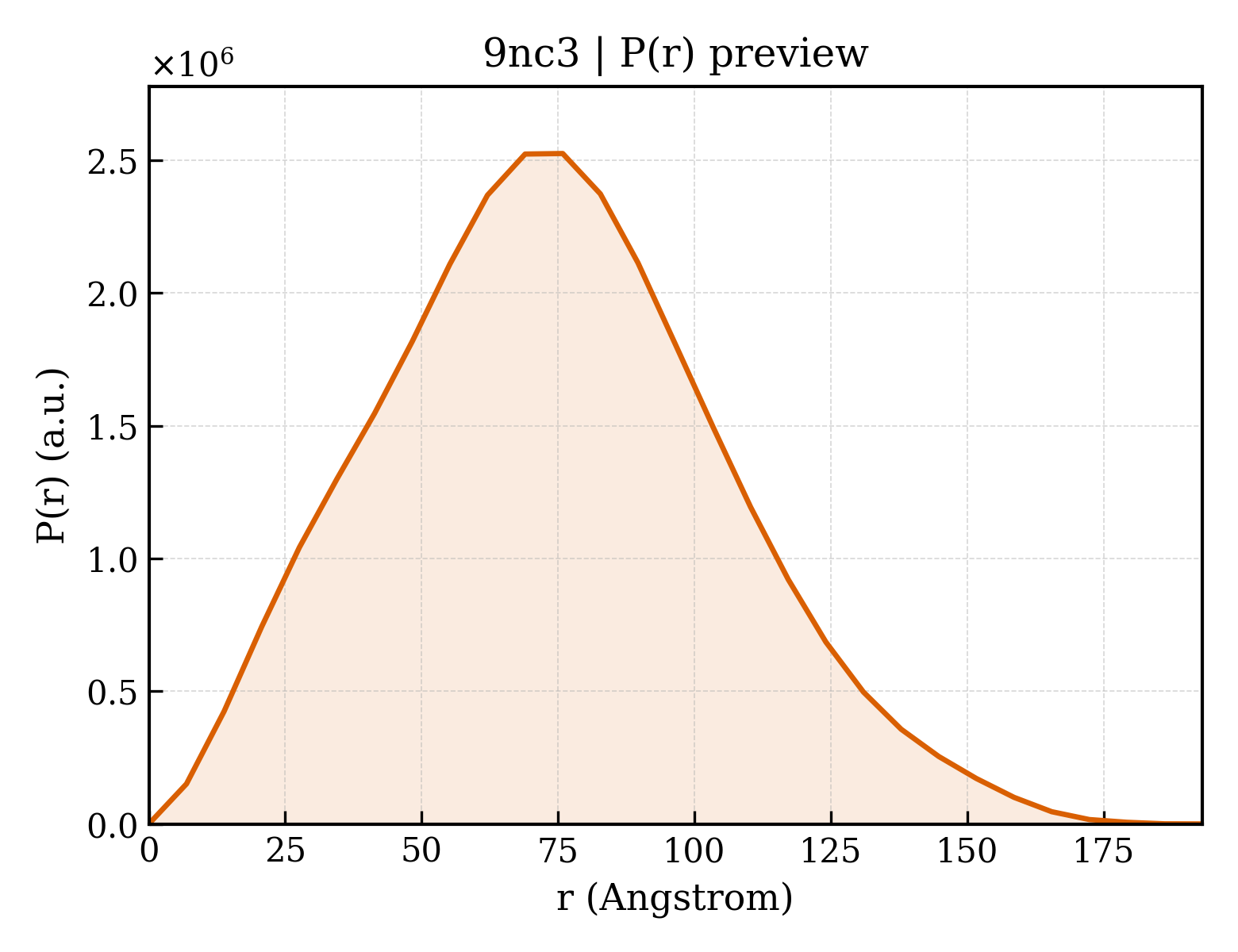

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nc3
Deposition date deposition_date	2025-02-14
Structure title title	AMC008 v4.2 SOSIP Env trimer in complex with b12 and 3BC315 Fabs
Keywords keywords	HIV-1 Envelope glycoprotein, broadly neutralizing antibodies, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	56.97 Å
Radius of gyration Rg (electron density) rg_electron	56.49 Å
Forward intensity I(0) i0	2477440000.00
Molecular weight molecular_weight	410540.0 kDa
Excluded volume excluded_volume	510770 Å³
Envelope volume envelope_volume	762430 Å³
Hydration-shell volume shell_volume	112300 Å³
Envelope diameter envelope_diameter	194.6 Å
Shell Rg shell_rg	59.57 Å
Envelope Rg envelope_rg	55.16 Å
Shape Rg shape_rg	56.49 Å
Total Rg total_rg	56.56 Å
Total atoms total_atoms	28821
Residues n_residues	3522
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	193.1 Å
Rg (real space) rg_real	56.82 Å
Rg uncertainty (real space) rg_real_error	1.58 Å
I(0) (real space) i0_real	2.4770e+09
I(0) uncertainty (real space) i0_real_error	4.4240e+07
Rg (reciprocal space) rg_reciprocal	57.08 Å
I(0) (reciprocal space) i0_reciprocal	2478000000.0000
Solution quality estimate total_estimate	0.8585
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	75.9 Å
Skewness Skewness skewness	0.248
Kurtosis Kurtosis kurtosis	-0.257
Angular range angular_range	— – 0.1400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	113100000.0000
Real-space data points n_real_points	29
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.823

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (15)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein gp120
Molecular weight formula_weight	55212.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	28821

MDWTWILFLVAAATRVHSTEKLWVTVYYGVPVWKEATTTLFCASDAKAYDTEVRNVWATHACVPTDPSPQEVILENVTENFNMWTNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLNCTNELKNTTKTNNSSWGGEMKNCSFNVTTSIRDKVQKEYALFYKLDIVPIDDDNNTSNYRLINCNTSVITQACPKITFEPIPIQFCTPAGFAILKCNNKKFNGKGPCTNVSTVQCTHGIRPVVSTQLLLNGSLAEEEVIIRSDNFTDNAKTIIVQLNESVVINCTRPNNNTRKSINIGPGRWFYTTGEIIGDIRQAHCNLSRTQWNNTLKQIAIKLREQFENKTIVFNQSSGGDPEIVMHSFNCGGEFFYCNTTKLFNSTWNDTDIRGNNTEGNDTITIPCRIKQIVNMWQEVGKAMYAPPIRGQIRCSSNITGLLLTRDGGSESNTTEIFRPGGGDMRDNWRSELYKYKVVRIEPLGVAPTKCKRRVVQ

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI Class编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein gp41
Molecular weight formula_weight	17412.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

AVGTIGAMFLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQNNLLRAPEAQQHLLQLTVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICCTSVPWNTSWSNKSLDKIWNNMTWMEWEREIDNYTSLIYTLLEESQNQQEKNEQLLLELD

来源 Source

来源生物 organism	Human immunodeficiency virus 1
NCBI Class编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	3BC315 Fab heavy chain
Molecular weight formula_weight	24999.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,K,O

QVQLVQSGAEMKDPGASVKVSCRASGYKFTDYYMHWVRQAPGQGLEWVGWVNTNGGFTKYGAKFQGRVTVTRDTSTNTVFLELSRLTFGDTAMYFCARPMRPVSHGIDYSGLFVFQFWGRGTMVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	3BC315 Fab light chain
Molecular weight formula_weight	23009.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,L,P

QSALTQPASVSASPGQSITISCSGTRSDVGGYDFVSWYQQHPGKVPKLIIYEVTKRPSGIPQRFSGSKSGNTASLTISGLQADDEADYYCCSYANYDKLILGGGTKLTVLGQPKANPTVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADGSPVKAGVETTKPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	b12 Fab heavy chain
Molecular weight formula_weight	24910.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,M,Q

QVQLVQSGAEVKKPGASVKVSCQASGYRFSNFVIHWVRQAPGQRFEWMGWINPYNGNKEFSAKFQDRVTFTADTSANTAYMELRSLRSADTAVYYCARVGPYSWDDSPQDNYYMDVWGKGTTVIVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKAEPKSC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	b12 Fab light chain
Molecular weight formula_weight	23707.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,N,R

EIVLTQSPGTLSLSPGERATFSCRSSHSIRSRRVAWYQHKPGQAPRLVIHGVSNRASGISDRFSGSGSGTDFTLTITRVEPEDFALYYCQVYGASSYTFGQGTKLERKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLRSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 7 Entity 7 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	12

Entity 8 Entity 8 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1073.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 10 Entity 10 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	4

Entity 11 Entity 11 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1397.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 12 Entity 12 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	3

Entity 13 Entity 13 branched

Description description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	2

Entity 14 Entity 14 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 15 Entity 15 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	22

▶

8. Citations (1)

▶

Resolution resolution	3.74 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	249333

fit	/app/data/saxs_computation/nc/9nc3/9nc3.fit
pddf	/app/data/pr_computation/nc/9nc3/9nc3.pr.out
profile	/app/data/saxs_computation/nc/9nc3/9nc3.dat
