SAXSdb — 9nut

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Minichromosome maintenance protein MCM, Cell division control protein 21,Minichromosome maintenance protein MCM, Cell division control protein 21,DNA helicase ;

Saccharolobus solfataricus P2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 6 DNA 2	DNA (60-MER) × 2 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 6 ZINC ION × 6 water × 6	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MCM_SACS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–270； UniProt 2–269 Author chain B； PDBConstruct 3–270； UniProt 2–269 Author chain C； PDBConstruct 3–270； UniProt 2–269 Author chain D； PDBConstruct 3–270； UniProt 2–269 Author chain E； PDBConstruct 3–270； UniProt 2–269 Author chain F； PDBConstruct 3–270； UniProt 2–269

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nut
Deposition date deposition_date	2025-03-19
Structure title title	SsoPfMCM:DNA class 1a from DNA 2
Keywords keywords	DNA replication, helicase, MCM, REPLICATION; REPLICATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nut__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

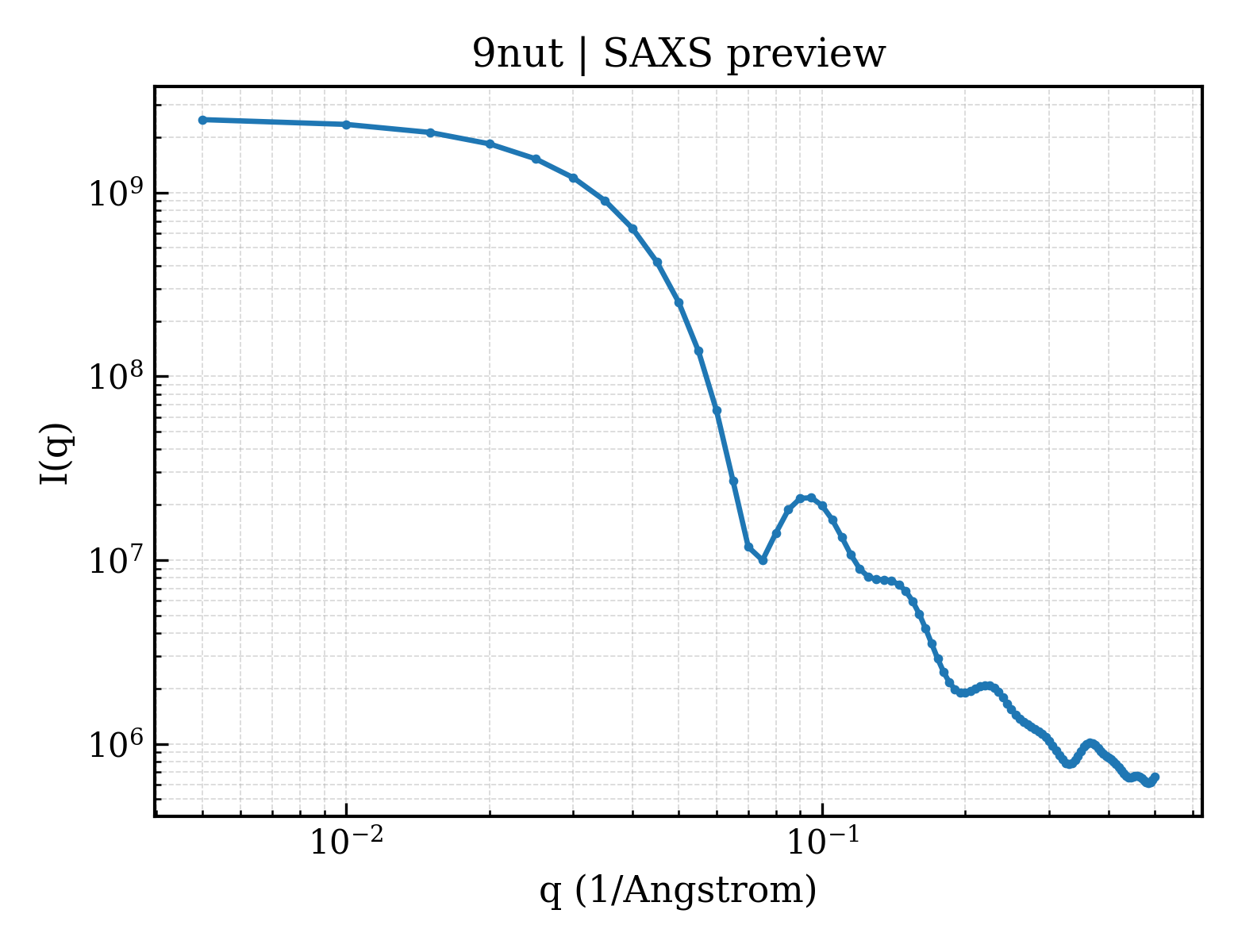

9nut__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

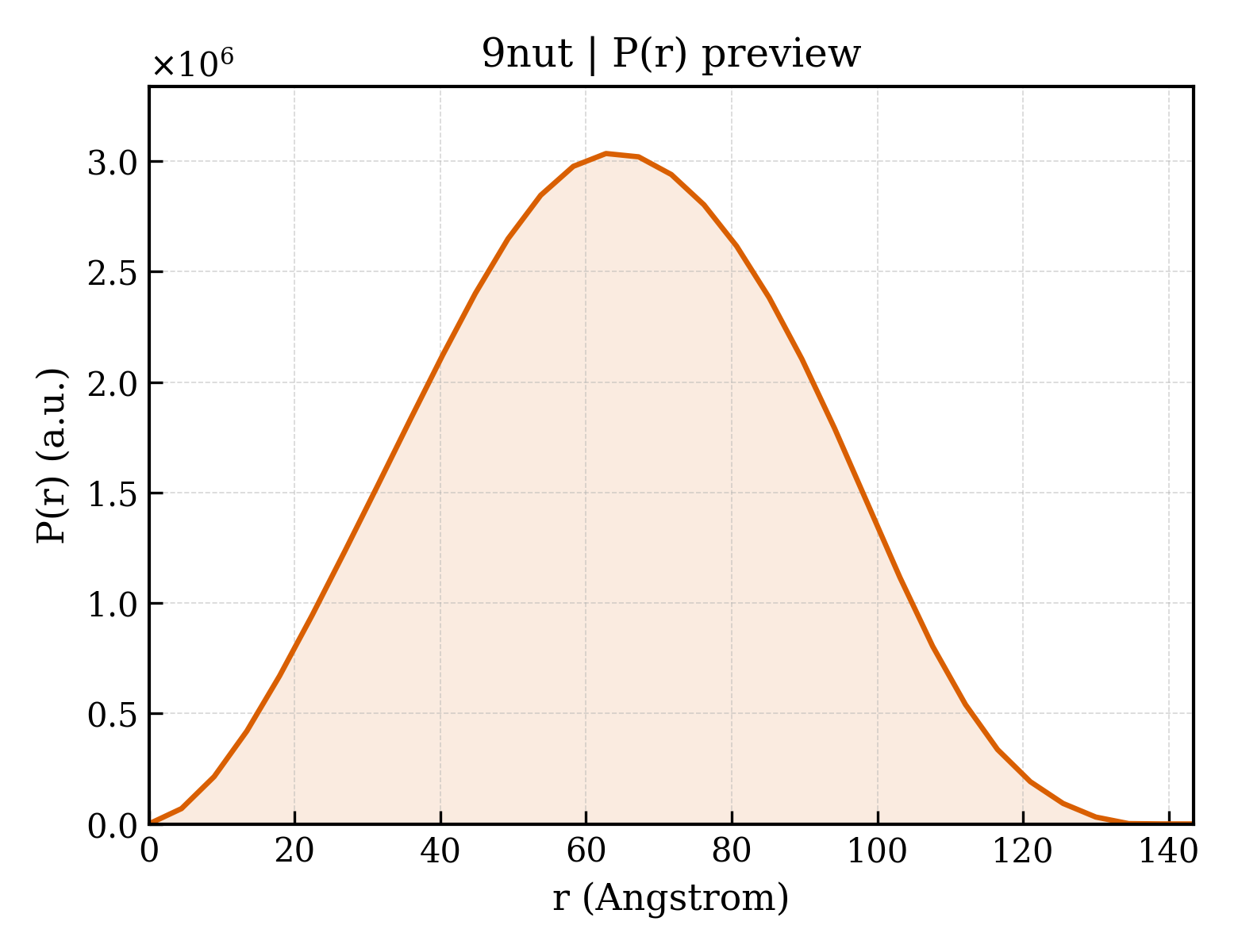

9nut__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.19 Å
Rg (electron density)	48.78 Å
Total Rg	49.01 Å
Atom count	59316
Residues	3596
Excluded volume	526550 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nut__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	;Minichromosome maintenance protein MCM, Cell division control protein 21,Minichromosome maintenance protein MCM, Cell division control protein 21,DNA helicase ;
Molecular weight formula_weight	69472.3 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	59340

SLEIPSKQIDYRDVFIEFLTTFKGNNNQNKYIERINELVAYRKKSLIIEFSDVLSFNENLAYEIINNTKIILPILEGALYDHILQLDPTYQRDIEKVHVRIVGIPRVIELRKIRSTDIGKLITIDGILVKVTPVKERIYKATYKHIHPDCMQEFEWPEDEEMPEVLEMPTICPKCGKPGQFRLIPEKTKLIDWQKAVIQERPEEVPSGQLPRQLEIILEDDLVDSARPGDRVKVTGILDIKQDSPVKRGSRAVFDIYMKVSSIEVSQKVLQELEISPEEEQIIKELAKRKDIVDAIVDSIAPAIYGYKEVKKGIALALFGGVSRKLPDGTRLRGDIHVLLVGDPGVAKSQILRYVANLAPRAIYTSGKSSSAAGLTAAAVRDEFTGGWVLEAGALVLADGGYALIDELDKMSDRDRSVIHEALEQQTISISKAGITATLNARTTVIAAANPKQGRFNRMKNPFEQIDLPPTLLSRFDLIFVLIDEPDDKIDSEVARHILRVRRGESEVVAPKIPHEILRKYIAYARKNIHPVISEEAMEEIEKYYVRMRKSVKKTKGEEEGIPPIPITARQLEALIRLSEAHARMRLSPIVTREDAREAIKLMEYTLKQIAMD

Source Source

Source organism organism	Saccharolobus solfataricus P2
NCBI taxonomy ID ncbi_taxonomy_id	273057
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DNA (60-MER)
Molecular weight formula_weight	18493.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	X,Y

TCCGTCTCACAGTAACAACCCTCCGCCTGATCAGGCGGAGGGTTGTTACTGTGAGACGGA

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	24

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.93 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	60755
