9o94

;Transporter associated with antigen processing (TAP) EQ mutant bound to the viral protein bUL49.5 in the outward-facing kinked state ;

Method: ELECTRON MICROSCOPY D_max: 120.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

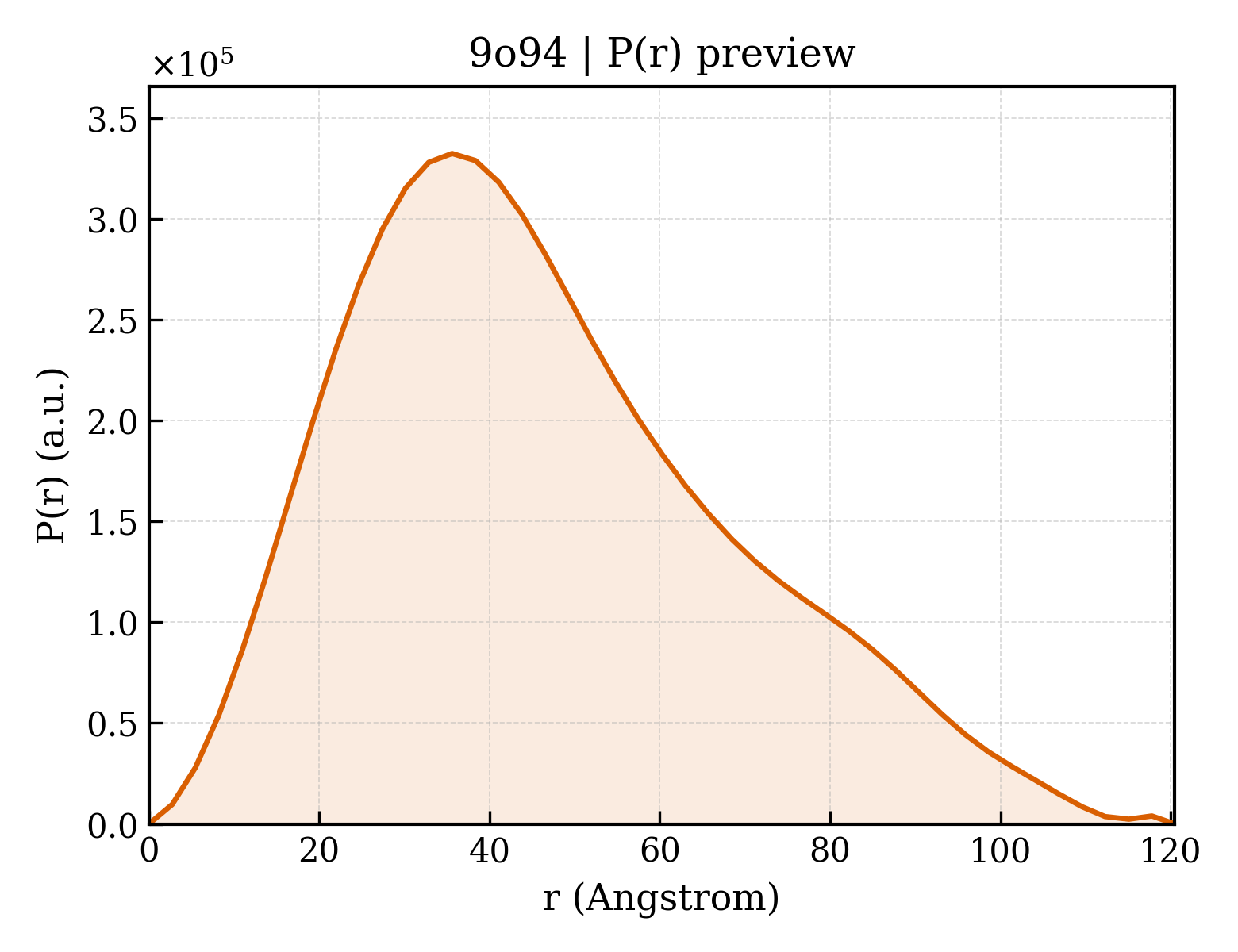

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9o94
沉积日期 deposition_date	2025-04-17
结构标题 title	;Transporter associated with antigen processing (TAP) EQ mutant bound to the viral protein bUL49.5 in the outward-facing kinked state ;
关键词 keywords	ABC transporter, antigen processing, peptide transporter, MEMBRANE PROTEIN, herpesvirus; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.97 Å
回转半径 Rg (电子) rg_electron	36.41 Å
零角强度 I(0) i0	214726000.00
分子量 molecular_weight	118910.0 kDa
排除体积 excluded_volume	149230 Å³
包络体积 envelope_volume	198410 Å³
水化壳体积 shell_volume	46958 Å³
包络直径 envelope_diameter	129.3 Å
壳层 Rg shell_rg	41.21 Å
包络 Rg envelope_rg	36.47 Å
形状 Rg shape_rg	36.41 Å
总 Rg total_rg	36.75 Å
总原子数 total_atoms	8365
残基数 n_residues	1105
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.5 Å
Rg (实空间) rg_real	36.23 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	2.1470e+08
I(0) 误差 (实空间) i0_real_error	3.4380e+06
Rg (倒空间) rg_reciprocal	36.07 Å
I(0) (倒空间) i0_reciprocal	214700000.0000
解质量估计 total_estimate	0.8324
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.6 Å
偏度 Skewness skewness	0.565
峰度 Kurtosis kurtosis	-0.244
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	63430000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.741; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.677

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Antigen peptide transporter 1
分子量 formula_weight	97399.7 kDa
EC 编号 ec_number	7.4.2.14
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8365

MASSRCPAPRGCRCLPGASLAWLGTVLLLLADWVLLRTALPRIFSLLVPTALPLLRVWAVGLSRWAVLWLGACGVLRATVGSKSENAGAQGWLAALKPLAAALGLALPGLALFRELISWGAPGSADSTRLLHWGSHPTAFVVSYAAALPAAALWHKLGSLWVPGGQGGSGNPVRRLLGCLGSETRRLSLFLVLVVLSSLGEMAIPFFTGRLTDWILQDGSADTFTRNLTLMSILTIASAVLEFVGDGIYNNTMGHVHSHLQGEVFGAVLRQETEFFQQNQTGNIMSRVTEDTSTLSDSLSENLSLFLWYLVRGLCLLGIMLWGSVSLTMVTLITLPLLFLLPKKVGKWYQLLEVQVRESLAKSSQVAIEALSAMPTVRSFANEEGEAQKFREKLQEIKTLNQKEAVAYAVNSWTTSISGMLLKVGILYIGGQLVTSGAVSSGNLVTFVLYQMQFTQAVEVLLSIYPRVQKAVGSSEKIFEYLDRTPRCPPSGLLTPLHLEGLVQFQDVSFAYPNRPDVLVLQGLTFTLRPGEVTALVGPNGSGKSTVAALLQNLYQPTGGQLLLDGKPLPQYEHRYLHRQVAAVGQEPQVFGRSLQENIAYGLTQKPTMEEITAAAVKSGAHSFISGLPQGYDTEVDEAGSQLSGGQRQAVALARALIRKPCVLILDDATSALDANSQLQVEQLLYESPERYSRSVLLITQHLSLVEQADHILFLEGGAIREGGTHQQLMEKKGCYWAMVQAPADAPEGGGSGGSGGGENLYFQGSGSSGGGSSGSGGAMVTTLSGLSGEQGPSGDMTTEEDSATHIKFSKRDEDGRELAGATMELRDSSGKTISTWISDGHVKDFYLYPGKYTFVETAAPDGYEVATPIEFTVNEDGQVTVDGEATEGDAHTSGGGHHHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Antigen peptide transporter 2
分子量 formula_weight	75735.5 kDa
EC 编号 ec_number	7.4.2.14
突变 mutation	E632Q
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MRLPDLRPWTSLLLVDAALLWLLQGPLGTLLPQGLPGLWLEGTLRLGGLWGLLKLRGLLGFVGTLLLPLCLATPLTVSLRALVAGASRAPPARVASAPWSWLLVGYGAAGLSWSLWAVLSPPGAQEKEQDQVNNKVLMWRLLKLSRPDLPLLVAAFFFLVLAVLGETLIPHYSGRVIDILGGDFDPHAFASAIFFMCLFSFGSSLSAGCRGGCFTYTMSRINLRIREQLFSSLLRQDLGFFQETKTGELNSRLSSDTTLMSNWLPLNANVLLRSLVKVVGLYGFMLSISPRLTLLSLLHMPFTIAAEKVYNTRHQEVLREIQDAVARAGQVVREAVGGLQTVRSFGAEEHEVCRYKEALEQCRQLYWRRDLERALYLLVRRVLHLGVQMLMLSCGLQQMQDGELTQGSLLSFMIYQESVGSYVQTLVYIYGDMLSNVGAAEKVFSYMDRQPNLPSPGTLAPTTLQGVVKFQDVSFAYPNRPDRPVLKGLTFTLRPGEVTALVGPNGSGKSTVAALLQNLYQPTGGQVLLDEKPISQYEHCYLHSQVVSVGQEPVLFSGSVRNNIAYGLQSCEDDKVMAAAQAAHADDFIQEMEHGIYTDVGEKGSQLAAGQKQRLAIARALVRDPRVLILDQATSALDVQCEQALQDWNSRGDRTVLVIAHRLQTVQRAHQILVLQEGKLQKLAQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	bUL49.5, 15-Ala helix
分子量 formula_weight	1294.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

XXXXXXXXXXXXXXX

来源 Source

来源生物 organism	bovine alphaherpesvirus 1
NCBI 分类编号 ncbi_taxonomy_id	10320
宿主生物 host_organism	bovine alphaherpesvirus 1

Entity 4 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25389

fit	/app/data/saxs_computation/o9/9o94/9o94.fit
pddf	/app/data/pr_computation/o9/9o94/9o94.pr.out
profile	/app/data/saxs_computation/o9/9o94/9o94.dat
