9omt

X-ray structure of paraoxon (POX)-inhibited human acetylcholinesterase (hAChE) in complex with bis-oxime reactivator LG-1922

Method: X-RAY DIFFRACTION Dmax: 104.0 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

SAXS profile for 9omt

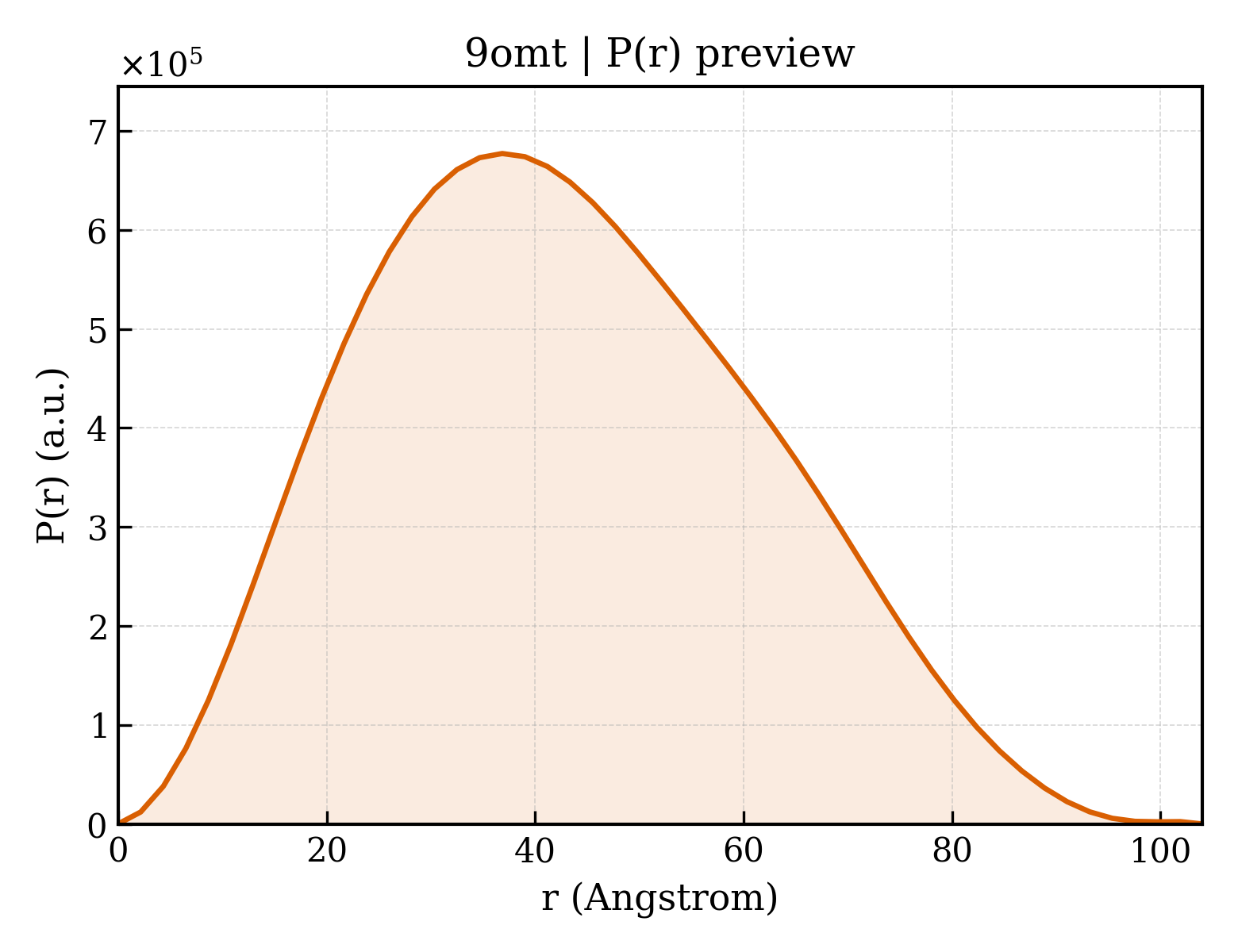

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9omt
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9omt
沉积日期 deposition_date2025-05-14
最后修订 last_revision2025-07-30
结构标题 titleX-ray structure of paraoxon (POX)-inhibited human acetylcholinesterase (hAChE) in complex with bis-oxime reactivator LG-1922
关键词 keywordshomodimer, reactivator complex, organophosphate-inhibited acetylcholinesterase, HYDROLASE; HYDROLASE
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier33.04
回转半径 Rg (电子) rg_electron32.32
零角强度 I(0) i0423724000.00
分子量 molecular_weight111320.0 kDa
排除体积 excluded_volume107910 ų
包络体积 envelope_volume182810 ų
水化壳体积 shell_volume45649 ų
包络直径 envelope_diameter110.5
壳层 Rg shell_rg40.34
包络 Rg envelope_rg32.27
形状 Rg shape_rg32.33
总 Rg total_rg32.76
总原子数 total_atoms8462
残基数 n_residues1080
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax104.0
Rg (实空间) rg_real32.97
Rg 误差 (实空间) rg_real_error0.57
I(0) (实空间) i0_real4.2370e+08
I(0) 误差 (实空间) i0_real_error6.1360e+06
Rg (倒空间) rg_reciprocal33.01
I(0) (倒空间) i0_reciprocal423700000.0000
解质量估计 total_estimate0.9040
解质量评级 solution_quality EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary36.9
偏度 Skewness skewness0.259
峰度 Kurtosis kurtosis-0.562
角度范围 angular_range— – 0.2400 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha69370000.0000
实空间数据点数 n_real_points49
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.927

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (7)

7. 引用文献 (1)

8. 文件与曲线 (10)
