Cryo-EM structure of vaccine-elicited antibody T6_P_H03 in complex with HIV Env trimer Q23-APEX-GT1

Method: ELECTRON MICROSCOPY D_max: 148.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

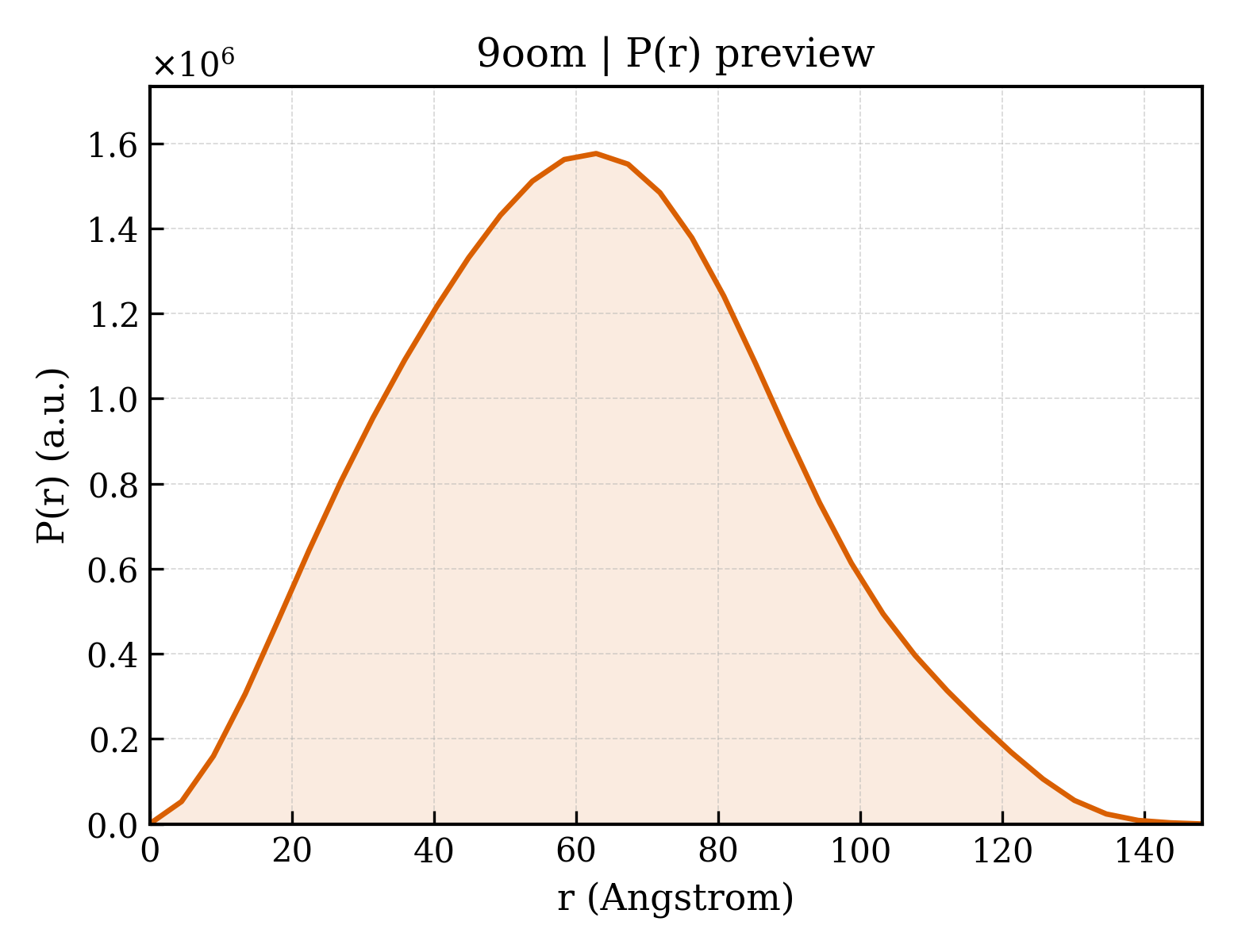

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9oom
沉积日期 deposition_date	2025-05-16
结构标题 title	Cryo-EM structure of vaccine-elicited antibody T6_P_H03 in complex with HIV Env trimer Q23-APEX-GT1
关键词 keywords	immune complex, neutralizing antibody, V2 apex, mouse model, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.95 Å
回转半径 Rg (电子) rg_electron	47.45 Å
零角强度 I(0) i0	1349950000.00
分子量 molecular_weight	300600.0 kDa
排除体积 excluded_volume	374200 Å³
包络体积 envelope_volume	539780 Å³
水化壳体积 shell_volume	91708 Å³
包络直径 envelope_diameter	157.9 Å
壳层 Rg shell_rg	54.08 Å
包络 Rg envelope_rg	46.63 Å
形状 Rg shape_rg	47.46 Å
总 Rg total_rg	47.65 Å
总原子数 total_atoms	21059
残基数 n_residues	2370
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	148.1 Å
Rg (实空间) rg_real	47.72 Å
Rg 误差 (实空间) rg_real_error	1.05 Å
I(0) (实空间) i0_real	1.3500e+09
I(0) 误差 (实空间) i0_real_error	2.4320e+07
Rg (倒空间) rg_reciprocal	47.95 Å
I(0) (倒空间) i0_reciprocal	1350000000.0000
解质量估计 total_estimate	0.8664
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	62.8 Å
偏度 Skewness skewness	0.182
峰度 Kurtosis kurtosis	-0.449
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	171900000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.460

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	T6_P_H03 heavy chain
分子量 formula_weight	25139.1 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J
原子数 atom_count	21059

EVQLVESGGGLAKPGGSLRLSCAASGFTFSNYWMNWVRQTPGKGLEWISGINSGGGSRSYADSVMGRFIISRDNSKNTLSLQMNSLRAEDTAVYYCAKVDDDDYGYFDTVPGDLKKYYLKYWGRGVLVTVSSASTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDCG

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	T6_P_H03 light chain
分子量 formula_weight	23481.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M,N

DIQMTQSPSSLSASVGDKVTITCQASQSISSWLAWYQQKPGKAPKPLIYKASSLESGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQYNSAPFSFGQGTEVEIKRTDAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	HIV Env gp120
分子量 formula_weight	56731.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,d,f

MDAMKRGLCCVLLLCGAVFVSPSQEIHARFRRGARAENLWVTVYYGVPVWRDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLDNVTEKFNMWKNNMVEQMHTDIISLWDQSLKPCVKLTPLCVTLHCTNVTSVNTTGDREELKNCSFNMTTELRDKRQKVYSLFYRLDIVPINENQGSEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKDEGFNGTGLCKNVSTVQCTHGIKPVVSTQLLLNGSLAEKNITIRSENITNNAKIIIVQLVQPVTIKCIRPNNYTRKSIRIGPGQAFYAMGDIIGDIRQAHCNVSRSRWNKTLQEVAEKLRTYFGNKTIIFANSSGGDLEITTHSFNCGGEFFYCNTSGLFNSTWYVNSTWNDTDSTQESNDTITLPCRIKQIINMWQRAGQCMYAPPIPGVIKCESNITGLLLTRDGGKDNNVNETFRPGGGDMRDNWRSELYKYKVVEIEPLGVAPTRCKRRVVE

来源 Source

来源生物 organism	Human immunodeficiency virus type 1
NCBI 分类编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	HIV Env gp41 ectodomain
分子量 formula_weight	17205.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,e,g

AVGIGAVRRGFLGAAGSTMGAASITLTVQARQLLSGIVQPQNNLLRAPEAQQHLLKLGVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNKSLDEIWNNMTWLQWDKEIGNYTQLIYRLIEESQNQQEKNEKELLALD

来源 Source

来源生物 organism	Human immunodeficiency virus type 1
NCBI 分类编号 ncbi_taxonomy_id	11676
宿主生物 host_organism	Homo sapiens

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	27

Entity 6 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 9 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1397.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 10 branched

描述 description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 11 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 12 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	30

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	140657

fit	/app/data/saxs_computation/oo/9oom/9oom.fit
pddf	/app/data/pr_computation/oo/9oom/9oom.pr.out
profile	/app/data/saxs_computation/oo/9oom/9oom.dat
