9op9

;Two Component Protein Nano-Particle (T=3). De Novo Design, Computationally Relaxed into Low Resolution Subtomogram Averaged CryoEM Map with Icosahedral Symmetry Applied ;

Method: ELECTRON MICROSCOPY D_max: 657.0 Å Quality: GOOD

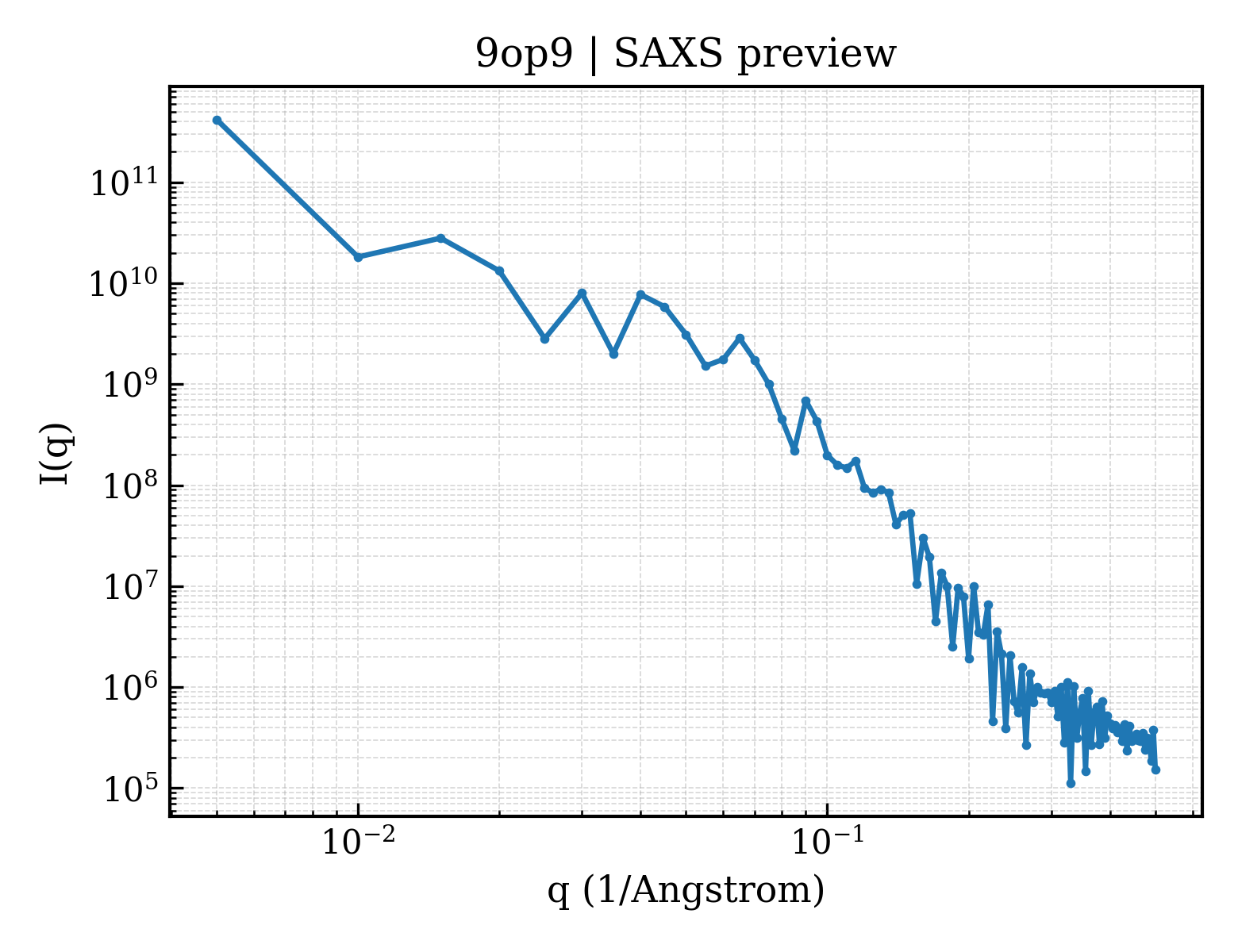

SAXS 散射曲线 SAXS Profile

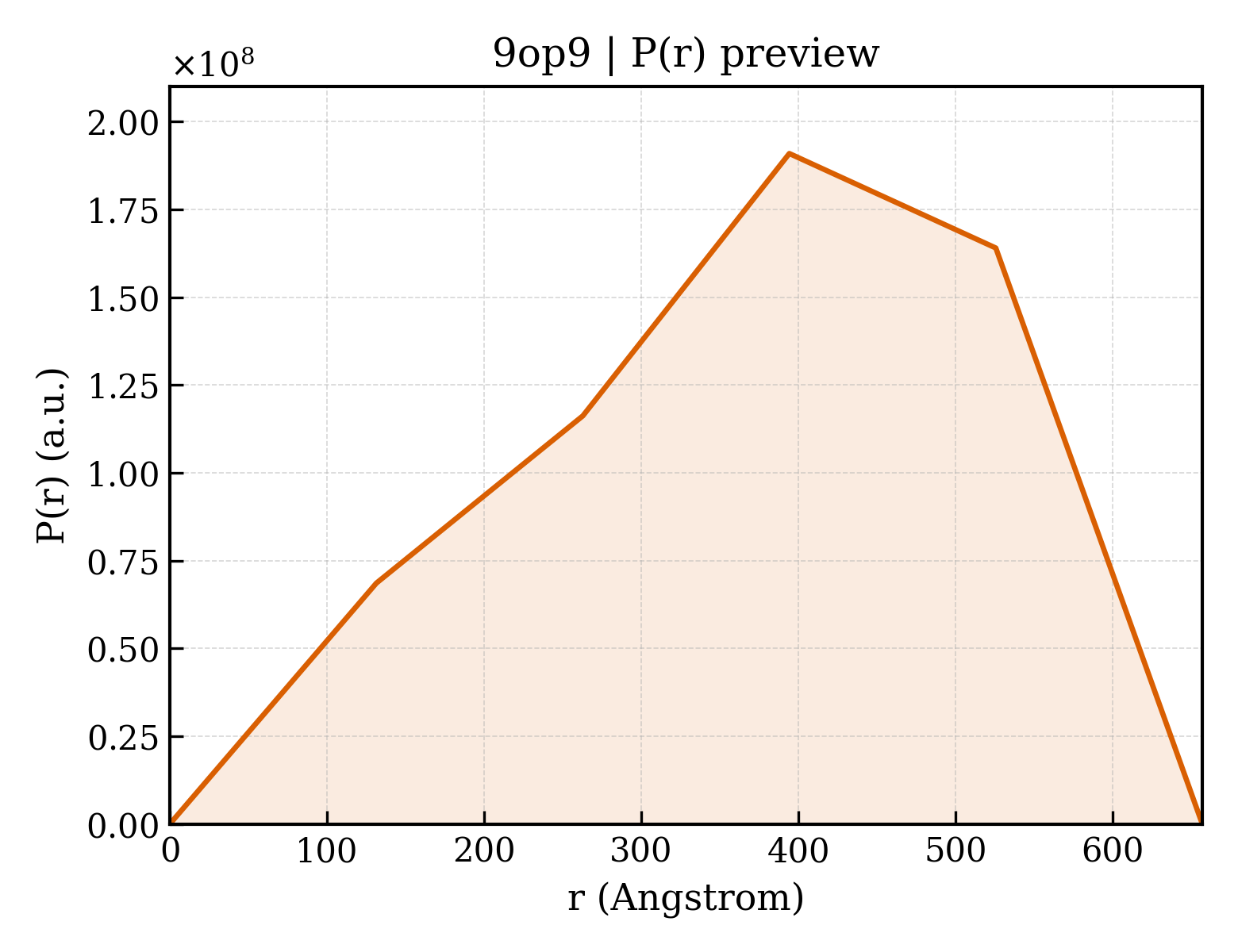

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9op9
沉积日期 deposition_date	2025-05-17
结构标题 title	;Two Component Protein Nano-Particle (T=3). De Novo Design, Computationally Relaxed into Low Resolution Subtomogram Averaged CryoEM Map with Icosahedral Symmetry Applied ;
关键词 keywords	Goldberg icosahedron, C60, Fullerene, DE NOVO PROTEIN; DE NOVO PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	274.00 Å
零角强度 I(0) i0	815001000000.00
分子量 molecular_weight	7870500.0 kDa
排除体积 excluded_volume	9938500 Å³
包络体积 envelope_volume	43704000 Å³
水化壳体积 shell_volume	1405600 Å³
包络直径 envelope_diameter	678.9 Å
壳层 Rg shell_rg	282.30 Å
包络 Rg envelope_rg	221.70 Å
形状 Rg shape_rg	274.00 Å
总 Rg total_rg	273.90 Å
总原子数 total_atoms	553500
残基数 n_residues	71640
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	657.0 Å
Rg (实空间) rg_real	279.30 Å
Rg 误差 (实空间) rg_real_error	0.38 Å
I(0) (实空间) i0_real	8.9130e+11
I(0) 误差 (实空间) i0_real_error	1.9810e+10
Rg (倒空间) rg_reciprocal	166.80 Å
I(0) (倒空间) i0_reciprocal	299600000000.0000
解质量估计 total_estimate	0.8307
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	394.2 Å
偏度 Skewness skewness	-0.427
峰度 Kurtosis kurtosis	-0.896
角度范围 angular_range	— – 0.0250 Å⁻¹
当前正则化参数 α current_alpha	1.8140
最高正则化参数 α highest_alpha	64600000000.0000
实空间数据点数 n_real_points	6
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 9.752; Oscil: 0.999; Stabil: 0.930; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.021

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	C2-B
分子量 formula_weight	12591.4 kDa
来源方法 src_method	man
拷贝数 entity_count	180

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	;ZA,YC,ZY,YE,YG,YI,YK,YM,YO,YQ,YS,YU,AA,YW,YY,AC,AE,AG,AI,AK,AM,AP,AR,AS,AU,AW,AY,ZC,BA,BC,BE,BG,BI,BK,BM,BO,BQ,BS,BU,BW,BY,CA,CC,CE,CG,CI,CK,CM,CO,CQ,CS,CU,CW,CY,ZE,DA,DC,DE,DG,DI,DK,DM,DO,DQ,DS,DU,DX,DZ,EB,ED,EF,EH,EJ,EL,EN,EP,ER,ET,EV,EX,EZ,ZG,FB,FD,FF,FH,FJ,FL,FN,FP,FR,FT,FV,FX,FZ,GB,GD,GF,GH,GJ,GL,GN,GP,GR,GT,GV,GX,GZ,ZI,HB,HD,WB,HG,HI,WA,HL,HN,HP,HR,HT,HV,HX,HZ,WC,IC,IE,IH,II,IK,IM,IO,IQ,IS,IU,IW,IY,JA,ZK,JC,JE,JG,JI,JK,JM,JO,JQ,JS,WD,JV,JX,JZ,KB,KD,KF,KH,KJ,KL,KN,KP,KR,KT,KV,KX,KZ,ZM,LB,LD,LF,LH,LJ,LL,LN,LP,LR,ZO,ZQ,ZS,ZU,ZW,YA ;
原子数 atom_count	553500

PTLRVEIEGPAADVAALLRGVAELAAERAPKLAPVVAVIADFVASRPGPVRVRVEMGDGVLRVVLEGLHIKQQRQLYRDVRETSKKQGVETEIEVEGDTVTIVVRELEHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

描述 description	C3-A
分子量 formula_weight	33381.5 kDa
来源方法 src_method	man
拷贝数 entity_count	180

聚合体 Polymer

聚合体类型 type

polypeptide(L)

链编号 strand_id

;YD,ZZ,YF,YH,YJ,YL,YN,YP,YR,YT,YV,AB,YX,ZB,YZ,AD,AF,AH,AJ,AL,AN,AO,AQ,AT,AV,AX,AZ,BB,BD,BF,BH,BJ,BL,BN,BP,BR,BT,BV,BX,BZ,ZD,CB,CD,CF,CH,CJ,CL,CN,CP,CR,CT,CV,CX,CZ,DB,DD,DF,DH,DJ,DL,DN,DP,DR,DT,DW,DY,EA,ZF,EC,EE,EG,EI,EK,EM,EO,EQ,ES,EU,EW,EY,FA,FC,FE,FG,FI,FK,FM,FO,FQ,FS,FU,FW,FY,GA,ZH,GC,GE,GG,GI,GK,GM,GO,GQ,GS,GU,GW,GY,HA,HC,HE,HF,HH,HJ,HK,HM,HO,HQ,HS,HU,HW,HY,IA,ZJ,IB,ID,IF,IG,IJ,IL,IN,IP,IR,IT,IV,IX,IZ,JB,JD,JF,JH,JJ,JL,JN,JP,JR,JT,JU,JW,JY,KA,ZL,KC,KE,KG,KI,KK,KM,KO,KQ,KS,KU,KW,KY,LA,LC,LE,LG,LI,LK,LM,LO,LQ,LS,ZN,ZP,ZR,ZT,ZV,ZX,YB ;

SDEAIKRLLEELRASTAELKRATASLRAITEELKKNPSEDALVEHNRAIVEHNAIIVENNRIIAAVLEAIVAEFILAKARLLVWEARKKGNPEEVLEAAKKALRVAEEAAKAGIEAIFKAAAEAALEIAMRLIDLATKKGDPDLVREAQKVAERVAELADKNGDEEVKLKAYAAAVAAEIIRRIETLKRSGSSYEDIRQTLRETLERIIEELKRRGVDSSQIVWAIIYVAVAVMGVTMETHKSGNEVKVVIKGLHESQQEELLELVLRAAELAGVRVRIRFKGDTVTIVVRGLEHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	31.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	462

fit	/app/data/saxs_computation/op/9op9/9op9.fit
pddf	/app/data/pr_computation/op/9op9/9op9.pr.out
profile	/app/data/saxs_computation/op/9op9/9op9.dat
