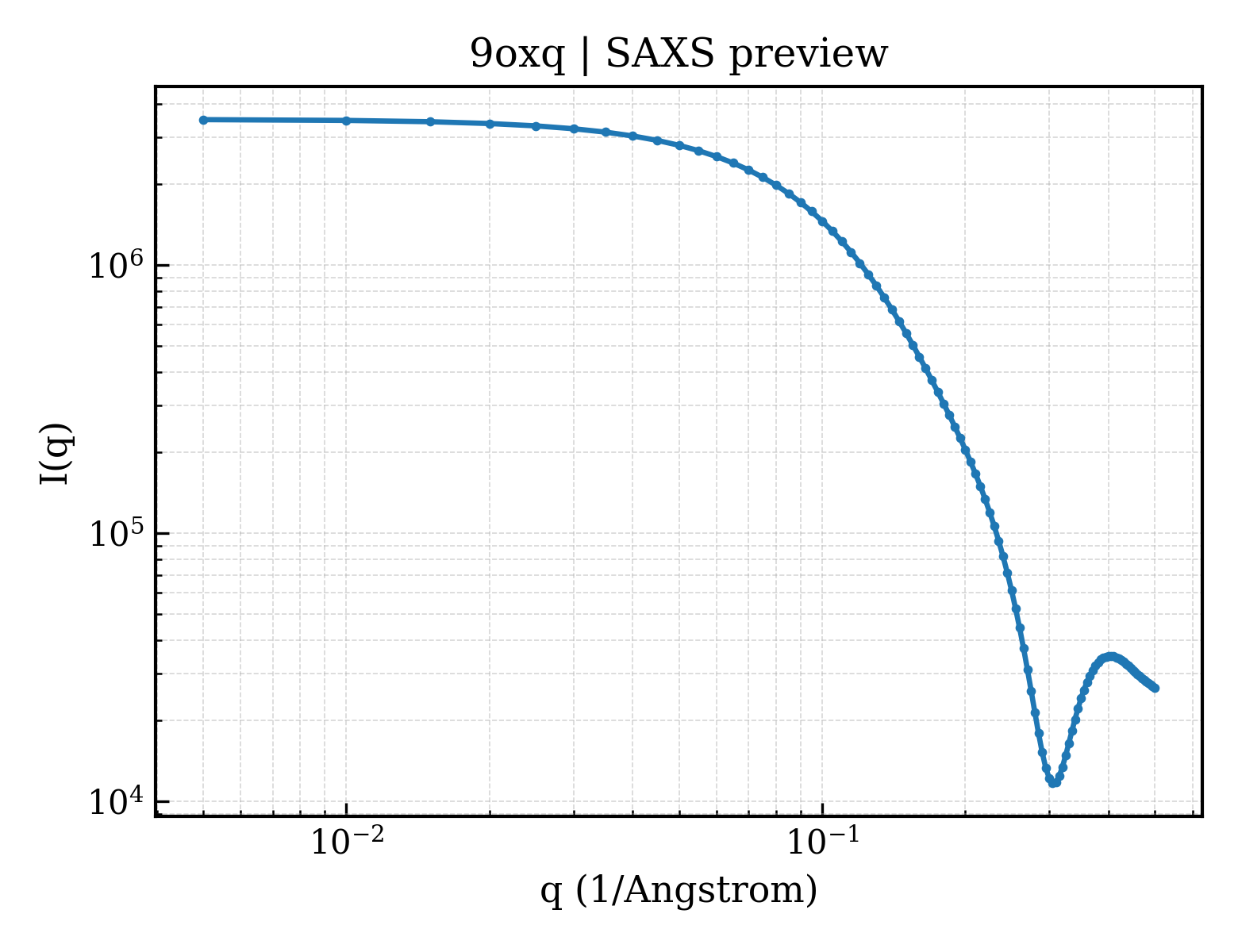

SAXS 散射曲线 SAXS Profile

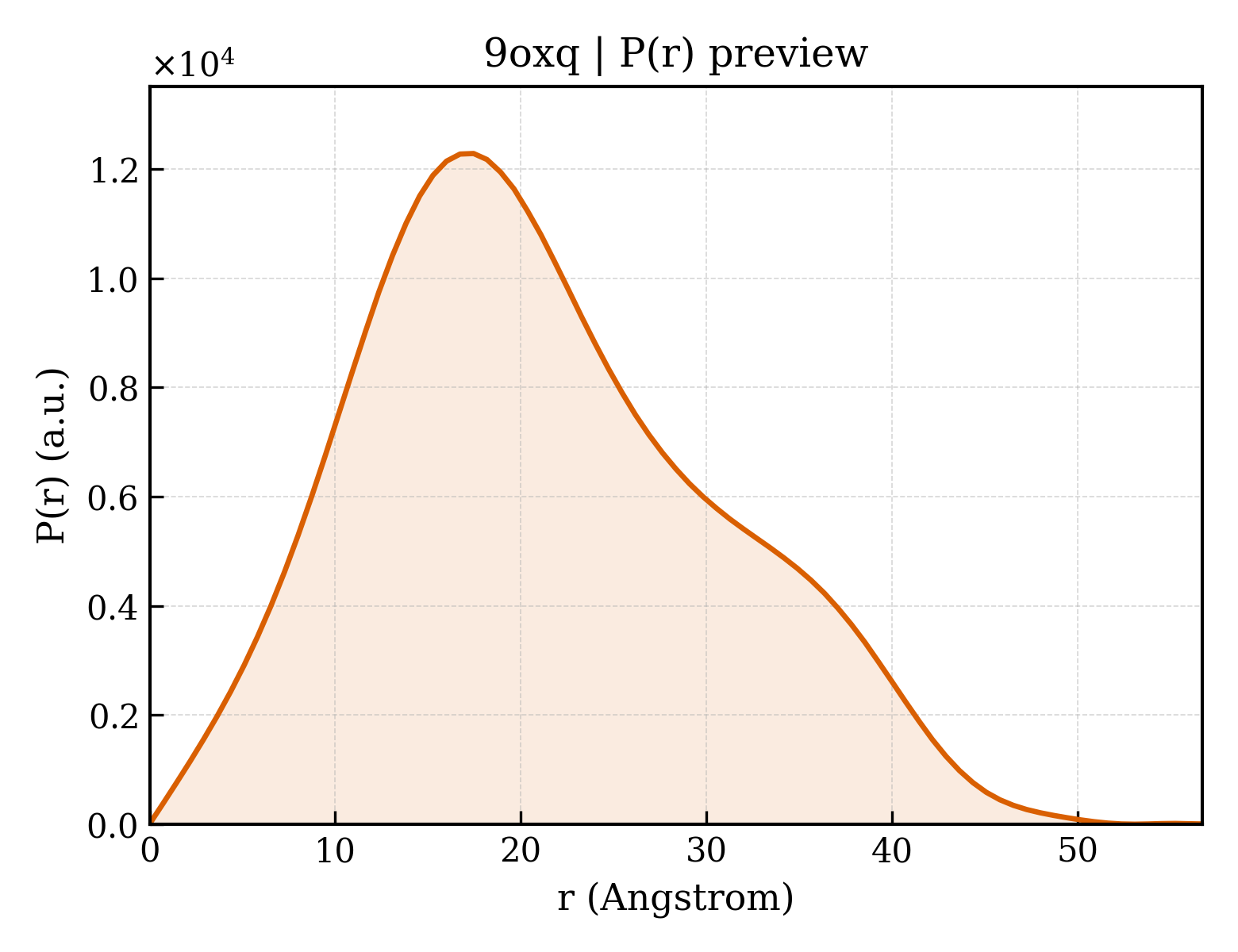

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9oxq |
| 沉积日期 deposition_date | 2025-06-04 |
| 结构标题 title | X-ray crystal structure of Beta-Barrel forming peptide macrocycle |
| 关键词 keywords | Macrocycle, Beta-Barrel, Beta-Sheet, DE NOVO PROTEIN; DE NOVO PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 16.32 Å |
| 回转半径 Rg (电子) rg_electron | 15.57 Å |
| 零角强度 I(0) i0 | 3496820.00 |
| 分子量 molecular_weight | 12831.0 kDa |
| 排除体积 excluded_volume | 15749 ų |
| 包络体积 envelope_volume | 18878 ų |
| 水化壳体积 shell_volume | 10946 ų |
| 包络直径 envelope_diameter | 51.1 Å |
| 壳层 Rg shell_rg | 20.11 Å |
| 包络 Rg envelope_rg | 15.68 Å |
| 形状 Rg shape_rg | 15.59 Å |
| 总 Rg total_rg | 16.40 Å |
| 总原子数 total_atoms | 918 |
| 残基数 n_residues | 72 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 56.7 Å |
| Rg (实空间) rg_real | 16.36 Å |
| Rg 误差 (实空间) rg_real_error | 0.38 Å |
| I(0) (实空间) i0_real | 3.4970e+06 |
| I(0) 误差 (实空间) i0_real_error | 4.7330e+04 |
| Rg (倒空间) rg_reciprocal | 16.36 Å |
| I(0) (倒空间) i0_reciprocal | 3497000.0000 |
| 解质量估计 total_estimate | 0.8411 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 17.5 Å |
| 偏度 Skewness skewness | 0.388 |
| 峰度 Kurtosis kurtosis | -0.446 |
| 角度范围 angular_range | — – 0.4900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1423000.0000 |
| 实空间数据点数 n_real_points | 79 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.665;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.936;
Smooth: 0.997
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 25.012 Å |
| 晶胞边长 b length_b | 40.715 Å |
| 晶胞边长 c length_c | 46.939 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 103.41 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 8 |
对称性 Symmetry
| 空间群 space_group | P 1 21 1 |
| 空间群编号 int_tables_number | 4 |
| 晶系 crystal_system | monoclinic |
精修参数 Refinement
| 分辨率 resolution | 1.550 Å |
| 最低分辨率 resolution_low | 24.330 Å |
| R 因子 r_factor | 0.1928 |
| R_work r_work | 0.1930 |
| R_free r_free | 0.1911 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | MC4H (ORN)WFHSH(ORN)FIH(SAR)H peptide macrocycle |
| 分子量 formula_weight | 1550.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 4 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A,C,E,G |
| 原子数 atom_count | 1030 |
AWFHSHAFIHGH
Entity 2
polymer
| 描述 description | MC4H (ORN)FIH(SAR)H(ORN)WFHSH peptide macrocycle |
| 分子量 formula_weight | 1550.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 4 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | B,D,F,H |
AFIHGHAWFHSH
Entity 3
non-polymer
| 描述 description | SULFATE ION |
| 分子量 formula_weight | 96.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 6 |
Entity 4
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 75 |
beta-barrels from short macrocyclic peptides.
Chem.Commun.(Camb.) (2026)
Files (7)
- pr_distribution /app/data/pr_computation/ox/9oxq/pr_distribution.json
- pr_output /app/data/pr_computation/ox/9oxq/9oxq.pr.out
- pr_plot /app/data/visualization/pr_computation/ox/9oxq/9oxq_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/ox/9oxq/9oxq.dat
- saxs_fit /app/data/saxs_computation/ox/9oxq/9oxq.fit
- saxs_log /app/data/saxs_computation/ox/9oxq/9oxq.log
- saxs_plot /app/data/visualization/saxs_computation/ox/9oxq/9oxq_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/ox/9oxq/9oxq.fit |
| pddf |
/app/data/pr_computation/ox/9oxq/9oxq.pr.out |
| profile |
/app/data/saxs_computation/ox/9oxq/9oxq.dat |
