SAXSdb — 9p4v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fatty acid synthase subunit beta

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Fatty acid synthase subunit alpha × 6 （P19097） FLAVIN MONONUCLEOTIDE × 6 Palmitoyl-CoA × 6 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FAS1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2051； UniProt 1–2051 Author chain C； PDBConstruct 1–2051； UniProt 1–2051 Author chain I； PDBConstruct 1–2051； UniProt 1–2051 Author chain N； PDBConstruct 1–2051； UniProt 1–2051 Author chain T； PDBConstruct 1–2051； UniProt 1–2051 Author chain Z； PDBConstruct 1–2051； UniProt 1–2051

Fatty acid synthase subunit alpha

Saccharomyces cerevisiae

UniProt P19097

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Fatty acid synthase subunit beta × 6 （P07149） FLAVIN MONONUCLEOTIDE × 6 Palmitoyl-CoA × 6 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FAS2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 1； PDBConstruct 1–1887； UniProt 1–1887 Author chain B； PDBConstruct 1–1887； UniProt 1–1887 Author chain D； PDBConstruct 1–1887； UniProt 1–1887 Author chain J； PDBConstruct 1–1887； UniProt 1–1887 Author chain O； PDBConstruct 1–1887； UniProt 1–1887 Author chain U； PDBConstruct 1–1887； UniProt 1–1887

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9p4v
Deposition date deposition_date	2025-06-17
Structure title title	Atomic model of wild type S. cerevisiae Fatty Acid Synthase (FAS) in complex with Palmitoyl-CoA (in vitro binding)
Keywords keywords	Palmitoyl-CoA, FAS, allosteric inhibition, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9p4v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9p4v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

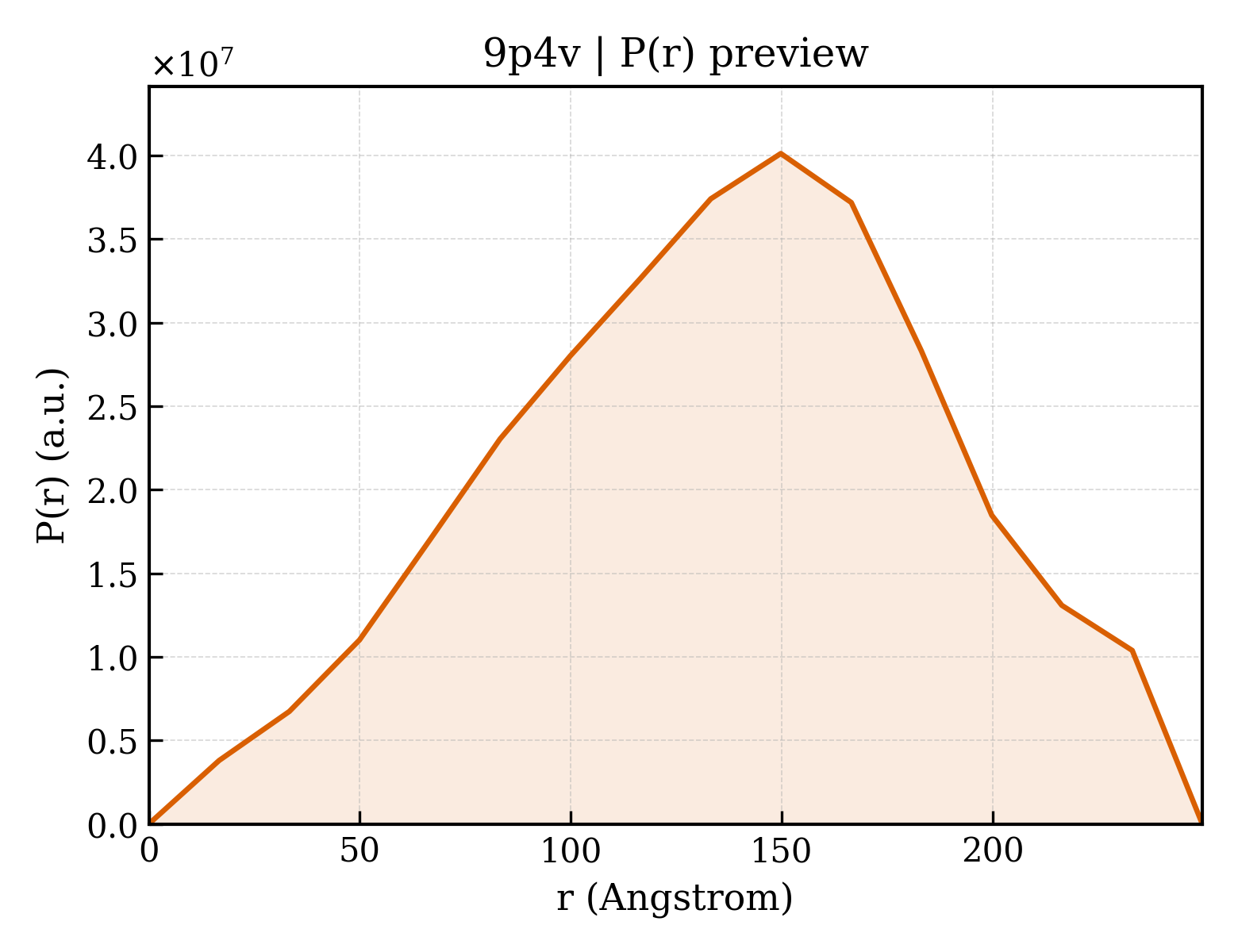

9p4v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	104.10 Å
Total Rg	104.10 Å
Atom count	159294
Residues	20406
Excluded volume	2846400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9p4v__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Fatty acid synthase subunit beta
Molecular weight formula_weight	228940.4 kDa
EC 编号 ec_number	2.3.1.86,4.2.1.59,1.3.1.9,2.3.1.38,2.3.1.39,3.1.2.14
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,I,N,T,Z
Atom count atom_count	164381

MDAYSTRPLTLSHGSLEHVLLVPTASFFIASQLQEQFNKILPEPTEGFAADDEPTTPAELVGKFLGYVSSLVEPSKVGQFDQVLNLCLTEFENCYLEGNDIHALAAKLLQENDTTLVKTKELIKNYITARIMAKRPFDKKSNSALFRAVGEGNAQLVAIFGGQGNTDDYFEELRDLYQTYHVLVGDLIKFSAETLSELIRTTLDAEKVFTQGLNILEWLENPSNTPDKDYLLSIPISCPLIGVIQLAHYVVTAKLLGFTPGELRSYLKGATGHSQGLVTAVAIAETDSWESFFVSVRKAITVLFFIGVRCYEAYPNTSLPPSILEDSLENNEGVPSPMLSISNLTQEQVQDYVNKTNSHLPAGKQVEISLVNGAKNLVVSGPPQSLYGLNLTLRKAKAPSGLDQSRIPFSERKLKFSNRFLPVASPFHSHLLVPASDLINKDLVKNNVSFNAKDIQIPVYDTFDGSDLRVLSGSISERIVDCIIRLPVKWETTTQFKATHILDFGPGGASGLGVLTHRNKDGTGVRVIVAGTLDINPDDDYGFKQEIFDVTSNGLKKNPNWLEEYHPKLIKNKSGKIFVETKFSKLIGRPPLLVPGMTPCTVSPDFVAATTNAGYTIELAGGGYFSAAGMTAAIDSVVSQIEKGSTFGINLIYVNPFMLQWGIPLIKELRSKGYPIQFLTIGAGVPSLEVASEYIETLGLKYLGLKPGSIDAISQVINIAKAHPNFPIALQWTGGRGGGHHSFEDAHTPMLQMYSKIRRHPNIMLIFGSGFGSADDTYPYLTGEWSTKFDYPPMPFDGFLFGSRVMIAKEVKTSPDAKKCIAACTGVPDDKWEQTYKKPTGGIVTVRSEMGEPIHKIATRGVMLWKEFDETIFNLPKNKLVPTLEAKRDYIISRLNADFQKPWFATVNGQARDLATMTYEEVAKRLVELMFIRSTNSWFDVTWRTFTGDFLRRVEERFTKSKTLSLIQSYSLLDKPDEAIEKVFNAYPAAREQFLNAQDIDHFLSMCQNPMQKPVPFVPVLDRRFEIFFKKDSLWQSEHLEAVVDQDVQRTCILHGPVAAQFTKVIDEPIKSIMDGIHDGHIKKLLHQYYGDDESKIPAVEYFGGESPVDVQSQVDSSSVSEDSAVFKATSSTDEESWFKALAGSEINWRHASFLCSFITQDKMFVSNPIRKVFKPSQGMVVEISNGNTSSKTVVTLSEPVQGELKPTVILKLLKENIIQMEMIENRTMDGKPVSLPLLYNFNPDNGFAPISEVMEDRNQRIKEMYWKLWIDEPFNLDFDPRDVIKGKDFEITAKEVYDFTHAVGNNCEDFVSRPDRTMLAPMDFAIVVGWRAIIKAIFPNTVDGDLLKLVHLSNGYKMIPGAKPLQVGDVVSTTAVIESVVNQPTGKIVDVVGTLSRNGKPVMEVTSSFFYRGNYTDFENTFQKTVEPVYQMHIKTSKDIAVLRSKEWFQLDDEDFDLLNKTLTFETETEVTFKNANIFSSVKCFGPIKVELPTKETVEIGIVDYEAGASHGNPVVDFLKRNGSTLEQKVNLENPIPIAVLDSYTPSTNEPYARVSGDLNPIHVSRHFASYANLPGTITHGMFSSASVRALIENWAADSVSSRVRGYTCQFVDMVLPNTALKTSIQHVGMINGRKLIKFETRNEDDVVVLTGEAEIEQPVTTFVFTGQGSQEQGMGMDLYKTSKAAQDVWNRADNHFKDTYGFSILDIVINNPVNLTIHFGGEKGKRIRENYSAMIFETIVDGKLKTEKIFKEINEHSTSYTFRSEKGLLSATQFTQPALTLMEKAAFEDLKSKGLIPADATFAGHSLGEYAALASLADVMSIESLVEVVFYRGMTMQVAVPRDELGRSNYGMIAINPGRVAASFSQEALQYVVERVGKRTGWLVEIVNYNVENQQYVAAGDLRALDTVTNVLNFIKLQKIDIIELQKSLSLEEVEGHLFEIIDEASKKSAVKPRPLKLERGFACIPLVGISVPFHSTYLMNGVKPFKSFLKKNIIKENVKVARLAGKYIPNLTAKPFQVTKEYFQDVYDLTGSEPIKEIIDNWEKYEQS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Fatty acid synthase subunit alpha
Molecular weight formula_weight	207184.4 kDa
EC 编号 ec_number	2.3.1.86,1.1.1.100,2.3.1.41
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,J,O,U,1

MKPEVEQELAHILLTELLAYQFASPVRWIETQDVFLKDFNTERVVEIGPSPTLAGMAQRTLKNKYESYDAALSLHREILCYSKDAKEIYYTPDPSELAAKEEPAKEEAPAPTPAASAPAPAAAAPAPVAAAAPAAAAAEIADEPVKASLLLHVLVAHKLKKSLDSIPMSKTIKDLVGGKSTVQNEILGDLGKEFGTTPEKPEETPLEELAETFQDTFSGALGKQSSSLLSRLISSKMPGGFTITVARKYLQTRWGLPSGRQDGVLLVALSNEPAARLGSEADAKAFLDSMAQKYASIVGVDLSSAASASGAAGAGAAAGAAMIDAGALEEITKDHKVLARQQLQVLARYLKMDLDNGERKFLKEKDTVAELQAQLDYLNAELGEFFVNGVATSFSRKKARTFDSSWNWAKQSLLSLYFEIIHGVLKNVDREVVSEAINIMNRSNDALIKFMEYHISNTDETKGENYQLVKTLGEQLIENCKQVLDVDPVYKDVAKPTGPKTAIDKNGNITYSEEPREKVRKLSQYVQEMALGGPITKESQPTIEEDLTRVYKAISAQADKQDISSSTRVEFEKLYSDLMKFLESSKEIDPSQTTQLAGMDVEDALDKDSTKEVASLPNKSTISKTVSSTIPRETIPFLHLRKKTPAGDWKYDRQLSSLFLDGLEKAAFNGVTFKDKYVLITGAGKGSIGAEVLQGLLQGGAKVVVTTSRFSKQVTDYYQSIYAKYGAKGSTLIVVPFNQGSKQDVEALIEFIYDTEKNGGLGWDLDAIIPFAAIPEQGIELEHIDSKSEFAHRIMLTNILRMMGCVKKQKSARGIETRPAQVILPMSPNHGTFGGDGMYSESKLSLETLFNRWHSESWANQLTVCGAIIGWTRGTGLMSANNIIAEGIEKMGVRTFSQKEMAFNLLGLLTPEVVELCQKSPVMADLNGGLQFVPELKEFTAKLRKELVETSEVRKAVSIETALEHKVVNGNSADAAYAQVEIQPRANIQLDFPELKPYKQVKQIAPAELEGLLDLERVIVVTGFAEVGPWGSARTRWEMEAFGEFSLEGCVEMAWIMGFISYHNGNLKGRPYTGWVDSKTKEPVDDKDVKAKYETSILEHSGIRLIEPELFNGYNPEKKEMIQEVIVEEDLEPFEASKETAEQFKHQHGDKVDIFEIPETGEYSVKLLKGATLYIPKALRFDRLVAGQIPTGWNAKTYGISDDIISQVDPITLFVLVSVVEAFIASGITDPYEMYKYVHVSEVGNCSGSGMGGVSALRGMFKDRFKDEPVQNDILQESFINTMSAWVNMLLISSSGPIKTPVGACATSVESVDIGVETILSGKARICIVGGYDDFQEEGSFEFGNMKATSNTLEEFEHGRTPAEMSRPATTTRNGFMEAQGAGIQIIMQADLALKMGVPIYGIVAMAATATDKIGRSVPAPGKGILTTAREHHSSVKYASPNLNMKYRKRQLVTREAQIKDWVENELEALKLEAEEIPSEDQNEFLLERTREIHNEAESQLRAAQQQWGNDFYKRDPRIAPLRGALATYGLTIDDLGVASFHGTSTKANDKNESATINEMMKHLGRSEGNPVIGVFQKFLTGHPKGAAGAWMMNGALQILNSGIIPGNRNADNVDKILEQFEYVLYPSKTLKTDGVRAVSITSFGFGQKGGQAIVVHPDYLYGAITEDRYNEYVAKVSAREKSAYKFFHNGMIYNKLFVSKEHAPYTDELEEDVYLDPLARVSKDKKSGSLTFNSKNIQSKDSYINANTIETAKMIENMTKEKVSNGGVGVDVELITSINVENDTFIERNFTPQEIEYCSAQPSVQSSFAGTWSAKEAVFKSLGVKSLGGGAALKDIEIVRVNKNAPAVELHGNAKKAAEEAGVTDVKVSISHDDLQAVAVAVSTKK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	Palmitoyl-CoA
Molecular weight formula_weight	1005.9 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5087

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.08 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	166057
