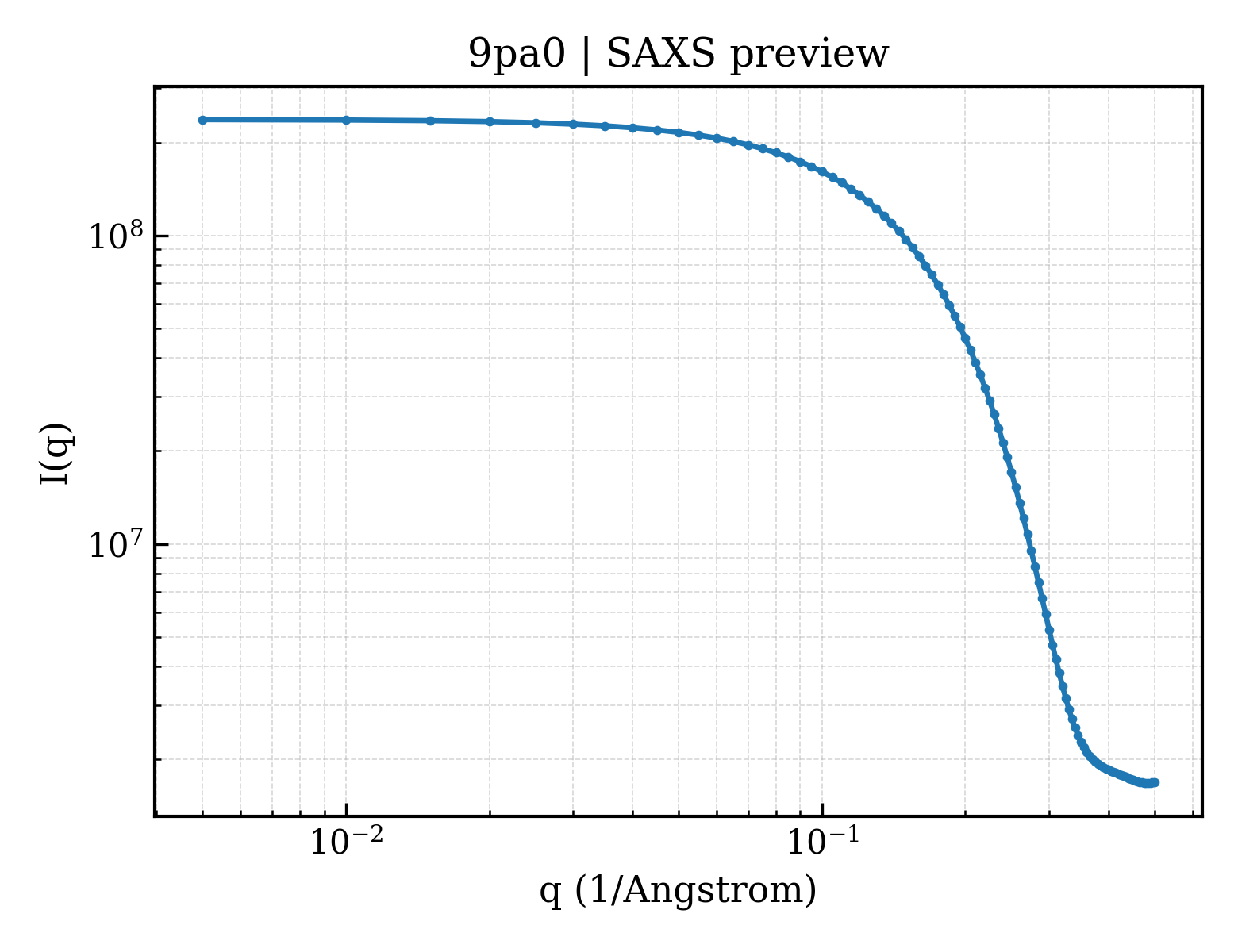

SAXS 散射曲线 SAXS Profile

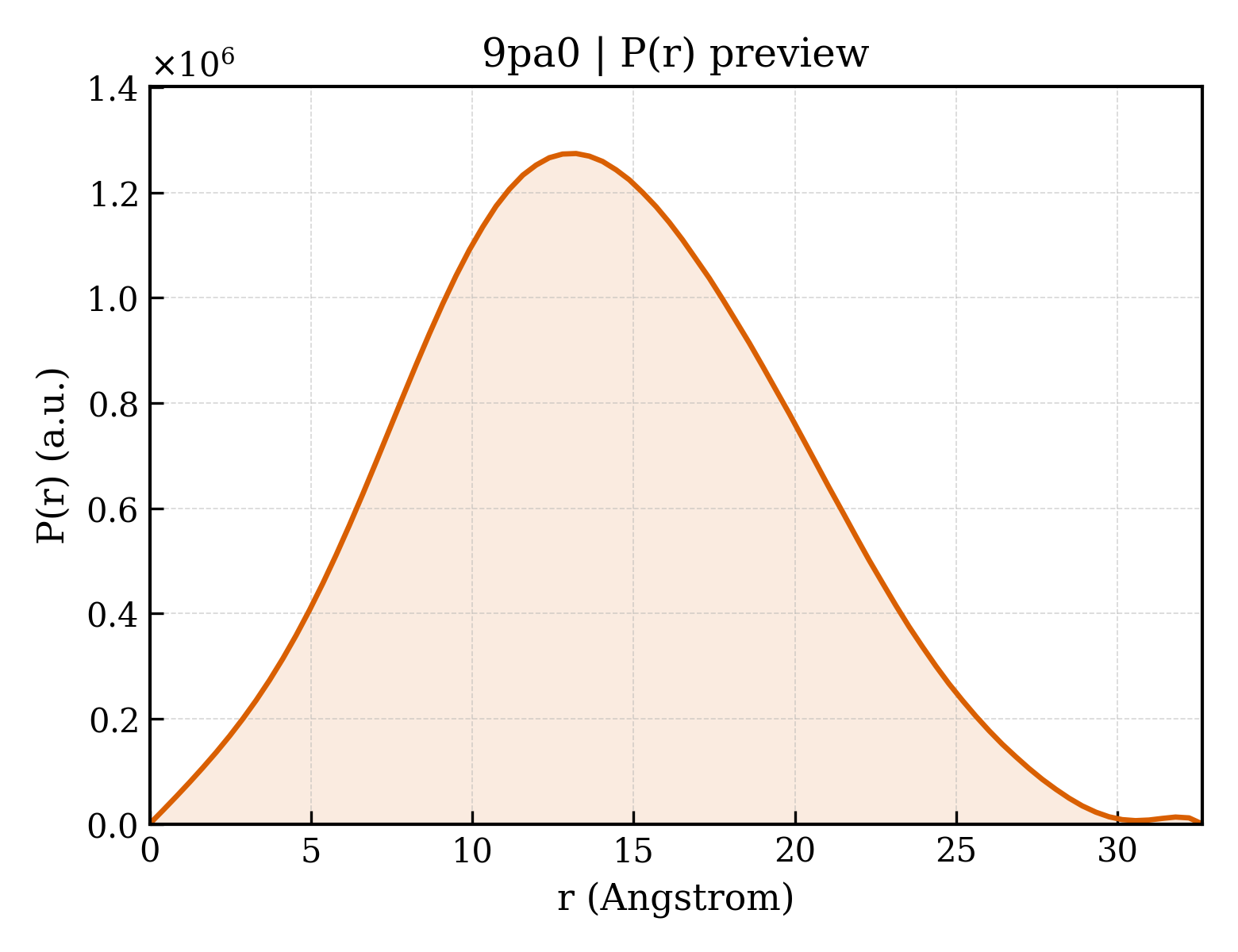

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9pa0 |
| 沉积日期 deposition_date | 2025-06-25 |
| 最后修订 last_revision | 2026-05-06 |
| 结构标题 title | ;Hybrid-1 form of human telomere DNA quadruplex with wild-type 5'-flanking in K+ solution
; |
| 关键词 keywords | G-quadruplex, human telomere, hybrid-1, DNA; DNA |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 10.79 Å |
| 回转半径 Rg (电子) rg_electron | 10.59 Å |
| 零角强度 I(0) i0 | 237503000.00 |
| 分子量 molecular_weight | 76061.0 kDa |
| 排除体积 excluded_volume | 72825 ų |
| 包络体积 envelope_volume | 10230 ų |
| 水化壳体积 shell_volume | 8189 ų |
| 包络直径 envelope_diameter | 35.7 Å |
| 壳层 Rg shell_rg | 16.13 Å |
| 包络 Rg envelope_rg | 11.21 Å |
| 形状 Rg shape_rg | 10.33 Å |
| 总 Rg total_rg | 11.12 Å |
| 总原子数 total_atoms | 7790 |
| 残基数 n_residues | 240 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 32.6 Å |
| Rg (实空间) rg_real | 10.72 Å |
| Rg 误差 (实空间) rg_real_error | 0.18 Å |
| I(0) (实空间) i0_real | 2.3750e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.1800e+06 |
| Rg (倒空间) rg_reciprocal | 10.73 Å |
| I(0) (倒空间) i0_reciprocal | 237500000.0000 |
| 解质量估计 total_estimate | 0.9057 |
| 解质量评级 solution_quality |
EXCELLENT
a EXCELLENT solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 13.2 Å |
| 偏度 Skewness skewness | 0.155 |
| 峰度 Kurtosis kurtosis | -0.416 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 307600.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.936;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.989;
Smooth: 0.973
|
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
Entity 1
polymer
| 描述 description | ;DNA (5'-D(*TP*AP*GP*GP*GP*TP*TP*AP*GP*GP*GP*TP*TP*AP*GP*GP*GP*TP*TP*AP*GP*GP*GP*A)-3')
; |
| 分子量 formula_weight | 7600.9 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | X |
| 原子数 atom_count | 7790 |
TAGGGTTAGGGTTAGGGTTAGGGA
NMR structure study of DNA G-quadruplexes and ligand complexes
Prog.Nucl.Magn.Reson. Spectros. (2026)
Files (7)
- pr_distribution /app/data/pr_computation/pa/9pa0/pr_distribution.json
- pr_output /app/data/pr_computation/pa/9pa0/9pa0.pr.out
- pr_plot /app/data/visualization/pr_computation/pa/9pa0/9pa0_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/pa/9pa0/9pa0.dat
- saxs_fit /app/data/saxs_computation/pa/9pa0/9pa0.fit
- saxs_log /app/data/saxs_computation/pa/9pa0/9pa0.log
- saxs_plot /app/data/visualization/saxs_computation/pa/9pa0/9pa0_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/pa/9pa0/9pa0.fit |
| pddf |
/app/data/pr_computation/pa/9pa0/9pa0.pr.out |
| profile |
/app/data/saxs_computation/pa/9pa0/9pa0.dat |
