9plu
[20-7B G|T] 20 bp tensegrity triangle that propagates via blunt-end stacking with G stacking on T at the interface

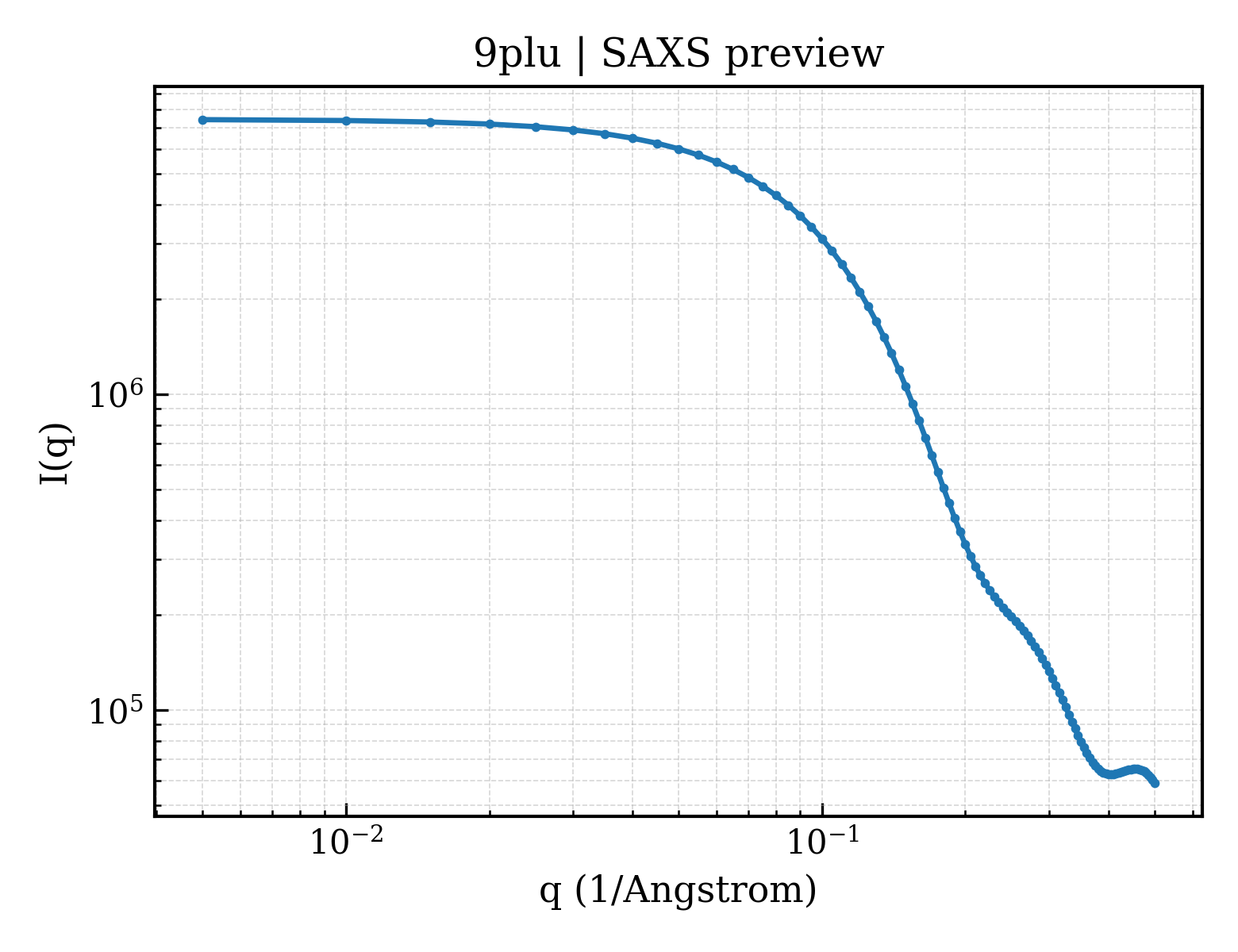

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9plu |
| deposition_date | 2025-07-16 |
| title | [20-7B G|T] 20 bp tensegrity triangle that propagates via blunt-end stacking with G stacking on T at the interface |
| keywords | tensegrity triangle, blunt, stacking, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.08 Å |
| rg_electron | 15.54 Å |
| i0 | 7439390.00 |
| molecular_weight | 12272.0 kDa |
| excluded_volume | 11848 ų |
| envelope_volume | 17420 ų |
| shell_volume | 10285 ų |
| envelope_diameter | 51.1 Å |
| shell_rg | 19.88 Å |
| envelope_rg | 15.42 Å |
| shape_rg | 15.43 Å |
| total_rg | 16.25 Å |
| total_atoms | 814 |
| n_residues | 39 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.1 Å |
| rg_real | 16.03 Å |
| rg_real_error | 0.35 Å |
| i0_real | 7.4390e+06 |
| i0_real_error | 9.7410e+04 |
| rg_reciprocal | 16.03 Å |
| i0_reciprocal | 7439000.0000 |
| total_estimate | 0.8268 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 18.8 Å |
| skewness | 0.179 |
| kurtosis | -0.458 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 397300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.918; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000 |
