9ppu
Beta-sandwich forming metallopeptide

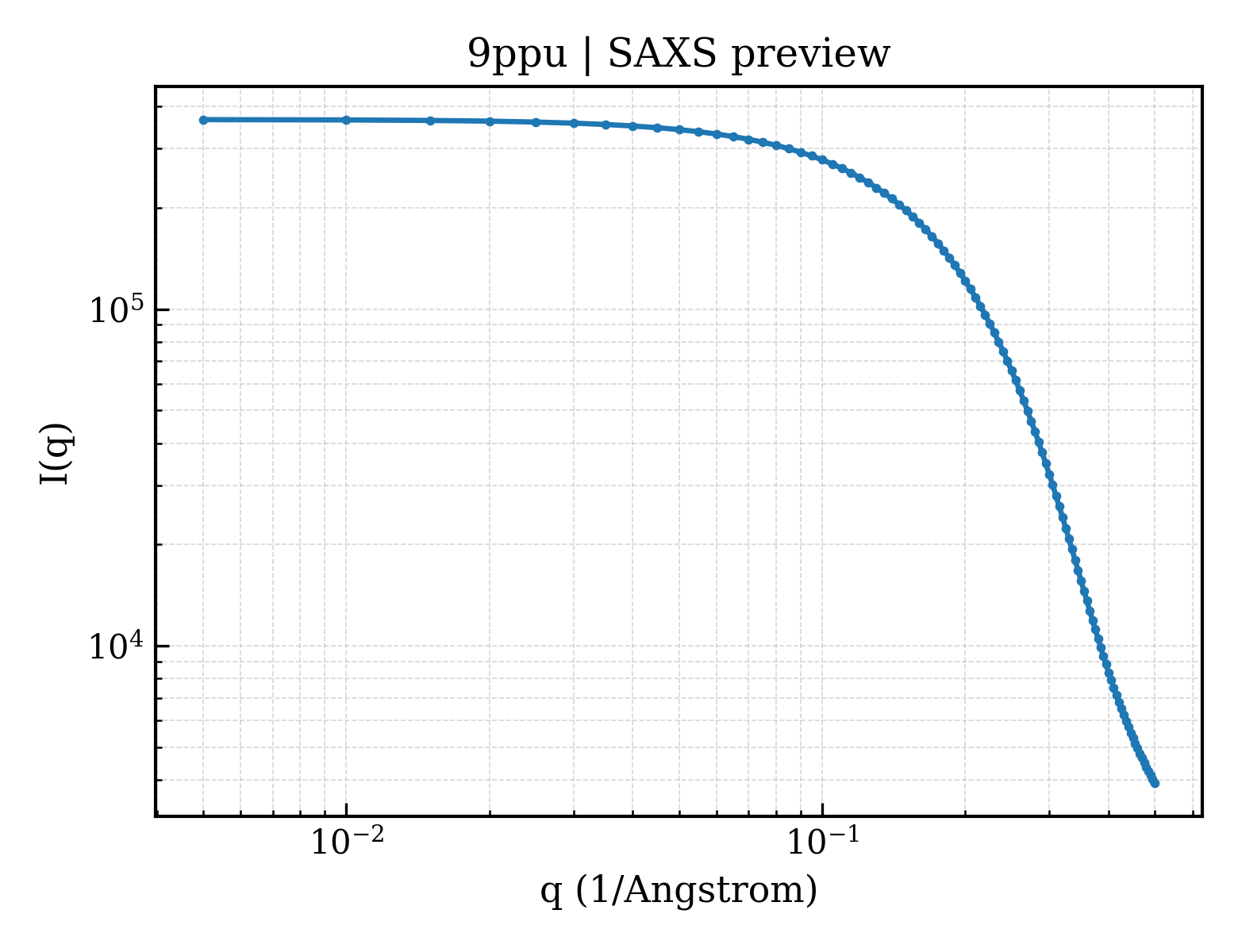

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9ppu |
| deposition_date | 2025-07-21 |
| title | Beta-sandwich forming metallopeptide |
| keywords | Beta-sandwich, Copper, metallopeptide, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.09 Å |
| rg_electron | 8.37 Å |
| i0 | 365686.00 |
| molecular_weight | 3476.0 kDa |
| excluded_volume | 4228 ų |
| envelope_volume | 4506 ų |
| shell_volume | 4979 ų |
| envelope_diameter | 26.3 Å |
| shell_rg | 12.96 Å |
| envelope_rg | 8.75 Å |
| shape_rg | 8.39 Å |
| total_rg | 9.86 Å |
| total_atoms | 241 |
| n_residues | 20 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.3 Å |
| rg_real | 9.08 Å |
| rg_real_error | 0.23 Å |
| i0_real | 3.6570e+05 |
| i0_real_error | 3.6680e+03 |
| rg_reciprocal | 9.08 Å |
| i0_reciprocal | 365700.0000 |
| total_estimate | 0.8832 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.8 Å |
| skewness | 0.340 |
| kurtosis | -0.227 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 49670.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.891; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.818 |
