9pua
L-Biotin-streptavidin binding
SAXS Profile

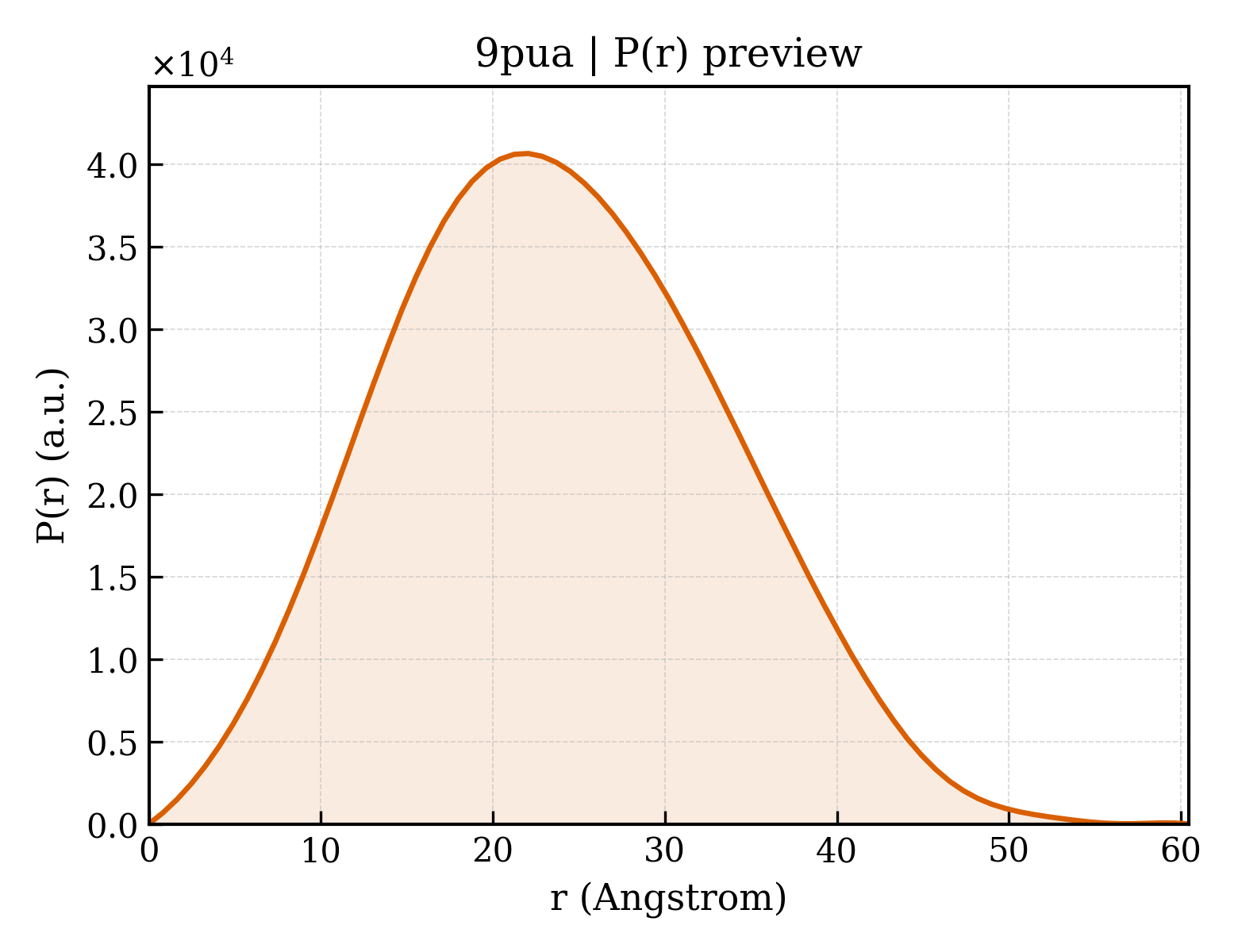

P(r) Distribution
1. Structure Basics
| entry_id | 9pua |
| deposition_date | 2025-07-30 |
| title | L-Biotin-streptavidin binding |
| keywords | PROTEIN BINDING; PROTEIN BINDING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.20 Å |
| rg_electron | 17.06 Å |
| i0 | 12996700.00 |
| molecular_weight | 26185.0 kDa |
| excluded_volume | 32365 ų |
| envelope_volume | 36925 ų |
| shell_volume | 17767 ų |
| envelope_diameter | 61.7 Å |
| shell_rg | 23.56 Å |
| envelope_rg | 17.56 Å |
| shape_rg | 17.08 Å |
| total_rg | 17.97 Å |
| total_atoms | 3599 |
| n_residues | 243 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.5 Å |
| rg_real | 18.10 Å |
| rg_real_error | 0.34 Å |
| i0_real | 1.3000e+07 |
| i0_real_error | 1.4270e+05 |
| rg_reciprocal | 18.12 Å |
| i0_reciprocal | 13000000.0000 |
| total_estimate | 0.6515 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.186 |
| kurtosis | -0.414 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3636000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 0.008; Positv: 1.000; Valcen: 0.998; Smooth: 0.998 |
