SAXSdb — 9py1

▼

1. Structure Basics

entry_id	9py1
deposition_date	2025-08-06
title	PRMT5 Bound to Compound 8 and MTA
keywords	methyltransferase, inhibitor, TRANSFERASE, TRANSFERASE-TRANSFERASE INHIBITOR complex; TRANSFERASE/TRANSFERASE INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.27 Å
rg_electron	36.49 Å
i0	328873000.00
molecular_weight	97795.0 kDa
excluded_volume	94436 Å³
envelope_volume	163620 Å³
shell_volume	40322 Å³
envelope_diameter	130.4 Å
shell_rg	39.34 Å
envelope_rg	36.54 Å
shape_rg	36.47 Å
total_rg	36.66 Å
total_atoms	7403
n_residues	926
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	124.3 Å
rg_real	36.72 Å
rg_real_error	1.21 Å
i0_real	3.2890e+08
i0_real_error	6.1850e+06
rg_reciprocal	36.45 Å
i0_reciprocal	328800000.0000
total_estimate	0.7811
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	31.1 Å
skewness	0.614
kurtosis	-0.297
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	53300000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.640; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.674; Smooth: 0.555

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Protein arginine N-methyltransferase 5
formula_weight	73763.6 kDa
ec_number	2.1.1.320
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7404

MDYKDDDDKAAMAVGGAGGSRVSSGRDLNCVPEIADTLGAVAKQGFDFLCMPVFHPRFKREFIQEPAKNRPGPQTRSDLLLSGRDWNTLIVGKLSPWIRPDSKVEKIRRNSEAAMLQELNFGAYLGLPAFLLPLNQEDNTNLARVLTNHIHTGHHSSMFWMRVPLVAPEDLRDDIIENAPTTHTEEYSGEEKTWMWWHNFRTLCDYSKRIAVALEIGADLPSNHVIDRWLGEPIKAAILPTSIFLTNKKGFPVLSKMHQRLIFRLLKLEVQFIITGTNHHSEKEFCSYLQYLEYLSQNRPPPNAYELFAKGYEDYLQSPLQPLMDNLESQTYEVFEKDPIKYSQYQQAIYKCLLDRVPEEEKDTNVQVLMVLGAGRGPLVNASLRAAKQADRRIKLYAVEKNPNAVVTLENWQFEEWGSQVTVVSSDMREWVAPEKADIIVSELLGSFADNELSPECLDGAQHFLKDDGVSIPGEYTSFLAPISSSKLYNEVRACREKDRDPEAQFEMPYVVRLHNFHQLSAPQPCFTFSHPNRDPMIDNNRYCTLEFPVEVNTVLHGFAGYFETVLYQDITLSIRPETHSPGMFSWFPILFPIKQPITVREGQTICVRFWRCSNSKKVWYEWAVTAPVCSAIHNPTGRSYTIGL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Methylosome protein 50
formula_weight	37862.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MHHHHHHHHRKETPPPLVPPAAREWNLPPNAPACMERQLEAARYRSDGALLLGASSLSGRCWAGSLWLFKDPCAAPNEGFCSAGVQTEAGVADLTWVGERGILVASDSGAVELWELDENETLIVSKFCKYEHDDIVSTVSVLSSGTQAVSGSKDICIKVWDLAQQVVLSSYRAHAAQVTCVAASPHKDSVFLSCSEDNRILLWDTRCPKPASQIGCSAPGYLPTSLAWHPQQSEVFVFGDENGTVSLVDTKSTSCVLSSAVHSQCVTGLVFSPHSVPFLASLSEDCSLAVLDSSLSELFRSQAHRDFVRDATWSPLNHSLLTTVGWDHQVVHHVVPTEPLPAPGPASVTE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	5'-DEOXY-5'-METHYLTHIOADENOSINE
formula_weight	297.3 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	4-amino-1-methyl-N-(2-oxopiperidin-1-yl)-N-{[5-(trifluoromethyl)pyridin-2-yl]methyl}-1H-pyrazolo[4,3-c]quinoline-8-carboxamide
formula_weight	497.5 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1

▶

6. Citations (1)

▶

length_a	101.960 Å
length_b	136.338 Å
length_c	178.513 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	I 2 2 2
int_tables_number	23
crystal_system	orthorhombic

resolution	3.040 Å
resolution_low	44.270 Å
r_factor	0.2176
r_work	0.2154
r_free	0.2598

fit	/app/data/saxs_computation/py/9py1/9py1.fit
pddf	/app/data/pr_computation/py/9py1/9py1.pr.out
profile	/app/data/saxs_computation/py/9py1/9py1.dat

PRMT5 Bound to Compound 8 and MTA

SAXS Profile

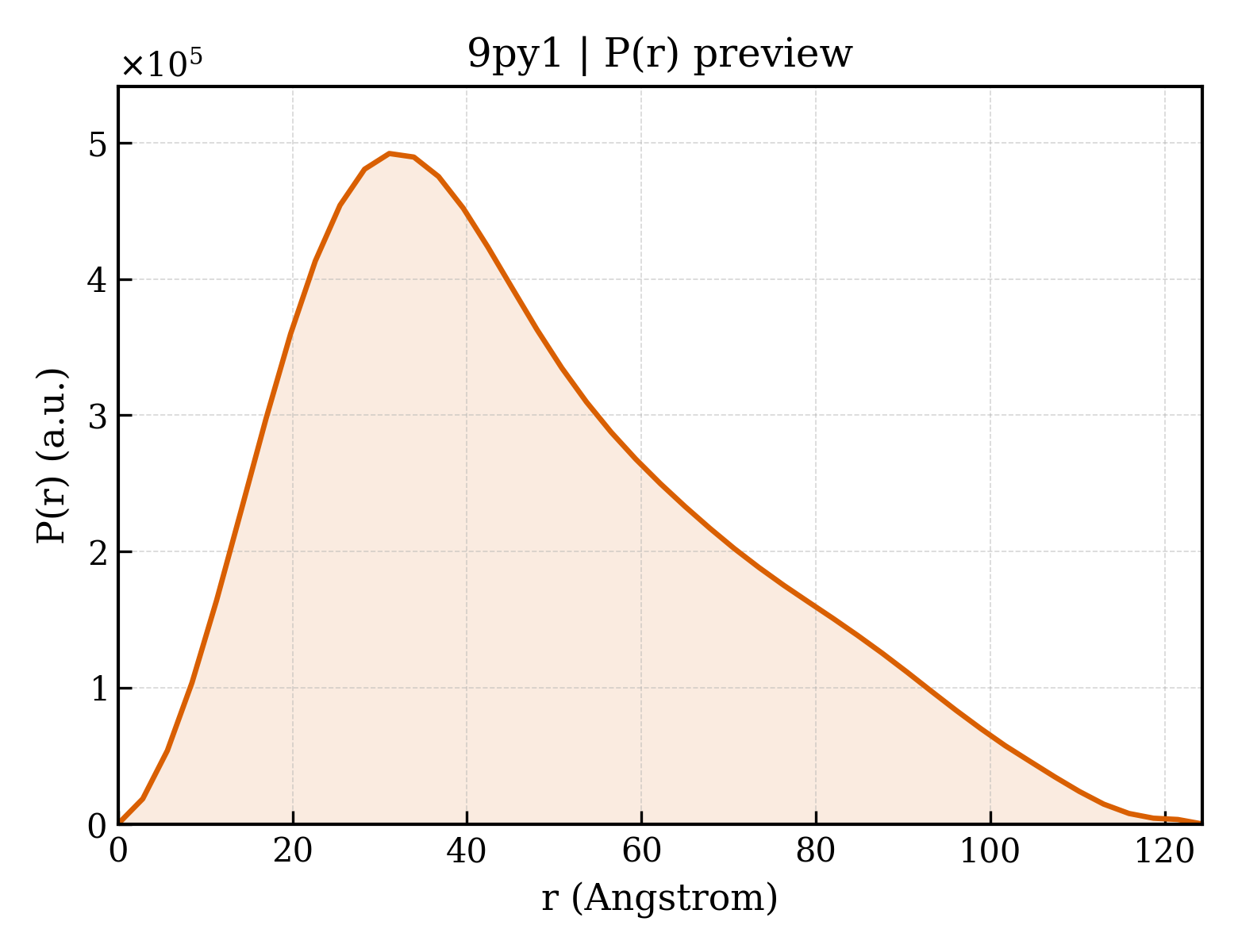

P(r) Distribution
