9q3v

Cryo EM structure of elk ACE2 in complex with XBB 1.5 spike RBD

Method: ELECTRON MICROSCOPY D_max: 112.4 Å Quality: GOOD

SAXS Profile

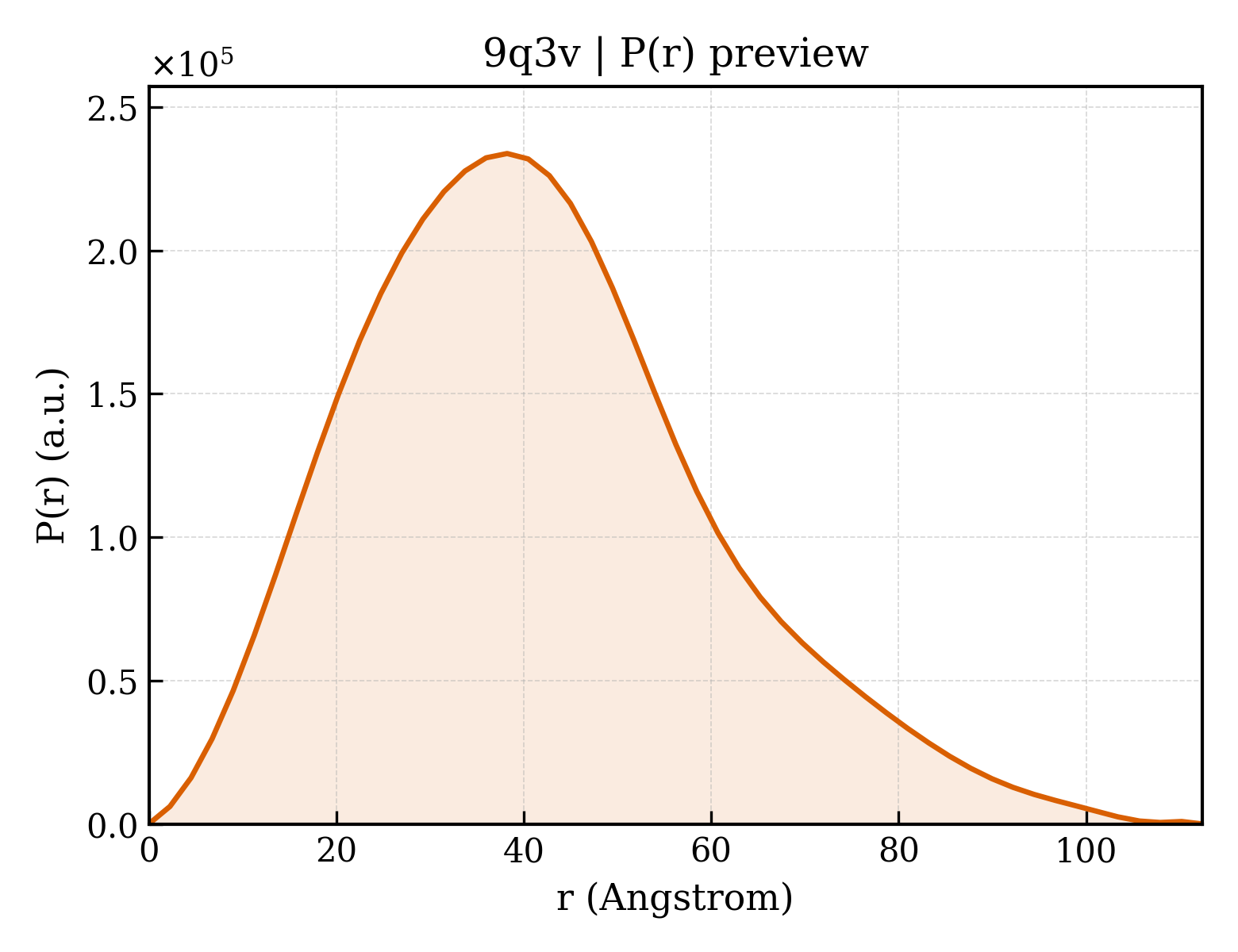

P(r) Distribution

▼

1. Structure Basics

entry_id	9q3v
deposition_date	2025-08-19
title	Cryo EM structure of elk ACE2 in complex with XBB 1.5 spike RBD
keywords	SARS-CoV-2, Cervidae, ACE2 receptor, viral host interaction, host susceptibility, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.99 Å
rg_electron	31.60 Å
i0	133077000.00
molecular_weight	91896.0 kDa
excluded_volume	114830 Å³
envelope_volume	151230 Å³
shell_volume	41122 Å³
envelope_diameter	119.0 Å
shell_rg	37.58 Å
envelope_rg	31.65 Å
shape_rg	31.58 Å
total_rg	32.20 Å
total_atoms	6482
n_residues	789
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	112.4 Å
rg_real	32.11 Å
rg_real_error	1.08 Å
i0_real	1.3310e+08
i0_real_error	2.1440e+06
rg_reciprocal	32.06 Å
i0_reciprocal	133100000.0000
total_estimate	0.8438
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	38.2 Å
skewness	0.534
kurtosis	0.064
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	31620000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.693; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.903

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Spike protein
formula_weight	25159.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	6482

RVQPTESIVRFPNITNLCPFHEVFNATTFASVYAWNRKRISNCVADYSVIYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKPSGNYNYLYRLFRKSKLKPFERDISTEIYQAGNKPCNGVAGPNCYSPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNF

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Cricetulus griseus

Entity 2 polymer

description	Angiotensin-converting enzyme 2
formula_weight	72442.5 kDa
ec_number	3.4.-.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MTGSFWLLLSLVAVTAAQSTTEEQAKTFLENFNHEAEDLSYQSSLASWNYNTNITDENVQKMNEARAKWSAFYEEQSRMAKTYSLEEIQNLTLKRQLKALQQSGTSVLSAEKSKRLNTILNTMSTIYSTGKVLDPNTQECLALEPGLDDIMENSRDYNRRLWAWEGWRAEVGKQLRPLYEEYVVLENEMARANNYEDYGDYWRGDYEVTEAGDYDYSRDQLMKDVEHTFAEIKPLYEQLHAYVRAKLMDTYPSYISPTGCLPAHLLGDMWGRFWTNLYSLTVPFKHKPSIDVTEKMENQSWDAERIFKEAEKFFVSIGLPHMTQGFWDNSMLTEPGDGRKVVCHPTAWDLGKGDFRIKMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPYLLRNGANEGFHEAVGEIMSLSAATPHYLKALGLLEPDFYEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKEQWMQKWWEMKREIVGVVEPLPHDETYCDPACLFHVAEDYSFIRYYTRTIYQFQFHEALCKTAKHEGALFKCDISNSTEAGQRLLQMLSLGKSEPWTLALESIVGIKTMDVKPLLNYFEPLFTWLKEQNKNSFVGWSTEWTPYSDGGHHHHHH

Source

organism	Cervus canadensis
common_name	elk
ncbi_taxonomy_id	1574408
host_organism	Cricetulus griseus

Entity 3 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.30 Å
resolution_method	—
num_particles	121345

fit	/app/data/saxs_computation/q3/9q3v/9q3v.fit
pddf	/app/data/pr_computation/q3/9q3v/9q3v.pr.out
profile	/app/data/saxs_computation/q3/9q3v/9q3v.dat
