9q3w
[22-7B C|A] 22 bp tensegrity triangle that propagates via blunt-end stacking with C stacking on A at the interface

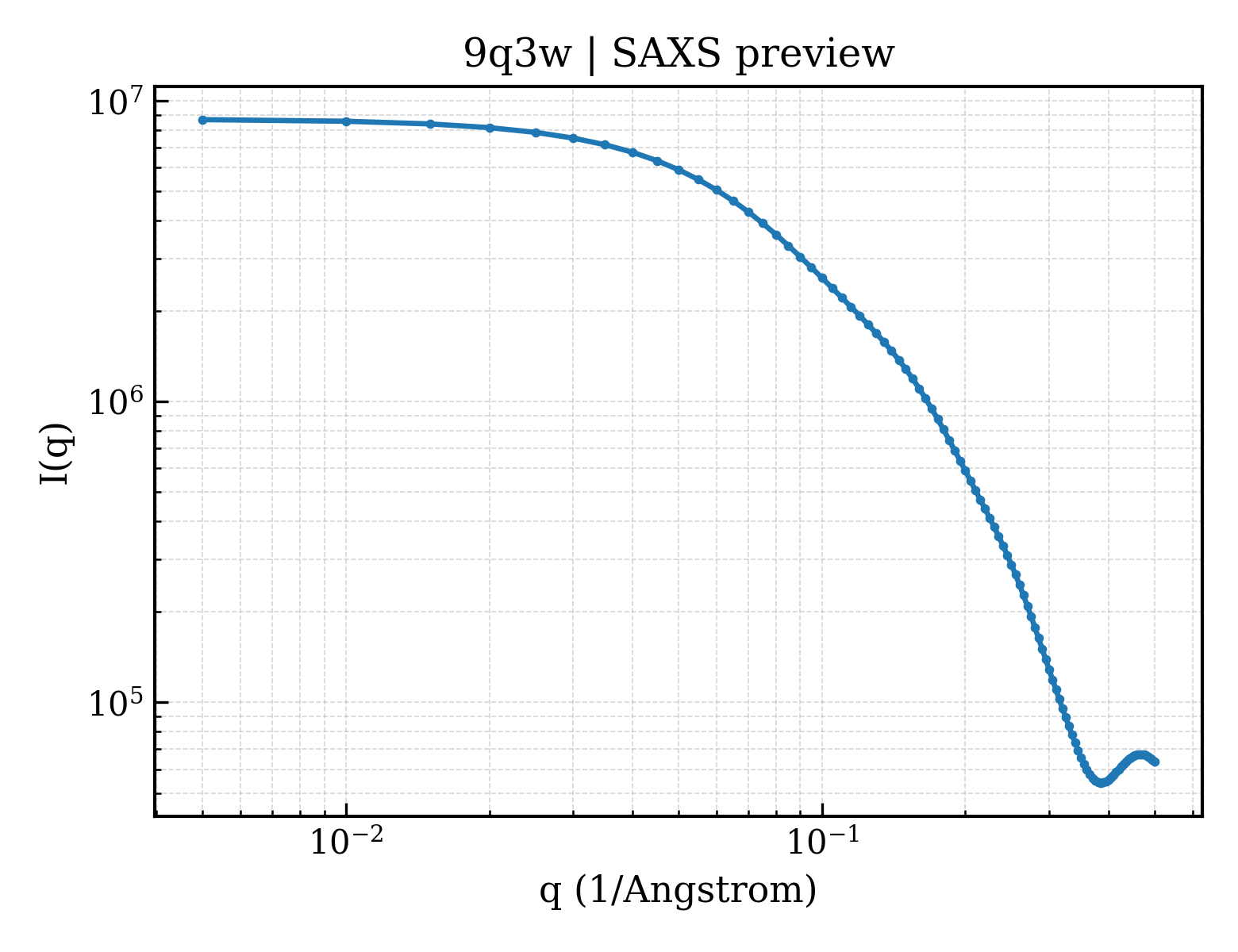

SAXS Profile

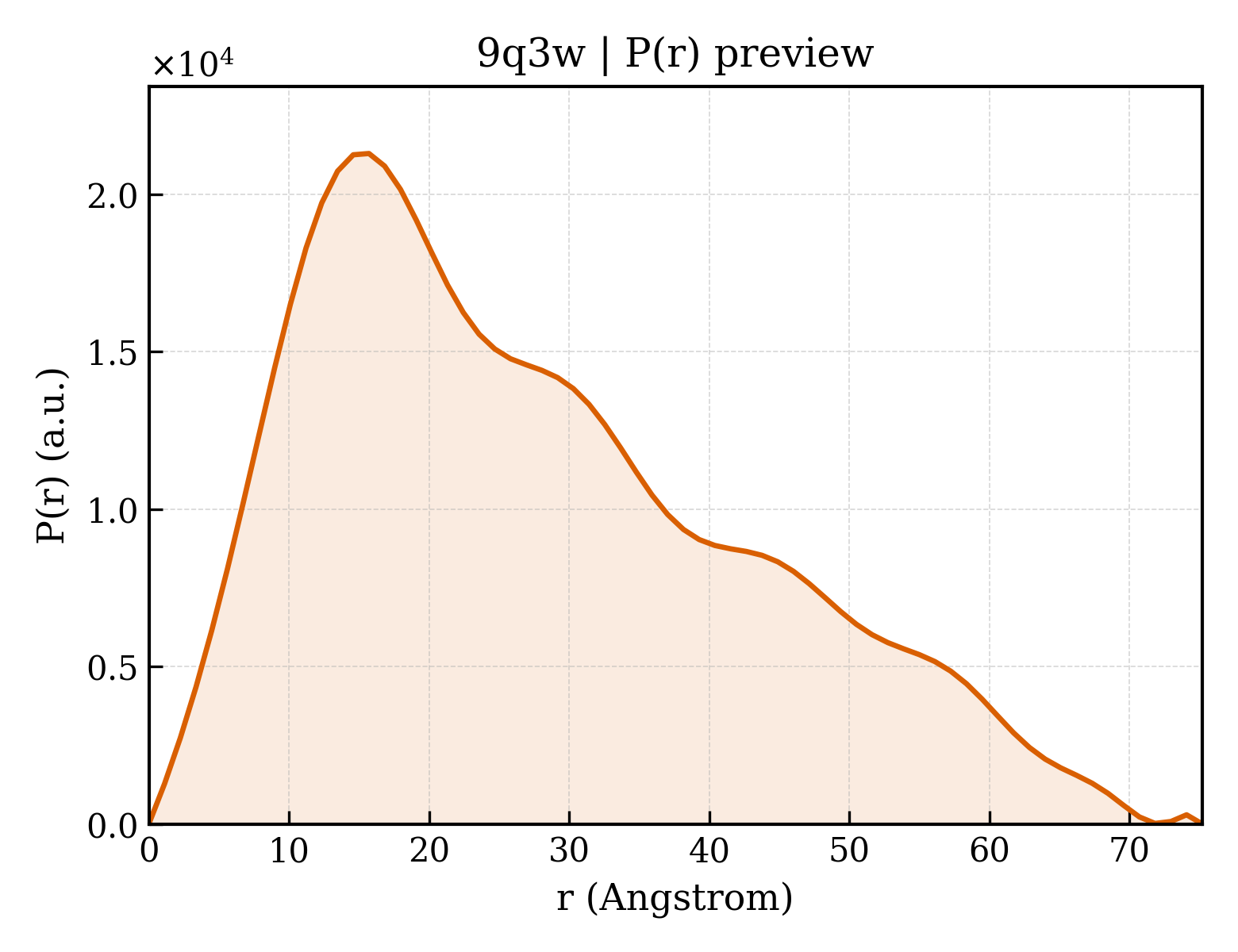

P(r) Distribution
1. Structure Basics
| entry_id | 9q3w |
| deposition_date | 2025-08-19 |
| title | [22-7B C|A] 22 bp tensegrity triangle that propagates via blunt-end stacking with C stacking on A at the interface |
| keywords | dna, tensegrity triangle, stacking, blunt; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.71 Å |
| rg_electron | 22.02 Å |
| i0 | 8705700.00 |
| molecular_weight | 13511.0 kDa |
| excluded_volume | 13062 ų |
| envelope_volume | 21326 ų |
| shell_volume | 9891 ų |
| envelope_diameter | 74.8 Å |
| shell_rg | 24.81 Å |
| envelope_rg | 22.10 Å |
| shape_rg | 21.98 Å |
| total_rg | 22.38 Å |
| total_atoms | 896 |
| n_residues | 44 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 75.2 Å |
| rg_real | 22.20 Å |
| rg_real_error | 0.71 Å |
| i0_real | 8.7060e+06 |
| i0_real_error | 1.1290e+05 |
| rg_reciprocal | 22.12 Å |
| i0_reciprocal | 8705000.0000 |
| total_estimate | 0.6708 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 15.7 Å |
| skewness | 0.602 |
| kurtosis | -0.474 |
| angular_range | — – 0.3650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 532600.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.445; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.096; Smooth: 0.287 |
